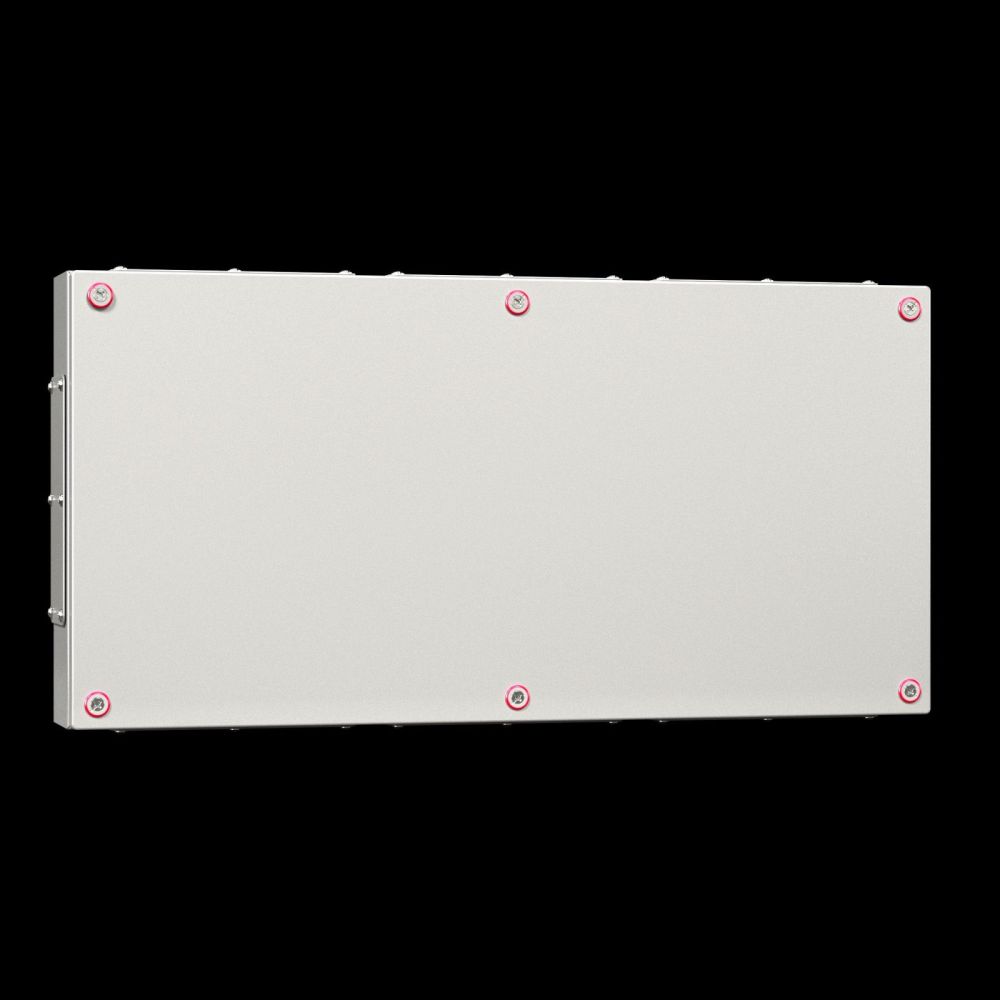

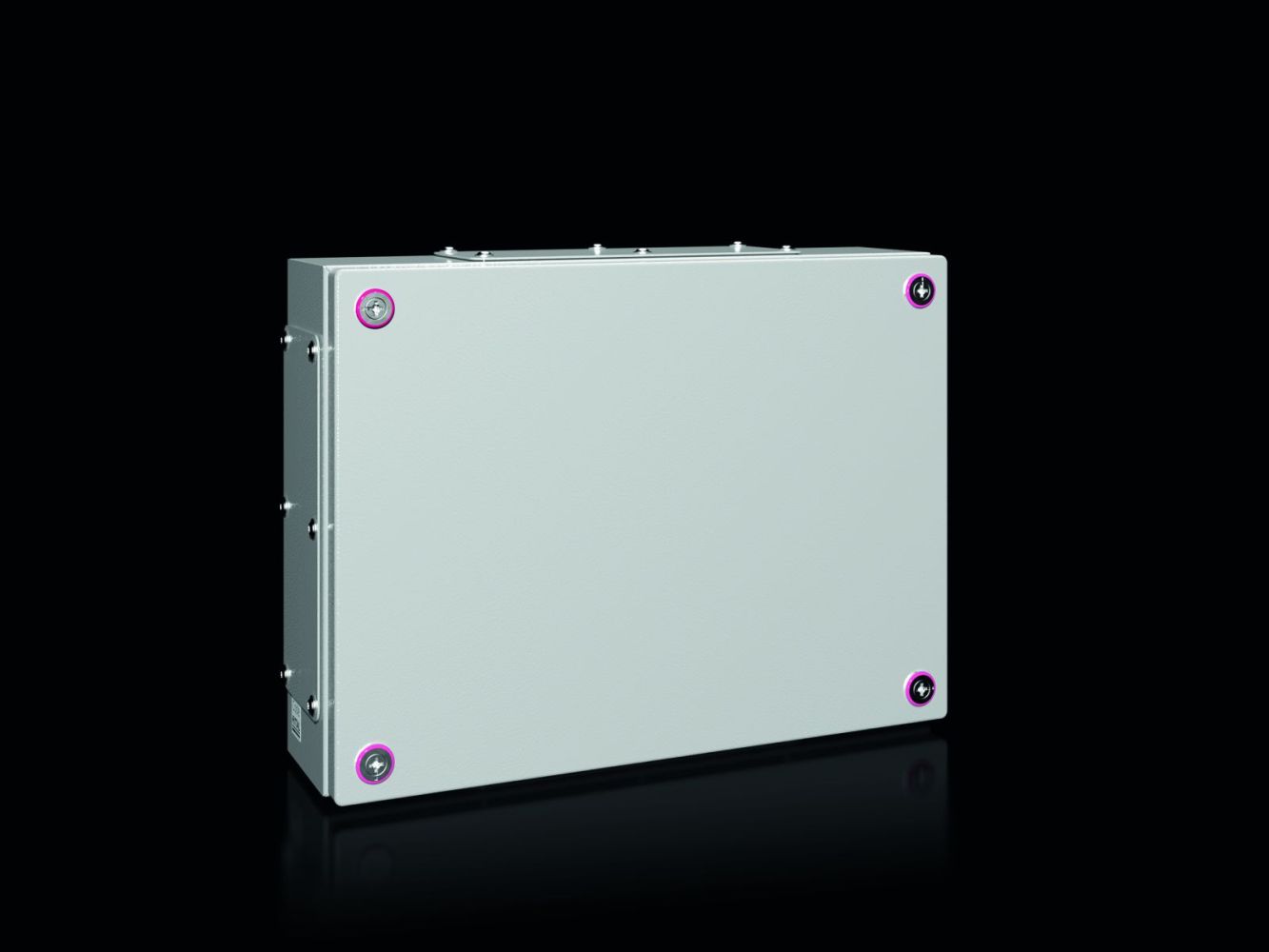

Rittal 1536000 terminal box KX, with gland plate, 400x300x120 mm
|
61,76 EUR 63,39 EUR |
|
|
( 73,49 EUR incl. VAT ) ≈ £51.69 | ≈ $67.87 plus delivery charges: 100,00 € |
|
| Delivery time from supplier's stock (ca.) 7 workdaysinfo_outline | |
| In Stock: >500 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1598158 |
| Mfg Part No: | 1536000 |
| UPC/EAN: | 4028177816411 |
| Weight: | 5.16 kg |
| Type: | KX 1536000 |
Product information for Rittal 1536000:
Applications
This terminal box is suitable for use in industrial environments where a protection rating of IP 55 according to EN 60 529 is required. This means the enclosure is dust-tight and protected against water jets from any direction, making it suitable for indoor applications with increased contamination or moisture exposure. The protection ratings NEMA 1 and NEMA 12, as well as the type rating according to UL 50E (Type 1 and Type 12), confirm suitability for dry indoor environments and for environments with light contamination. The IK code IK08 indicates high mechanical resistance against impact and shock, making it suitable for installations with increased mechanical stress.
Functions and Equipment in Detail

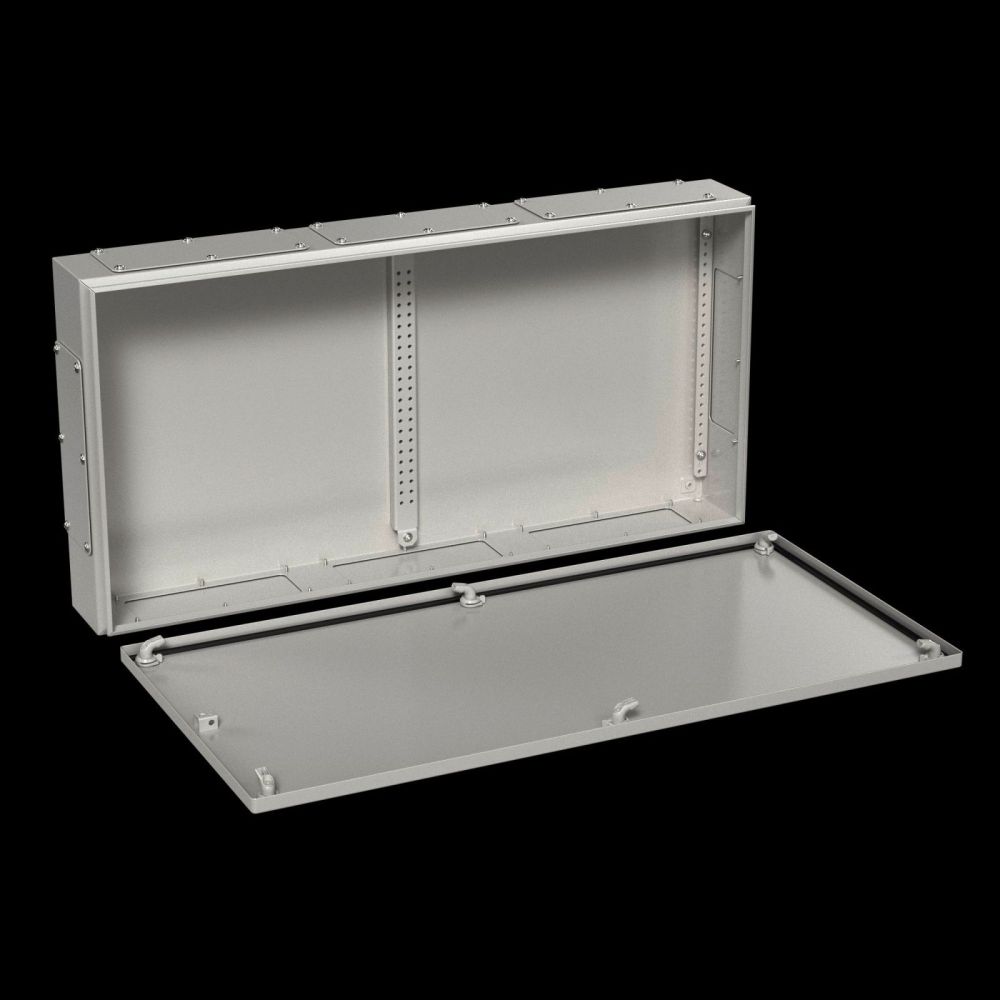

The enclosure is fitted with a continuous PU sealing gasket, ensuring a tight seal between the enclosure and the lid. Fastening is achieved via mini-lift latches, enabling secure and quick locking. The integrated sheet steel gland plates on the sides as well as top and bottom provide a stable mounting base. The gland plates are supplied with seals and fastening materials, allowing direct wall or structure mounting without additional components. The rear wall of the enclosure features pass-throughs that can be used for mounting wall brackets.
Technology Explained Simply
The triple surface treatment – nanoceramic coating, electrophoretic dip priming and external powder coating – ensures high resistance to corrosion and chemical influences. The PU sealing gasket provides a tight seal, supporting the IP 55 protection rating. The material thickness of 1.25 mm for both enclosure and lid ensures sufficient strength to withstand mechanical loads. The integrated gland plates enable simple and secure mounting, with seals and fastening materials included in the delivery scope.
Compatibility and Accessories
The terminal box is compatible with various accessories that allow extension of functionality. These include mounting clips for support rails, plug pass-throughs, pressure equalization plugs, mounting angles, condensate drains, baying sets for combination with other KX models, drilling screws, mounting brackets, support rails, spacing angles for shock protection covers, lid hinges, mast mounting brackets, mounting plates, mounting claws for a second mounting plane, and wall mounting brackets. These components allow individual adaptation to specific requirements in plant engineering.
Mounting and Installation

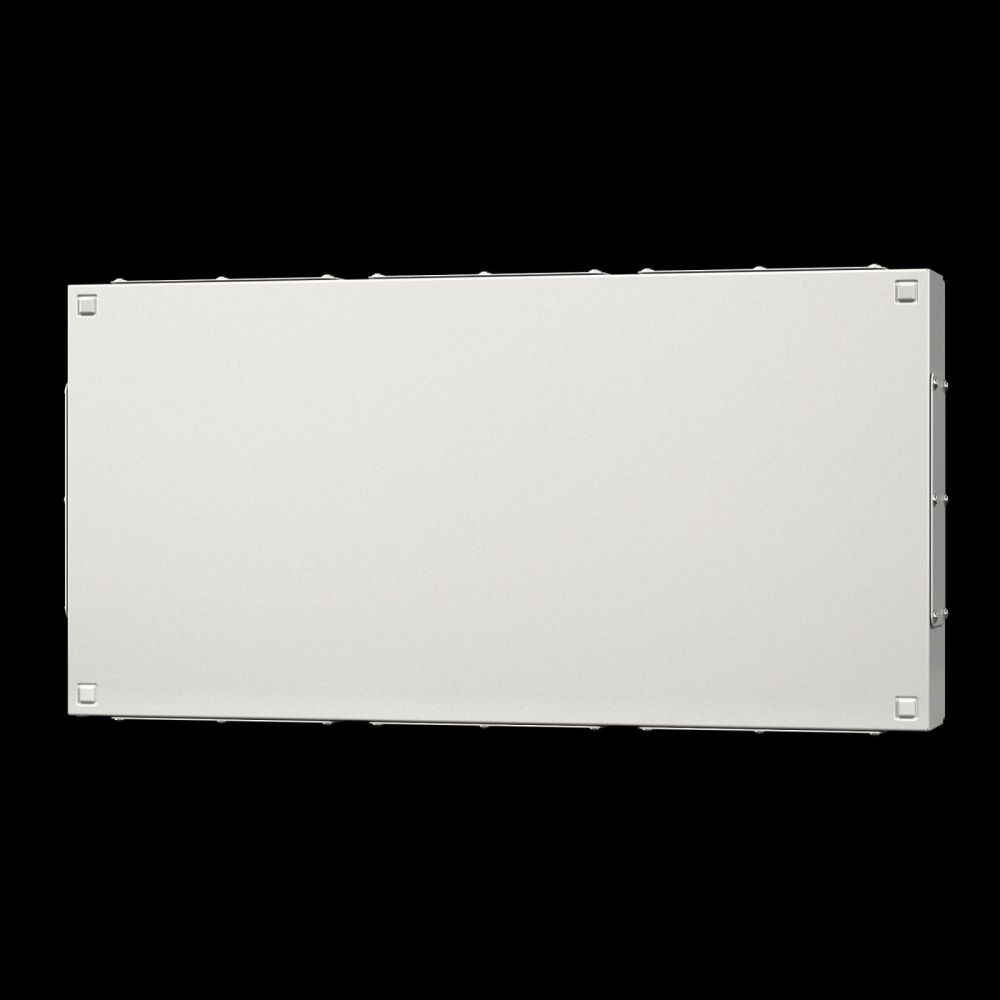

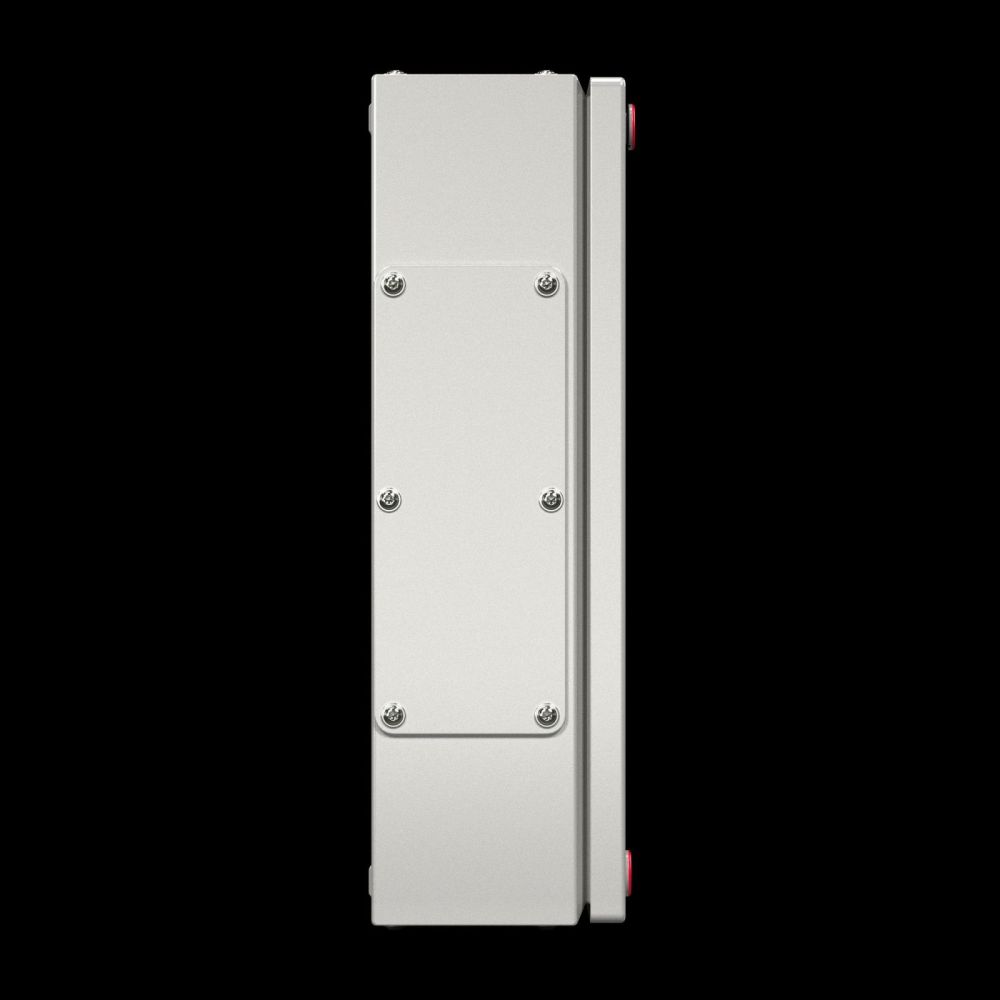

Mounting is performed via the integrated gland plates on the sides as well as top and bottom. The pre-installed seals and fastening materials simplify installation. The rear wall features pass-throughs for wall mounting brackets, enabling flexible mounting on various substrates. The mini-lift latches ensure secure and quick locking of the lid.
Operational Advantages
The terminal box offers optimal space utilization due to its compact design and allows flexible internal configuration. The integrated gland plates and pre-installed fastening elements reduce installation time. The high mechanical stability and IP 55 protection rating ensure reliable performance in demanding environments. The surface coating ensures long service life even under the influence of chemicals and moisture. The QR code on the enclosure, lid and type plate enables unique identification and easy access to relevant product information, as well as traceability of individual components.
Scope of Delivery
The product is delivered with enclosure, lid, mini-lift latches, sheet steel gland plates with seals and fastening materials.
| General | |
| Material | Housing: steel sheet, cover: steel sheet, continuously foamed PU seal |
| Surface protection | Housing and cover: dip primed, externally powder coated, textured lacquer |
| Colour | RAL 7035 |
| Scope of delivery | Enclosure with cover, mini-recessed latches, steel sheet flange plates with seals and mounting hardware |
| Width | 400 mm |
| Height | 300 mm |
| Depth | 120 mm |
| Degree of protection IP according to EN 60 529 | IP 55 |
| NEMA degree of protection | NEMA 1, NEMA 12 |
| Type rating according to UL 50E | Type 1, Type 12 |
| IK code | IK08 |
| Material thickness cover | 1,25 mm |
| Plate thickness cabinet | 1,25 mm |
| Flange plates | Flange plate (left + right) quantity: 1 + 1, flange plate (top + bottom) quantity: 1 + 1 |
| Base material | steel sheet |
| PCF/VE (Cradle-to-Gate) | 36.86 kg CO2 eq (Cat B) |
| Note on PCF class | Category B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared |
