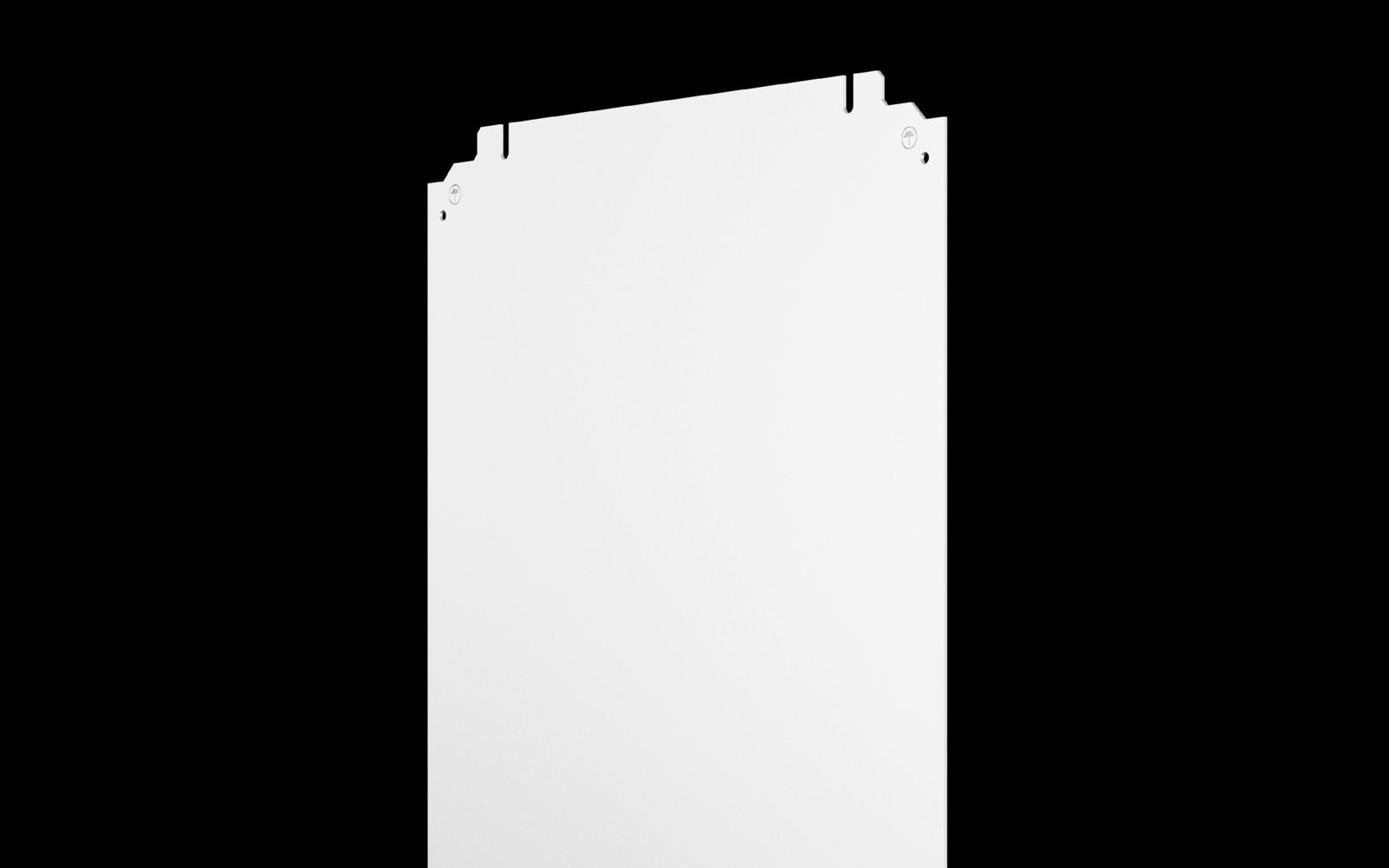

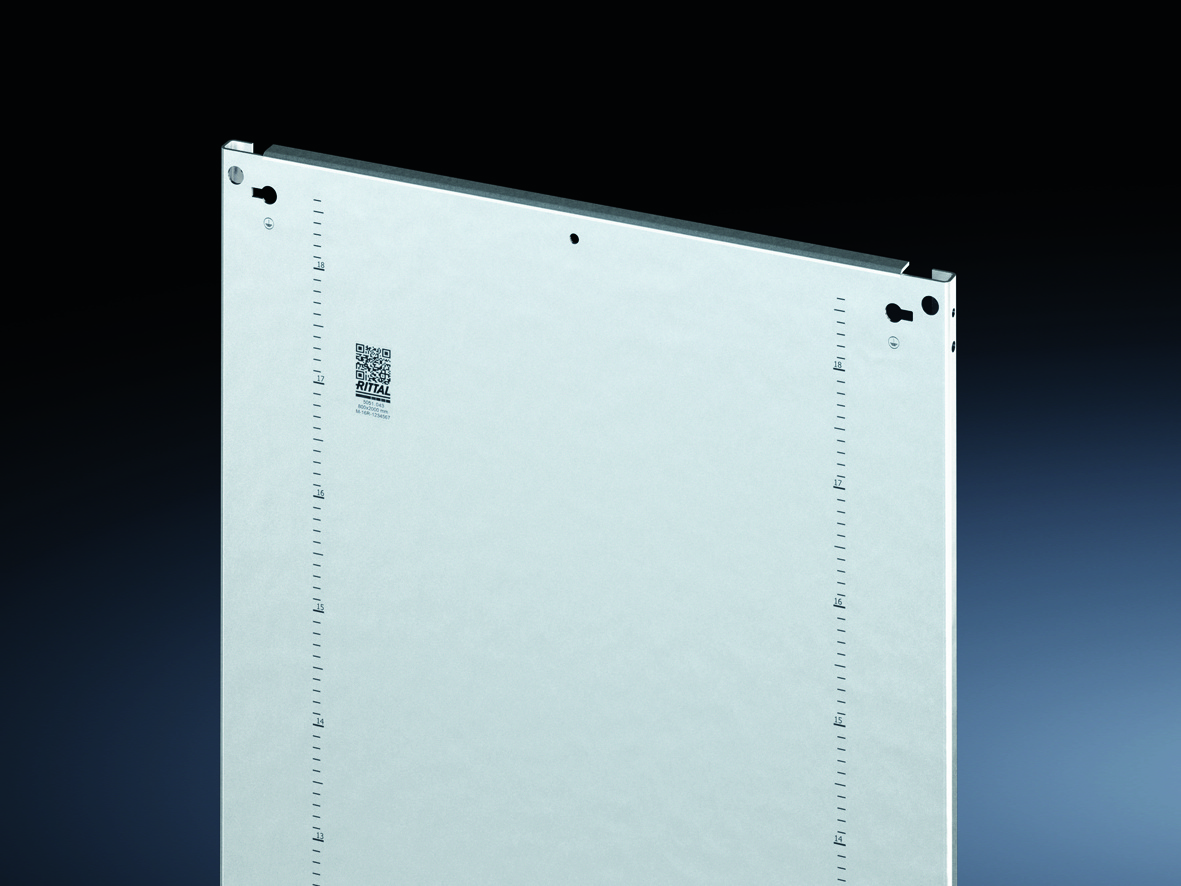

Rittal 1568800 mounting plate, for terminal box KX, bus enclosure KX,

Your rating:
Average rating
product review for Rittal 1568800 mounting plate, for terminal box KX, bus enclosure KX,
( 4.1 / 5 ) 7 ratings
Rittal 1568800
This image may differ from the desired article.
Rittal 1568800Rittal 1568800Rittal 1568800
9,92 EUR 10,05 EUR
( 11,80 EUR incl. VAT )
≈ £8.30  |  ≈ $10.90
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline
In Stock: >500 pieces
1x Rittal 1568800 mounting plate, for terminal box KX, bus enclosure KX,
Datasheet:file_download Download
Lieske Part No.:1598302
Mfg Part No: 1568800
UPC/EAN: 4028177925175
Weight:1.72 kg
Type:KX 1568800

Product information for Rittal 1568800:

The Rittal KX 1568800 is a mounting plate made of sheet steel, specifically developed for the mounting of components outside enclosures and housings. It is compatible with terminal boxes KX, bus enclosures KX, and terminal boxes HD, and is suitable for housings with a width of 300 mm and a height of 400 mm. The mounting plate serves as a stable base for the installation of switching and control elements that are not to be mounted inside the housing, for example, in cases of limited space or specific accessibility requirements.

Mounting plate

The mounting plate is made of 2 mm thick sheet steel, providing high mechanical stability and resistance to mechanical stress. The surface is galvanized, ensuring effective corrosion protection and extending the plate’s service life in industrial environments. The galvanization protects the material from moisture and oxidation, especially in environments with increased humidity or low corrosion load.

Applications

The mounting plate is primarily used in electrical and automation technology, where flexible and secure mounting of components outside the housing is required. It is suitable for applications in manufacturing automation, building automation, and industrial electrical installation. Mounting outside the housing allows better accessibility for maintenance and inspection without impairing the system’s functionality.

Functions and equipment in detail

The mounting plate is designed for use with terminal boxes KX, bus enclosures KX, and terminal boxes HD. The mentioned housing types are widely used in industrial electrical engineering and offer a standardized mounting base. The plate is designed for dimensions of 300 mm width and 400 mm height, ensuring a direct fit for the specified housing types. Mounting is done using screws included in the accessories of the respective housing, as described by the manufacturer.

Technology explained simply

The use of 2 mm thick sheet steel ensures sufficient strength to transfer mechanical loads during component mounting. The galvanized surface protects the material from corrosion, which is particularly beneficial in environments with increased humidity or low chemical stress.

Compatibility and accessories

The mounting plate is specifically designed for housing types terminal box KX, bus enclosure KX, and terminal box HD. The fit is designed for a housing width of 300 mm and a height of 400 mm. The mounting screws for the plate itself are included in the accessories of the respective housing, according to manufacturer specifications.

Mounting and installation

Mounting is done by securing the plate to the designated mounting points on the housing, using screws from the housing’s accessories. The plate is installed to exactly match the specified dimensions of 300 mm width and 400 mm height.

Operational advantages

The mounting plate enables flexible and secure mounting of components outside the housing, improving accessibility for maintenance and inspection. The use of galvanized sheet steel ensures high corrosion resistance, extending the service life of the mounting plate in industrial environments. The precise fit for the specified housing types ensures easy and secure installation without additional modifications.

Terminal box KX

The mounting plate is specifically developed for terminal boxes KX, which are frequently used in industrial electrical engineering. These housings offer a standardized mounting base for terminals and other components. The mounting plate allows mounting of components outside the housing, increasing flexibility during installation.

Bus enclosure KX

Compatibility with bus enclosures KX expands the application range of the mounting plate. These housings are common in automation technology and are used for mounting bus and control elements. The mounting plate enables mounting of these elements outside the housing, improving accessibility.

Terminal box HD

The mounting plate is also suitable for terminal boxes HD, which offer higher mechanical load capacity. Using the mounting plate with these housings enables flexible and secure installation of components outside the housing.

Sheet steel

The sheet steel material with a thickness of 2 mm provides sufficient strength for mounting components. The galvanized surface protects the material from corrosion, extending the service life of the mounting plate in industrial environments.

Galvanized

The galvanized surface provides effective corrosion protection, shielding the material from moisture and oxidation. This is especially important in environments with increased humidity or low chemical stress.

Housing width 300 mm, height 400 mm

The mounting plate is designed for a housing width of 300 mm and a height of 400 mm, ensuring a direct fit for the specified housing types. These dimensions are standardized in industrial electrical engineering and allow for easy installation without additional adjustments.

General
MaterialSheet steel, 2 mm
Surface protectionZinc-plated
Suitable for housing typeTerminal box KX, Bus enclosure KX, Terminal box HD
Suitable forEnclosure type: terminal box KX, bus enclosure KX, terminal box HD, Width: = 300 mm, Height: = 400 mm


Product data sheet
Datasheet for Rittal 1568800, EAN: 4028177925175
