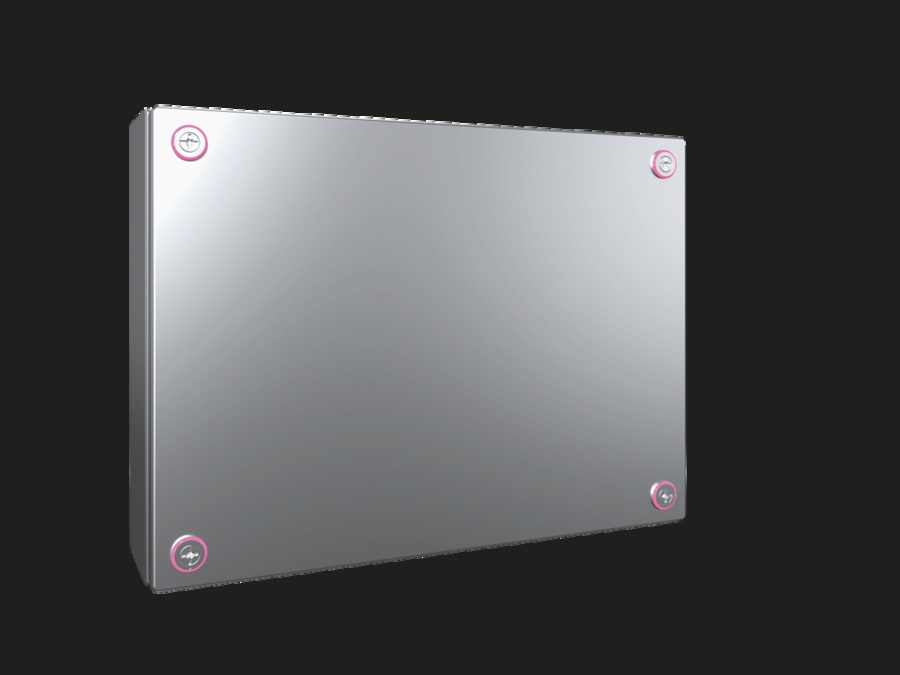

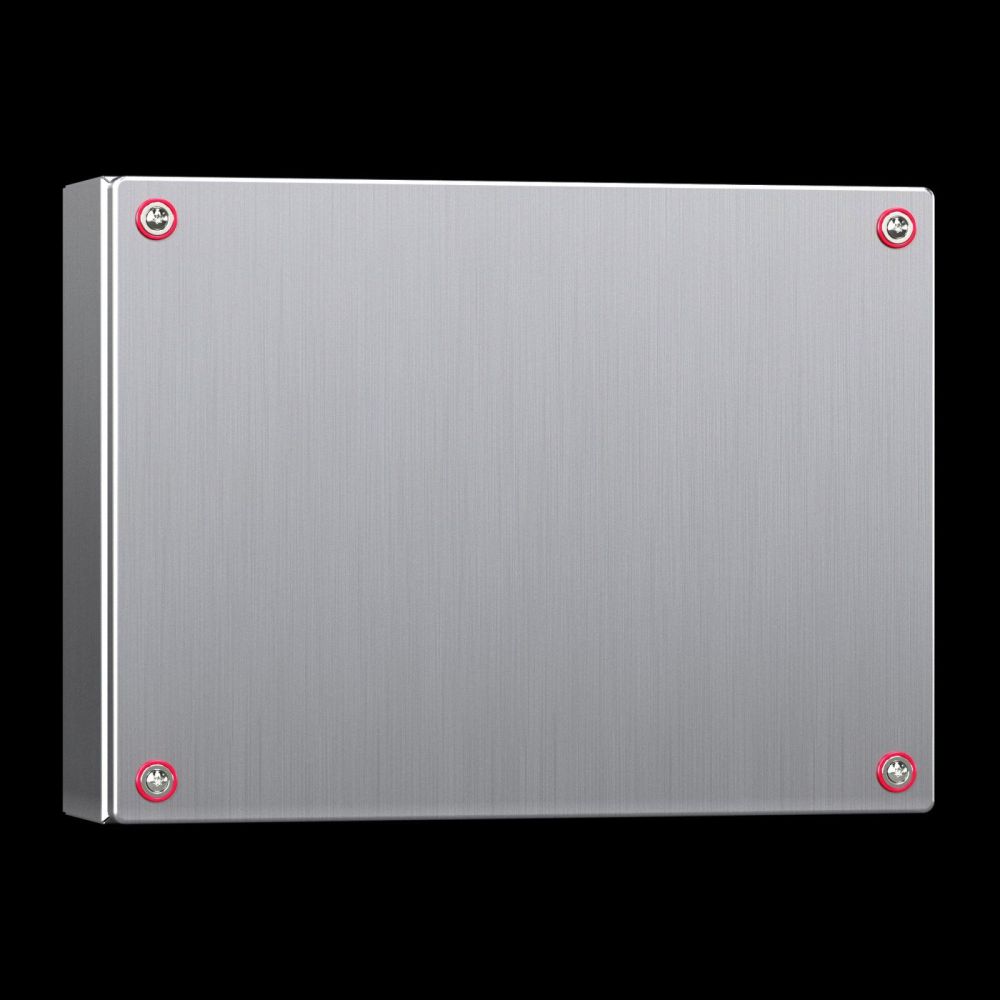

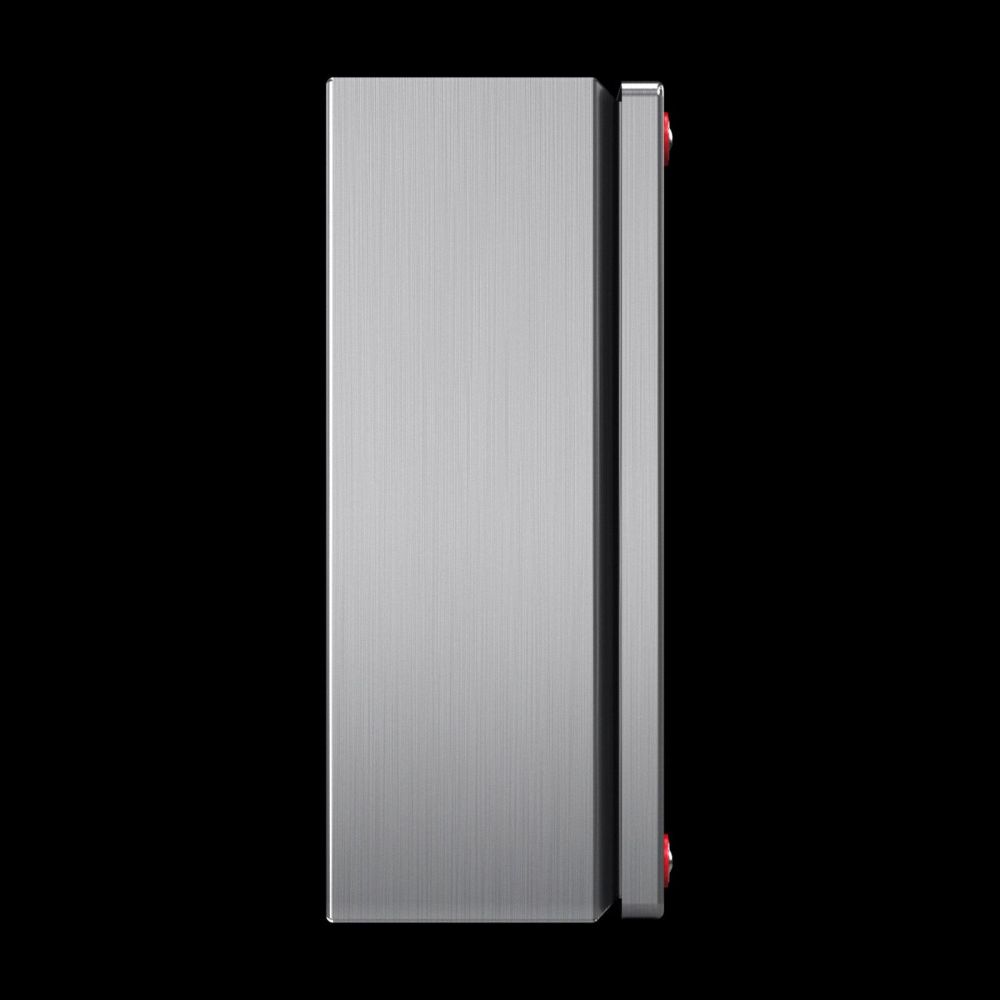

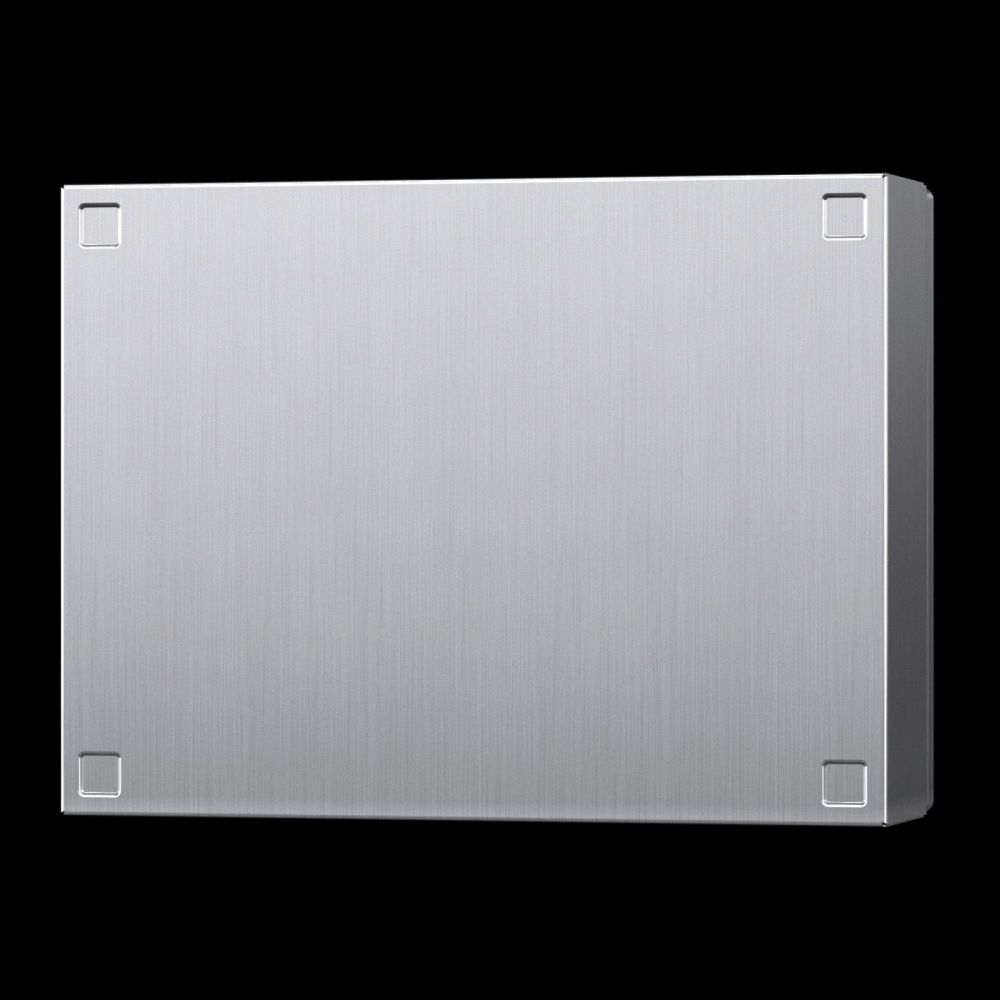

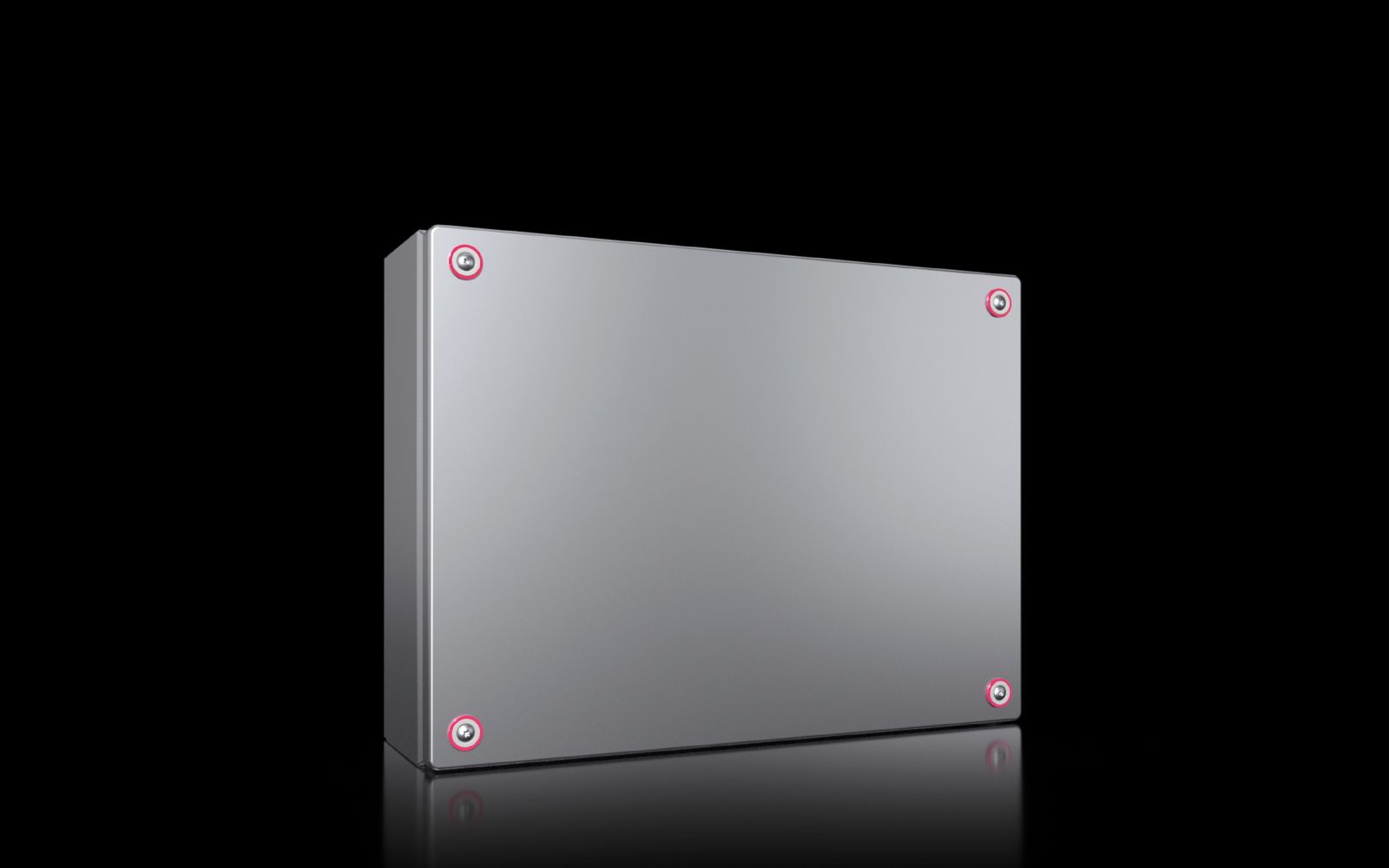

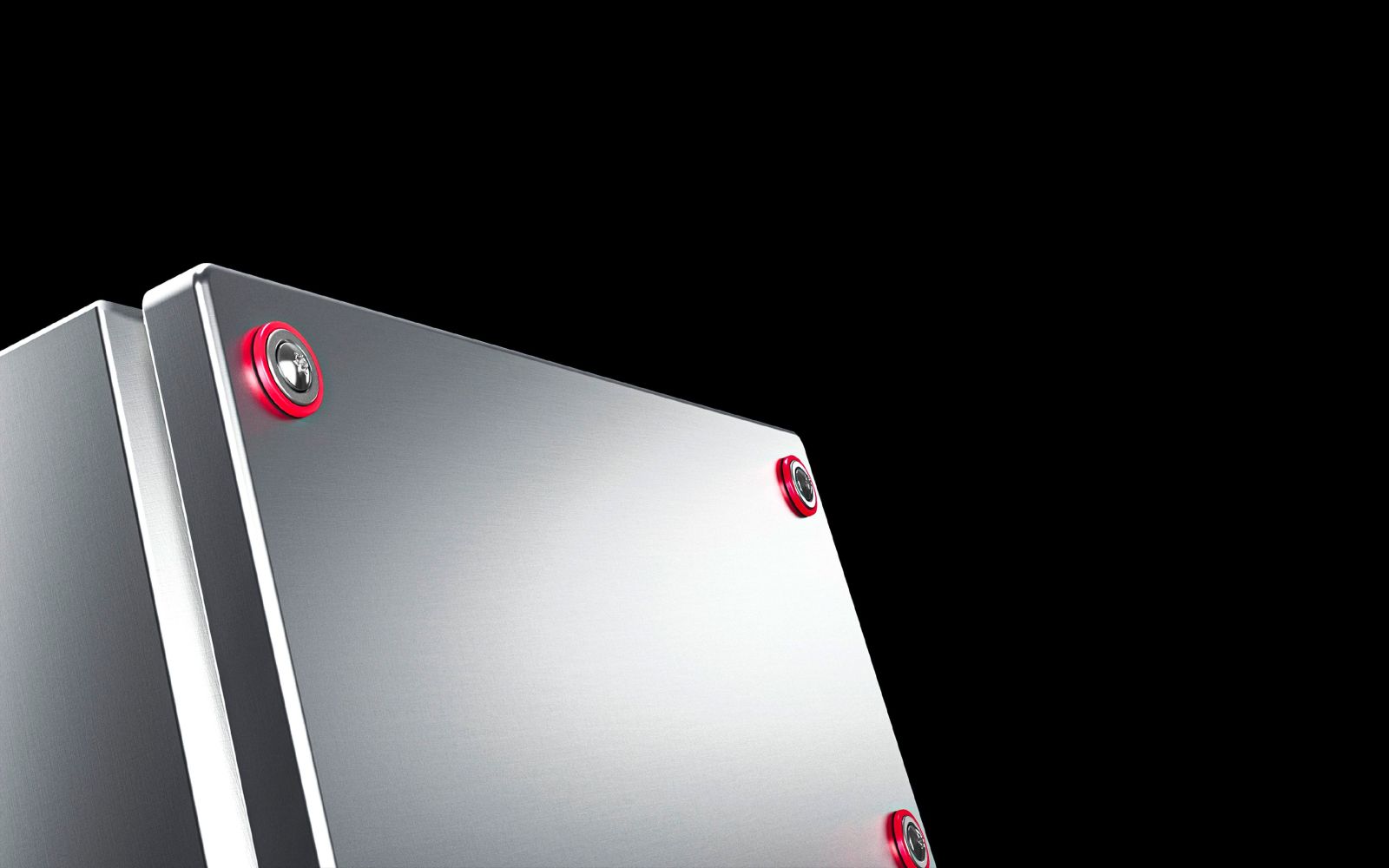

Rittal 1569000 terminal box KX, stainless steel 1.4301, without mounting plate

Your rating:
Average rating
product review for Rittal 1569000 terminal box KX, stainless steel 1.4301, without mounting plate
( 4 / 5 ) 1 ratings
Rittal 1569000
This image may differ from the desired article.
Rittal 1569000Rittal 1569000Rittal 1569000Rittal 1569000Rittal 1569000Rittal 1569000Rittal 1569000Rittal 1569000Rittal 1569000Rittal 1569000
-10% 236,21 EUR 263,50 EUR
( 281,09 EUR incl. VAT )
≈ £197.71  |  ≈ $259.59
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 8 workdaysinfo_outline
In Stock: >50 pieces
1x Rittal 1569000 terminal box KX, stainless steel 1.4301, without mounting plate
Datasheet:file_download Download
Lieske Part No.:1778290
Mfg Part No: 1569000
UPC/EAN: 4028177919211
Weight:4.56 kg
Type:KX 1569000

Product information for Rittal 1569000:

The Rittal KX 1569000 is a terminal box made of stainless steel 1.4301 (AISI 304), designed for use in industrial and technical installations where high mechanical strength, corrosion resistance, and protection against environmental influences are required. The housing has dimensions of 400 mm width, 300 mm height, and 120 mm depth, and is suitable as a compact solution for mounting terminals, connectors, or small electrical assemblies. It features a fixed lid with a continuously foamed PU seal, ensuring a tight seal, and is equipped with four quick-release fasteners that enable secure and rapid assembly.

Applications
The terminal box is suitable for use in production plants, automation technology, machine building, and outdoor environments where protection against dust, splashing water, and mechanical impacts is required. The protection rating IP 66 according to EN 60 529 guarantees dust-tight and watertight sealing, even under heavy splashing water conditions. The NEMA classification includes types 1, 3R, 3RX, 4, 4X, and 12, confirming suitability for indoor and outdoor use under various environmental conditions. The UL 50E Type Rating approval for Type 1, 3R, 3RX, 4, 4X, and 12 underscores its international applicability.

Functions and Equipment in Detail

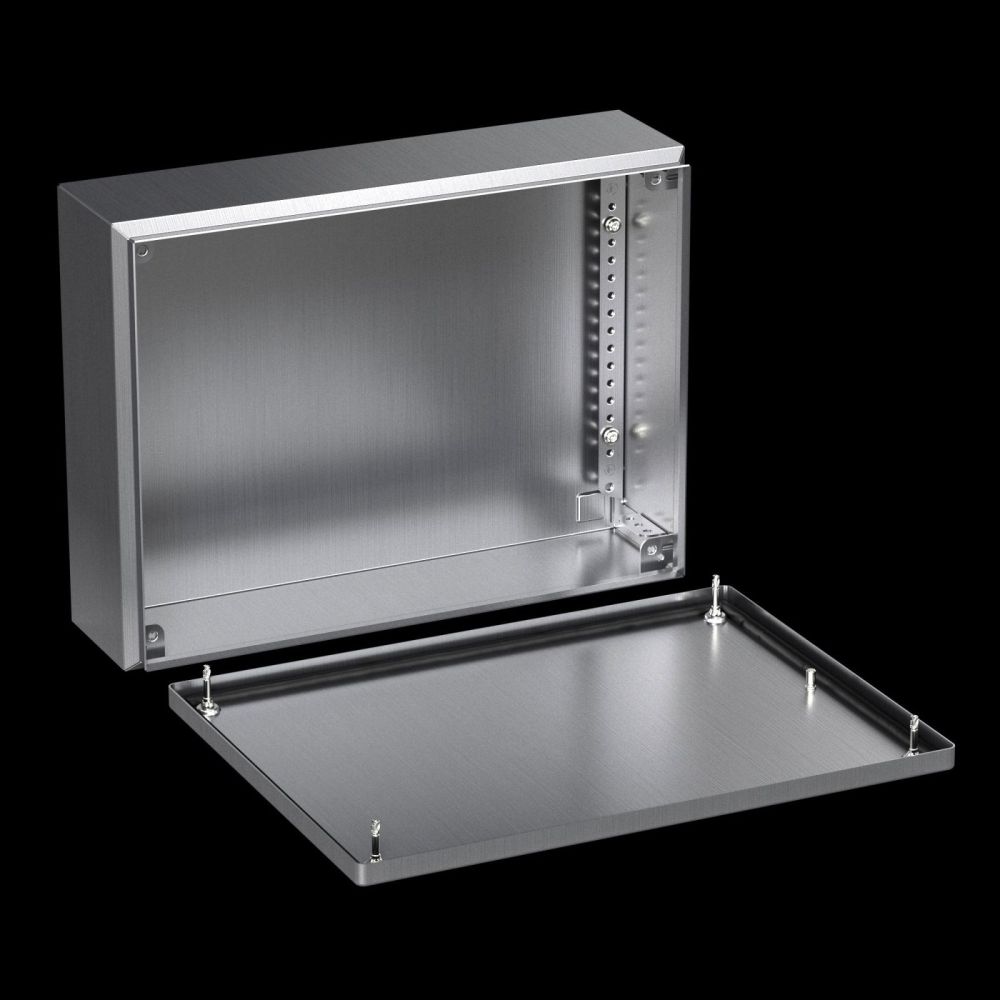

The housing is made of a single piece of folded and welded stainless steel sheet with a material thickness of 1.25 mm for both housing and lid. The surface is brushed with a grit of 180, providing a uniform, easy-to-clean, and corrosion-resistant surface. The continuous protective flange around the lid opening and the PU seal ensure a tight seal. The housing includes an integrated protective conductor connection for secure earthing. The lid features an earthing bolt that ensures a direct and reliable connection to the housing body. The quick-release fasteners are fitted with plastic bushings to protect the material and enable clean assembly.

Technology Explained Simply
The IP 66 protection rating means the housing is dust-tight and protected against splashing water from any direction, even under strong jets. The NEMA classification covers various application scenarios, from dry indoor environments (NEMA 1) to weatherproof outdoor installations (NEMA 4X). The material thickness of 1.25 mm provides sufficient mechanical stability to withstand vibrations and mechanical loads during operation. The use of stainless steel 1.4301 (AISI 304) ensures high corrosion resistance, especially in humid or slightly aggressive environments.

Compatibility and Accessories
The terminal box is compatible with various accessories that facilitate mounting and integration into existing systems. These include mounting clips for support rails, mounting brackets, stainless steel 1.4404 lid hinges, condensate drains, baying sets for AX, KX, AE, and KL, ST 4,8 L9,5 mm screws, mounting brackets, stainless steel 1.4301 wall mounting brackets, TH 35/7,5/35/15 support rails, SZ pressure equalization plugs, AX mast mounting brackets, M6-M6 earthing straps, mounting plates for terminal boxes and bus enclosures, mounting claws for a second mounting level, and SZ wall mounting brackets. These components enable flexible and application-specific installation.

Mounting and Installation
Mounting is performed using the integrated quick-release fasteners, which ensure rapid and secure lid attachment. Wall mounting is done through pre-drilled holes, with optional use of additional wall mounting brackets or mounting brackets. Support rail mounting is possible using mounting clips or mounting brackets. Earthing is achieved via the integrated protective conductor connection in the housing and the earthing bolt in the lid.

Operational Advantages
The terminal box offers high operational safety due to its robust stainless steel construction and tight sealing. The quick mounting and dismounting via quick-release fasteners reduces installation time. The integrated earthing and corrosion-resistant surface ensure long service life and low maintenance. Clear identification via QR codes on the housing, lid, and nameplate enables easy traceability and quick access to technical documentation. Compatibility with various accessories increases flexibility when integrating into existing systems.

General
MaterialHousing: Stainless steel 1.4301 (AISI 304), Cover: Stainless steel 1.4301 (AISI 304), continuous foamed PU seal
Surface protectionHousing and cover: fine grinding, grit 180
Scope of deliveryHousing with cover, quick-release fastener including plastic inserts
Width400 mm
Height300 mm
Depth120 mm
Degree of protection IP according to EN 60 529IP 66
NEMA degree of protectionNEMA 1, NEMA 3R, NEMA 3RX, NEMA 4, NEMA 4X, NEMA 12
Type rating according to UL 50EType 1, Type 3R, Type 3RX, Type 4, Type 4X, Type 12
Material thickness cover1,25 mm
Plate thickness cabinet1,25 mm
LockNumber of locks: 4
Base materialStainless steel 1.4301 (AISI 304)
PCF/VE (Cradle-to-Gate)17,38


Product data sheet
Datasheet for Rittal 1569000, EAN: 4028177919211

Questions & answers

What is the delivery time of Rittal 1569000 terminal box KX, stainless steel 1.4301, without mounting plate?

The article Rittal 1569000 terminal box KX, stainless steel 1.4301, without mounting plate is currently in stock

According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 1569000 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 1569000 terminal box KX, stainless steel 1.4301, without mounting plate always at the best possible price. We can give you a discount of 2% on Rittal 1569000 terminal box KX, stainless steel 1.4301, without mounting plate if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
