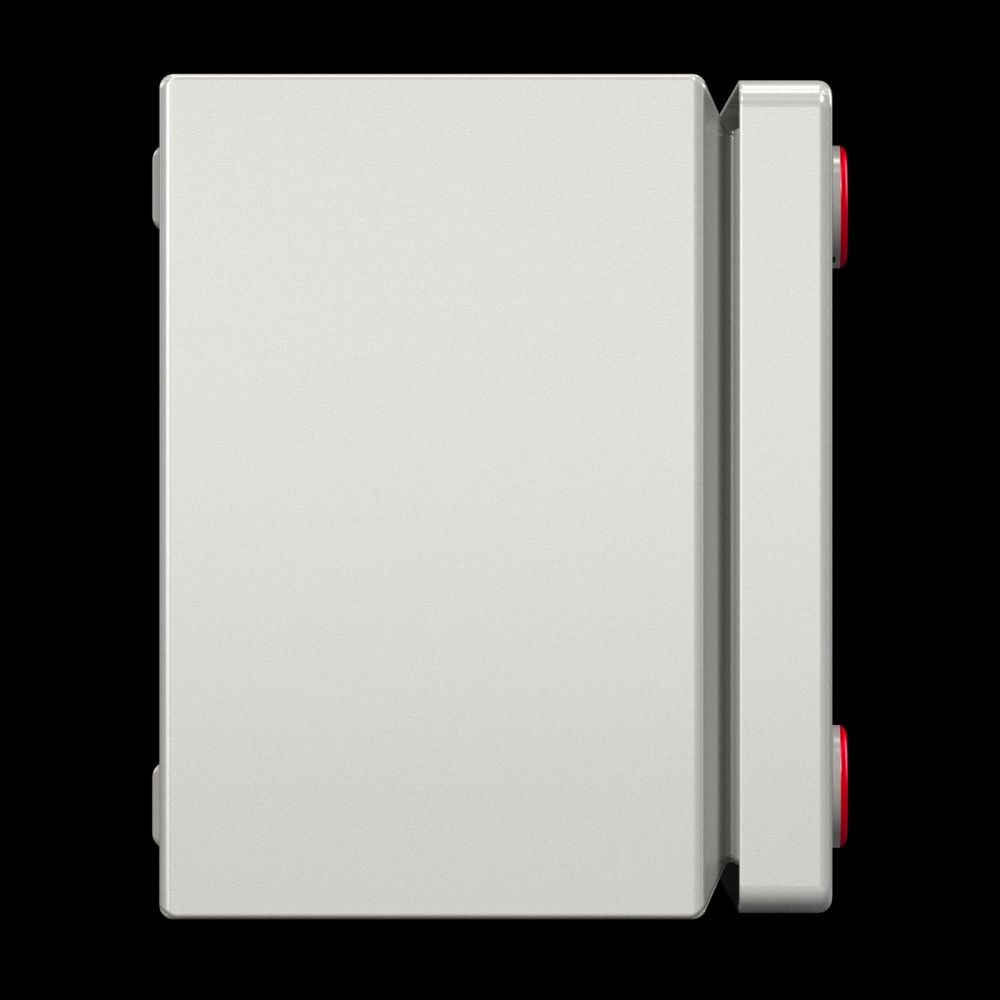

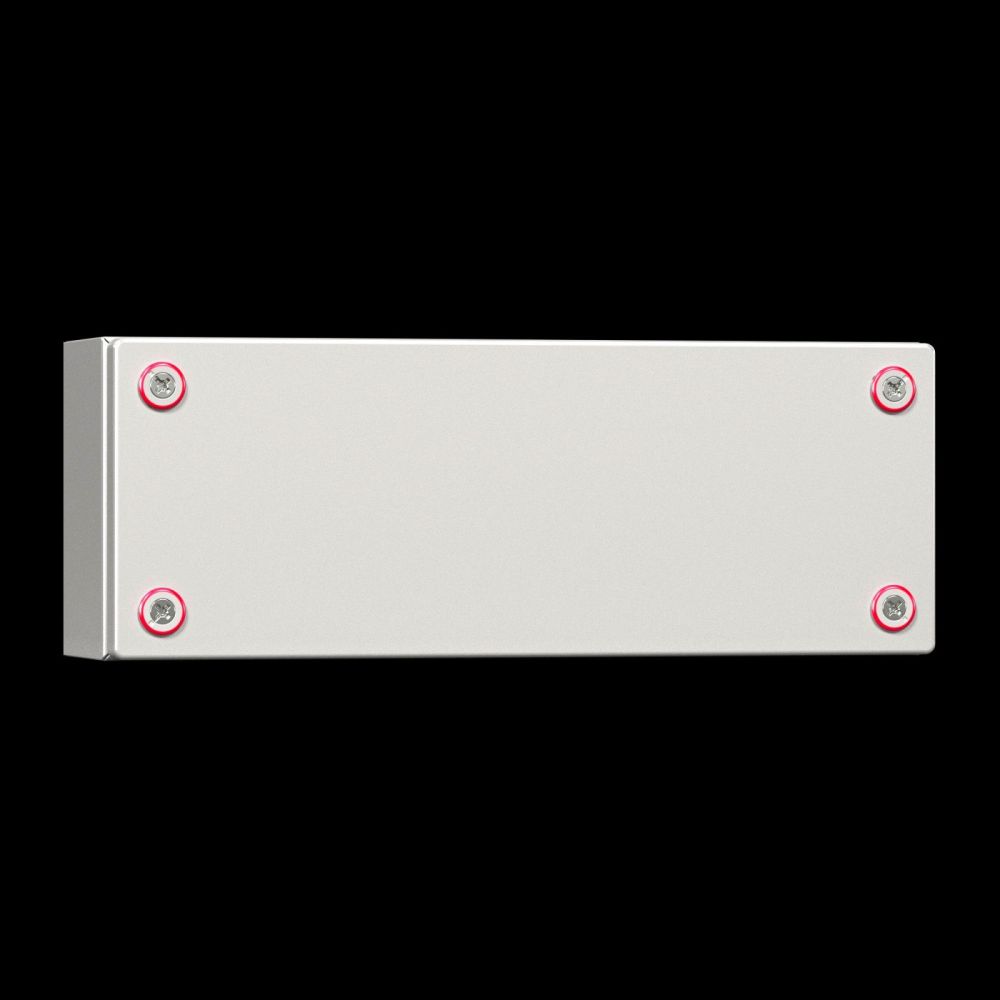

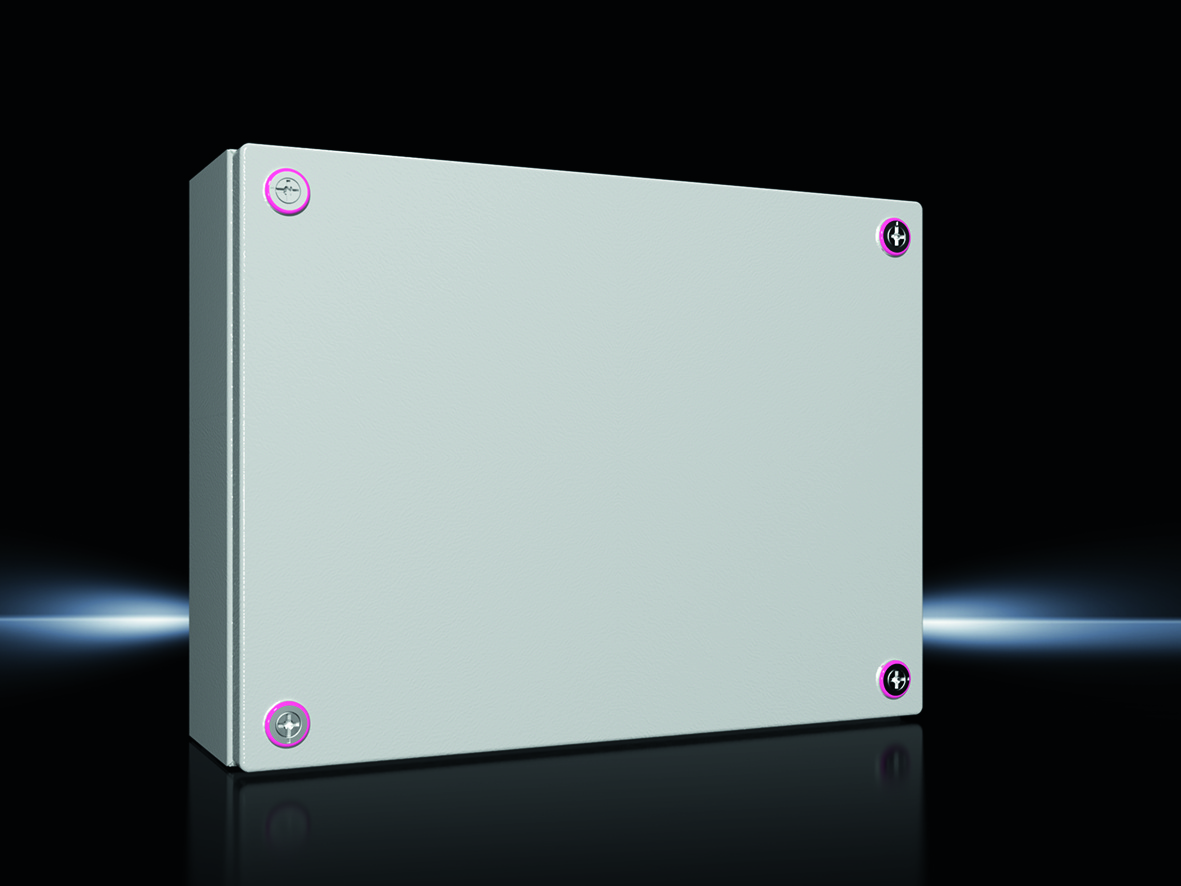

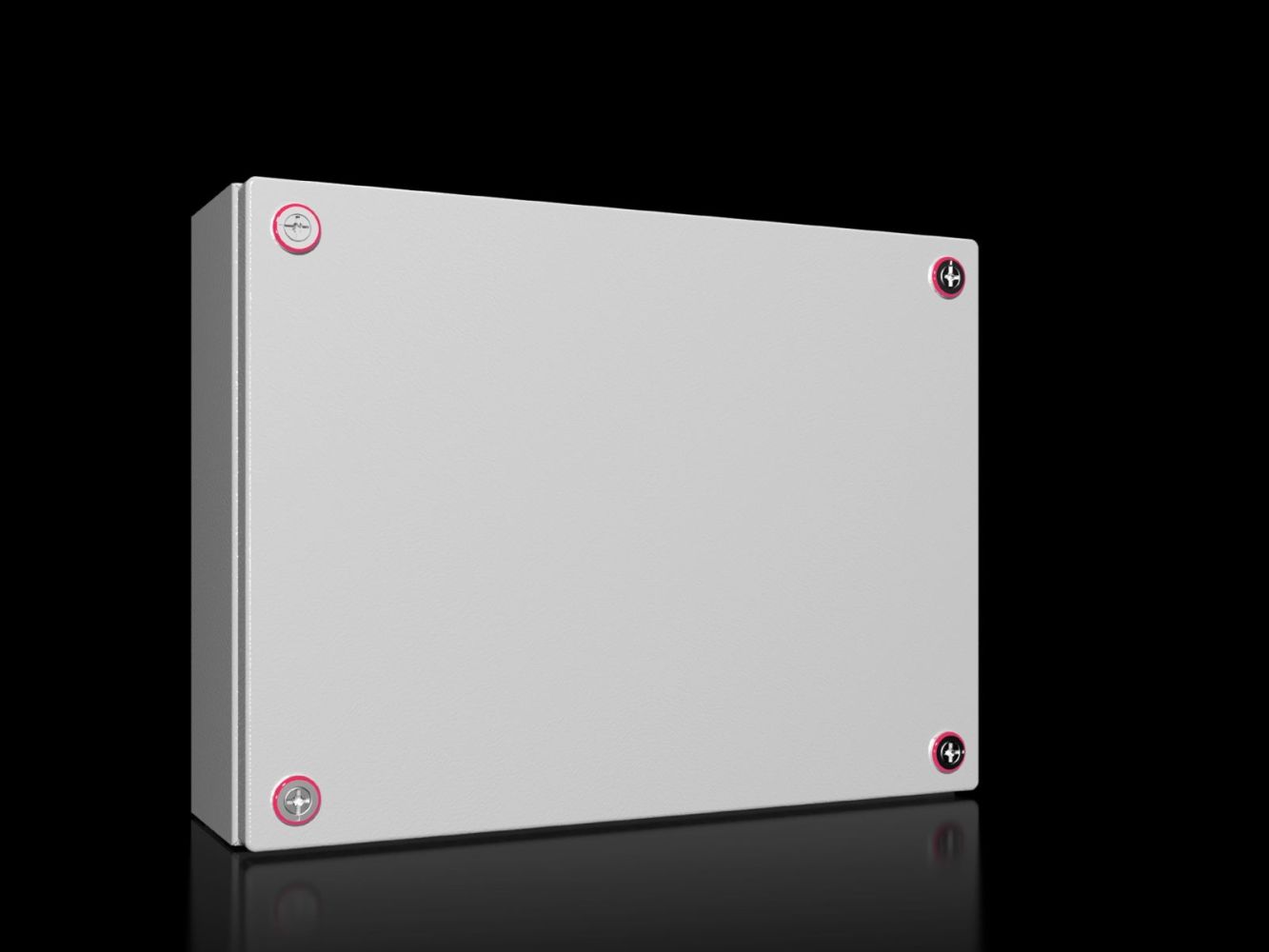

Rittal 1508000 terminal box KX, without gland plate 400x300x120 mm

Your rating:
Average rating
product review for Rittal 1508000 terminal box KX, without gland plate 400x300x120 mm
( 4.3 / 5 ) 6 ratings
Rittal 1508000
This image may differ from the desired article.
Rittal 1508000Rittal 1508000Rittal 1508000Rittal 1508000Rittal 1508000Rittal 1508000Rittal 1508000
49,03 EUR 49,05 EUR
( 58,35 EUR incl. VAT )
≈ £41.04  |  ≈ $53.88
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline
In Stock: >25 pieces
1x Rittal 1508000 terminal box KX, without gland plate 400x300x120 mm
Datasheet:file_download Download
Lieske Part No.:1598177
Mfg Part No: 1508000
UPC/EAN: 4028177816220
Weight:4.701 kg
Type:KX 1508000

Product information for Rittal 1508000:

The KX 1508000 is an industrial terminal box from the brand Rittal, designed for use in technical installations and electrical systems. The enclosure is made of sheet steel and offers flexible internal configuration with high protection rating. It is designed without a gland plate and without a mounting plate, making it suitable for various mounting options. The dimensions are 400 mm width, 300 mm height, and 120 mm depth, providing a compact yet sufficiently large filling capacity. The enclosure is supplied with a lid and a mini-ribbed latch, ensuring secure and quick closure.

Applications
This terminal box is designed for use in industrial environments where high mechanical and environmental stresses occur. It is suitable for use in manufacturing, automation technology, or building automation. The protection rating IP 66 according to EN 60 529 ensures dust-tight and water-tight sealing, even against heavy splashing water, making it suitable for outdoor use or in damp indoor areas. The NEMA classification includes protection ratings NEMA 1, NEMA 3R, NEMA 4, and NEMA 12, confirming suitability for dry, damp, and dusty environments. The type rating according to UL 50E includes Type 1, Type 3R, Type 4, and Type 12, demonstrating compliance with North American safety standards. The IK code IK08 provides protection against mechanical impacts such as shocks or vibrations.

Functions and Equipment in Detail

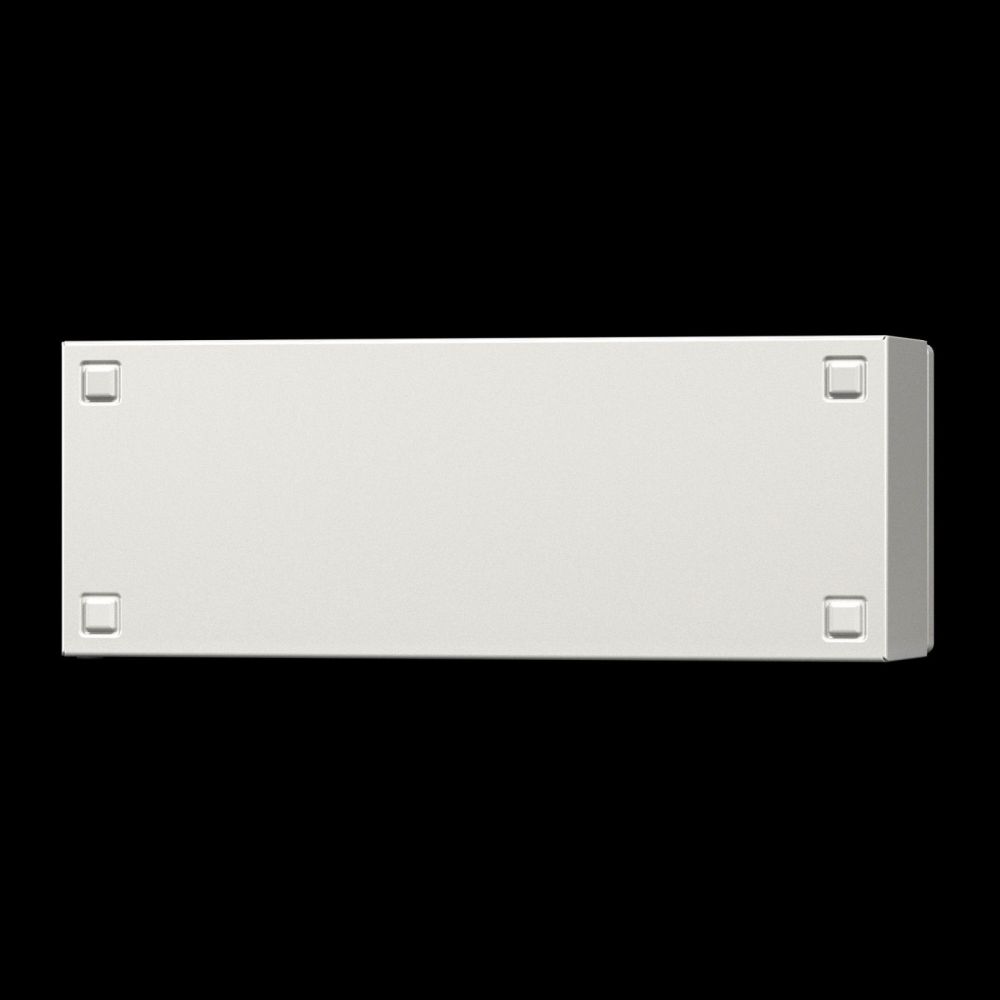

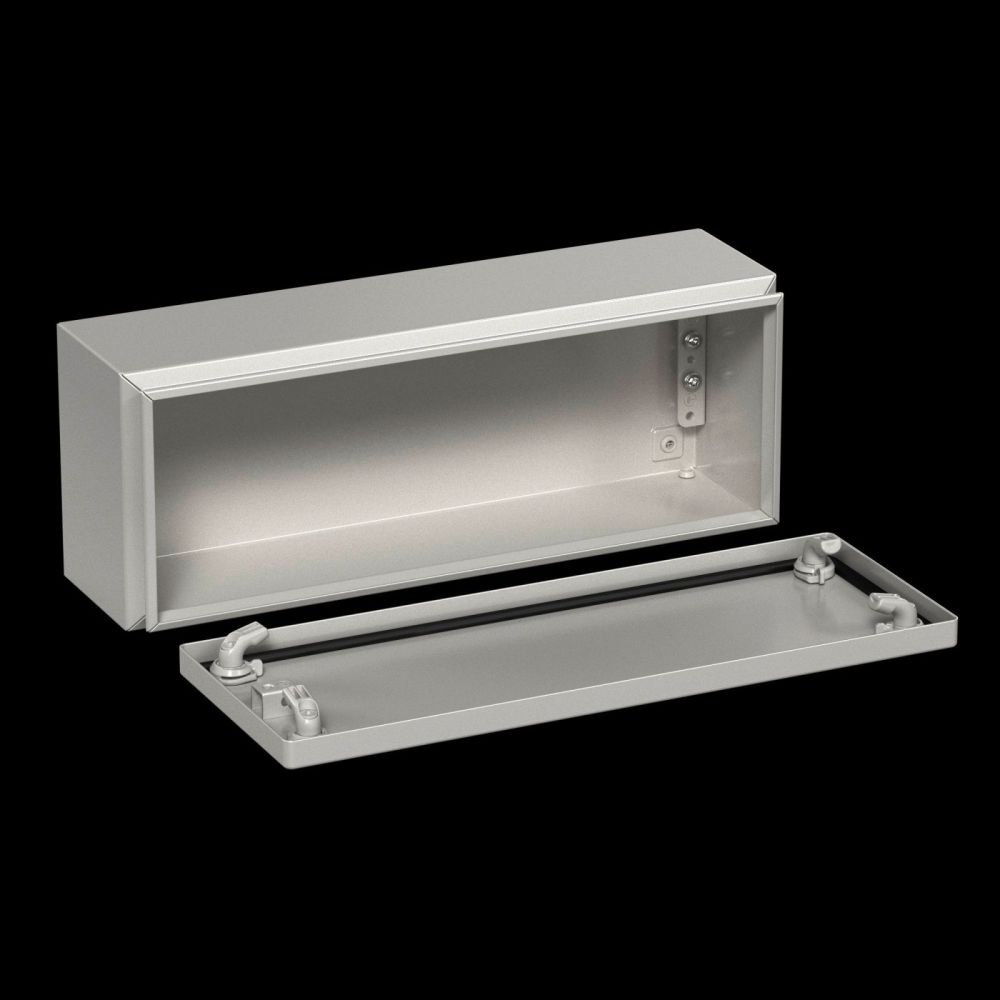

The enclosure is formed and welded in one piece, creating a stable structure. The rear wall features knockouts for wall mounting brackets, enabling flexible wall mounting. The lid is fitted with a continuously foamed PU gasket, ensuring a tight seal. The enclosure and lid include protective conductor terminals with U-brackets for quick and easy earthing. A printed QR code on the body, lid, and nameplate enables unique identification and easy access to relevant product information, as well as traceability of individual parts.

Technical Explanation
The surface of the enclosure and lid is treated in three stages: first, an electrophoretic dip primer, followed by a nano-ceramic coating, and finally an exterior coating in RAL 7035 textured paint. This treatment provides high corrosion resistance and resistance against mineral oils, lubricants, machining emulsions, and solvents. The material thickness is 1.25 mm for both the enclosure and lid, ensuring sufficient mechanical stability. The protection rating IP 66 means the enclosure is dust-tight and protected against heavy splashing water, making it suitable for outdoor use as well.

Compatibility and Accessories
Various accessories are available for this terminal box, extending its application. These include mounting clips for support rails, plug-throughs, pressure equalization plugs, mounting angles, condensate drains, baying sets for other KX models, drill screws, mounting brackets, support rails TH 35/7.5/35/15, spacing angles for shock protection covers, zinc die-cast lid hinges, mounting plates for terminal boxes and bus enclosures, mounting claws for a second mounting level, and wall mounting brackets. These components allow individual adaptation to specific requirements.

Mounting and Installation
Mounting is done via the pre-drilled knockouts on the rear wall, designed for wall mounting brackets. Alternatively, mounting brackets or wall mounting brackets can be used. The support rails TH 35/7.5/35/15 allow mounting of components inside the enclosure. The use of mounting plates or spacing angles can facilitate the installation of terminal boxes or other assemblies.

Operational Advantages
The KX 1508000 offers a high mechanical and environmental protection class, making it suitable for demanding operating conditions. The simple earthing via integrated protective conductor terminals reduces installation time. The robust sheet steel construction and three-stage surface treatment ensure long service life even in aggressive environments. The integrated QR codes simplify documentation and maintenance. The compatibility with various accessories allows flexible adaptation to different requirements.

General
MaterialHousing: steel sheet, cover: steel sheet, continuously foamed PU seal
Surface protectionHousing and cover: dip primed, externally powder coated, textured lacquer
ColourRAL 7035
Scope of deliveryhousing with cover, mini-quick-release latch
Width400 mm
Height300 mm
Depth120 mm
Degree of protection IP according to EN 60 529IP 66
NEMA degree of protectionNEMA 1, NEMA 3R, NEMA 4, NEMA 12
Type rating according to UL 50EType 1, Type 3R, Type 4, Type 12
IK codeIK08
Material thickness cover1,25 mm
Plate thickness cabinet1,25 mm
Base materialsteel sheet
PCF/VE (Cradle-to-Gate)34.63 kg CO2 eq (Cat B)
Note on PCF classCategory B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared


Product data sheet
Datasheet for Rittal 1508000, EAN: 4028177816220
