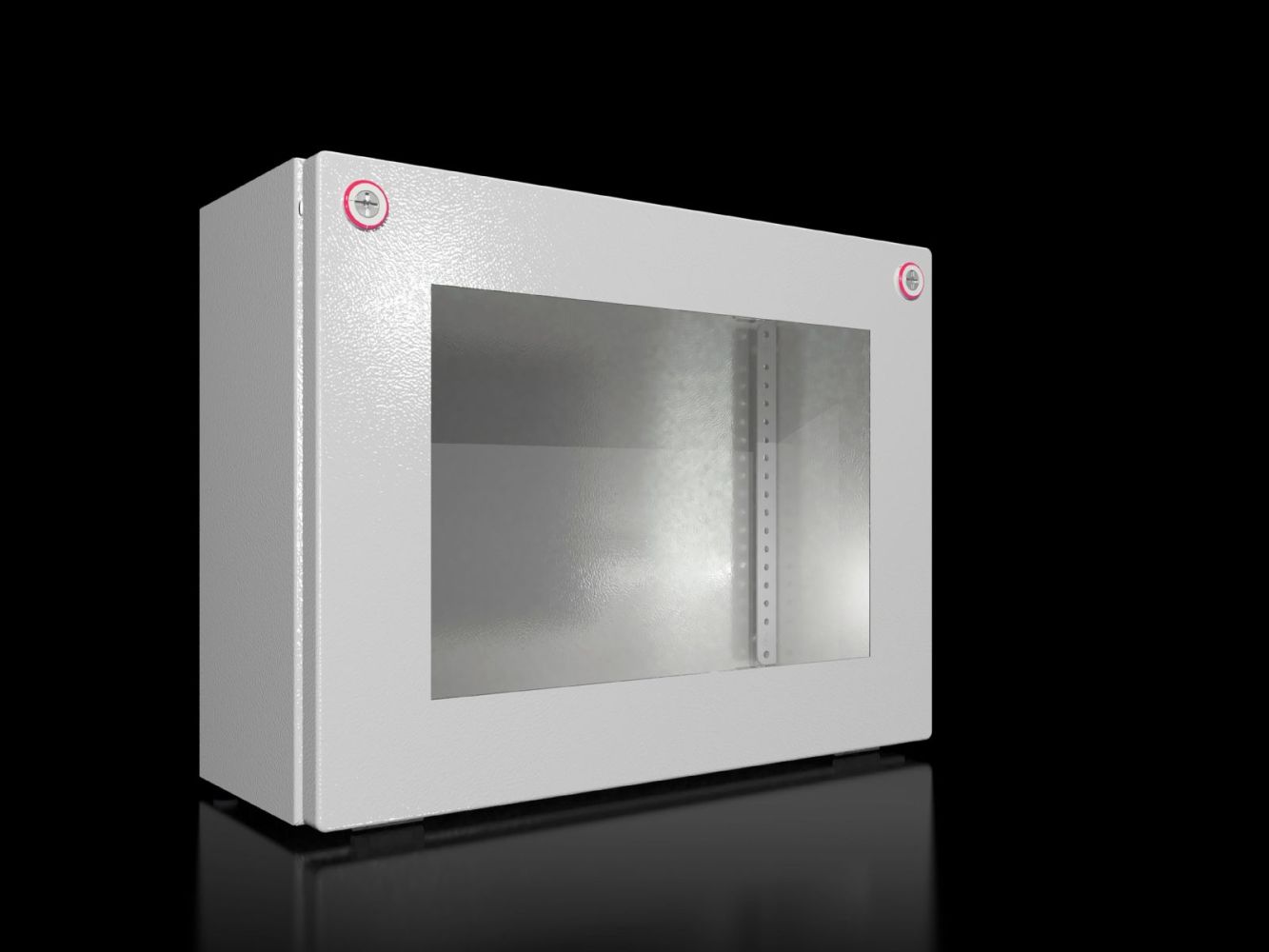

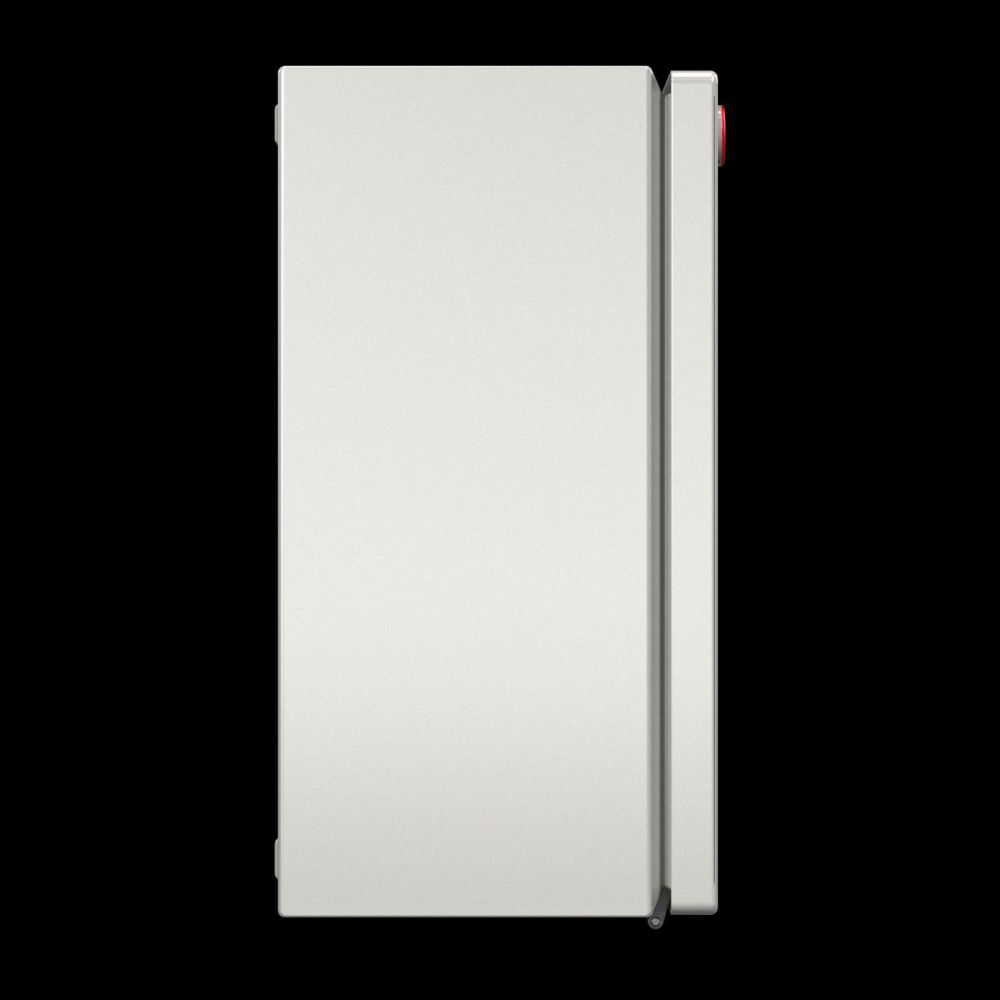

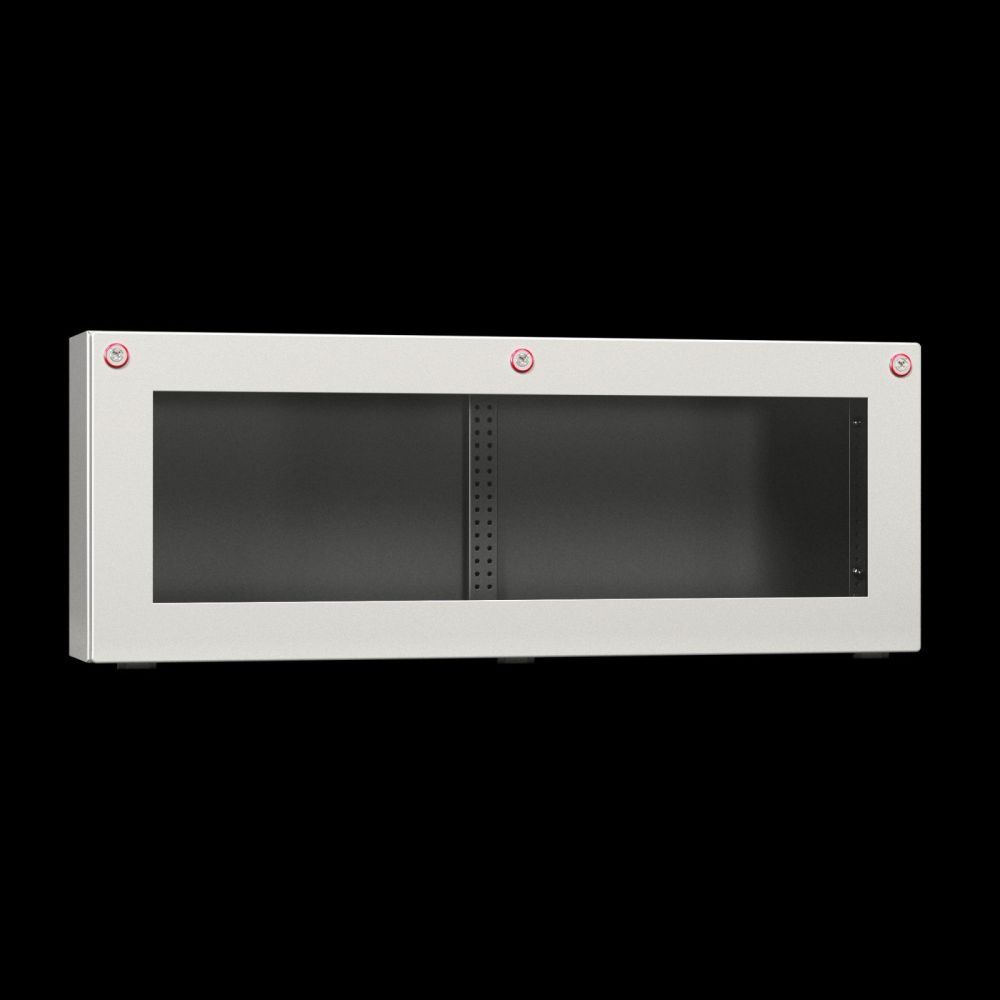

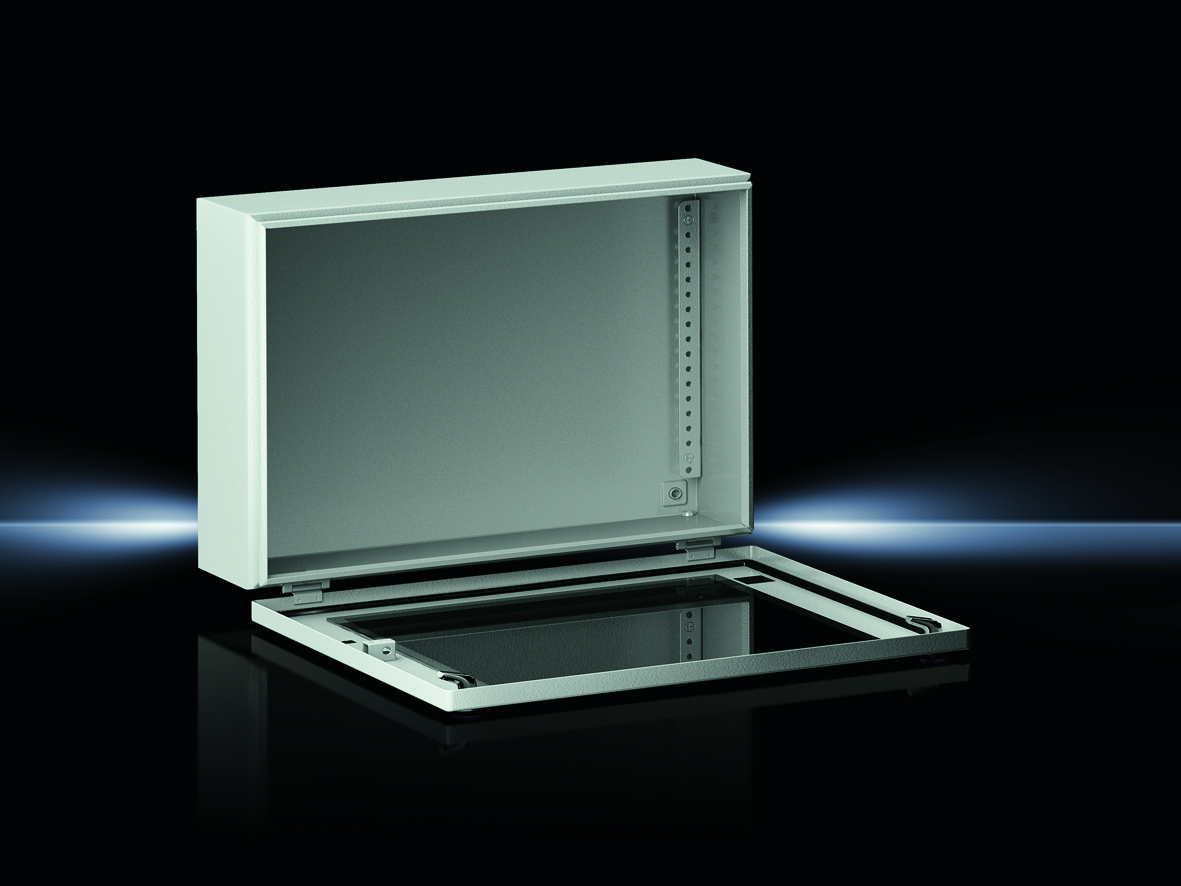

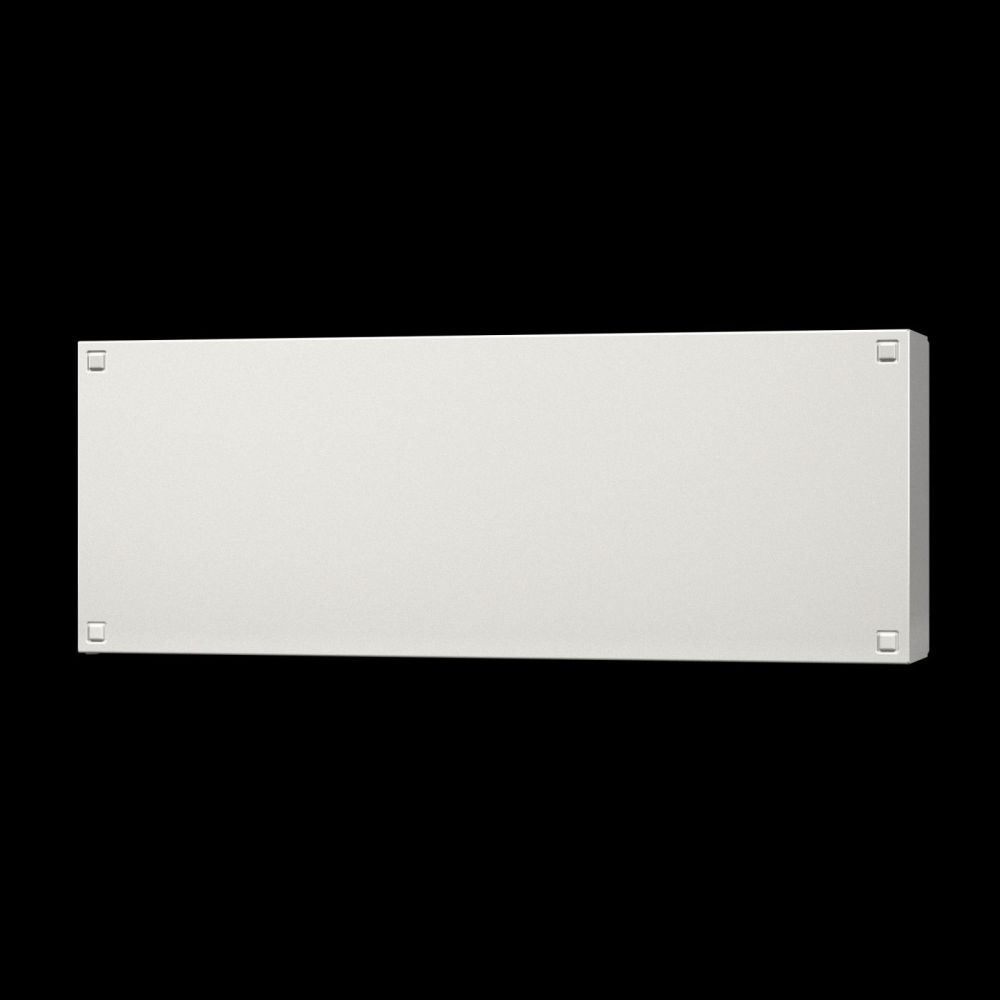

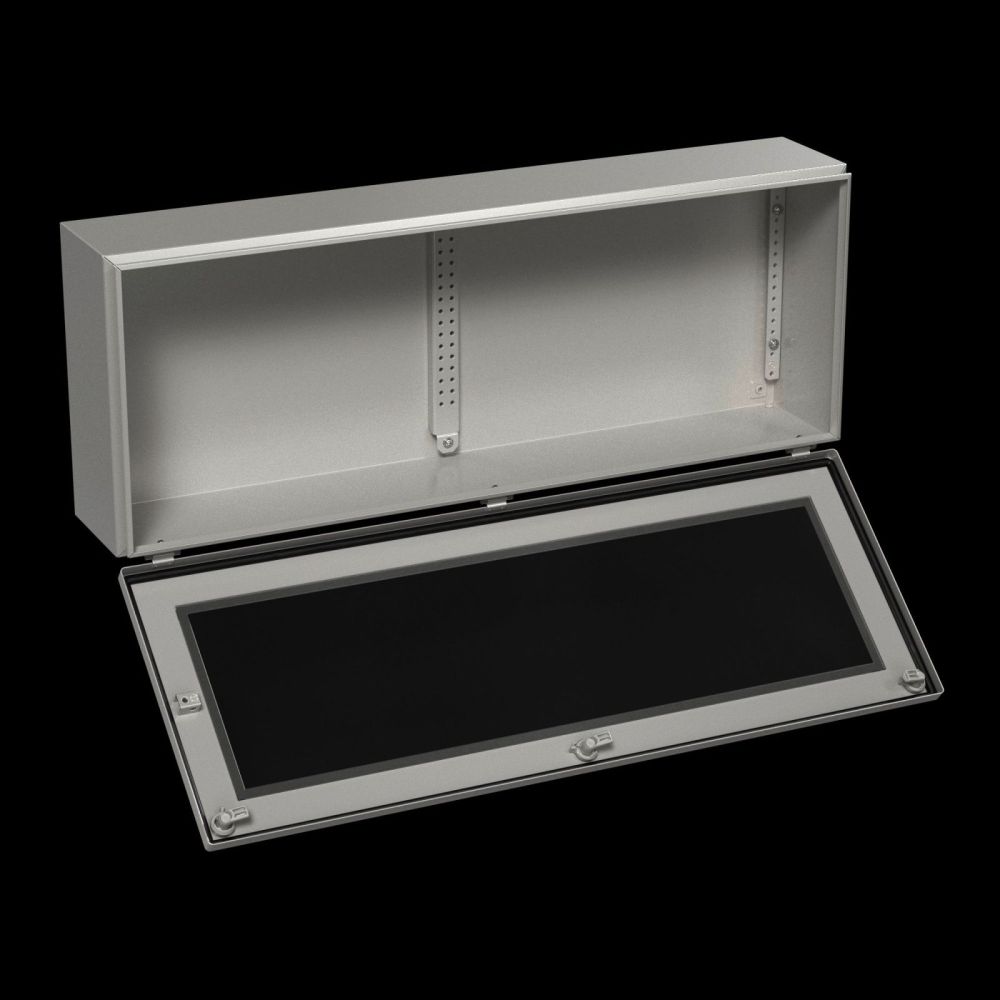

Rittal 1611000 Bus enclosure KX, sheet metal, with viewing window, 400x300x100 mm,
|
104,02 EUR |
|
|
( 123,78 EUR incl. VAT ) ≈ £87.06 | ≈ $114.32 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline | |
| In Stock: >100 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1598324 |
| Mfg Part No: | 1611000 |
| UPC/EAN: | 4028177816688 |
| Weight: | 5 kg |
| Type: | KX 1611000 |
Product information for Rittal 1611000:
Applications include mounting control components, sensors, and small electronic modules in production plants, automation systems, and industrial control enclosures. The enclosure is suitable for indoor use as well as in environments with increased humidity or light contamination, as it features a protection rating IP 65 according to EN 60 529. This means it is dust-tight and protected against water jets from any direction. Additionally, it meets the protection ratings NEMA 1 and NEMA 12, as well as Type ratings Type 1 and Type 12 according to UL 50E, confirming suitability for dry indoor environments and environments with light contamination. The IK code IK08 provides protection against mechanical impacts, such as blows from tools or workpieces.
Functions and equipment in detail include a continuously foamed PU seal ensuring a tight seal between enclosure and lid. The mini-latch locks allow for secure and quick locking of the lid. The material thickness of 1.25 mm for both enclosure and lid ensures a stable construction. The rear wall of the enclosure features mounting holes for wall mounting brackets. An earth connection inside the enclosure and via a U-bracket on the lid enables quick and easy grounding. A QR code is printed on the enclosure, lid, and type plate, enabling unique identification, easy access to relevant product information, and traceability of individual parts.
Technology explained simply shows that the enclosure is made from a single piece of sheet steel, bent and welded, creating a stable and tight construction. The continuous protective channel around the lid opening supports sealing. The surface treatment consists of a triple protective layer: nanoceramic coating, electrophoretic dip priming, and an external powder coating in structured quality. This combination offers excellent corrosion protection and resistance to chemical influences.
Compatibility and accessories include various mounting and fastening elements available separately. These include mounting clips for support rails, connector passages for cables with diameters of 4–6 mm, pressure equalization plugs M12x1.5, mounting brackets for enclosures and expansion parts, condensate drain, baying sets for models AX, KX, AE, KL, screws type ST 4.8 L9.5 mm (300 pieces), mounting brackets (20 pieces), support rails TH 35/7.5/35/15, earthing straps M6-M6 with a cross-section of 10 mm² and a length of 350 m, mounting plates for terminal boxes and bus enclosures, mounting claw for second mounting level, and wall mounting brackets for AX sheet steel KX models. These components enable flexible and secure mounting of the enclosure on various surfaces and in different configurations.
Mounting and installation are carried out via the pre-drilled holes on the rear wall, suitable for attaching wall brackets. Mounting plates and support rails allow integration into existing enclosure structures. The mini-latch locks facilitate opening and closing the lid, enabling efficient maintenance and module replacement.
Operational advantages include high mechanical stability, easy mounting and maintenance, and secure sealing. The integrated viewing window reduces the need to open the lid to check the contents. The robust construction and corrosion-resistant surface ensure long service life even in demanding industrial environments. Compliance with standards IP 65, NEMA 1/12, Type 1/12, and IK08 protection class ensures reliability under various operating conditions.
The enclosure is available in a packaging unit of 1 piece. The net weight is 4.78 kg, the gross weight is 5 kg. The environmental impact is documented by the PCF value (Cradle-to-Gate) of 38.4 kg CO2 eq (Category B), which is approximately calculated based on product weight and self-declared.
| General | |
| Model | with viewing window |
| Material | Housing: sheet steel, cover: sheet steel, continuously foamed PU seal, vision window: polycarbonate, 4 mm |
| Surface protection | Housing and cover: dip primed, externally powder coated, textured lacquer |
| Colour | RAL 7035 |
| Scope of delivery | Housing with hinged cover, viewing window in cover, mini cam locks |
| Width | 400 mm |
| Height | 300 mm |
| Depth | 155 mm |
| Degree of protection IP according to EN 60 529 | IP 65 |
| NEMA degree of protection | NEMA 1, NEMA 12 |
| Type rating according to UL 50E | Type 1, Type 12 |
| IK code | IK08 |
| Material thickness cover | 1,25 mm |
| Plate thickness cabinet | 1,25 mm |
| Base material | steel sheet |
| PCF/VE (Cradle-to-Gate) | 38.4 kg CO2 eq (Cat B) |
| Note on PCF class | Category B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared |
