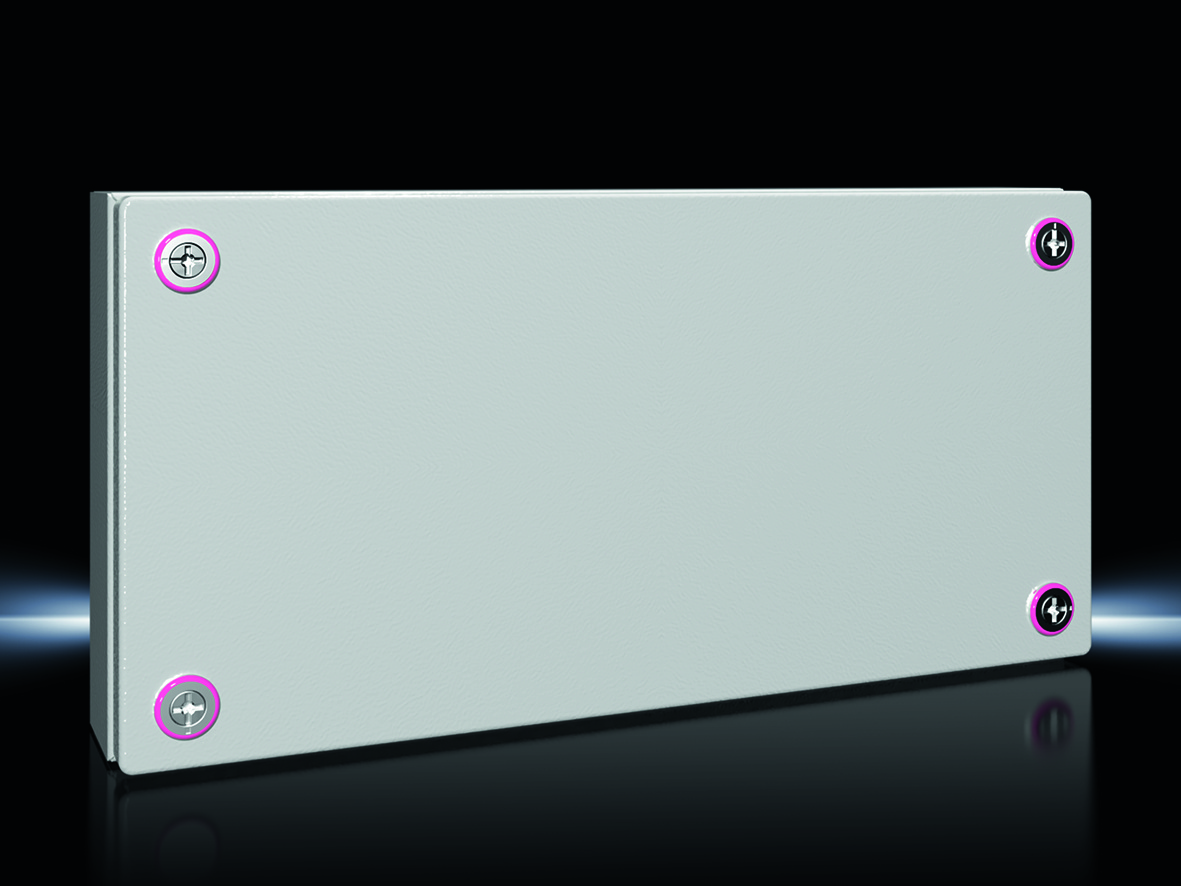

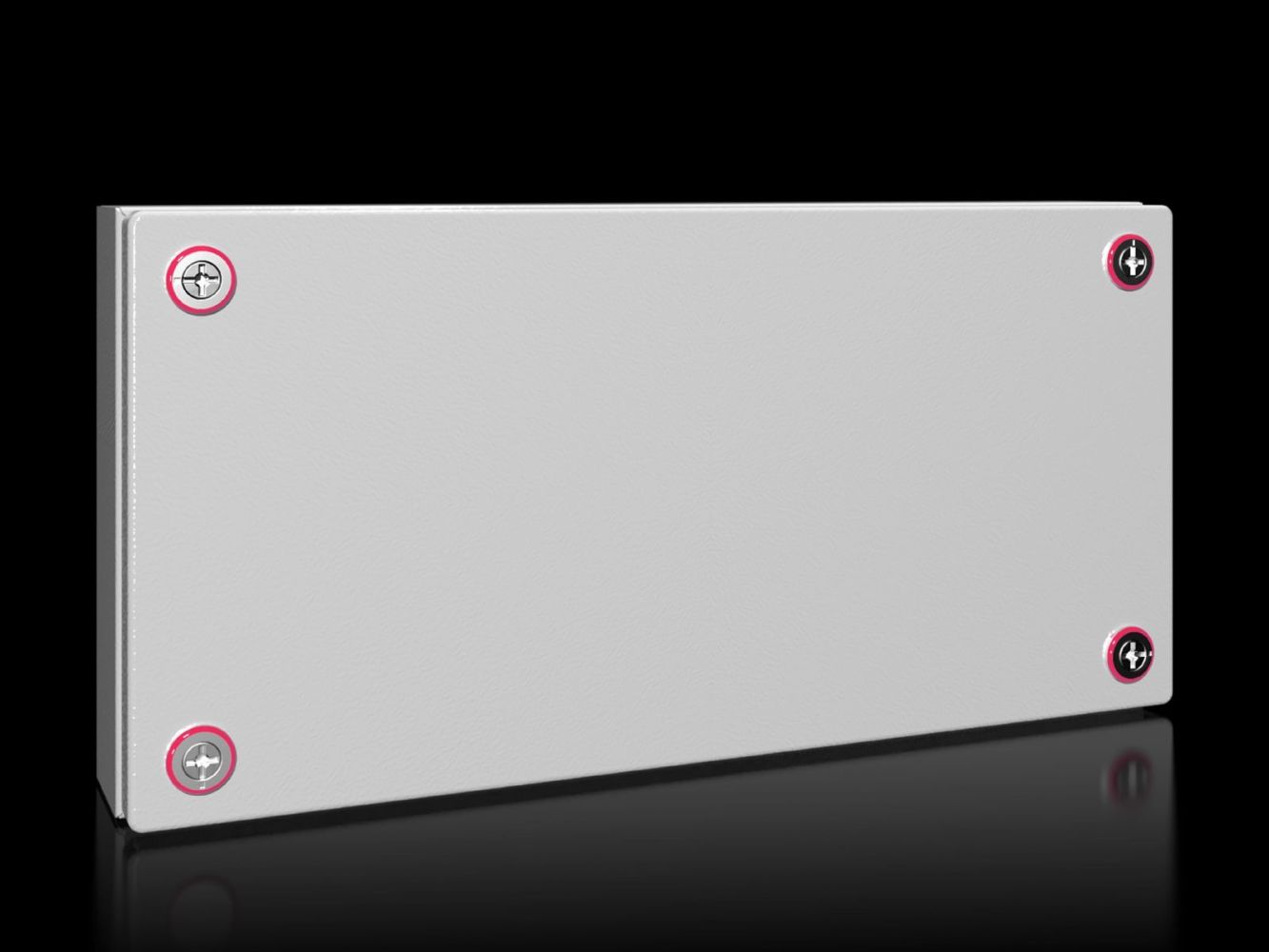

Rittal 1518000 terminal box KX, without gland plate, 400x200x80 mm,

Your rating:
Average rating
product review for Rittal 1518000 terminal box KX, without gland plate, 400x200x80 mm,
( 4.3 / 5 ) 3 ratings
Rittal 1518000
This image may differ from the desired article.
Rittal 1518000Rittal 1518000Rittal 1518000Rittal 1518000Rittal 1518000Rittal 1518000Rittal 1518000
38,75 EUR
( 46,11 EUR incl. VAT )
≈ £32.43  |  ≈ $42.59
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 7 workdaysinfo_outline
In Stock: >500 pieces
1x Rittal 1518000 terminal box KX, without gland plate, 400x200x80 mm,
Datasheet:file_download Download
Lieske Part No.:1598167
Mfg Part No: 1518000
UPC/EAN: 4028177816329
Weight:3.006 kg
Type:KX 1518000

Product information for Rittal 1518000:

The KX terminal box from Rittal, type 1518000, is a small housing made of sheet steel, designed for use in industrial installations where flexible internal assembly is required along with high protection rating. The housing has dimensions of 400 mm width, 200 mm height and 80 mm depth and is supplied without a gland plate and without a mounting plate. It is delivered with a lid and a mini cam-lock, enabling secure and quick closure. The surface is dip-primed and externally powder-coated with a textured lacquer in the colour RAL 7035, ensuring high resistance against corrosion and chemical influences such as mineral oils, lubricants, machining emulsions and solvents. The triple surface treatment includes a nano-ceramic coating, an electrophoretic dip-priming, and the external coating in RAL 7035, enhancing the durability and resilience of the housing.

Applications

The terminal box is suitable for use in industrial environments, particularly where high mechanical and environmental protection classes are required. It can be mounted on walls or inside enclosures, with the rear wall of the housing featuring pre-drilled holes for wall mounting brackets. The protection rating IP 66 according to EN 60 529 ensures dust-tight and water-tight shielding, even under heavy spray water conditions, making it suitable for outdoor use or in damp indoor areas. The protection ratings NEMA 1, NEMA 3R, NEMA 4 and NEMA 12, as well as the Type rating according to UL 50E (Type 1, Type 3R, Type 4, Type 12), confirm suitability for various industrial requirements, especially in environments with moisture, spray water or light dirt. The IK code IK08 indicates high mechanical resistance against impact and shock loads.

Functions and Equipment in Detail

The housing is made of a single piece of folded and welded sheet steel, creating a stable and dimensionally stable construction. The lid opening is equipped with a continuous protective groove, which together with the foamed PU seal ensures a tight seal. The lid is fitted with a mini cam-lock, enabling secure and quick closure. The housing and lid feature integrated protective conductor connections, with a U-bracket in the lid allowing quick and easy earthing. A printed QR code on the housing, lid and type plate enables unique identification and easy access to relevant product information, as well as traceability of individual components.

Technology Explained Simply

The protection rating IP 66 means the housing is completely dust-tight and protected against heavy spray water, making it suitable for use in damp or wet environments. The NEMA protection ratings (NEMA 1, 3R, 4, 12) and UL Type ratings (Type 1, 3R, 4, 12) correspond to international standards for protection against environmental influences such as moisture, spray water, dust and mechanical stress. The IK code IK08 indicates that the housing is resistant to impact with an energy of up to 20 joules, which is important for use in industrial environments with mechanical loads. The material thickness of 1.25 mm for both housing and lid ensures sufficient strength and stability.

Compatibility and Accessories

The housing is compatible with various accessories that can be adapted for individual use. These include mounting clips for support rails, socket entries (e.g. SZ 2400500), pressure equalization plugs M12x1.5, mounting brackets, condensate drains, earthing straps M6-M6 with a cross-section of 10 mm² and a length of 200 m, drilling screws type ST 4.8 L9.5 mm (300 pieces), flat mounting brackets, support rails TH 35/7.5/35/15 (length 387 mm), zinc die-cast lid hinges, mounting plates for terminal boxes KX and bus enclosures KX (item 1564800), mounting claws for a second mounting level, and wall mounting brackets for AX sheet steel KX models. These accessories enable flexible mounting and adaptation to different requirements in industrial applications.

Mounting and Installation

Mounting is carried out via the pre-drilled holes in the rear wall of the housing, designed for wall mounting brackets. Alternatively, mounting brackets or mounting angles can be used to fix the housing to various surfaces. The support rails TH 35/7.5/35/15 allow mounting of components inside the housing. Mounting plates and mounting claws for a second mounting level extend mounting options and enable optimal placement of components.

Advantages in Operation

The KX terminal box offers a high mechanical and environmental protection class, making it suitable for demanding industrial applications. The robust sheet steel construction with a material thickness of 1.25 mm ensures stability and longevity. Integrated earthing options via U-brackets in the lid and housing simplify secure earthing of components. The powder-coated surface in RAL 7035 provides high corrosion resistance and is resistant to industrial chemicals. The continuous PU seal and protective groove ensure a tight seal, even under high environmental stress. The QR code on the housing enables easy identification and document retrieval, simplifying maintenance and traceability.

General
MaterialHousing: steel sheet, cover: steel sheet, continuously foamed PU seal
Surface protectionHousing and cover: dip primed, externally powder coated, textured lacquer
ColourRAL 7035
Scope of deliveryhousing with cover, mini-quick-release latch
Width400 mm
Height200 mm
Depth80 mm
Degree of protection IP according to EN 60 529IP 66
NEMA degree of protectionNEMA 1, NEMA 3R, NEMA 4, NEMA 12
Type rating according to UL 50EType 1, Type 3R, Type 4, Type 12
IK codeIK08
Material thickness cover1,25 mm
Plate thickness cabinet1,25 mm
Base materialsteel sheet
PCF/VE (Cradle-to-Gate)29.19 kg CO2 eq (Cat B)
Note on PCF classCategory B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared


Product data sheet
Datasheet for Rittal 1518000, EAN: 4028177816329

Questions & answers

What is the delivery time of Rittal 1518000 terminal box KX, without gland plate, 400x200x80 mm, ?

The article Rittal 1518000 terminal box KX, without gland plate, 400x200x80 mm, is currently in stock

According to our experience the article is ready for dispatch within 7 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 1518000 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 1518000 terminal box KX, without gland plate, 400x200x80 mm, always at the best possible price. We can give you a discount of 2% on Rittal 1518000 terminal box KX, without gland plate, 400x200x80 mm, if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
