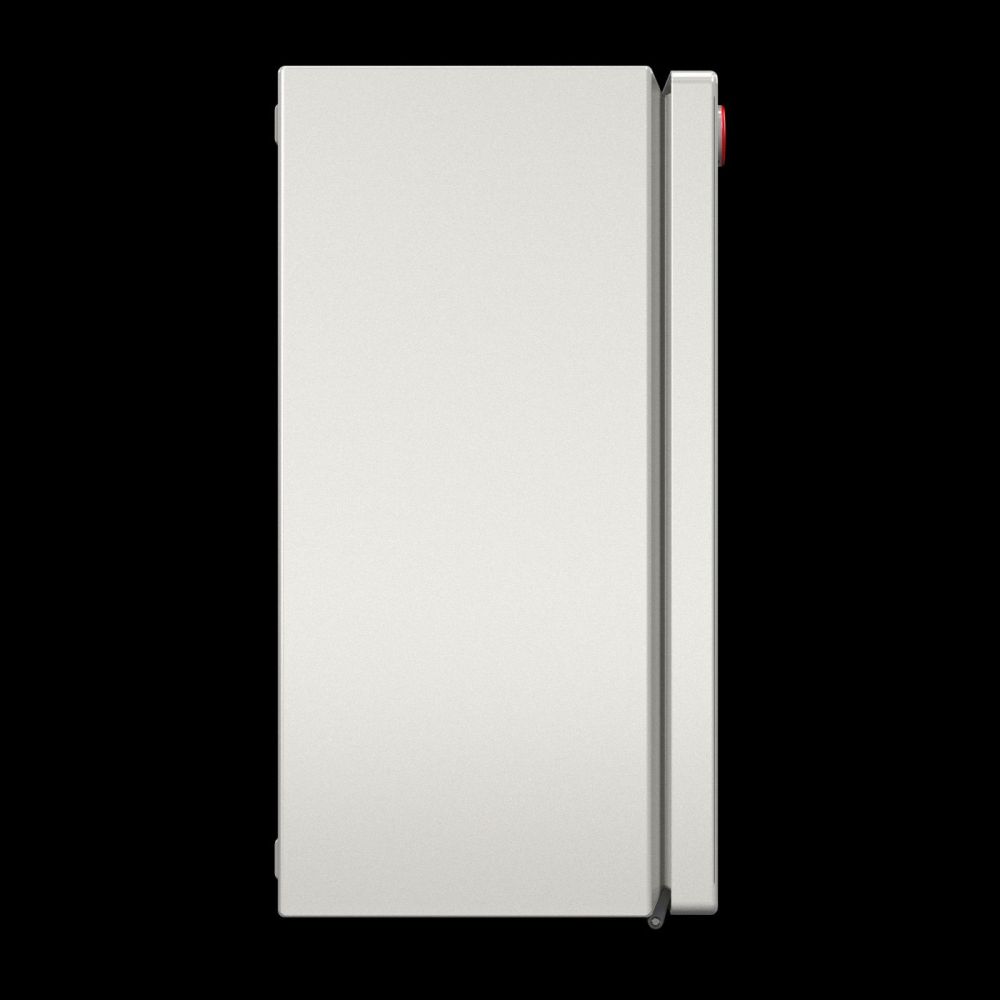

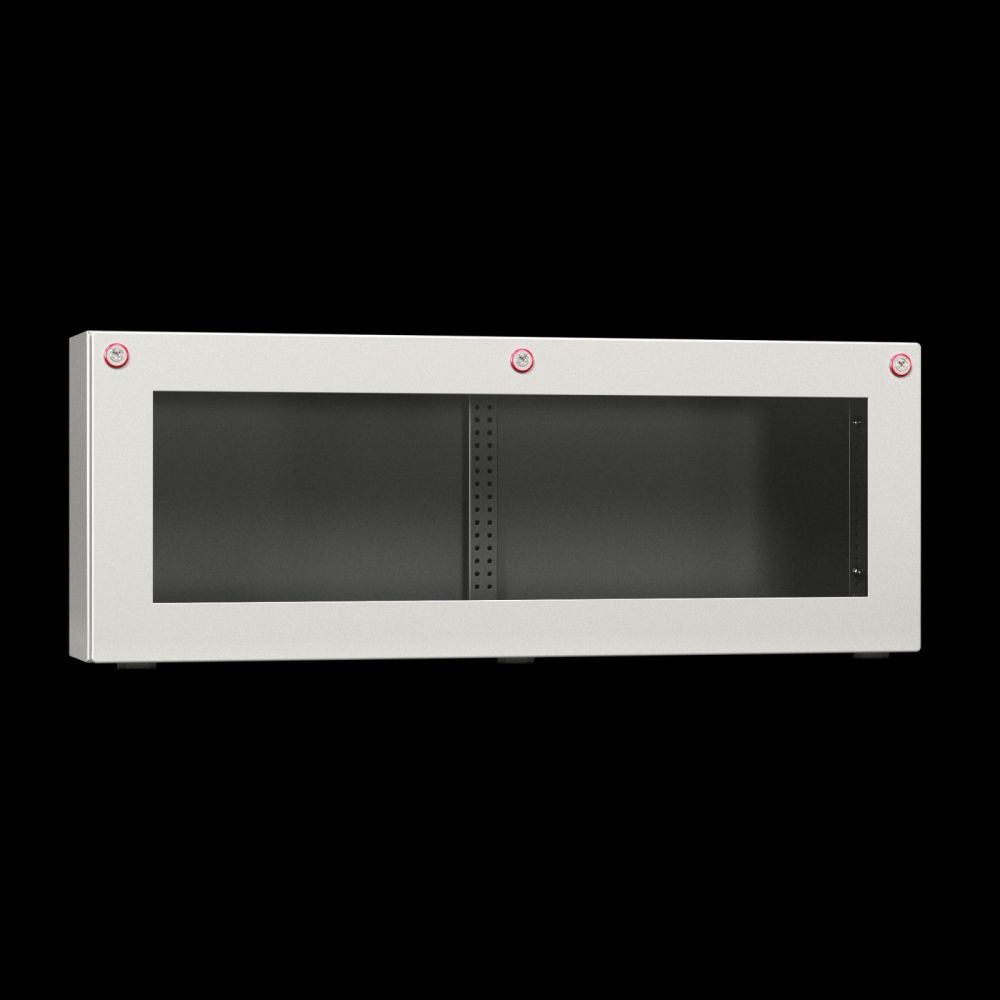

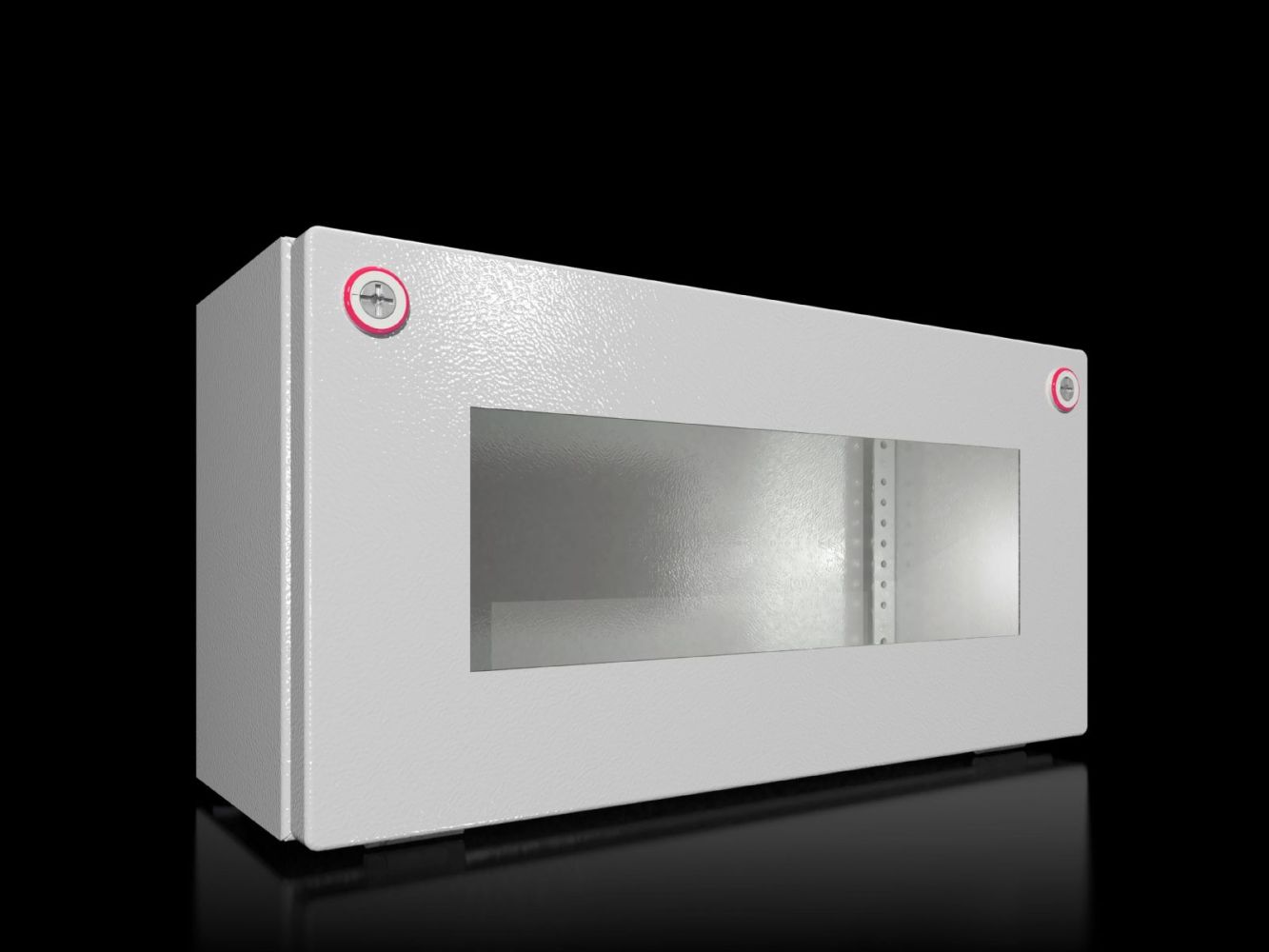

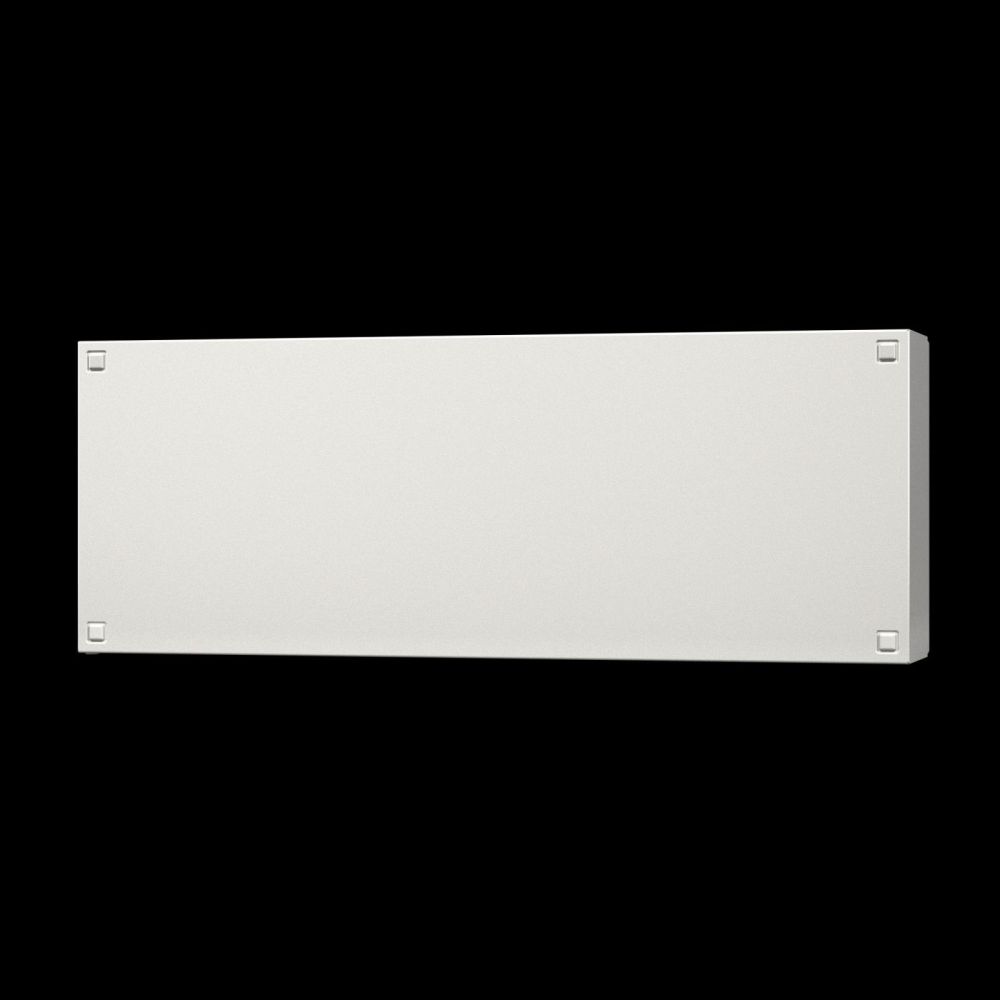

Rittal 1610000 Bus enclosure KX, sheet metal, with viewing window, 400x200x100 mm,

Your rating:
Average rating
product review for Rittal 1610000 Bus enclosure KX, sheet metal, with viewing window, 400x200x100 mm,
( 4.6 / 5 ) 10 ratings
Rittal 1610000
This image may differ from the desired article.
Rittal 1610000Rittal 1610000Rittal 1610000Rittal 1610000Rittal 1610000Rittal 1610000Rittal 1610000
92,69 EUR 95,20 EUR
( 110,30 EUR incl. VAT )
≈ £77.58  |  ≈ $101.87
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >100 pieces
1x Rittal 1610000 Bus enclosure KX, sheet metal, with viewing window, 400x200x100 mm,
Datasheet:file_download Download
Lieske Part No.:1598338
Mfg Part No: 1610000
UPC/EAN: 4028177816671
Weight:3.95 kg
Type:KX 1610000

Product information for Rittal 1610000:

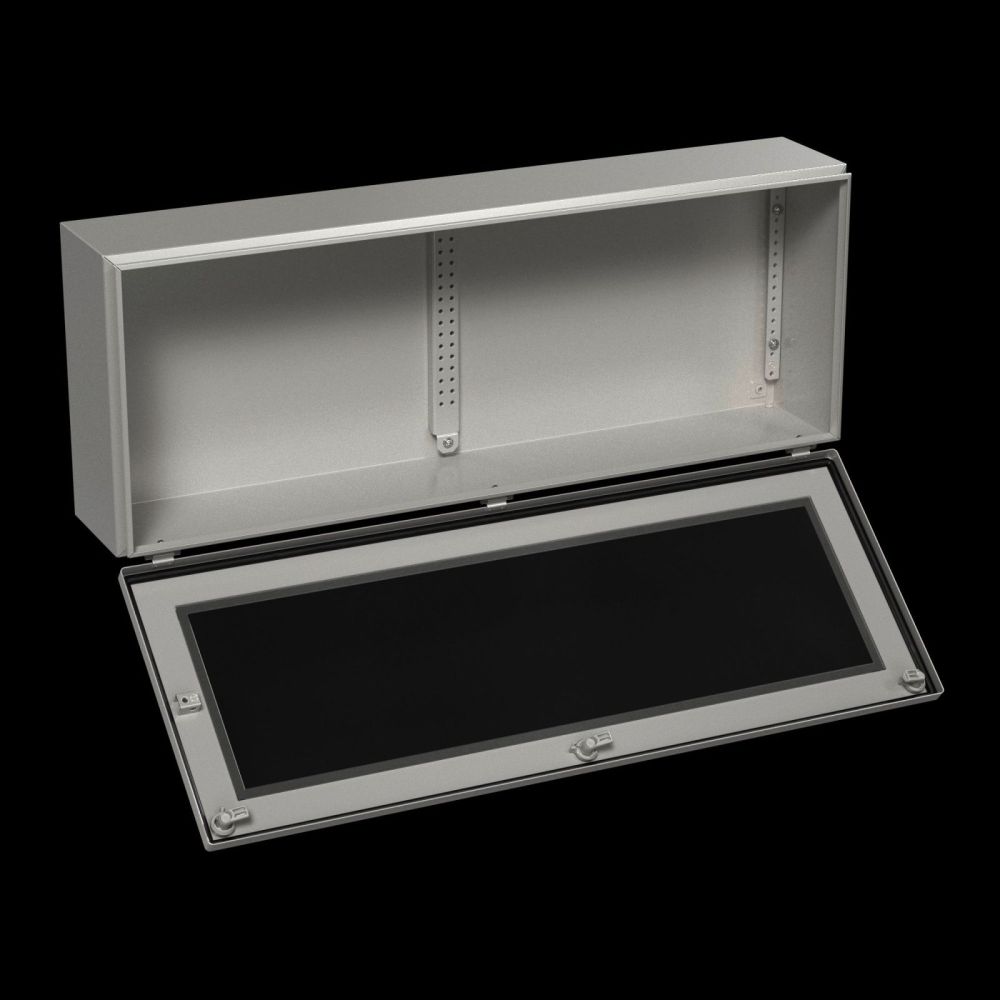

The Rittal KX 1610000 is a bus enclosure made of sheet steel, designed for use in industrial plants to house bus modules, sensors and similar components. The enclosure features a hinged lid and an integrated viewing window made of polycarbonate with a thickness of 4 mm, enabling secure visual inspection of installed components without opening the enclosure. Dimensions are 400 mm width, 200 mm height and 155 mm depth, with the enclosure featuring a closed base. The surface is dip-primed and externally powder-coated with a textured finish in RAL 7035, providing high resistance to corrosion and chemical influences such as mineral oils, lubricants, machining emulsions and solvents.

Applications include mounting in production plants, automation systems and control technology, where a robust, weather-resistant and simultaneously observable cover for electronic components is required. The enclosure is suitable for indoor and outdoor use, as it meets the protection rating IP 65 according to EN 60 529, meaning it is dust-tight and protected against water jets. Additionally, it complies with protection ratings NEMA 1 and NEMA 12 as well as Type Ratings Type 1 and Type 12 according to UL 50E, confirming suitability for dry and damp indoor environments as well as environments with light dirt or splashing water. The IK code IK08 ensures protection against mechanical impacts, such as blows from a tool or workpiece, with an energy of up to 5.3 J.

Functions and equipment in detail include a continuous foamed PU seal ensuring a tight seal between enclosure and lid. Mounting is done via a mini-lift latch, enabling secure and quick locking. The material thickness for both enclosure and lid is 1.25 mm, ensuring a stable construction. The rear wall of the enclosure features pre-drilled holes for mounting wall brackets. An earth connection point inside the enclosure and via a U-bracket on the lid allows for quick and easy grounding. A printed QR code is located on the enclosure, lid and type plate, enabling unique identification and easy access to relevant product information as well as traceability of individual parts.

Technology explained simply shows that the enclosure is made from a single piece of sheet steel, bent and welded, creating a stable and dimensionally stable structure. The continuous protective flange around the lid opening supports sealing and prevents moisture ingress. The surface treatment consists of a triple protective layer: nanoceramic coating, electrophoretic dip priming, and an external powder-coated texture in RAL 7035, which is resistant to environmental influences.

Compatibility and accessories include various mounting and fastening elements available separately. These include mounting clips for support rails, plug-throughs (e.g. SZ 2400500), pressure equalization plugs M12x1.5, mounting brackets, condensate drains, baying sets for models AX, KX, AE, KL, drill screws type ST 4.8 L9.5 mm (300 pieces), mounting brackets (20 pieces), support rails TH 35/7.5/35/15 (length 387 mm), mounting plates for terminal boxes and bus enclosures, mounting claw for a second mounting level, and wall mounting brackets. These accessories enable flexible and application-specific mounting and integration into existing systems.

Mounting and installation is typically done on a wall or support, using the pre-drilled holes in the enclosure for fastening. Mounting plates and support rails allow modular arrangement, especially in combination with other KX models. The viewing window facilitates visual inspection of installed components without opening the lid, speeding up maintenance and diagnostics.

Operational advantages include high mechanical stability, weather-resistant sealing and easy installation. The integrated viewing window reduces the need to open the lid, increasing operational safety. The surface coating ensures long service life even in demanding environments. The use of sheet steel and IK08 protection provides additional safety against mechanical damage. Compliance with standards IP 65, NEMA 1/12 and UL Type 1/12 ensures suitability for a wide range of industrial applications.

General
Modelwith viewing window
MaterialHousing: sheet steel, cover: sheet steel, continuously foamed PU seal, vision window: polycarbonate, 4 mm
Surface protectionHousing and cover: dip primed, externally powder coated, textured lacquer
ColourRAL 7035
Scope of deliveryHousing with hinged cover, viewing window in cover, mini cam locks
Width400 mm
Height200 mm
Depth155 mm
Degree of protection IP according to EN 60 529IP 65
NEMA degree of protectionNEMA 1, NEMA 12
Type rating according to UL 50EType 1, Type 12
IK codeIK08
Material thickness cover1,25 mm
Plate thickness cabinet1,25 mm
Base materialsteel sheet
PCF/VE (Cradle-to-Gate)35.21 kg CO2 eq (Cat B)
Note on PCF classCategory B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared


Product data sheet
Datasheet for Rittal 1610000, EAN: 4028177816671

Questions & answers

What is the delivery time of Rittal 1610000 Bus enclosure KX, sheet metal, with viewing window, 400x200x100 mm, ?

The article Rittal 1610000 Bus enclosure KX, sheet metal, with viewing window, 400x200x100 mm, is currently in stock

According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 1610000 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 1610000 Bus enclosure KX, sheet metal, with viewing window, 400x200x100 mm, always at the best possible price. We can give you a discount of 2% on Rittal 1610000 Bus enclosure KX, sheet metal, with viewing window, 400x200x100 mm, if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
