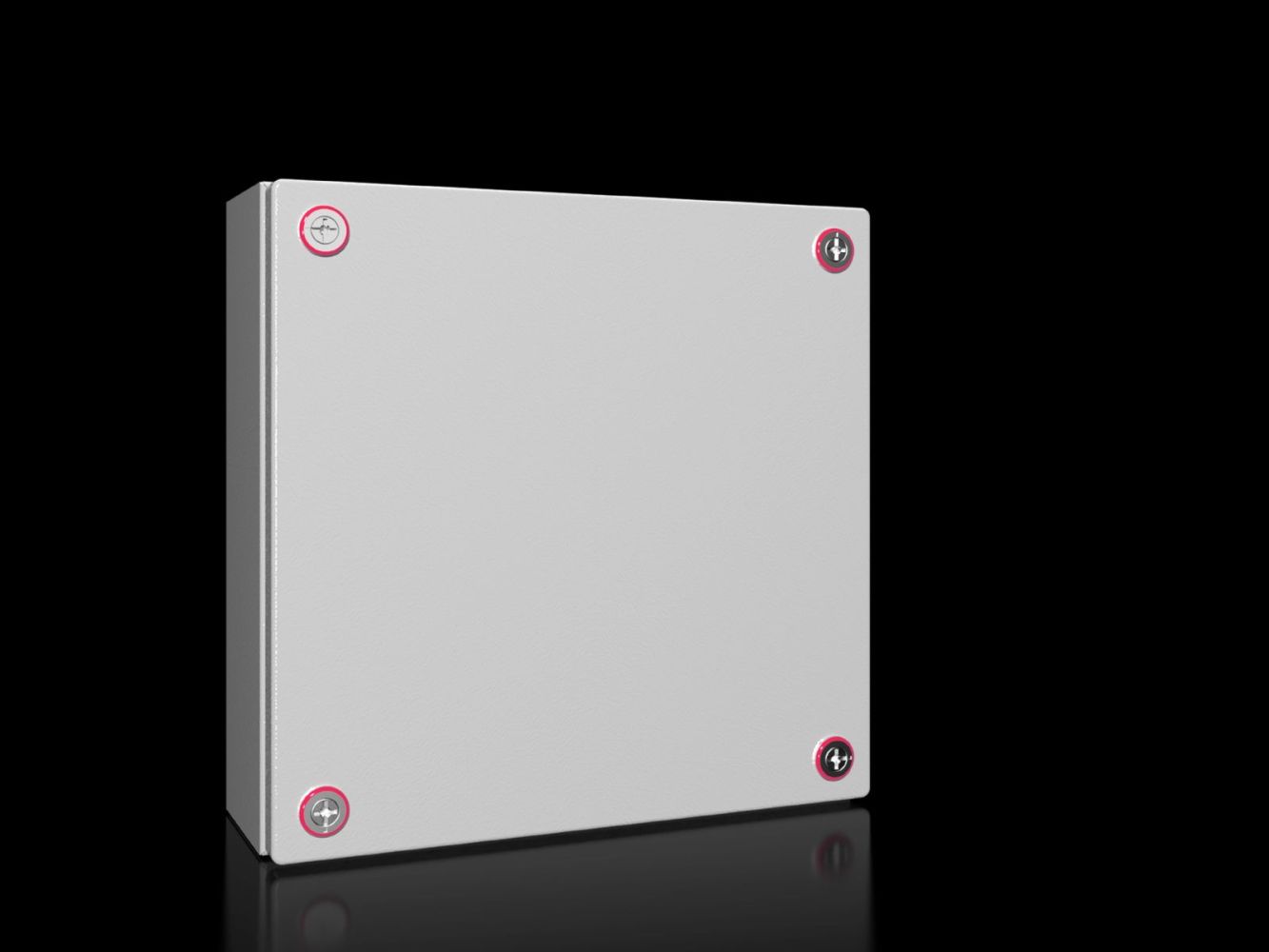

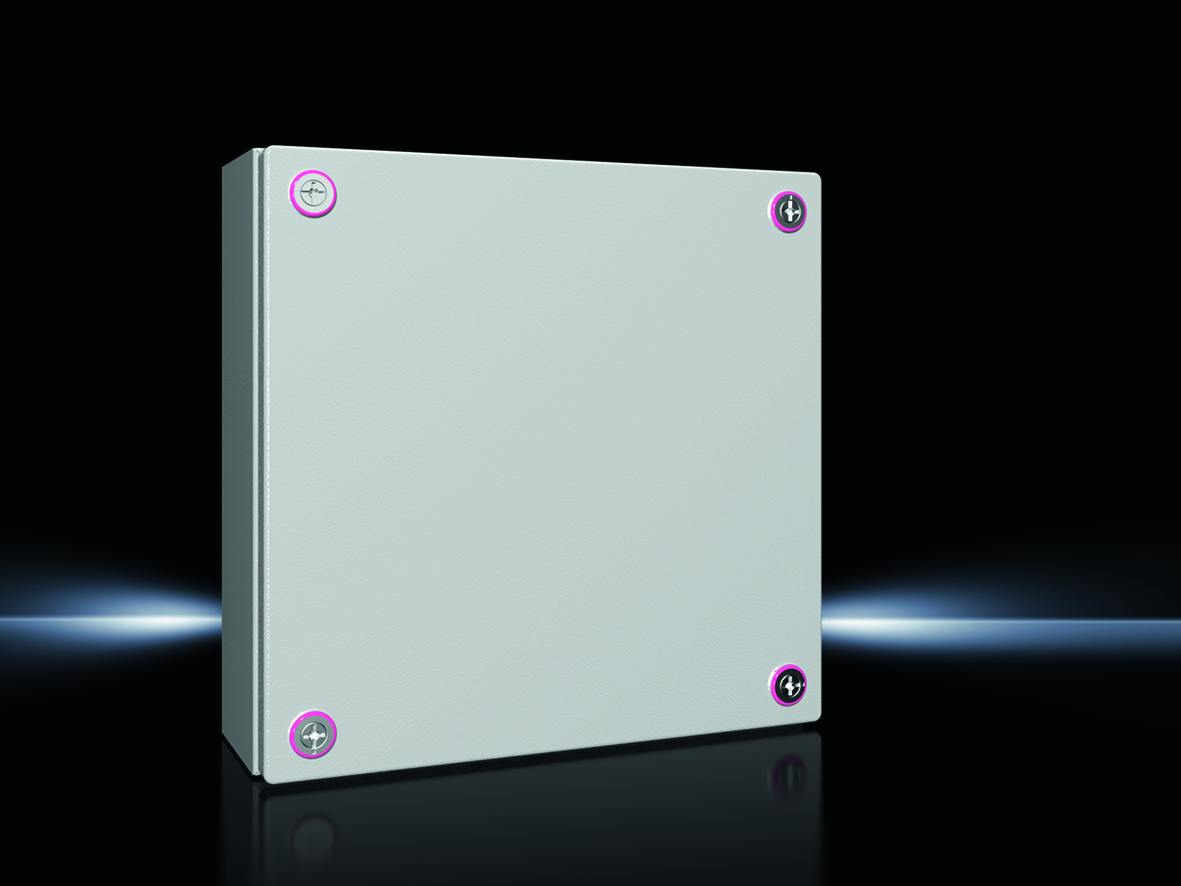

Rittal 1511000 terminal box KX, without gland plate 400x400x120 mm
|
59,99 EUR |
|
|
( 71,39 EUR incl. VAT ) ≈ £50.21 | ≈ $65.93 plus delivery charges: 100,00 € |
|
| Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline | |
| In Stock: >500 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1598174 |
| Mfg Part No: | 1511000 |
| UPC/EAN: | 4028177816251 |
| Weight: | 5.87 kg |
| Type: | KX 1511000 |
Product information for Rittal 1511000:
Applications
This terminal box is designed for use in industrial environments, particularly where high mechanical and environmental protection ratings are required. It is suitable for applications in manufacturing, automation technology, power supply, or process industries. The protection rating IP 66 according to EN 60 529 ensures dust-tight and water-tight sealing, even under heavy spray water exposure, making it suitable for outdoor use or humid indoor environments. The NEMA protection ratings NEMA 1, NEMA 3R, NEMA 4, and NEMA 12, as well as UL Type Ratings Type 1, Type 3R, Type 4, and Type 12, confirm suitability for various application scenarios in the USA and other markets. The IK code IK08 provides protection against mechanical impacts, such as light shocks or vibrations.
Functions and Equipment in Detail
The housing is made of a single piece of bent and welded sheet steel with a material thickness of 1.25 mm for both the body and the lid. The continuously integrated PU sealing gasket ensures a tight seal between the housing and the lid. The lid is secured using a mini-quick-release latch, enabling fast and secure assembly. Inside, there is a rear panel with mounting holes for wall mounting brackets, allowing flexible attachment to walls or other structures. An earth conductor connection inside the housing and via a U-bracket on the lid enables easy and reliable grounding. A QR code is printed on the housing, lid, and type plate, enabling unique identification and easy access to relevant product information, as well as traceability of individual parts.
Technology Explained Simply
The triple surface treatment — consisting of a nanoceramic coating, an electrophoretic dip primer, and an external powder-coated textured lacquer — ensures high corrosion resistance and chemical resistance. The IP 66 protection rating means the housing is dust-tight and protected against water jets from any direction, making it suitable for use in damp or wet environments. The material thickness of 1.25 mm provides sufficient mechanical stability to withstand operational loads. The use of sheet steel ensures high strength and durability.
Compatibility and Accessories
The housing can be supplemented with various accessories to adapt functionality to specific requirements. These include mounting clips for support rails, connector pass-throughs, pressure equalization plugs, mounting brackets, condensate drains, baying sets for other KX models, drill screws, mounting brackets, support rails TH 35/7.5/35/15, spacing brackets for shock protection covers, zinc die-cast lid hinges, earthing straps M6-M6 with a cross-section of 10 mm², mounting plates for terminal boxes and bus enclosures, mounting claws for a second mounting level, and wall mounting brackets. These components allow individual adaptation of the box to different mounting and switching configurations.
Mounting and Installation
Mounting is done via the integrated mounting holes in the housing for wall mounting brackets, enabling secure attachment to walls or other structures. The use of mounting brackets or wall mounting brackets expands mounting options. The support rails TH 35/7.5/35/15 can be used to mount components inside the housing. Mounting plates provide a stable base for installing terminal boxes or bus enclosures. Drill screws type ST 4.8 L9.5 mm are used to secure components inside the housing.
Operational Advantages
The KX 1511000 offers a high protection class in a compact design, making it ideal for use in harsh industrial environments. The robust sheet steel construction and tight sealing ensure long service life and low maintenance. Integrated grounding and quick mounting via the mini-quick-release latch reduce installation time. QR codes on the housing and lid simplify documentation and maintenance. Compatibility with a wide range of accessories enables flexible adaptation to different operational requirements.
Scope of Delivery
The product is delivered with housing, lid, and mini-quick-release latch.
| General | |
| Material | Housing: steel sheet, cover: steel sheet, continuously foamed PU seal |
| Surface protection | Housing and cover: dip primed, externally powder coated, textured lacquer |
| Colour | RAL 7035 |
| Scope of delivery | housing with cover, mini-quick-release latch |
| Width | 400 mm |
| Height | 400 mm |
| Depth | 120 mm |
| Degree of protection IP according to EN 60 529 | IP 66 |
| NEMA degree of protection | NEMA 1, NEMA 3R, NEMA 4, NEMA 12 |
| Type rating according to UL 50E | Type 1, Type 3R, Type 4, Type 12 |
| IK code | IK08 |
| Material thickness cover | 1,25 mm |
| Plate thickness cabinet | 1,25 mm |
| Base material | steel sheet |
| PCF/VE (Cradle-to-Gate) | 37.83 kg CO2 eq (Cat B) |
| Note on PCF class | Category B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared |
