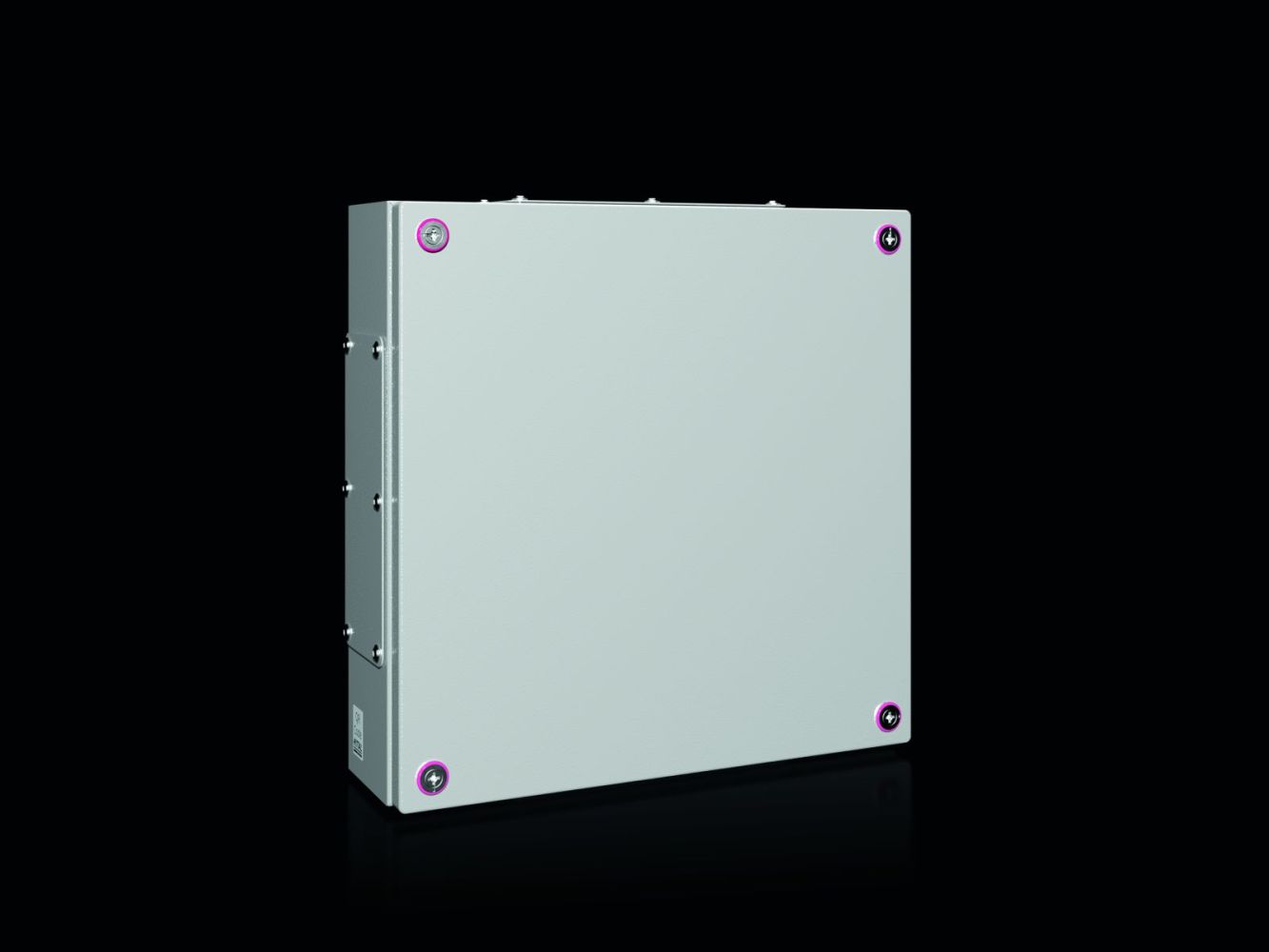

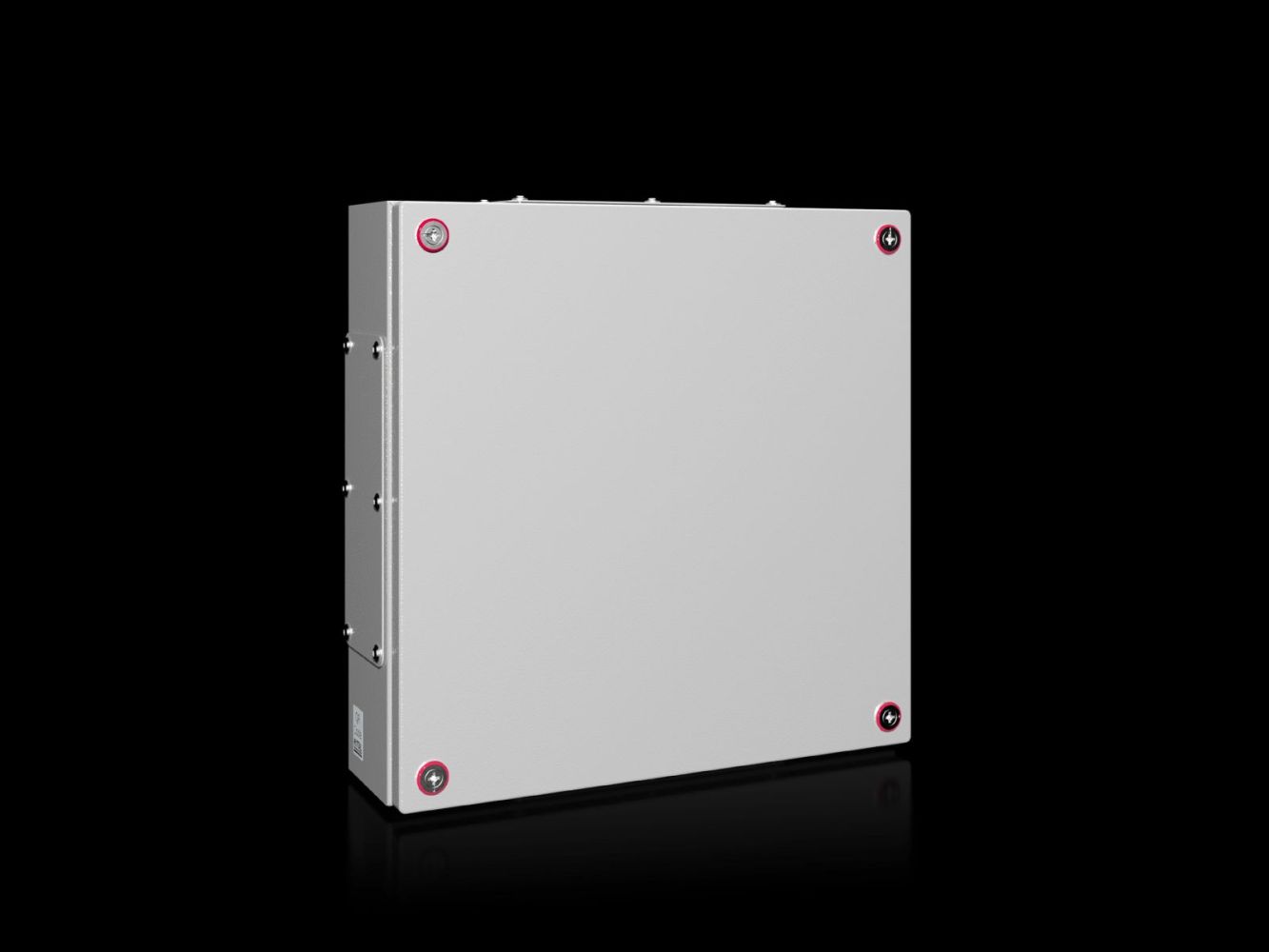

Rittal 1539000 terminal box KX, with gland plate, 400x400x120 mm

Your rating:
Average rating
product review for Rittal 1539000 terminal box KX, with gland plate, 400x400x120 mm
( 4.7 / 5 ) 3 ratings
Rittal 1539000
This image may differ from the desired article.
Rittal 1539000Rittal 1539000Rittal 1539000Rittal 1539000Rittal 1539000Rittal 1539000
72,33 EUR
( 86,07 EUR incl. VAT )
≈ £60.54  |  ≈ $79.49
plus delivery charges: 100,00 €
Delivery time from supplier's stock (ca.) 8 workdaysinfo_outline
In Stock: >100 pieces
1x Rittal 1539000 terminal box KX, with gland plate, 400x400x120 mm
Datasheet:file_download Download
Lieske Part No.:1598155
Mfg Part No: 1539000
UPC/EAN: 4028177816442
Weight:6.28 kg
Type:KX 1539000

Product information for Rittal 1539000:

The KX 1539000 is an industrial terminal box from the brand Rittal, made of sheet steel and designed for use in electrical and automated systems. The enclosure has dimensions of 400 mm width, 400 mm height, and 120 mm depth, serving as a compact protective housing for terminals, connectors, or small electrical components. It is delivered without a mounting plate, but features a fixed lid and integrated gland plates, enabling flexible mounting and cable entry. The construction from a single piece of bent and welded sheet steel ensures high mechanical stability, with a material thickness of 1.25 mm for both the enclosure and the lid.

Applications
This terminal box is suitable for use in industrial environments where secure, dust- and splash-proof protection of electrical components is required. It is particularly suitable for installations in the manufacturing industry, automation technology, or machine building, where cable connections and connectors must be protected from mechanical stress and environmental influences. The integrated gland plates allow for easy and quick cable entry, accelerating installation in existing systems.

Functions and Equipment in Detail
The enclosure is fitted with a continuous foamed PU seal, ensuring a tight seal between the enclosure and the lid. The surface is dip-primed and externally powder-coated with a textured lacquer in the colour RAL 7035, providing high corrosion resistance and resistance against mineral oils, lubricants, machining emulsions, and solvents. Mounting is done via mini-latch fasteners, which allow for secure and quick locking of the lid. The gland plates are located on the sides and top/bottom and serve as attachment points for cable entry plates or other mounting elements.

Technology Explained Simply
The protection rating IP 55 according to EN 60 529 means that the enclosure is dust-tight and protected against splashing water from any direction. This makes the terminal box suitable for use in humid or dusty environments. The protection ratings NEMA 1 and NEMA 12, as well as the type rating according to UL 50E (Type 1 and Type 12), correspond to international standards for protection against contact and against dust and splashing water. The IK code IK08 indicates mechanical resistance against impact forces, highlighting its suitability for industrial applications. The surface treatment with nanoceramic, electrophoretic dip priming, and textured powder coating ensures long service life and high durability.

Compatibility and Accessories
The terminal box can be combined with various accessories to extend its functionality. These include mounting clips for support rails, connector entries, pressure equalization plugs, mounting brackets, condensate drains, baying sets for other KX models, drill screws, mounting brackets, support rails, spacing brackets, lid hinges, earthing straps, mounting plates, mounting claws for a second mounting level, and wall mounting brackets. These elements allow for individual adaptation to specific mounting and cabling situations.

Mounting and Installation
Mounting is done via the integrated gland plates and the designated attachment points on the enclosure. The gland plates on the sides and top/bottom provide connection points for cable entry plates or other mounting elements. The mini-latch fasteners enable quick and secure closure of the lid. The rear wall of the enclosure features openings for wall mounting brackets, allowing flexible attachment to walls or other structures. The surface is marked with a QR code, printed on the enclosure, lid, and type plate, ensuring unique identification and traceability of individual parts.

Operational Advantages
The KX 1539000 offers optimal space utilization due to its compact design and integrated gland plates. The robust sheet steel construction and high-quality surface treatment ensure long service life and low maintenance. The quick mounting and closure via mini-latch fasteners reduce installation time. The IP 55 protection rating and mechanical stability (IK08) make the box suitable for demanding industrial environments. The integrated gland plates and compatibility with various accessories increase flexibility during installation and maintenance.

General
MaterialHousing: steel sheet, cover: steel sheet, continuously foamed PU seal
Surface protectionHousing and cover: dip primed, externally powder coated, textured lacquer
ColourRAL 7035
Scope of deliveryEnclosure with cover, mini-recessed latches, steel sheet flange plates with seals and mounting hardware
Width400 mm
Height400 mm
Depth120 mm
Degree of protection IP according to EN 60 529IP 55
NEMA degree of protectionNEMA 1, NEMA 12
Type rating according to UL 50EType 1, Type 12
IK codeIK08
Material thickness cover1,25 mm
Plate thickness cabinet1,25 mm
Flange platesFlange plate (left + right) quantity: 1 + 1, flange plate (top + bottom) quantity: 1 + 1
Base materialsteel sheet
PCF/VE (Cradle-to-Gate)40.06 kg CO2 eq (Cat B)
Note on PCF classCategory B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared


Product data sheet
Datasheet for Rittal 1539000, EAN: 4028177816442
