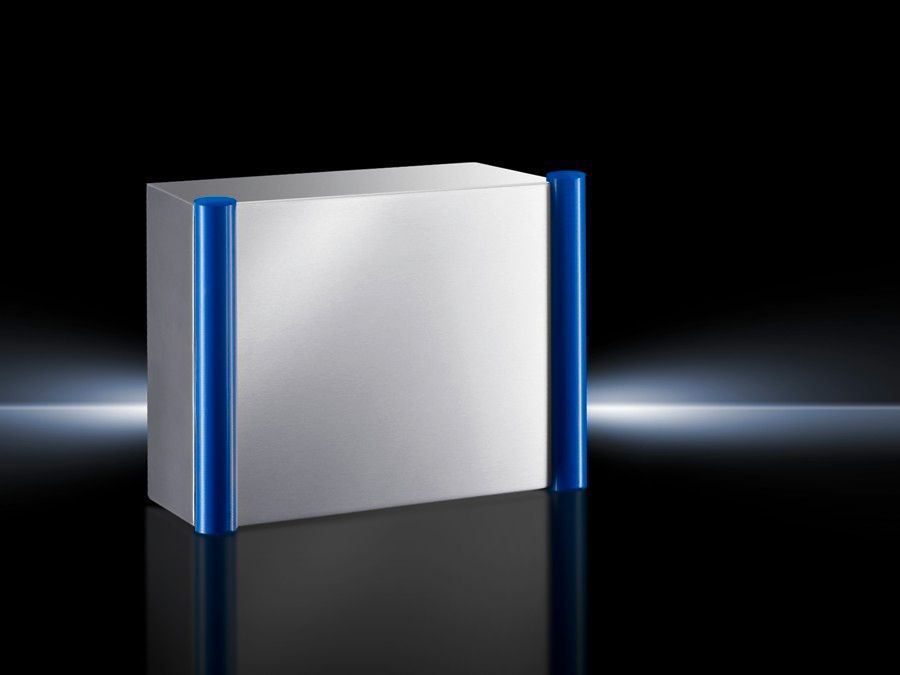

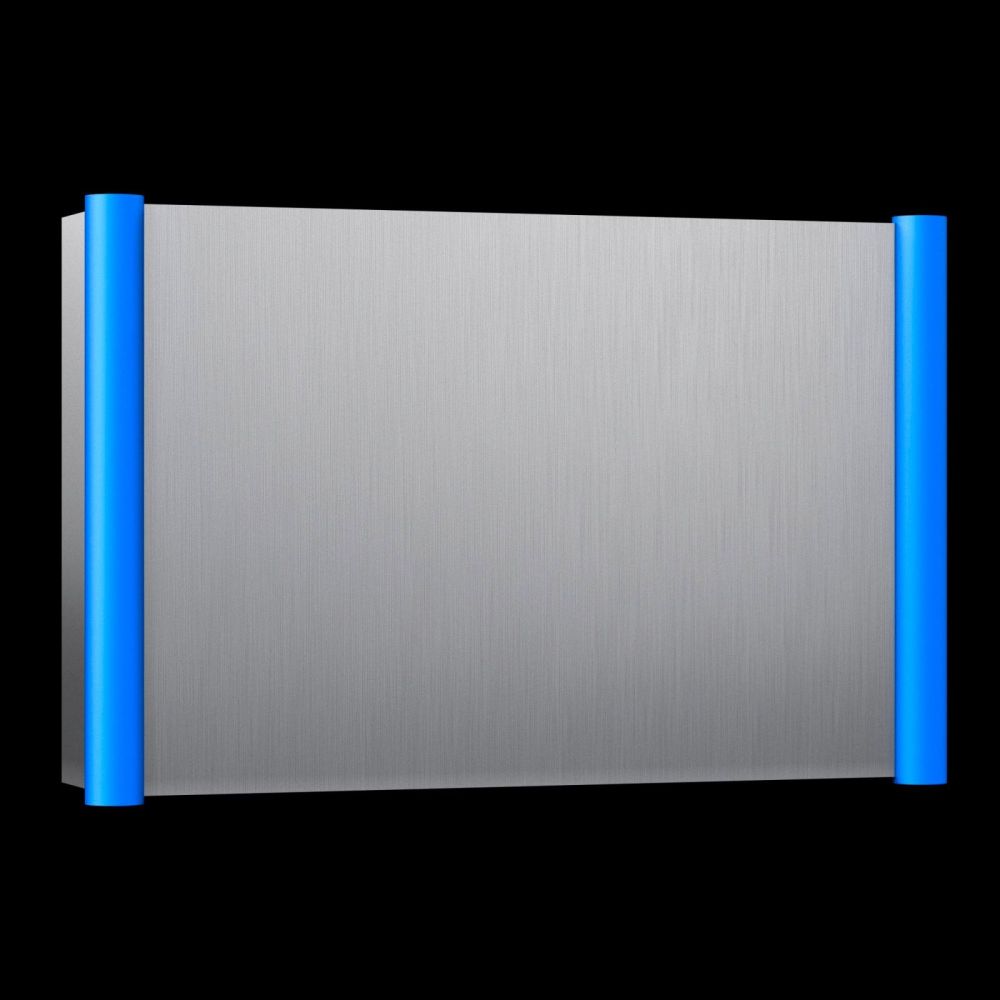

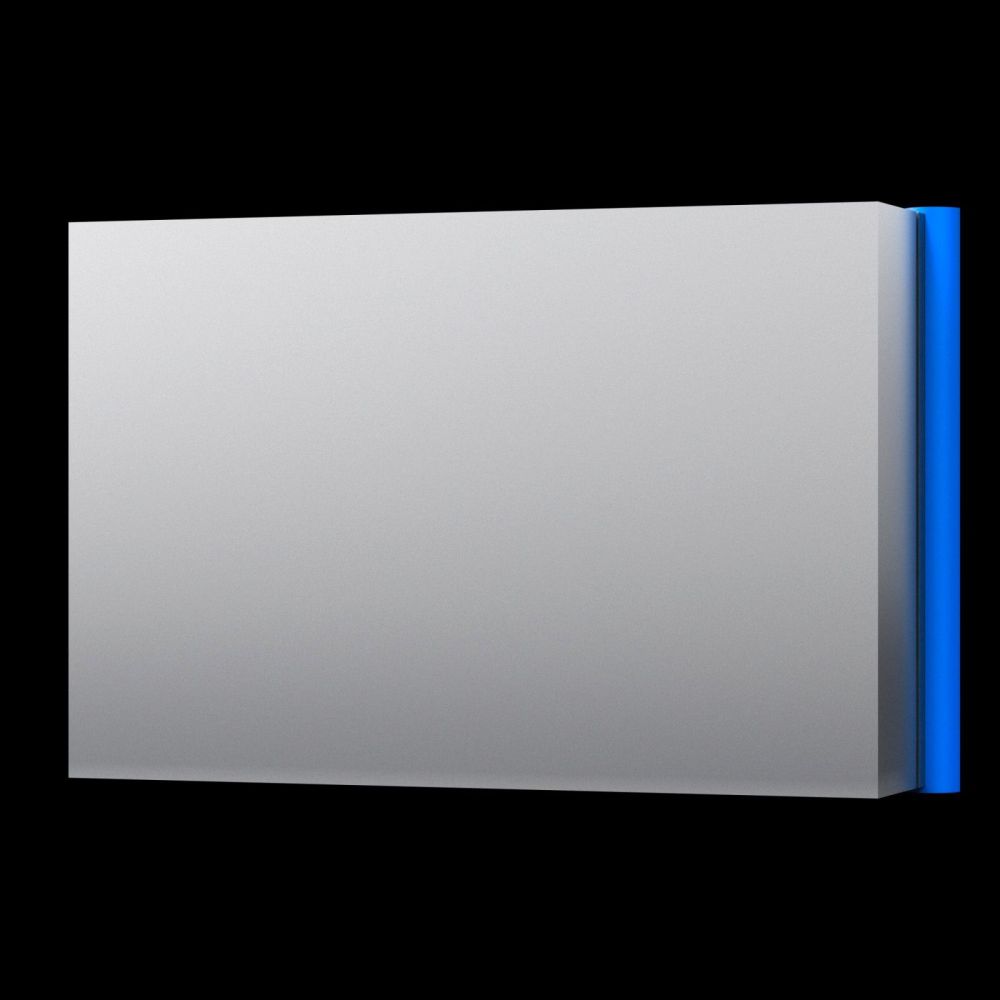

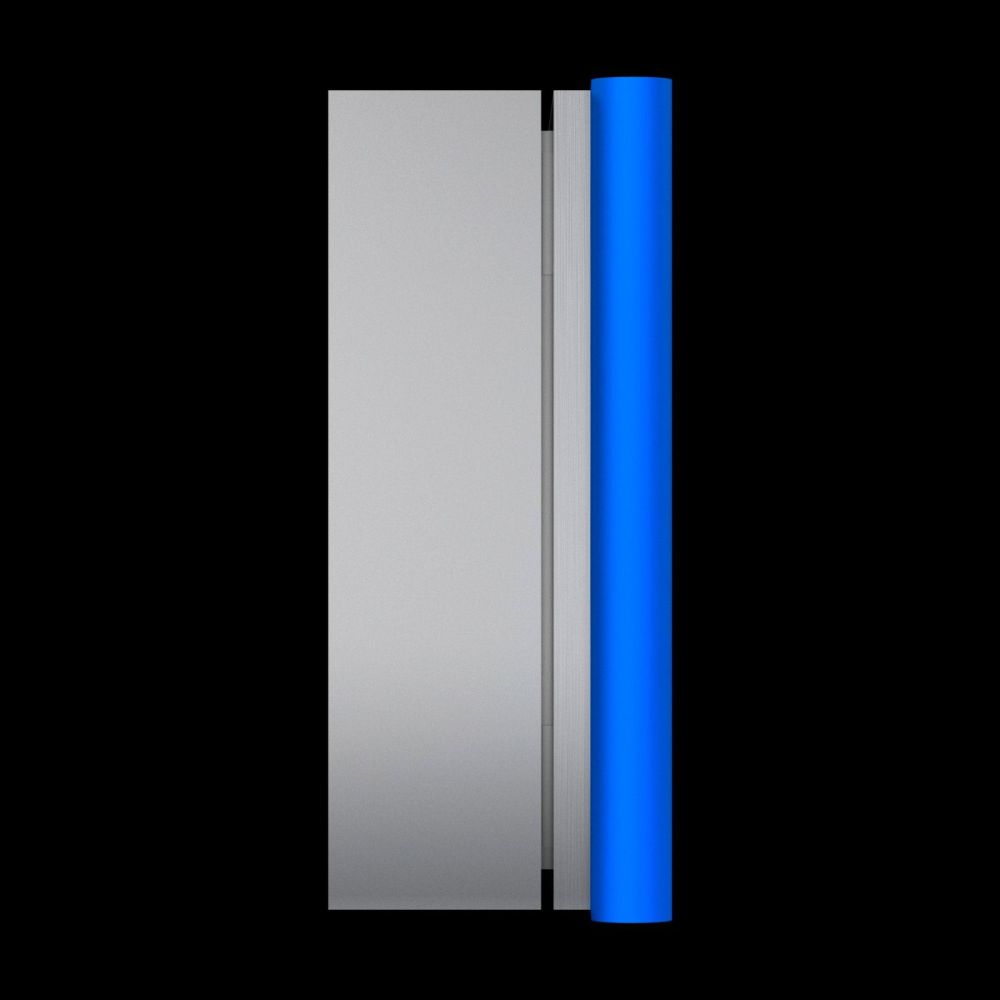

Rittal 6536010 command panel housing, stainless steel 1.4301, 400x300x150 mm
|
385,60 EUR |
|
|
( 458,86 EUR incl. VAT ) ≈ £322.75 | ≈ $423.77 plus delivery charges: 100,00 € |
|
| Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline | |
| In Stock: >25 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 714430 |
| Mfg Part No: | 6536010 |
| UPC/EAN: | 4028177220379 |
| Weight: | 7.44 kg |
| Type: | CP 6536010 |
Product information for Rittal 6536010:
Handle strips: Plastic approved for use with foodstuffs, dyed blue
Surface finish: Brushed, grain 240
Colour: Handle strips: similar to RAL 5002
Protection category IP to IEC 60 529: IP 66
Protection category NEMA: NEMA 12
Supply includes: Enclosure of all-round solid construction
Cut-out and reinforcement for support arm system CP 40 stainless steel
Fastener with guide plate

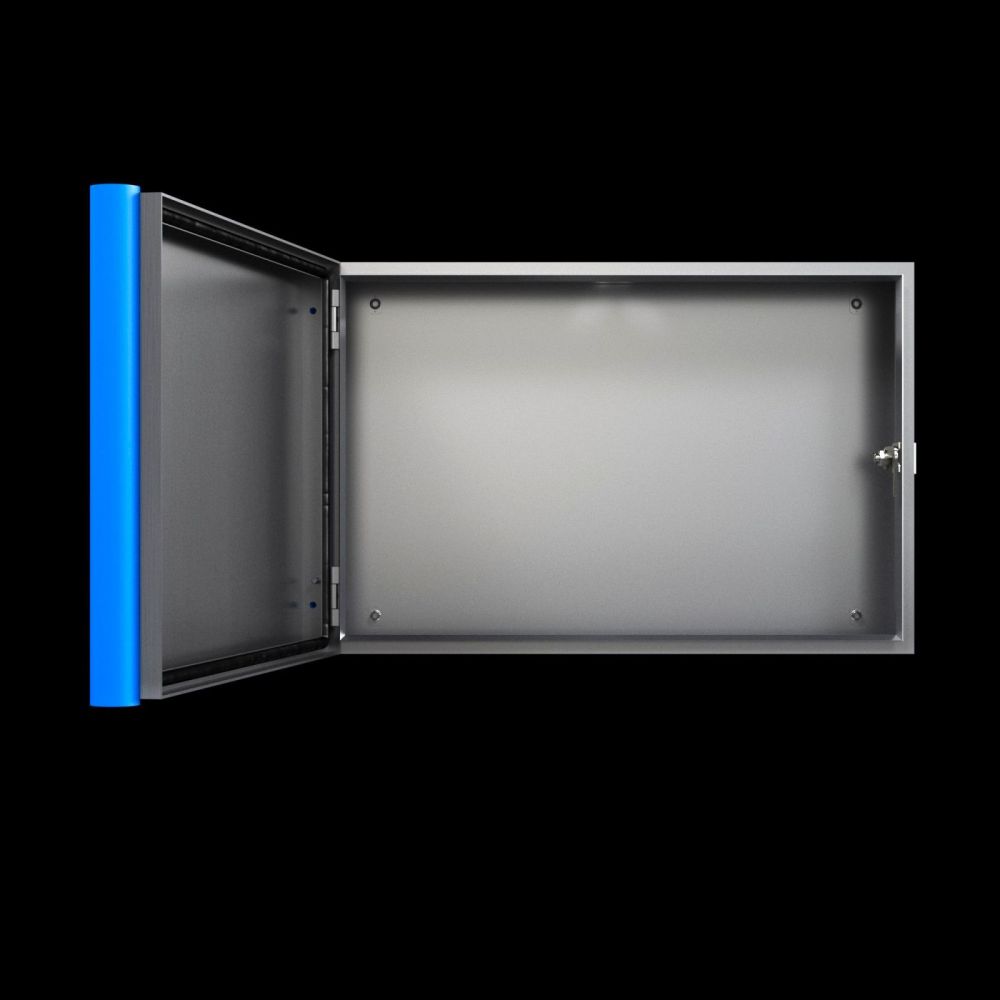

Door with sealing frame and side handle strips
Lock: 3 mm double-bit
Note: The support arm connection and door hinge may be swapped over by rotating the enclosure
Matching mounting plates from compact enclosures AE may be used
3 mm double-bit lock insert may be exchanged for 41 mm lock inserts, plastic handles and T handles, type C
Note on Model No.: Matching mounting panel 5050.430
Packs of: 1 pc(s).
EAN: 4028177220379
Customs tariff number: 94032080
eCl@ss 5.1: 27180505
eCl@ss 7.0: 27180505
ETIM 6.0: EC002504
Dimensions: Width: 400 mm
Height: 300 mm
Depth: 150 mm
Weight/pack: 7.5 kg
| General | |
| Model | With mounting arm connection CP 40, stainless steel |
| Material | Housing and door: stainless steel 1.4301 (AISI 304), handle strips: food-safe plastic, blue tinted |
| Surface protection | Linear grind, grit 400 |
| Basic colour | Stainless steel |
| Colour | handle strips: similar to RAL 5002 |
| Scope of delivery | Housing fully enclosed, breakout and reinforcement for CP 40 support system, stainless steel, closure with guide plate, door with sealing frame and side grip strips, closure: 3 mm double bar |
| Width | 400 mm |
| Height | 300 mm |
| Depth | 150 mm |
| Degree of protection IP according to IEC 60 529 | IP 66 |
| NEMA degree of protection | NEMA 12 |
| Note | Swapping of mounting arm connection and door hinge by rotating the housing possible, 3 mm double bar lock insert, interchangeable with 41 mm lock inserts, plastic handles and toggle handles, type C |
| Base material | Stainless steel 1.4301 (AISI 304) |
| Note on part number | compatible mounting plate 5050.430 with shipping bag 5050.507 |
| PCF/VE (Cradle-to-Gate) | 34,96 |
