Rittal 1586000 Bus enclosure KX, stainless steel 1.4301, W x H x D: 600x200x120 mm

Your rating:
Average rating
product review for Rittal 1586000 Bus enclosure KX, stainless steel 1.4301, W x H x D: 600x200x120 mm
( 4 / 5 ) 4 ratings

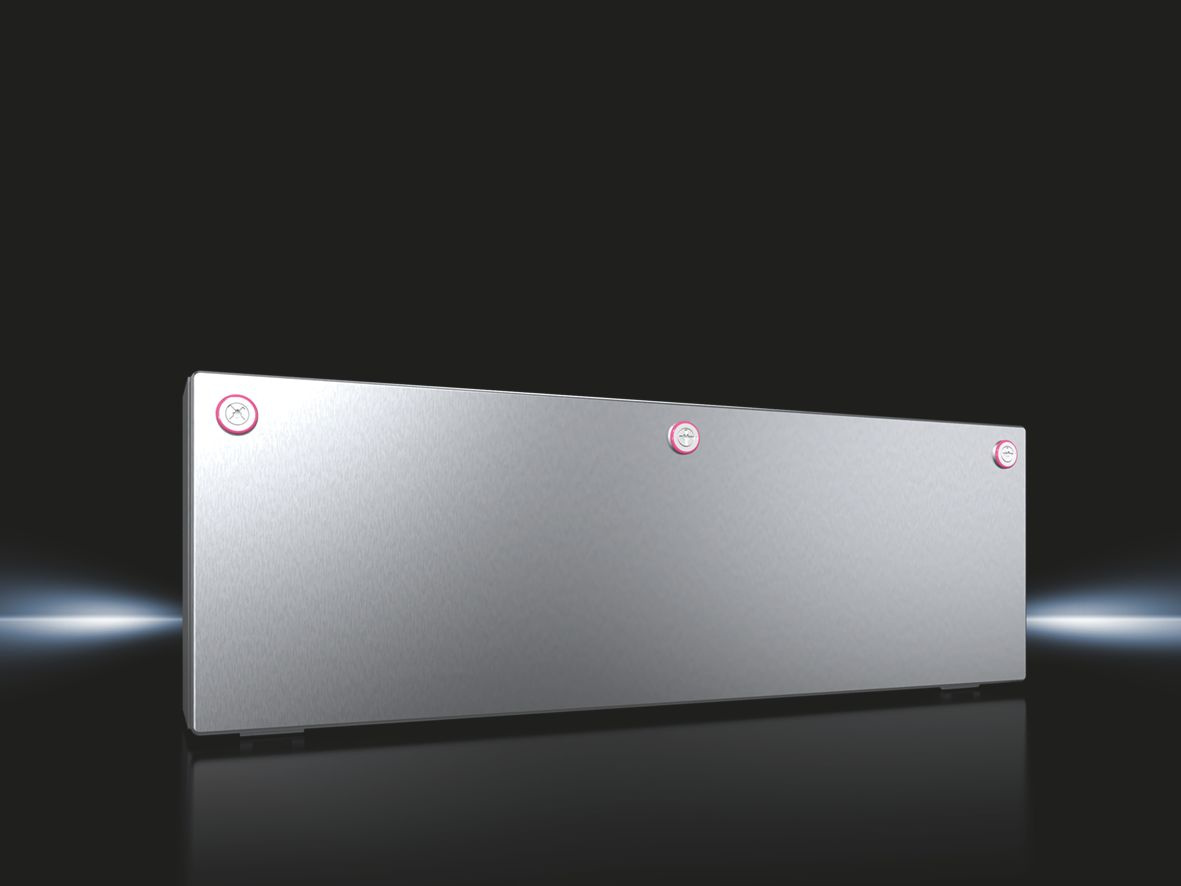

Rittal 1586000
This image may differ from the desired article.
Rittal 1586000Rittal 1586000Rittal 1586000Rittal 1586000Rittal 1586000Rittal 1586000Rittal 1586000Rittal 1586000Rittal 1586000Rittal 1586000Rittal 1586000Rittal 1586000
-10% 243,92 EUR 272,09 EUR
( 290,26 EUR incl. VAT )
≈ £204.16  |  ≈ $268.07
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >100 pieces
1x Rittal 1586000 Bus enclosure KX, stainless steel 1.4301, W x H x D: 600x200x120 mm
Datasheet:file_download Download
Lieske Part No.:1778286
Mfg Part No: 1586000
UPC/EAN: 4028177919129
Weight:4.894 kg
Type:KX 1586000

Product information for Rittal 1586000:

The Rittal KX 1586000 is a bus enclosure made of stainless steel 1.4301 (AISI 304), designed for use in industrial applications where high mechanical strength and protection against environmental influences are required. With dimensions of width 600 mm, height 200 mm, and depth 120 mm, it offers a compact yet sufficiently sized installation space for small control systems, controls, or distributors. The enclosure is standard-equipped with a hinged lid featuring 180° hinges to ensure optimal accessibility. The closure is achieved via a quick-release mechanism with integrated plastic bushings, enabling secure and rapid installation.

Applications
This enclosure is suitable for use in production plants, machine building, process engineering, and automation technology. The high protection rating IP 66 according to EN 60 529 makes it particularly suitable for environments where dust, splashing water, or short-term immersion may occur. The approvals according to NEMA (NEMA 1, 3R, 4, 4X, 12) and UL 50E (Type 1, 3R, 4, 4X, 12) extend the application range, especially in countries with corresponding standard requirements, such as the USA or Canada. The IP 66 rating means the enclosure is dust-tight and protected against water jets from any direction, making it suitable for outdoor use or in damp indoor environments.

Functions and Equipment in Detail
The enclosure consists of a single-piece folded and welded body made of stainless steel 1.4301 with a material thickness of 1.25 mm for both the enclosure and the lid. The surface is brushed with grain 180, providing a robust, uniform, and easy-to-clean surface. The lid is hinged at the bottom and features a continuously foamed PU seal to ensure a tight seal. The hinges are made of zinc die-cast and chrome-plated, offering corrosion protection and mechanical stability. The enclosure includes an earth conductor connection, and the lid features an earthing bolt to ensure a secure electrical connection.

Technology Explained Simply
The IP 66 protection rating means the enclosure is fully protected against dust and resistant to water jets from any direction. This is particularly important in environments with high mechanical or chemical stress. The NEMA approvals (e.g., NEMA 4X) confirm suitability for use in damp, dusty, or corrosive environments, including outdoor applications. The material thickness of 1.25 mm ensures high mechanical stability and resistance to damage. The use of stainless steel 1.4301 (AISI 304) provides good corrosion resistance, especially in damp or slightly aggressive environments.

Compatibility and Accessories
The enclosure is compatible with various accessories that facilitate mounting and integration into existing systems. These include mounting clips for support rails, mounting brackets, condensate drains, baying sets for AX, KX, AE, KL, drill screws type ST 4,8 L9,5 mm, mounting brackets, wall mounting angles made of stainless steel 1.4301, SZ pressure equalization plugs made of stainless steel 1.4305, AX mast mounting brackets, earthing straps M6-M6 with cross-section 10 mm², mounting plates for terminal boxes or bus enclosures, mounting claws for a second mounting level, SZ wall mounting brackets made of stainless steel 1.4301, support rails TH 35/15, and flat mounting brackets for individual installations. These accessories enable flexible and application-specific installation.

Mounting and Installation
Mounting is performed using the integrated hinges and quick-release mechanisms. Wall mounting is achieved using special wall mounting angles or brackets made of stainless steel, which are also available in the accessory range. Mounting plates and support rails allow the installation of terminal boxes, bus enclosures, or other components within the enclosure. The rear wall of the enclosure features embossing for flexible component mounting. The integrated earthing and earth conductor connection simplify electrical connections and ensure operational safety.

Advantages in Operation
The enclosure offers high mechanical and chemical resistance due to the use of stainless steel 1.4301. The IP 66 protection rating and NEMA approvals ensure reliable operation in demanding environments. The 180° hinges and quick-release mechanisms enable fast and secure accessibility, simplifying maintenance and inspections. The integrated earthing and earth conductor connection ensure a safe electrical connection. The brushed surface with grain 180 is easy to clean and resistant to contamination. The use of zinc die-cast hinges with chrome plating increases the lifespan and functionality of the closure.

The enclosure is marked with a QR code on the body, lid, and nameplate, enabling unique identification and easy access to relevant product information, as well as traceability of individual components. This marking is particularly beneficial for maintenance and service processes.

Scope of Delivery
The product is delivered with enclosure, lid, 180° hinges, and quick-release mechanism including plastic bushings.

General
MaterialEnclosure: stainless steel 1.4301 (AISI 304), cover: stainless steel 1.4301 (AISI 304), continuously foamed PU seal, hinges: zinc die-cast
Surface protectionCabinet and lid: brushed finish, grit 180, 180° hinges: chrome-plated
Scope of deliveryCabinet with lid, 180° hinges, quick-release fastener including plastic bushings
Width600 mm
Height200 mm
Depth120 mm
Degree of protection IP according to EN 60 529IP 66
NEMA degree of protectionNEMA 1, NEMA 3R, NEMA 4, NEMA 4X, NEMA 12
Type rating according to UL 50EType 1, Type 3R, Type 4, Type 4X, Type 12
Material thickness cover1,25 mm
Plate thickness cabinet1,25 mm
Base materialStainless steel 1.4301 (AISI 304)
PCF/VE (Cradle-to-Gate)18,49


Product data sheet
Datasheet for Rittal 1586000, EAN: 4028177919129
