Rittal 1566800 mounting plate for terminal box KX, bus enclosure KX

Your rating:
Average rating
product review for Rittal 1566800 mounting plate for terminal box KX, bus enclosure KX
( 4.3 / 5 ) 9 ratings
Rittal 1566800
This image may differ from the desired article.
Rittal 1566800Rittal 1566800Rittal 1566800
-48% 10,67 EUR 20,33 EUR
( 12,70 EUR incl. VAT )
≈ £8.93  |  ≈ $11.73
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 8 workdaysinfo_outline
In Stock: >100 pieces
1x Rittal 1566800 mounting plate for terminal box KX, bus enclosure KX
Datasheet:file_download Download
Lieske Part No.:1598304
Mfg Part No: 1566800
UPC/EAN: 4028177925380
Weight:1.68 kg
Type:KX 1566800

Product information for Rittal 1566800:

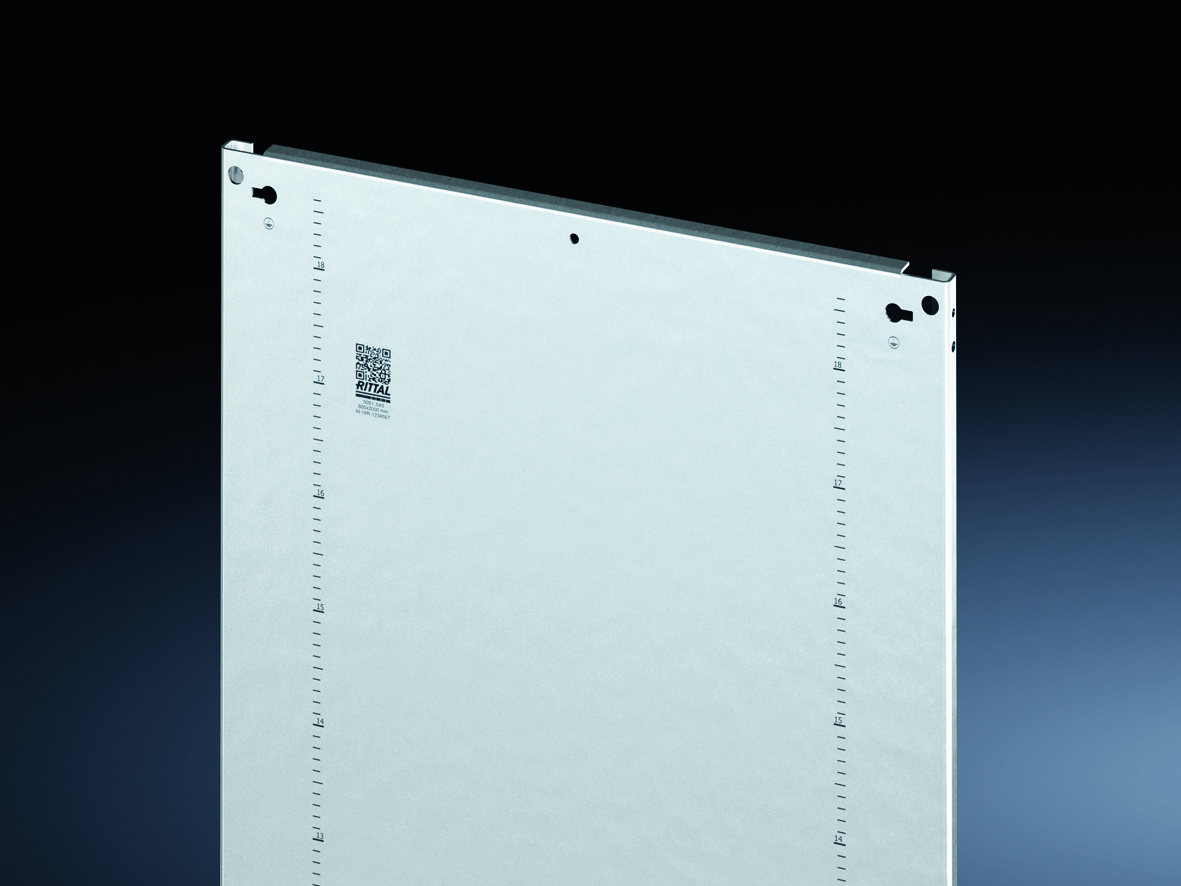

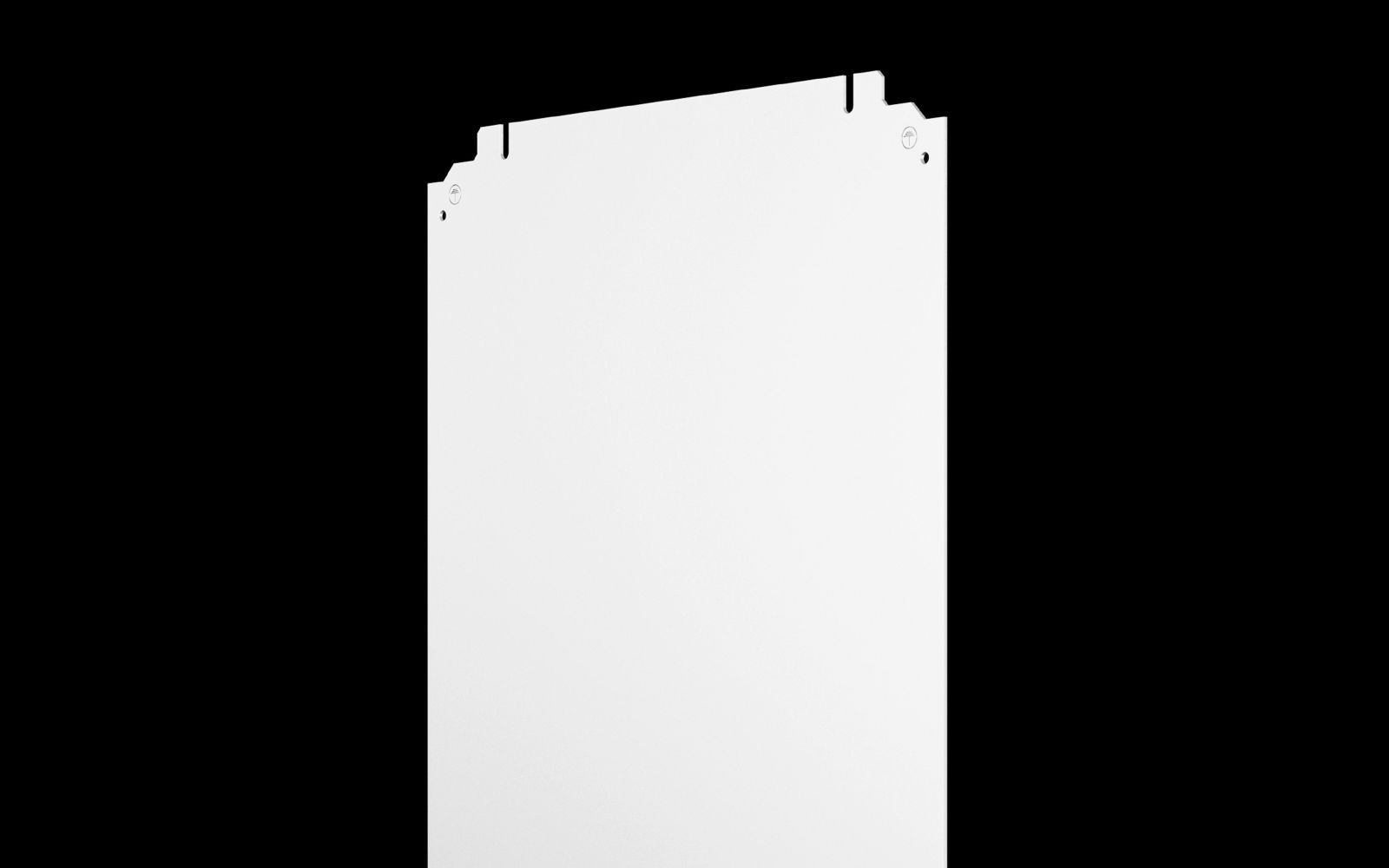

The Rittal KX 1566800 is a mounting plate made of sheet steel, specifically designed for the mounting of components outside enclosures, particularly for terminal boxes KX, bus enclosures KX, and terminal boxes HD. The plate serves as a stable base for mounting electrical components that are not intended to be installed inside the enclosure, such as during the installation of connectors, switches, or other assemblies on the exterior. The dimensions of the mounting plate are 600 mm in width and 200 mm in height, making it suitable for the mentioned enclosure types with corresponding external dimensions.

Mounting plate made of sheet steel with a thickness of 2 mm offers high mechanical stability and is designed for use in industrial environments. The surface is zinc-coated, forming a corrosion-resistant protective layer that extends the service life of the plate under normal operating conditions. The zinc coating protects the material from moisture and oxidation, especially in environments with increased humidity or minor chemical exposure.

Applications include the installation of electrical components on the exterior of terminal boxes and bus enclosures, where direct mounting inside is not possible or desired. The mounting plate enables structured and secure fastening of components, improving the accessibility and maintainability of the installation. It is particularly suitable for electrical installation, automation technology, and machine building, where clear and orderly cabling and mounting are required.

Functions and equipment in detail include the use of mounting screws, which, according to the manufacturer, are included in the accessories of the respective enclosure. The plate is designed for enclosure types with an external width of at least 600 mm and an external height of at least 200 mm to ensure secure mounting.

Technology explained simply shows that the mounting plate is made of robust, 2 mm thick sheet steel, protected against corrosion by zinc coating. The zinc coating is a galvanic protection that shields the iron in the sheet steel from oxidation without impairing the material’s mechanical properties. The dimensions of 600 mm width and 200 mm height are matched to the standard sizes of KX enclosures to enable precise fitting.

Compatibility and accessories include use with terminal boxes KX, bus enclosures KX, and terminal boxes HD. The mounting plate is specifically developed for these enclosure types, which are widely used in industrial electrical installations. The mounting screws for the plate itself are, according to the manufacturer, included in the accessories of the respective enclosure.

Mounting and installation is carried out by fastening to the exterior of the enclosure, using the screws included in the enclosure set. The mounting plate is positioned to utilize the designated mounting points on the enclosure, ensuring a secure and stable connection. Installation requires no additional tools other than a screwdriver or a suitable screwdriver bit.

Operational advantages lie in improved accessibility and maintainability of the mounted components. Mounting outside the enclosure allows for faster inspection and repair without having to open or fully disassemble the enclosure. The stable construction from zinc-coated sheet steel ensures long service life and reliable performance even under industrial conditions.

General
MaterialSheet steel, 2 mm
Surface protectionZinc-plated
Suitable for housing typeTerminal box KX, Bus enclosure KX, Terminal box HD
Suitable forHousing type: terminal box KX, bus housing KX, terminal box HD, width: = 600 mm, height: = 200 mm


Product data sheet
Datasheet for Rittal 1566800, EAN: 4028177925380
