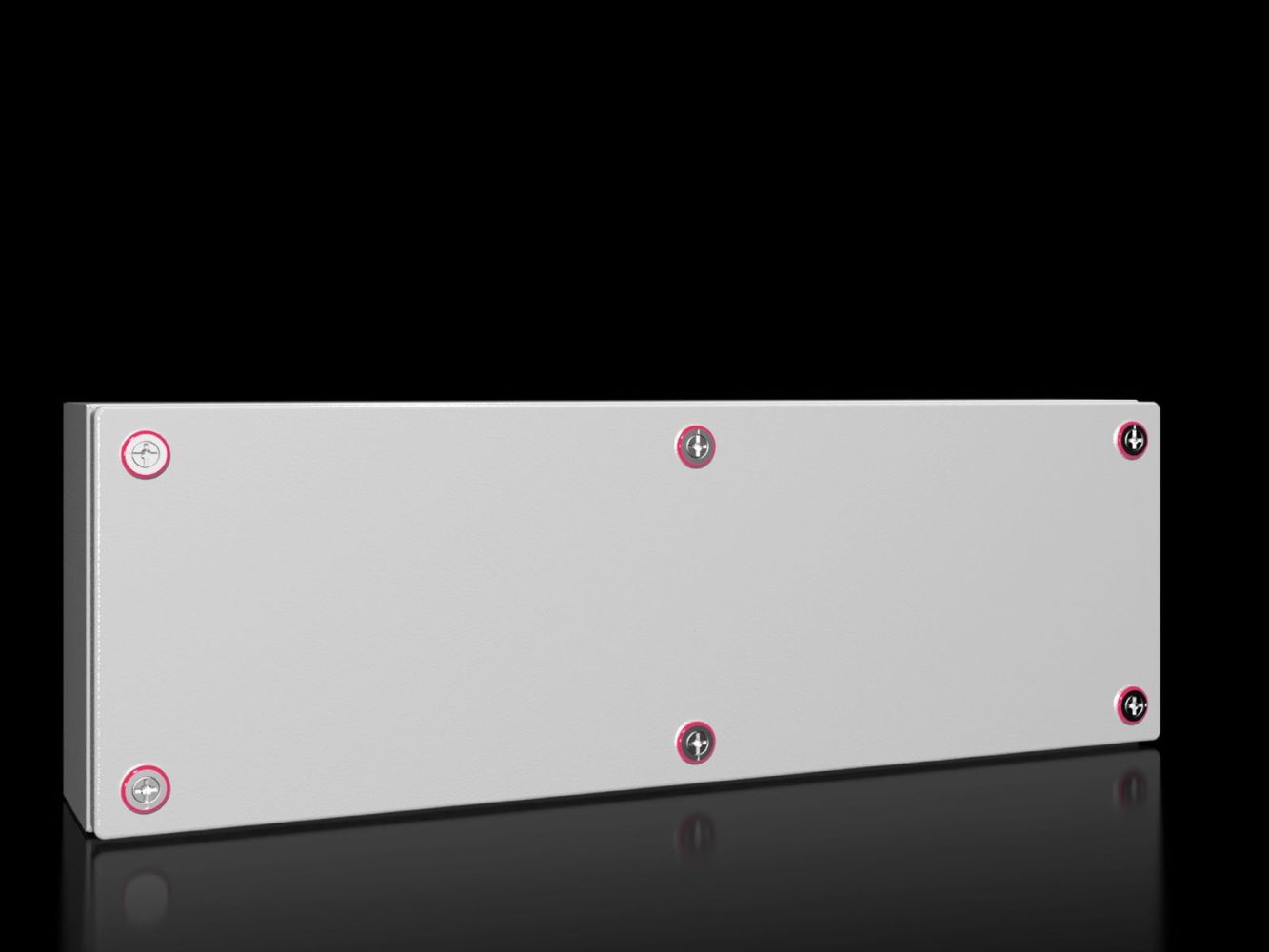

Rittal 1506000 terminal box KX, without gland plate 600x200x120 mm
|
50,49 EUR 50,52 EUR |
|
|
( 60,08 EUR incl. VAT ) ≈ £42.26 | ≈ $55.49 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline | |
| In Stock: >25 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1598179 |
| Mfg Part No: | 1506000 |
| UPC/EAN: | 4028177816206 |
| Weight: | 4.92 kg |
| Type: | KX 1506000 |
Product information for Rittal 1506000:
Applications
The terminal box is intended for use in industrial environments, particularly in installations requiring enhanced protection against dust, water, and mechanical impacts. The protection rating IP 66 according to EN 60 529 ensures dust-tight and watertight shielding, even under heavy spray water conditions. The NEMA protection ratings NEMA 1, NEMA 3R, NEMA 4, and NEMA 12, as well as the UL Type Ratings Type 1, Type 3R, Type 4, and Type 12, confirm suitability for indoor and outdoor use, including humid or dusty environments. The IK08 rating provides high protection against mechanical impacts such as shocks or vibrations.
Functions and Equipment in Detail
The enclosure is made of sheet steel with a material thickness of 1.25 mm for both the body and the lid. The surface is dip-primed, powder-coated, and finished with a textured paint in RAL 7035, ensuring high corrosion resistance and resistance to mineral oils, lubricants, machining emulsions, and solvents. The lid is fitted with a continuous foamed PU seal, ensuring a tight seal. The delivery includes the enclosure with lid and a mini push-button lock, enabling secure and quick closure.
Technology Explained Simply
The construction of the KX 1506000 is formed from a single piece, bent and welded, creating a stable and tight structure. A continuous protective channel is located at the lid opening, providing additional protection. The rear wall features pre-drilled holes for wall mounting brackets, enabling flexible installation. The enclosure and lid incorporate earth conductor connections, which allow quick and easy grounding via U-brackets. A printed QR code on the body, lid, and nameplate enables unique identification and easy access to relevant product information, as well as traceability of individual parts.
Compatibility and Accessories
Various accessories are available for this terminal box, extending its application. These include mounting clips for support rails, plug-throughs, support rails (TH 35/15), pressure equalization plugs, mounting angles, condensate drains, baying sets for AX, KX, AE, KL, drill screws, mounting brackets, spacing angles for shock protection covers, zinc die-cast lid hinges, mounting plates for terminal boxes and bus enclosures, mounting claws for a second mounting level, and wall mounting brackets. These components allow individual adaptation to specific mounting and installation requirements.
Mounting and Installation
Mounting is carried out via the pre-drilled holes on the rear wall, designed for wall mounting brackets. The use of mounting angles, mounting brackets, or wall mounting brackets enables flexible attachment to various substrates. The integrated earth conductor connections simplify grounding, ensuring electrical safety. The use of support rails and mounting plates allows installation of plugs, terminals, or other components inside the enclosure.
Advantages in Operation
The KX 1506000 offers high mechanical stability and protection rating, making it suitable for demanding industrial environments. The powder-coated surface in RAL 7035 ensures long service life and resistance to environmental influences. The integrated grounding options and simple mounting via designated fastening points reduce installation time. The availability of various accessories enables flexible adaptation to different operational requirements. The protection rating IP 66 and the IK08 rating guarantee reliable performance even under harsh operating conditions.
| General | |
| Material | Housing: steel sheet, cover: steel sheet, continuously foamed PU seal |
| Surface protection | Housing and cover: dip primed, externally powder coated, textured lacquer |
| Colour | RAL 7035 |
| Scope of delivery | housing with cover, mini-quick-release latch |
| Width | 600 mm |
| Height | 200 mm |
| Depth | 120 mm |
| Degree of protection IP according to EN 60 529 | IP 66 |
| NEMA degree of protection | NEMA 1, NEMA 3R, NEMA 4, NEMA 12 |
| Type rating according to UL 50E | Type 1, Type 3R, Type 4, Type 12 |
| IK code | IK08 |
| Material thickness cover | 1,25 mm |
| Plate thickness cabinet | 1,25 mm |
| Base material | steel sheet |
| PCF/VE (Cradle-to-Gate) | 35.54 kg CO2 eq (Cat B) |
| Note on PCF class | Category B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared |
Questions & answers
What is the delivery time of Rittal 1506000 terminal box KX, without gland plate 600x200x120 mm?
The article Rittal 1506000 terminal box KX, without gland plate 600x200x120 mm is currently in stock
According to our experience the article is ready for dispatch within 6 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 1506000 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Rittal 1506000 terminal box KX, without gland plate 600x200x120 mm always at the best possible price. We can give you a discount of 2% on Rittal 1506000 terminal box KX, without gland plate 600x200x120 mm if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
