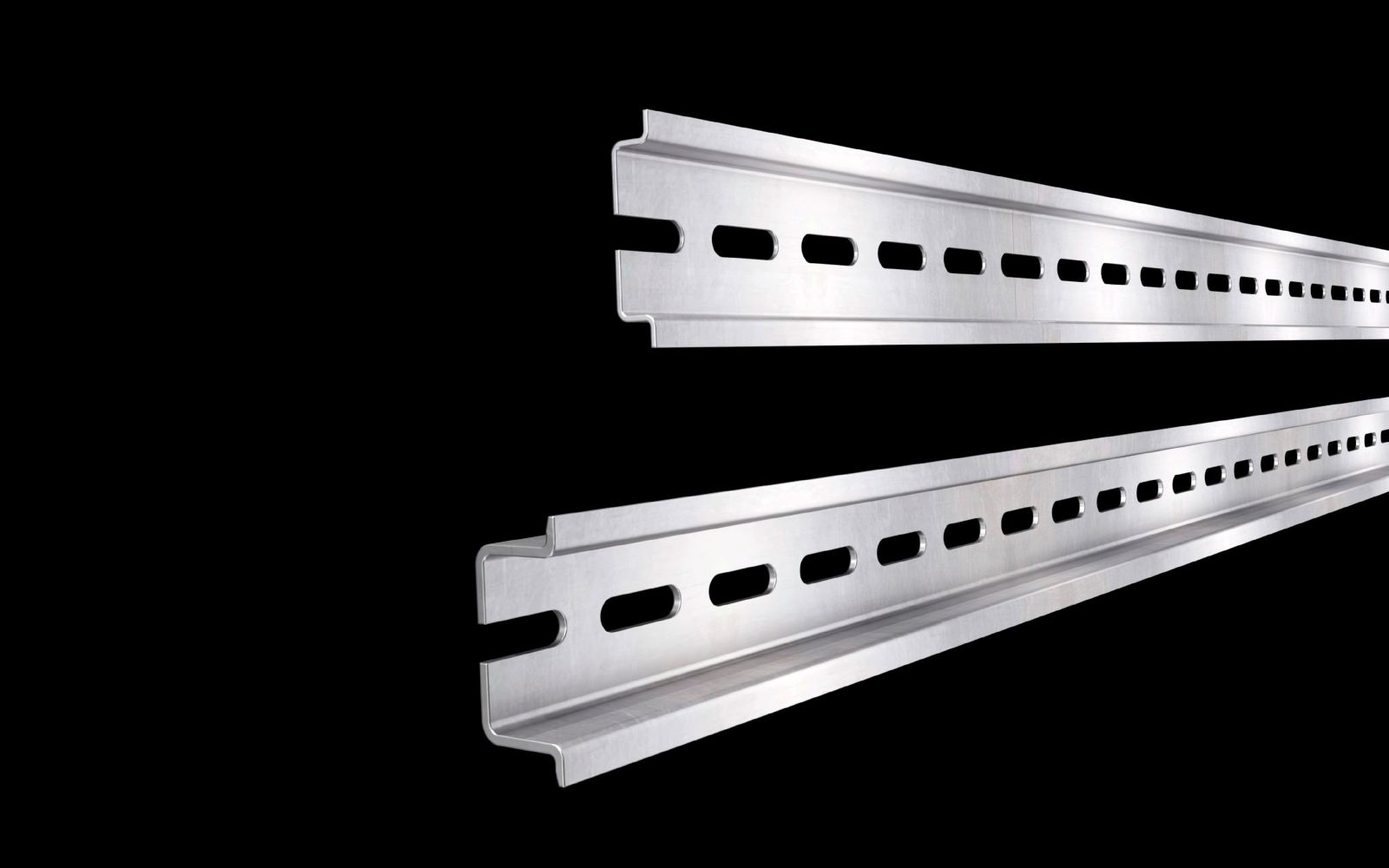

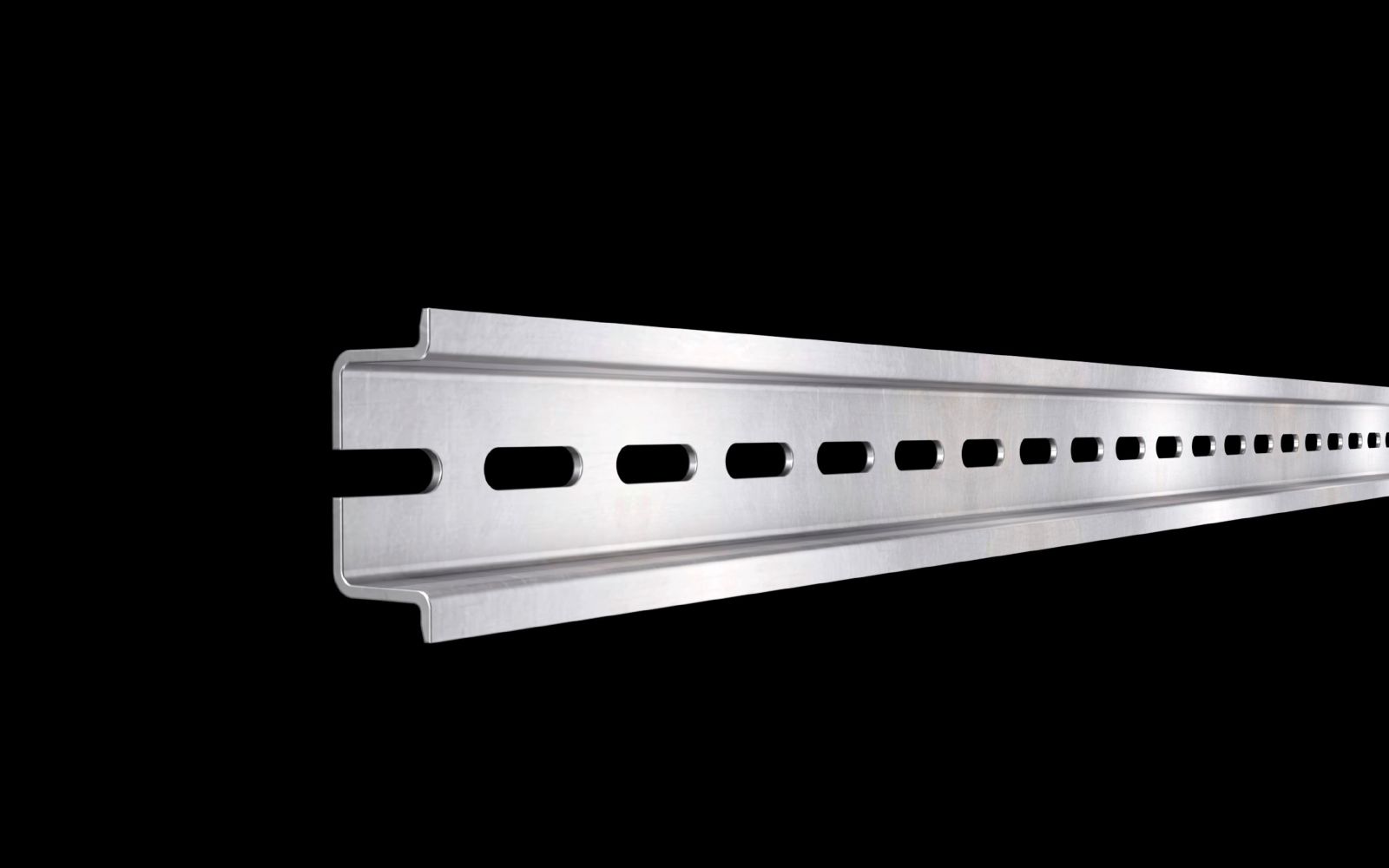

Rittal 2319000 support rail TH 35/15, for W 600 mm, length 587 mm

Your rating:
Average rating
product review for Rittal 2319000 support rail TH 35/15, for W 600 mm, length 587 mm
( 4.5 / 5 ) 34 ratings
Rittal 2319000
This image may differ from the desired article.
Rittal 2319000Rittal 2319000Rittal 2319000Rittal 2319000
-10% 56,70 EUR 63,24 EUR
( 67,47 EUR incl. VAT )
≈ £47.46  |  ≈ $62.31
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >25 pieces
1x Rittal 2319000 support rail TH 35/15, for W 600 mm, length 587 mm
Datasheet:file_download Download
Lieske Part No.:355857
Mfg Part No: 2319000
UPC/EAN: 4028177021105
Weight:3.622 kg
Type:SZ 2319000

Product information for Rittal 2319000:

The Rittal SZ 2319000 is a support rail in the format TH 35/15, specifically designed for mounting components and switching elements in industrial enclosures. The product complies with the standard EN 60 715, which defines the dimensions and requirements for support rails used in enclosures. The rail is manufactured from sheet steel and features a zinc-coated surface, providing a corrosion-resistant protective layer and extending service life in industrial applications. The length of the support rail is 587 mm, dimensioned to match the enclosure width of 600 mm, ensuring optimal fit and mounting compatibility.

Applications
The support rail is intended for enclosure types AX, KX, AE and KL, which have a width of exactly 600 mm. These enclosure types are widely used in industrial electrical engineering and automation technology, particularly in systems requiring high mounting precision and mechanical stability. The rail is suitable for securing components such as contactors, relays, fuses, control devices, and other modular elements mounted according to the DIN/EN standard TH 35/15.

Functions and Features in DetailThe support rail enables standardized mounting of components with a mounting height of 35 mm and a mounting width of 15 mm, corresponding to the TH 35/15 standard. The zinc-coated surface provides sufficient corrosion protection, especially in environments with increased humidity or low chemical exposure. The length of 587 mm is specifically designed to fit enclosures with a width of 600 mm, ensuring secure and backward-compatible mounting.

Technical ExplanationThe designation TH 35/15 describes the mounting geometry: 35 mm is the height of the mounting surface, and 15 mm is the width of the mounting flanges. These dimensions are internationally standardized, allowing the use of components from various manufacturers. The rail is made of sheet steel, offering high mechanical stability and load capacity. The zinc coating protects the material from oxidation and extends service life, particularly in industrial environments.

Compatibility and AccessoriesThe support rail is specifically designed for enclosure types AX, KX, AE and KL, which have a width of 600 mm. These enclosures are common in industrial electrical installations and automation technology. The rail is not intended for other enclosure widths or types, as its length and mounting geometry are precisely matched to the 600 mm width. Use in other enclosures may result in mounting issues or mechanical instability.

Mounting and InstallationMounting is performed by securing the rail to the designated mounting points within the enclosure. The rail is inserted into the pre-drilled holes and fastened using screws or other fastening elements. The exact fit ensures a secure and stable installation. The rail is designed for mounting components according to TH 35/15, with a standardized mounting height of 35 mm and width of 15 mm. The zinc coating simplifies installation, as no additional coating or pre-treatment is required.

Operational AdvantagesUsing the Rittal SZ 2319000 provides high mounting accuracy and compatibility with a wide range of components standardized to TH 35/15. The zinc-coated surface ensures longer service life and reduces maintenance requirements. The precise alignment with the 600 mm enclosure width guarantees secure and backward-compatible mounting, simplifying planning and installation of enclosures. The rail is designed for industrial environments where high mechanical stability and reliability are required.

General
ModelTH 35/15
Materialsteel sheet
Surface protectionZinc-plated
Length of busbar587 mm
Suitable forEnclosure type: AX, KX, AE, KL, width: = 600 mm
PCF/VE (Cradle-to-Gate)13.43 kg CO2 eq (Cat B)
Note on PCF classCategory B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared


Product data sheet
Datasheet for Rittal 2319000, EAN: 4028177021105
