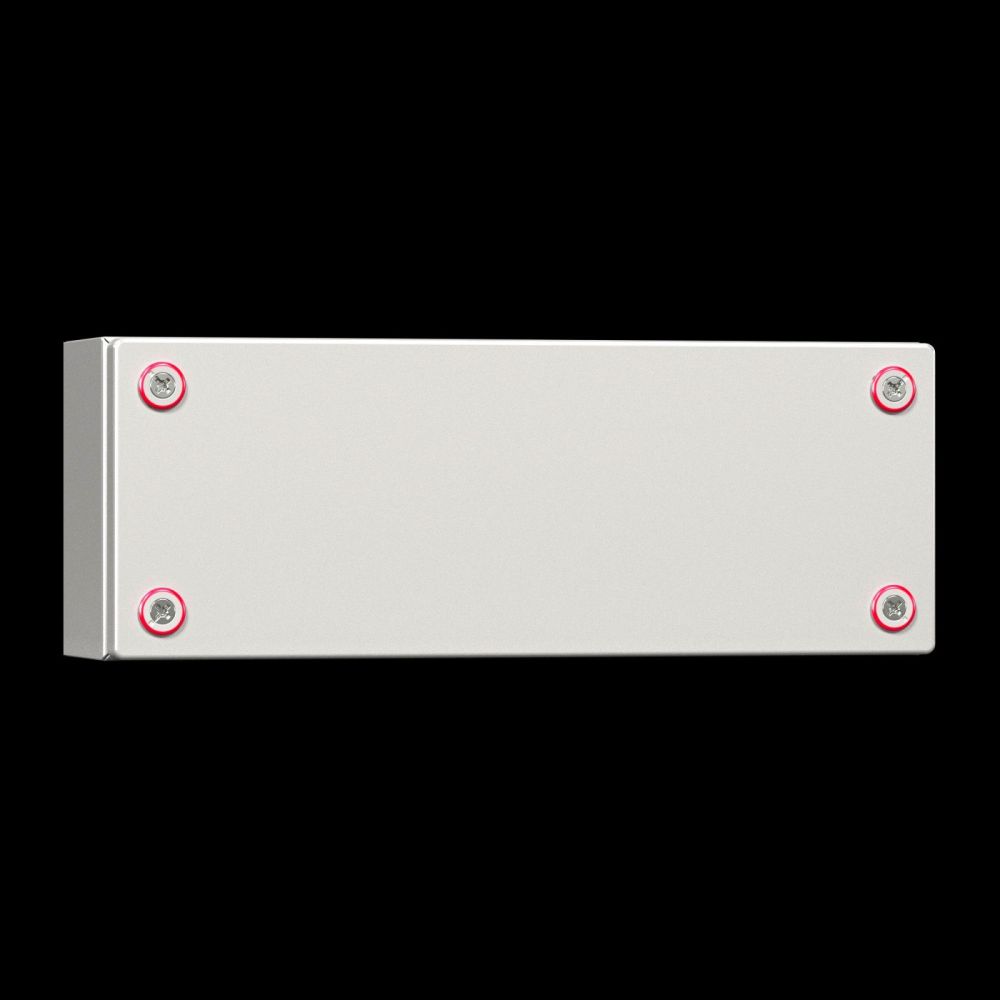

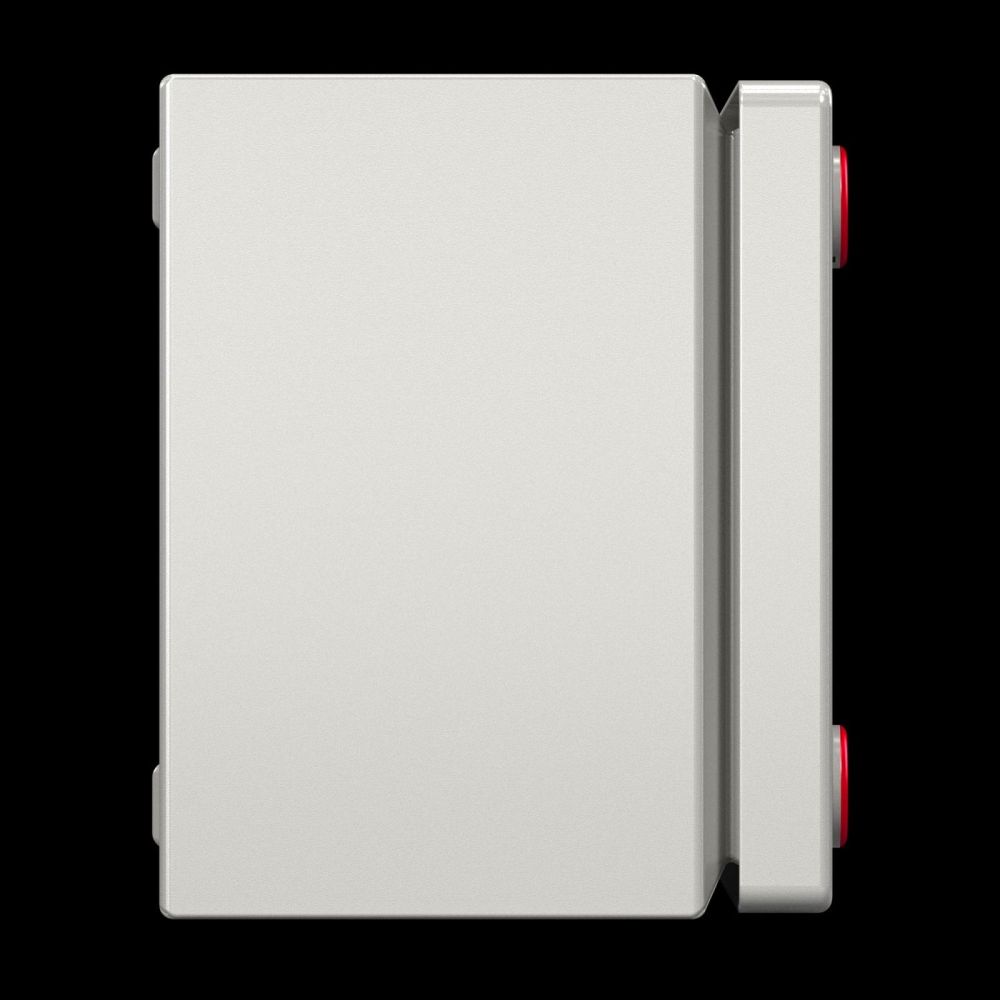

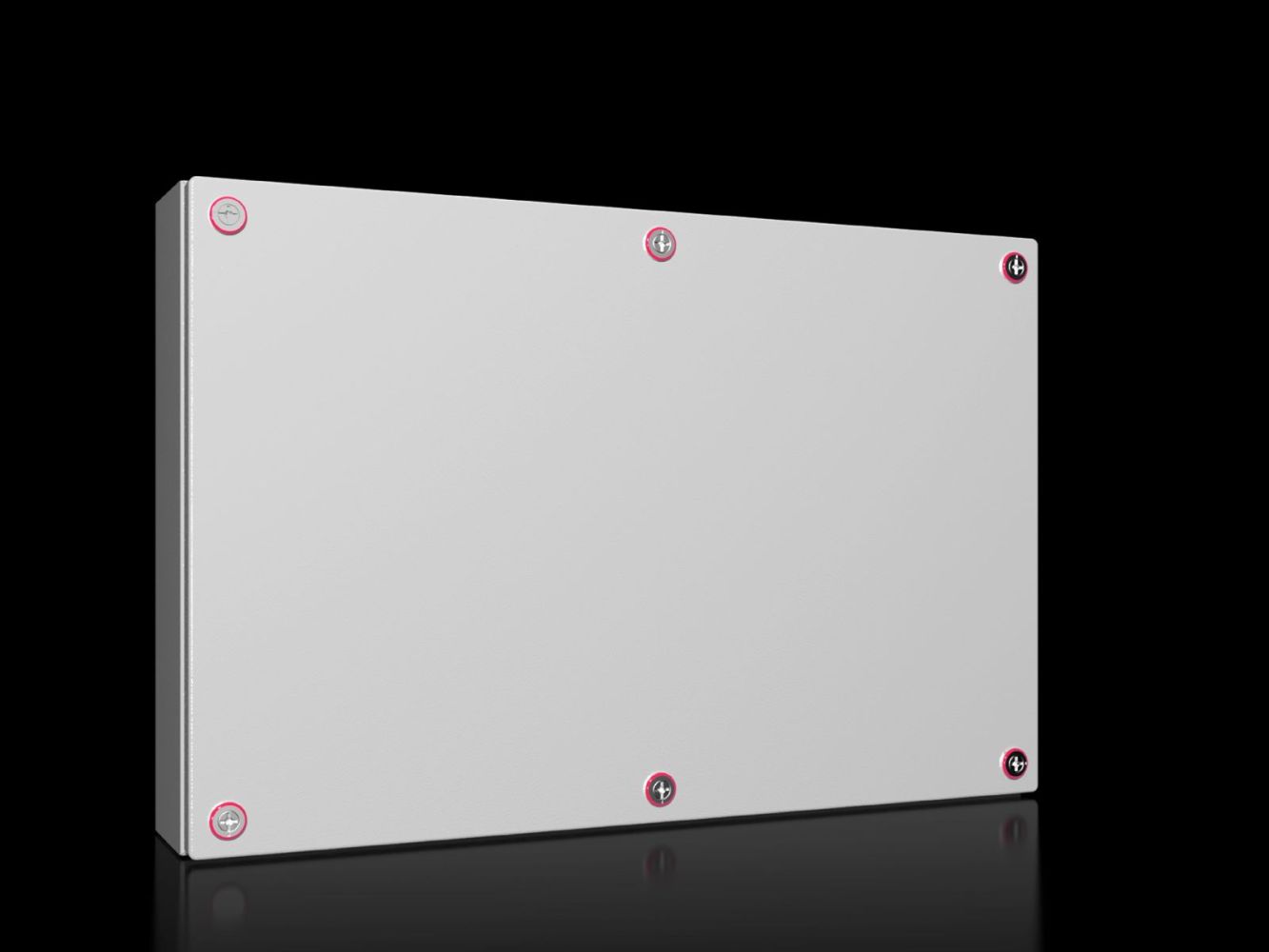

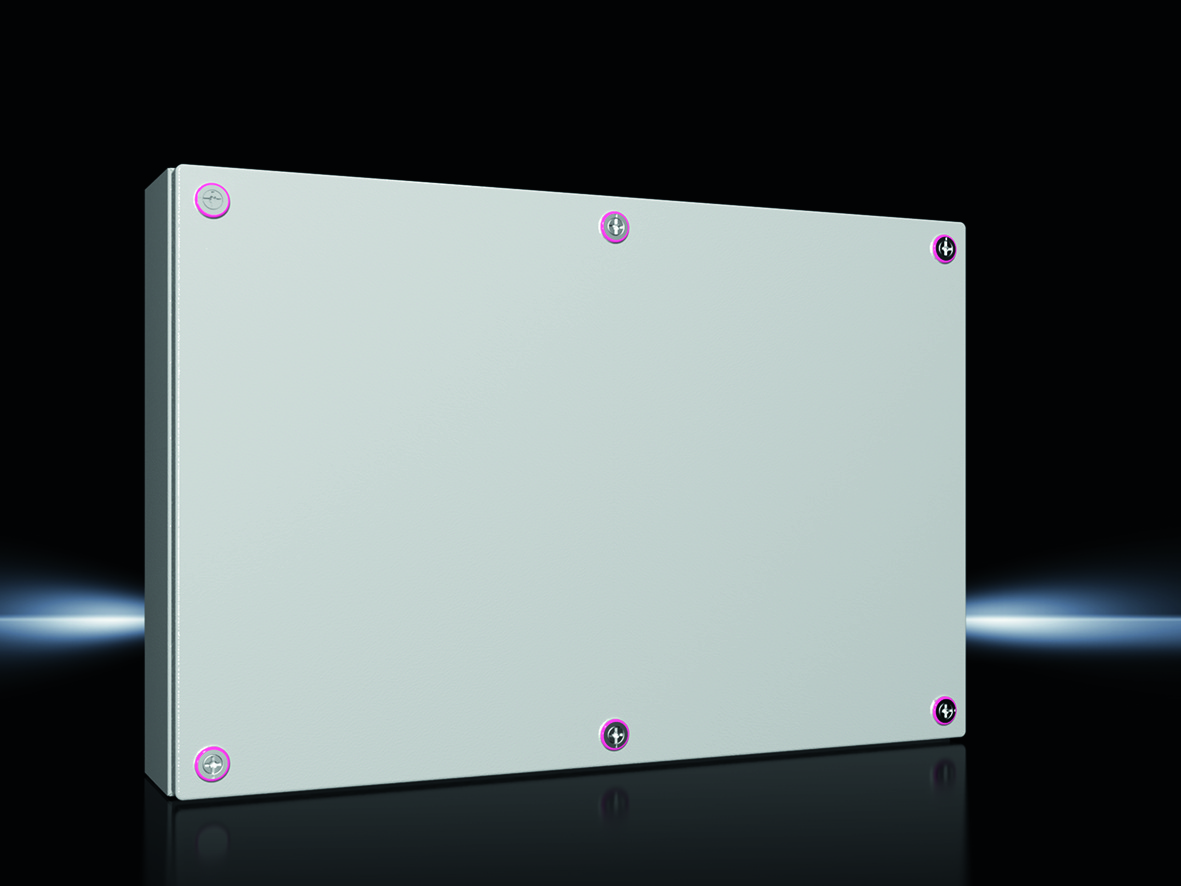

Rittal 1512000 terminal box KX, without gland plate 600x400x120 mm

Your rating:
Average rating
product review for Rittal 1512000 terminal box KX, without gland plate 600x400x120 mm
( 4 / 5 ) 5 ratings
Rittal 1512000
This image may differ from the desired article.
Rittal 1512000Rittal 1512000Rittal 1512000Rittal 1512000Rittal 1512000Rittal 1512000Rittal 1512000
70,04 EUR 71,63 EUR
( 83,35 EUR incl. VAT )
≈ £58.62  |  ≈ $76.97
plus delivery charges: 100,00 €
Delivery time from supplier's stock (ca.) 7 workdaysinfo_outline
In Stock: >100 pieces
1x Rittal 1512000 terminal box KX, without gland plate 600x400x120 mm
Datasheet:file_download Download
Lieske Part No.:1598173
Mfg Part No: 1512000
UPC/EAN: 4028177816268
Weight:8.14 kg
Type:KX 1512000

Product information for Rittal 1512000:

The KX 1512000 is an industrial terminal box made of sheet steel, manufactured by Rittal, and serves as a small housing for use in electrical and automated systems. With dimensions of width 600 mm, height 400 mm, and depth 120 mm, it offers a compact yet sufficiently dimensioned interior space for mounting terminals, switches, connectors, or small control devices. The enclosure is designed without a gland plate and without a mounting plate, allowing for flexible use in various installation scenarios. The surface is dip-primed and externally powder-coated with a textured lacquer in the colour RAL 7035, ensuring high corrosion resistance and resistance against mineral oils, lubricants, machining emulsions, and solvents. The material thickness is 1.25 mm for both the enclosure and the lid, enabling a stable construction.

Applications

The terminal box is designed for use in industrial environments, particularly in areas where high mechanical loads, moisture, or dust occur. The protection rating IP 66 according to EN 60 529 ensures dust-tight and water-tight shielding, even under heavy spray water conditions, making it suitable for outdoor use or in damp production halls. The NEMA protection ratings NEMA 1, NEMA 3R, NEMA 4, and NEMA 12, as well as the type ratings according to UL 50E (Type 1, Type 3R, Type 4, Type 12), confirm suitability for various environmental conditions, including protective coverage against spray water, dust, and mechanical impacts. The IK code IK08 indicates high mechanical resistance against impact and shock loads.

Functions and Equipment in Detail

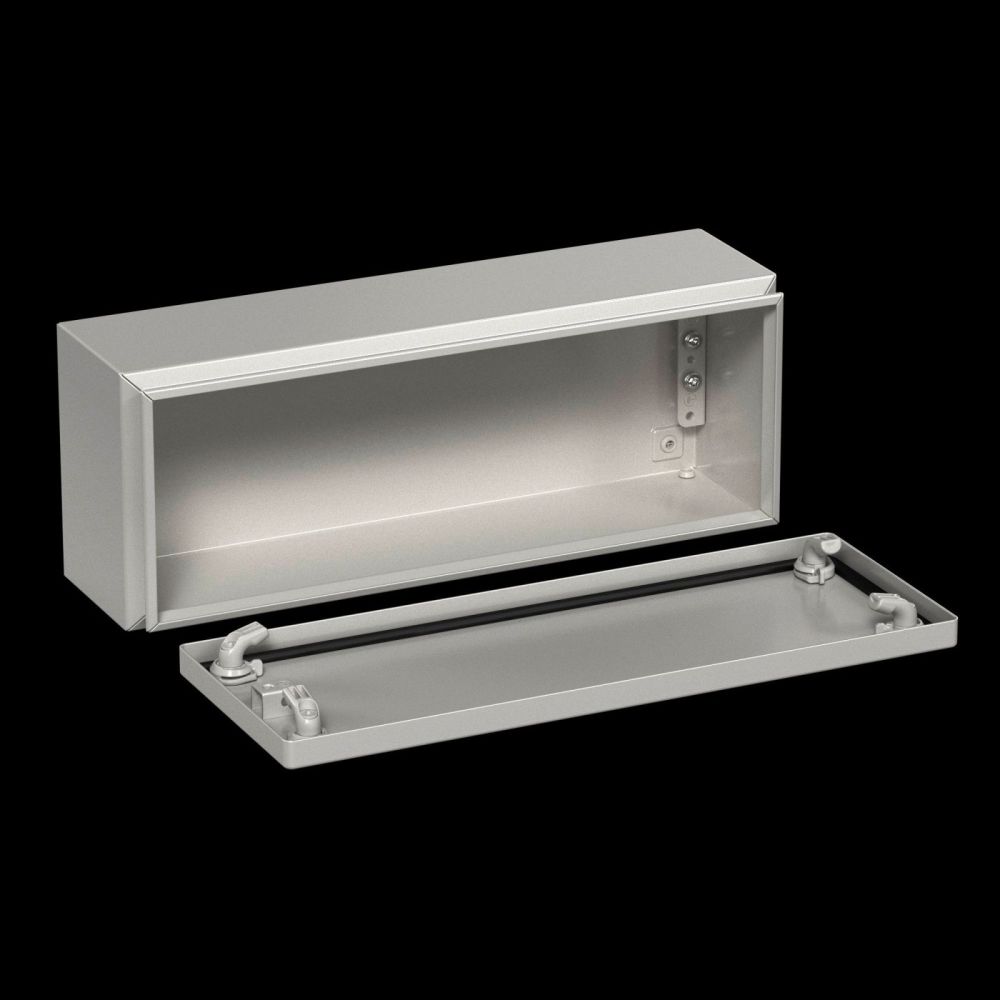

The enclosure is made from a single piece of sheet steel, which is bent and welded, creating a stable and tight construction. At the lid opening, there is a continuous protective channel, which together with the foamed PU seal ensures a tight seal. The lid is secured using a mini-pull latch, enabling quick and secure assembly. The enclosure features an integrated protective earth connection, which via a U-bracket in the lid allows for simple and reliable earthing. A QR code is printed on the enclosure, lid, and type plate, enabling unique identification and easy access to product information as well as traceability of individual components.

Technology Explained Simply

The triple surface treatment — consisting of nanoceramic coating, electrophoretic dip priming, and external powder-coated textured lacquer — ensures high corrosion resistance and chemical resistance. The protection rating IP 66 means the enclosure is fully protected against dust and water jets from all directions, making it suitable for outdoor use as well. The material thickness of 1.25 mm ensures sufficient mechanical stability to withstand operational loads.

Compatibility and Accessories

The terminal box can be supplemented with various accessories to optimize mounting and functionality. These include, for example, mounting clips for support rails, a TH 35/15 support rail, plug-throughs, pressure equalization plugs, mounting brackets, condensate drains, baying sets for AX, KX, AE, KL, drill screws, mounting brackets, spacing angles for shock protection covers, zinc die-cast lid hinges, mounting plates, earthing straps, and mounting claws for a second mounting level. These components allow for individual adaptation to specific requirements in plant construction.

Mounting and Installation

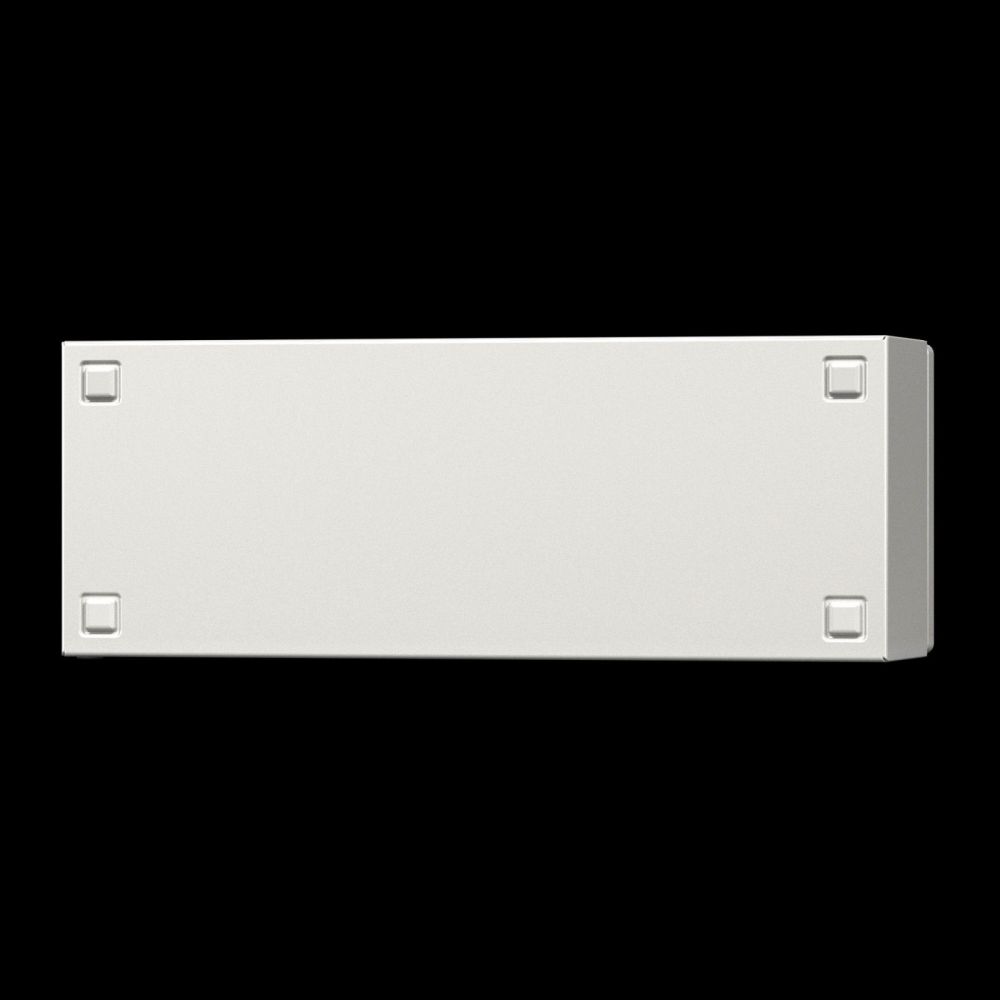

The rear wall of the enclosure features pass-throughs designed for wall mounting with brackets. The use of mounting plates or support rails enables flexible arrangement within enclosures or on walls. The integrated earthing via U-brackets in the lid and enclosure simplifies the secure electrical connection to the protective conductor.

Operational Advantages

The KX 1512000 offers high protection rating in a compact design, making it suitable for various industrial applications. The robust sheet steel construction and tight sealing ensure long service life even under harsh operating conditions. The integrated earthing and quick mounting via the mini-pull latch reduce installation time. The unique identification via QR code simplifies maintenance and documentation during operation. Compatibility with various accessories allows flexible adaptation to different requirements.

Scope of Delivery

The product is delivered with enclosure, lid, and mini-pull latch.

General
MaterialHousing: steel sheet, cover: steel sheet, continuously foamed PU seal
Surface protectionHousing and cover: dip primed, externally powder coated, textured lacquer
ColourRAL 7035
Scope of deliveryhousing with cover, mini-quick-release latch
Width600 mm
Height400 mm
Depth120 mm
Degree of protection IP according to EN 60 529IP 66
NEMA degree of protectionNEMA 1, NEMA 3R, NEMA 4, NEMA 12
Type rating according to UL 50EType 1, Type 3R, Type 4, Type 12
IK codeIK08
Material thickness cover1,25 mm
Plate thickness cabinet1,25 mm
Base materialsteel sheet
PCF/VE (Cradle-to-Gate)44.17 kg CO2 eq (Cat B)
Note on PCF classCategory B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared


Product data sheet
Datasheet for Rittal 1512000, EAN: 4028177816268
