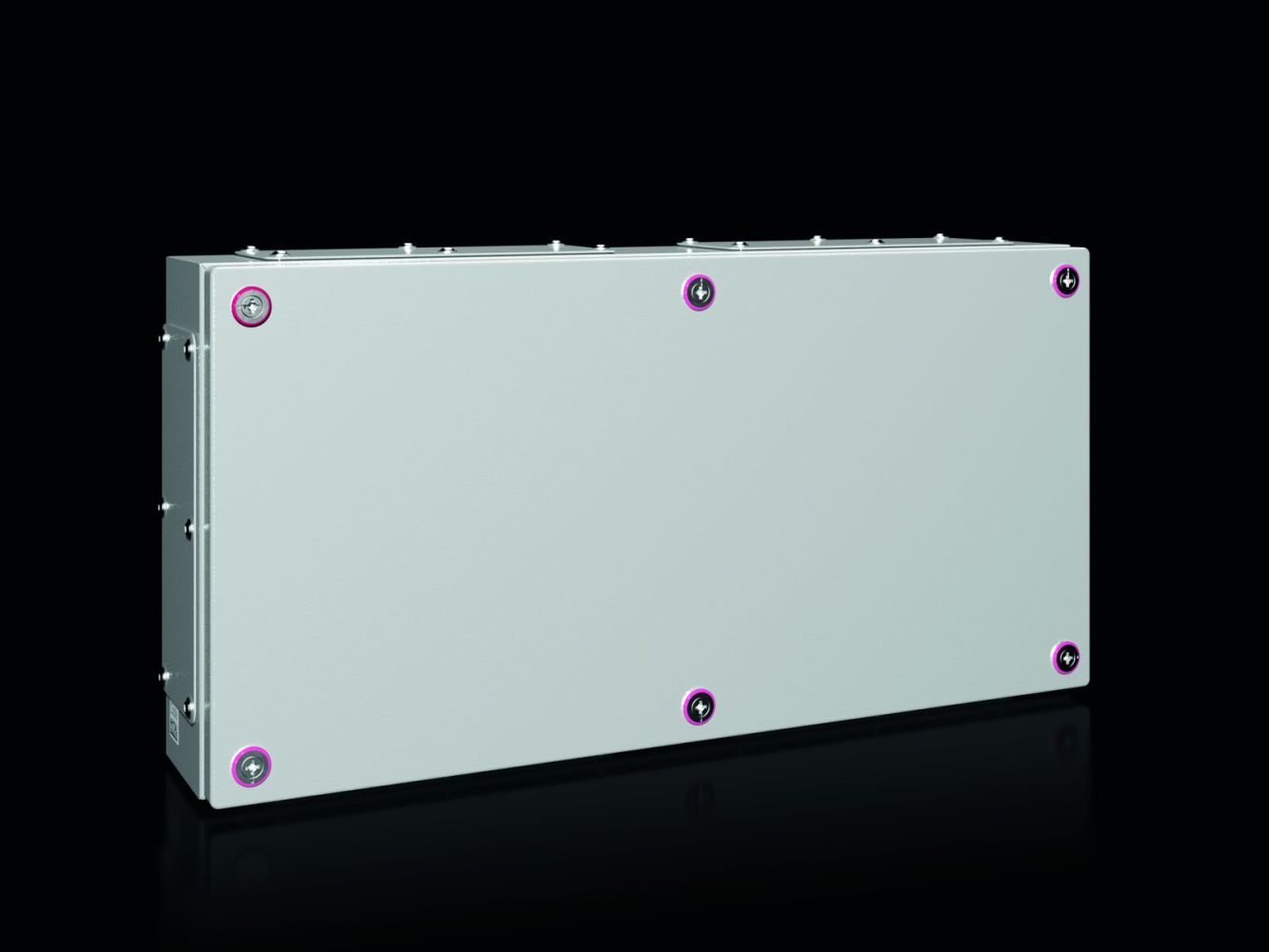

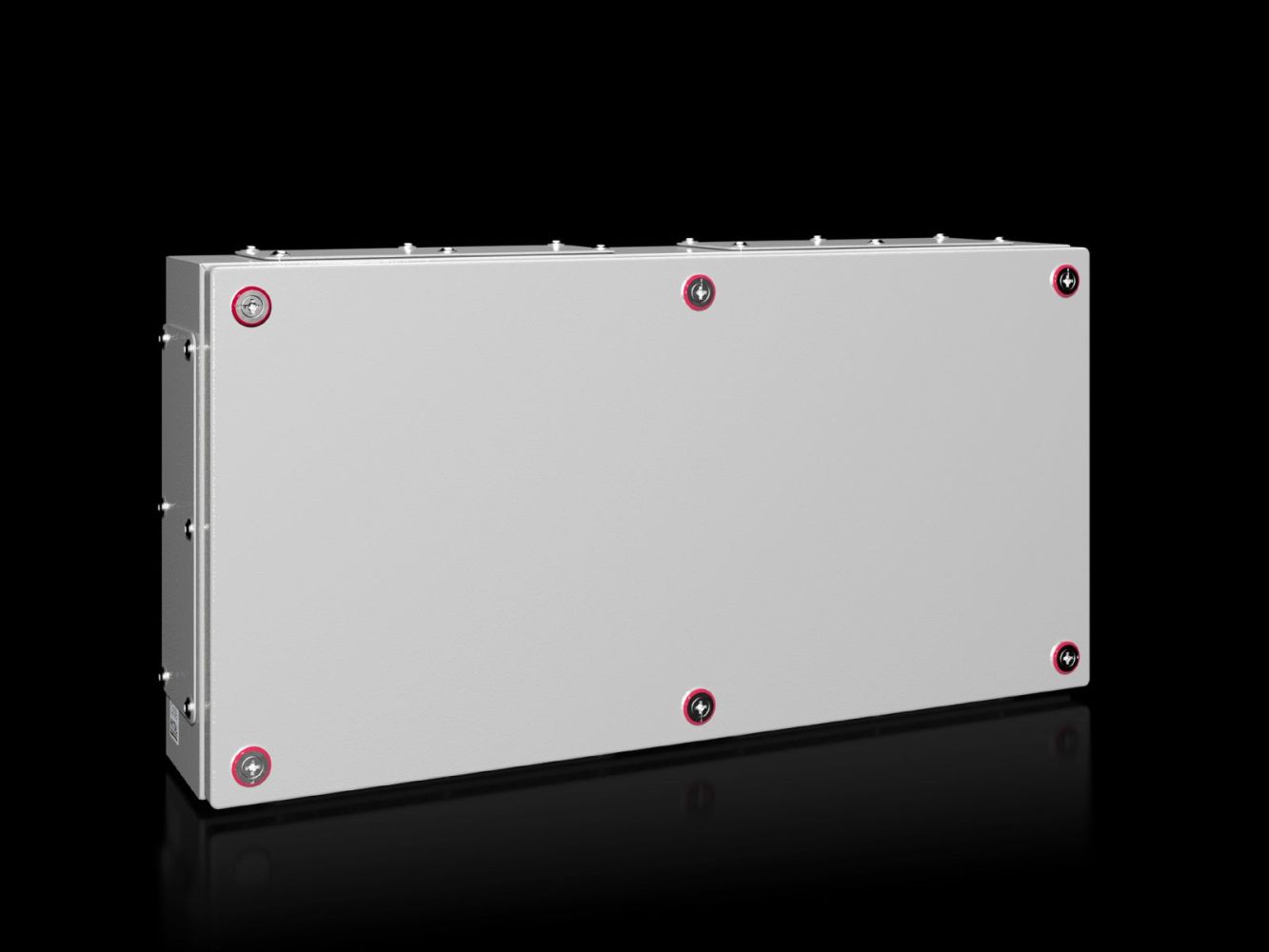

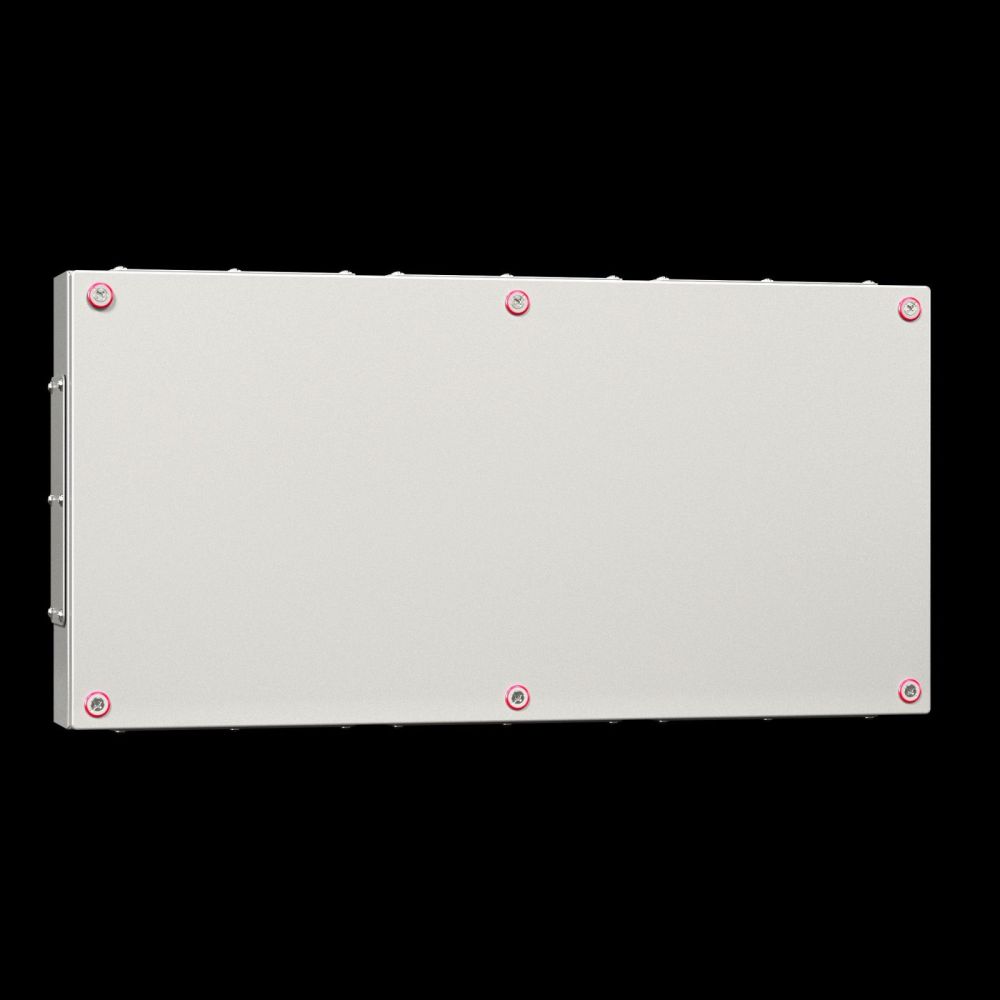

Rittal 1538000 terminal box KX, with gland plate, 600x300x120 mm
|
75,10 EUR |
|
|
( 89,37 EUR incl. VAT ) ≈ £62.86 | ≈ $82.53 plus delivery charges: 100,00 € |
|
| Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline | |
| In Stock: >100 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1598156 |
| Mfg Part No: | 1538000 |
| UPC/EAN: | 4028177816435 |
| Weight: | 7.34 kg |
| Type: | KX 1538000 |
Product information for Rittal 1538000:
Applications
This terminal box is suitable for use in indoor environments as well as in settings with increased requirements for mechanical strength and protection rating. It is particularly suitable for applications in manufacturing industry, automation technology, building automation, or electrical installation, where secure and clean cable entry and easy mounting are required. The integrated gland plates allow flexible mounting to walls, machines, or other structures.
Functions and Equipment in Detail

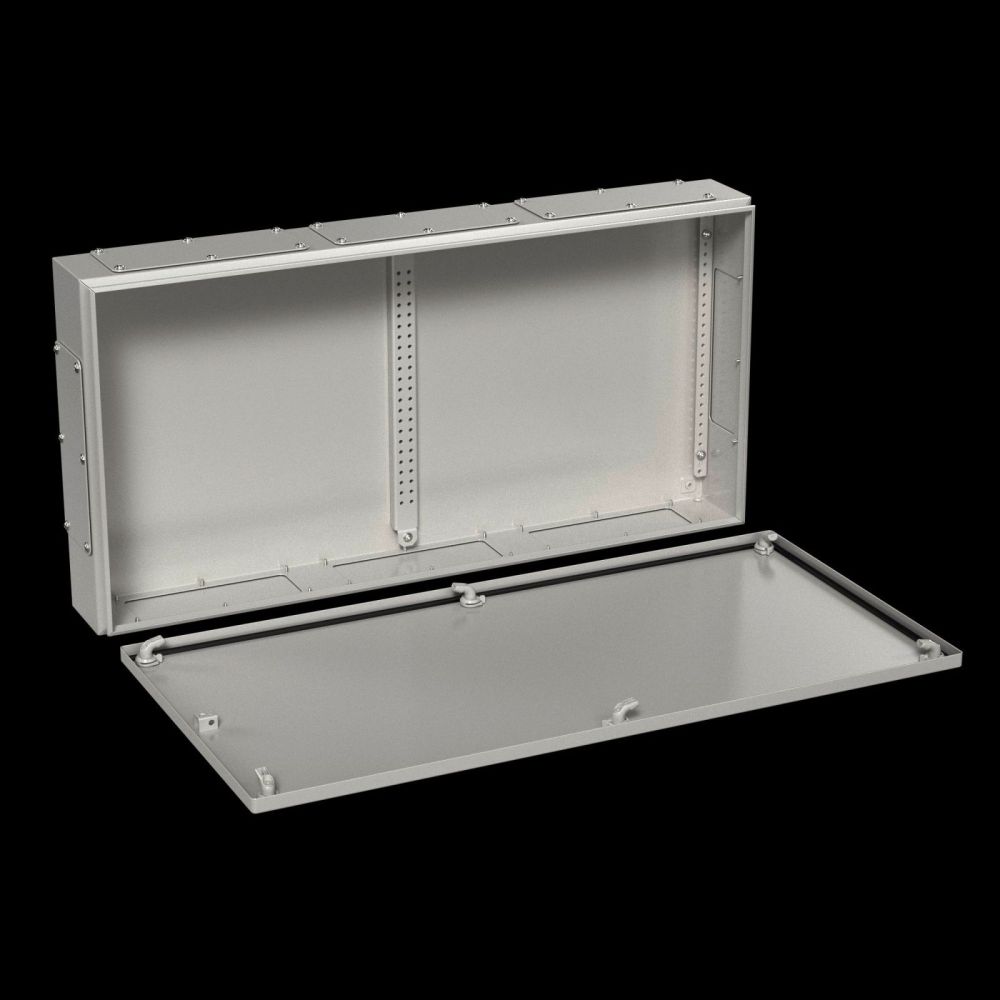

The housing is supplied with a lid secured by mini-latch locks. These locks ensure quick and secure assembly as well as easy maintenance. The gland plates are made of sheet steel and are equipped with seals and mounting hardware to enable a tight and stable installation. The rear wall of the housing features cutouts for wall mounting with brackets. An earth conductor connection inside the housing and via a U-bracket on the lid ensures quick and easy grounding.
Technical Explanation
The protection rating IP 55 according to EN 60 529 means the housing is protected against dust and splashing water, making it suitable for use in damp or dusty environments. The protection ratings NEMA 1 and NEMA 12, as well as the type rating according to UL 50E (Type 1, Type 12), confirm suitability for indoor use and environments with light contamination. The IK code IK08 indicates high mechanical strength against impact loads, making the box suitable for applications with increased mechanical stress. The material thickness of 1.25 mm for both housing and lid ensures a stable construction.
Compatibility and Accessories
The terminal box can be extended with various accessories to meet specific requirements. These include mounting clips for support rails, plug-throughs, TH 35/15 support rails, pressure equalization plugs, mounting angles, condensate drains, baying sets for AX, KX, AE, KL, drill screws, mounting brackets, spacing angles for shock protection covers, lid hinges, mast mounting brackets, mounting plates, mounting claws for a second mounting plane, and wall mounting brackets. These components enable modular and adaptable installation.
Mounting and Installation

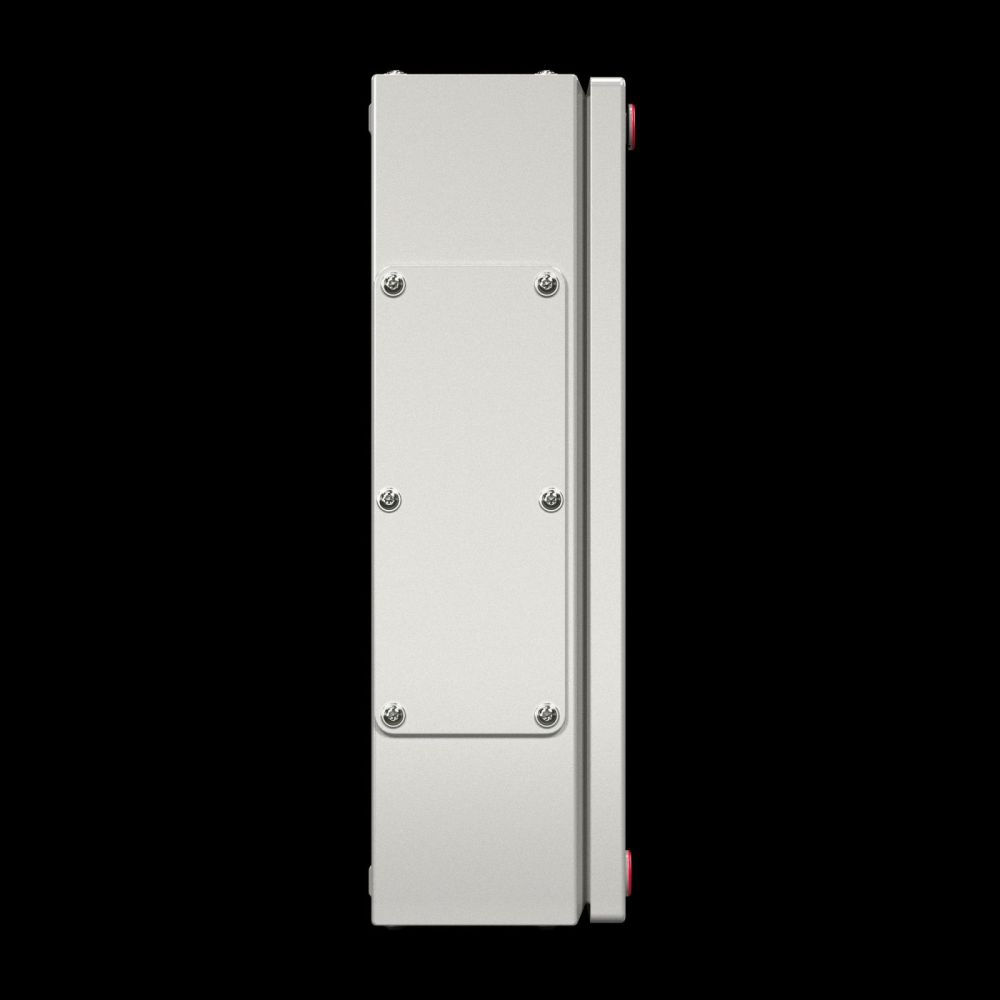

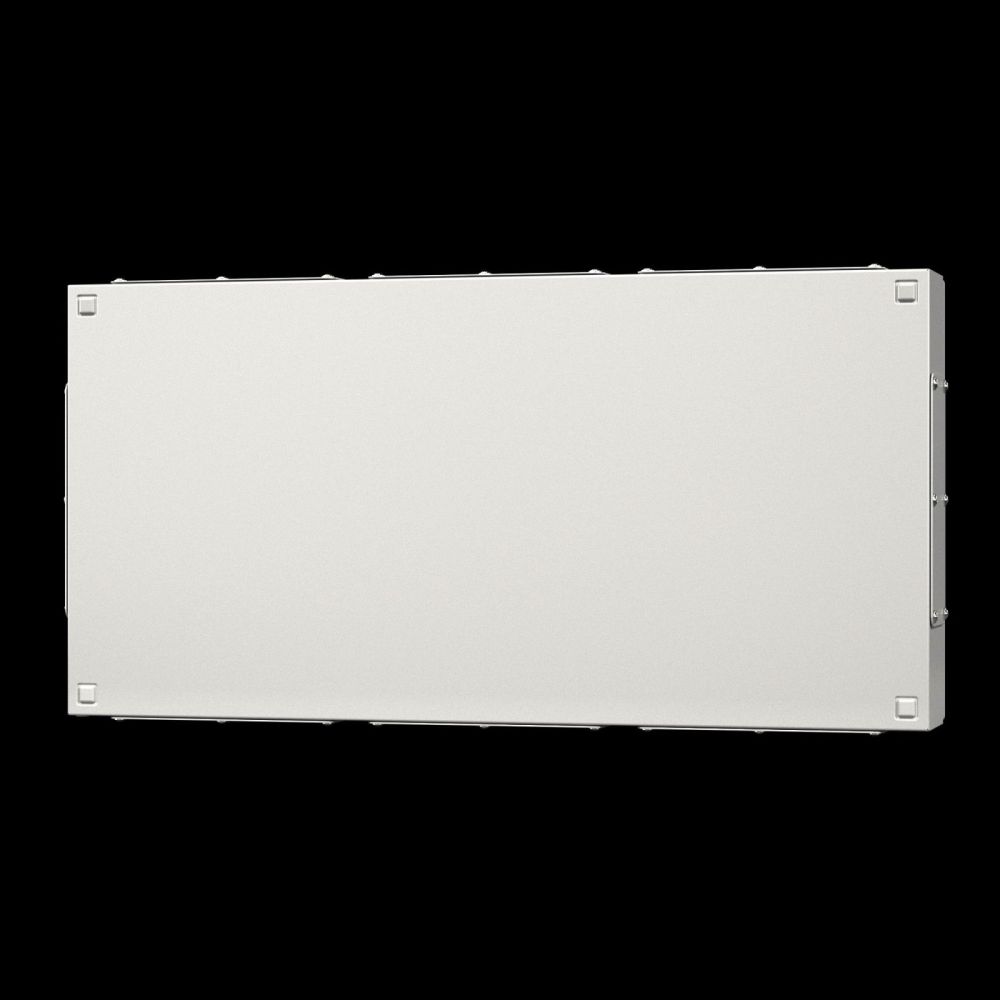

Mounting is done via the integrated gland plates located on the sides, top, and bottom. Fastening is carried out using the mounting hardware included in the delivery. The rear wall features cutouts for wall mounting brackets, enabling flexible installation on various substrates. Cable entry is done through the gland plates, with additional cable entry plates or plug-throughs optionally available.
Operational Advantages
The KX terminal box offers optimal space utilization due to its compact design and flexible internal equipment. The integrated gland plates and robust construction from sheet steel ensure secure and durable mounting. The surface treatment with nanoceramic, dip priming, and textured powder coating ensures high resistance to environmental influences. Clear identification via QR codes on the housing, lid, and nameplate enables easy traceability and quick access to product information.
| General | |
| Material | Housing: steel sheet, cover: steel sheet, continuously foamed PU seal |
| Surface protection | Housing and cover: dip primed, externally powder coated, textured lacquer |
| Colour | RAL 7035 |
| Scope of delivery | Enclosure with cover, mini-recessed latches, steel sheet flange plates with seals and mounting hardware |
| Width | 600 mm |
| Height | 300 mm |
| Depth | 120 mm |
| Degree of protection IP according to EN 60 529 | IP 55 |
| NEMA degree of protection | NEMA 1, NEMA 12 |
| Type rating according to UL 50E | Type 1, Type 12 |
| IK code | IK08 |
| Material thickness cover | 1,25 mm |
| Plate thickness cabinet | 1,25 mm |
| Flange plates | Flange plate (left + right) quantity: 1 + 1, flange plate (top + bottom) quantity: 2 + 2 |
| Base material | steel sheet |
| PCF/VE (Cradle-to-Gate) | 43.13 kg CO2 eq (Cat B) |
| Note on PCF class | Category B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared |
