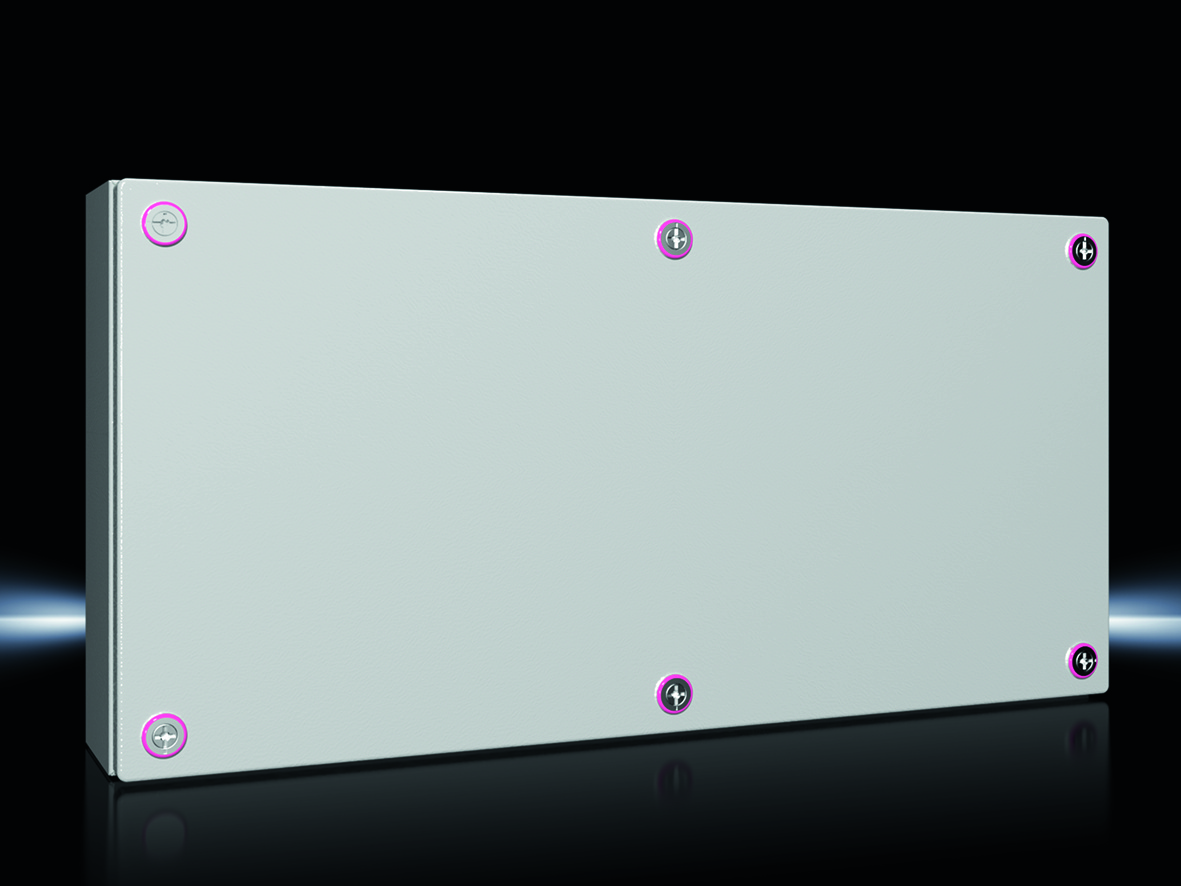

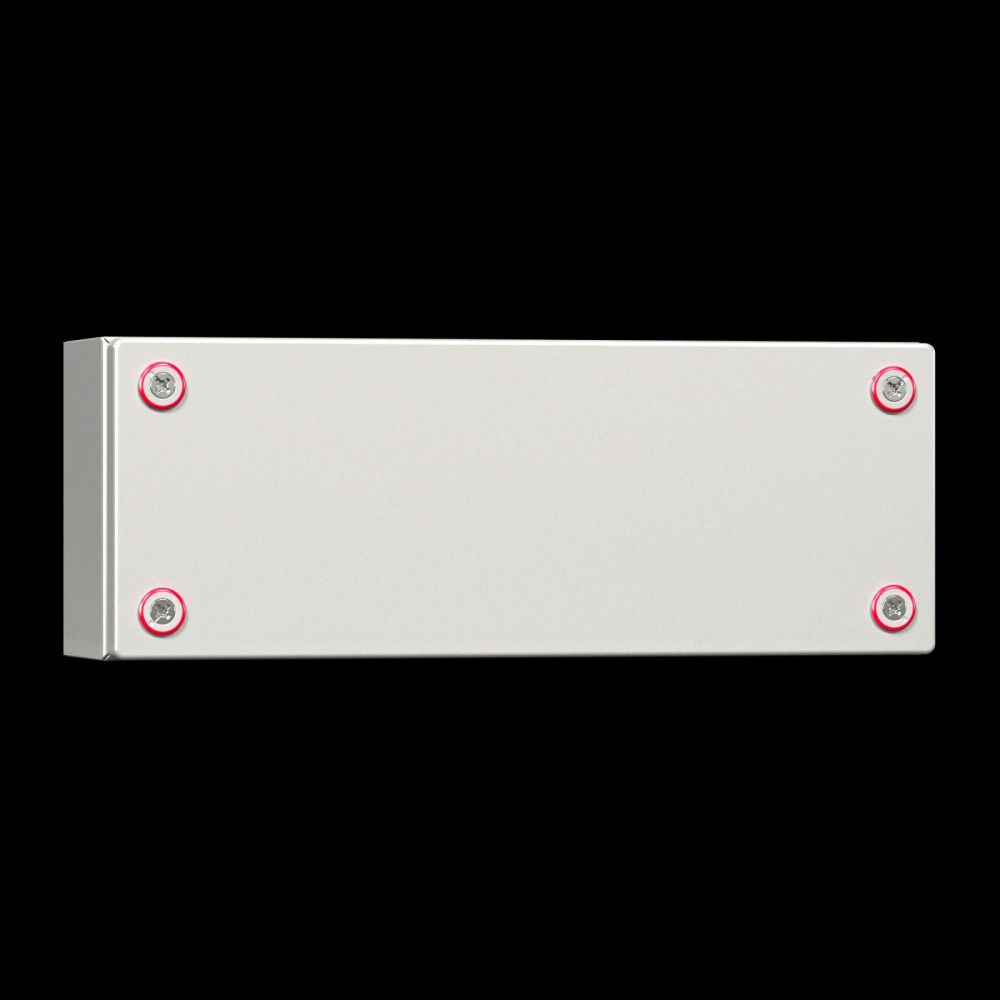

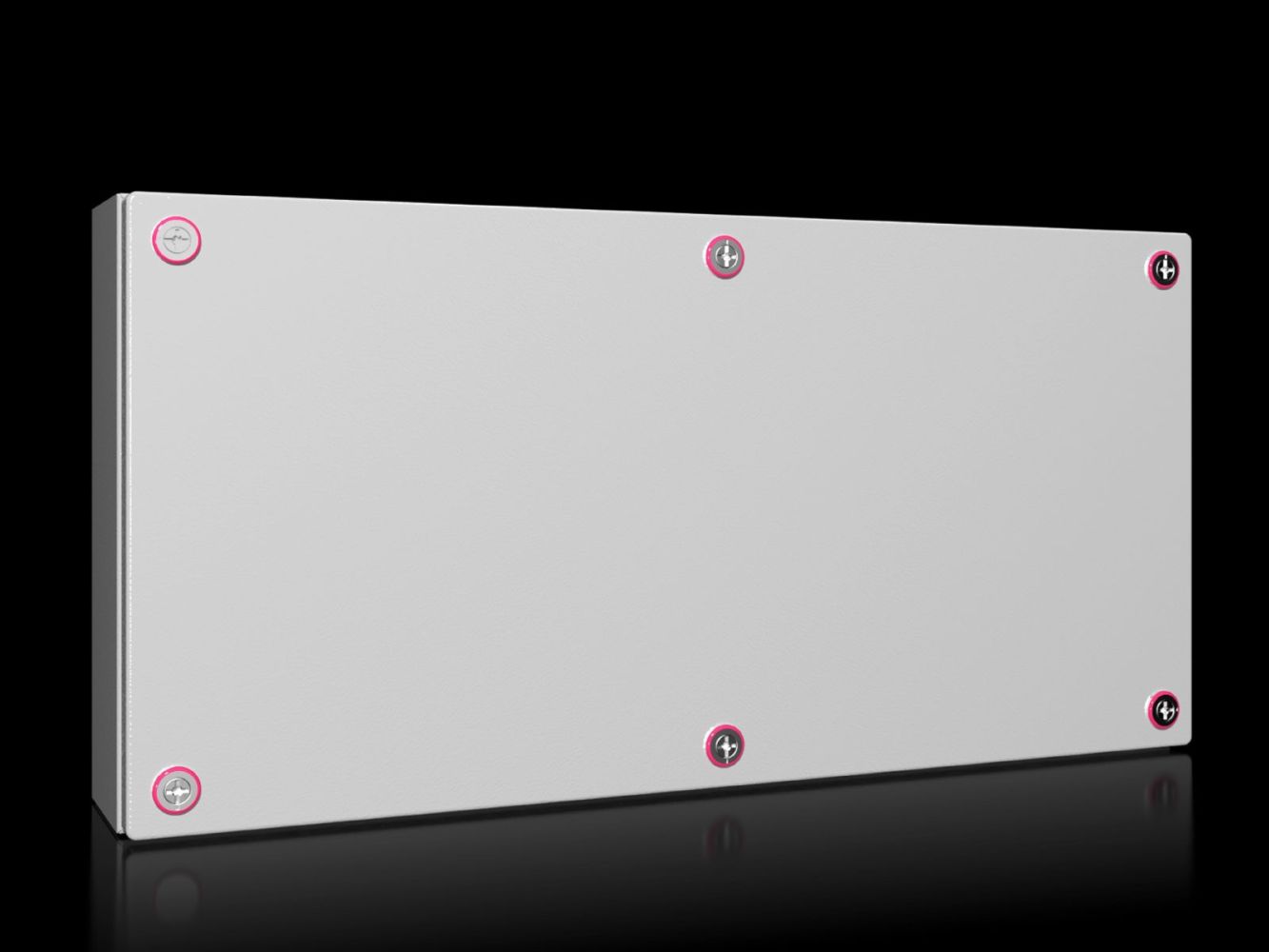

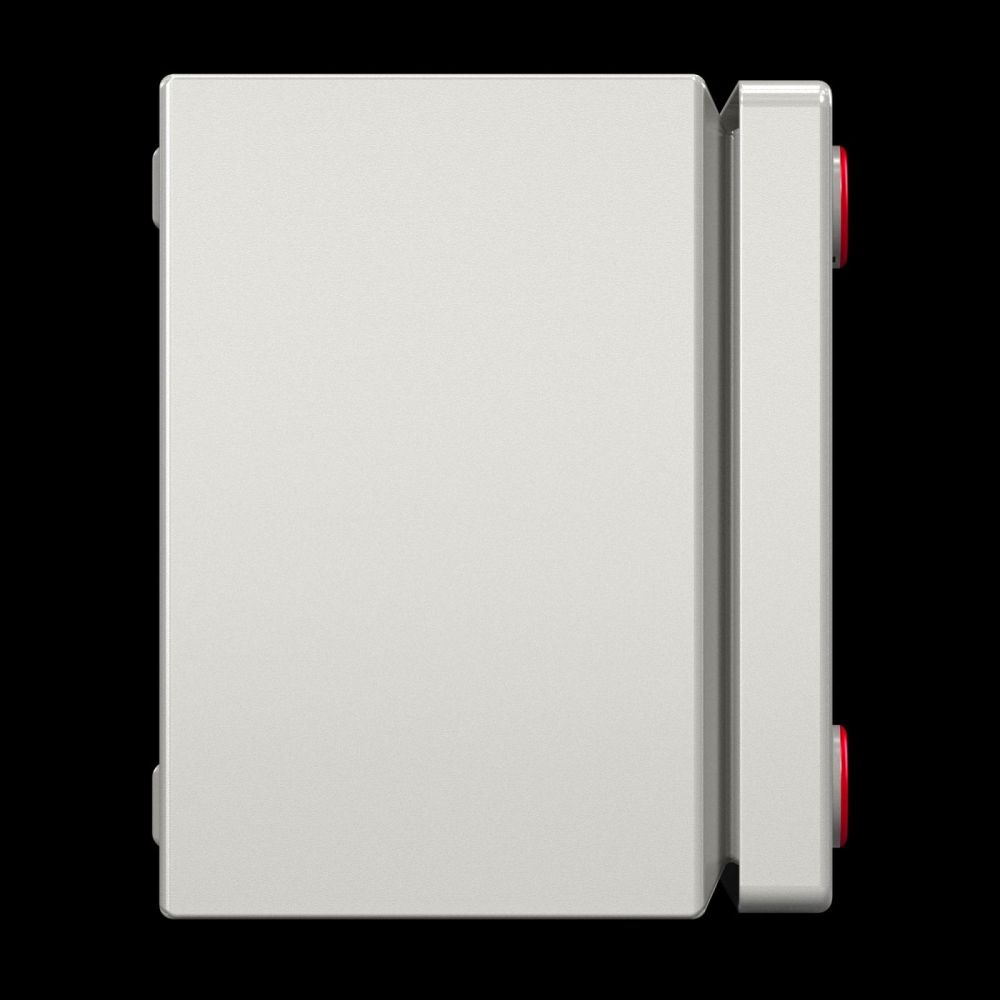

Rittal 1510000 terminal box KX, without gland plate 600x300x120 mm

Your rating:
Average rating
product review for Rittal 1510000 terminal box KX, without gland plate 600x300x120 mm
( 4.2 / 5 ) 5 ratings
Rittal 1510000
This image may differ from the desired article.
Rittal 1510000Rittal 1510000Rittal 1510000Rittal 1510000Rittal 1510000Rittal 1510000Rittal 1510000
61,64 EUR 63,74 EUR
( 73,35 EUR incl. VAT )
≈ £51.59  |  ≈ $67.74
plus delivery charges: 100,00 €
Delivery time from supplier's stock (ca.) 7 workdaysinfo_outline
In Stock: >100 pieces
1x Rittal 1510000 terminal box KX, without gland plate 600x300x120 mm
Datasheet:file_download Download
Lieske Part No.:1598175
Mfg Part No: 1510000
UPC/EAN: 4028177816244
Weight:6.62 kg
Type:KX 1510000

Product information for Rittal 1510000:

The KX 1510000 is an industrial terminal box from manufacturer Rittal, designed as a small housing made of sheet steel. It serves as a protected enclosure and mounting container for electrical components, plug connections, terminals, and other parts in industrial installations. The housing is designed without a gland plate and without a mounting plate, allowing for flexible use in various installation scenarios. Dimensions are 600 mm width, 300 mm height, and 120 mm depth, enabling a compact yet sufficiently sized design for use in enclosures or on wall surfaces.

Small housing with high protection rating provides safe operation in demanding environments. The housing is made of sheet steel, with both the housing and lid having a material thickness of 1.25 mm. The surface is dip-primed and externally powder-coated with a textured lacquer in the colour RAL 7035, ensuring high corrosion resistance and resistance against mineral oils, lubricants, machining emulsions, and solvents. The continuously foamed PU seal ensures a tight seal between housing and lid.

Protection rating IP 66 according to EN 60 529 means the housing is dust-tight and protected against strong splashing water, making it suitable for outdoor use or in humid industrial environments. Additionally, the housing meets protection ratings NEMA 1, NEMA 3R, NEMA 4, and NEMA 12, as well as Type ratings according to UL 50E: Type 1, Type 3R, Type 4, and Type 12. The IK code IK08 indicates high mechanical resistance against impacts or vibrations.

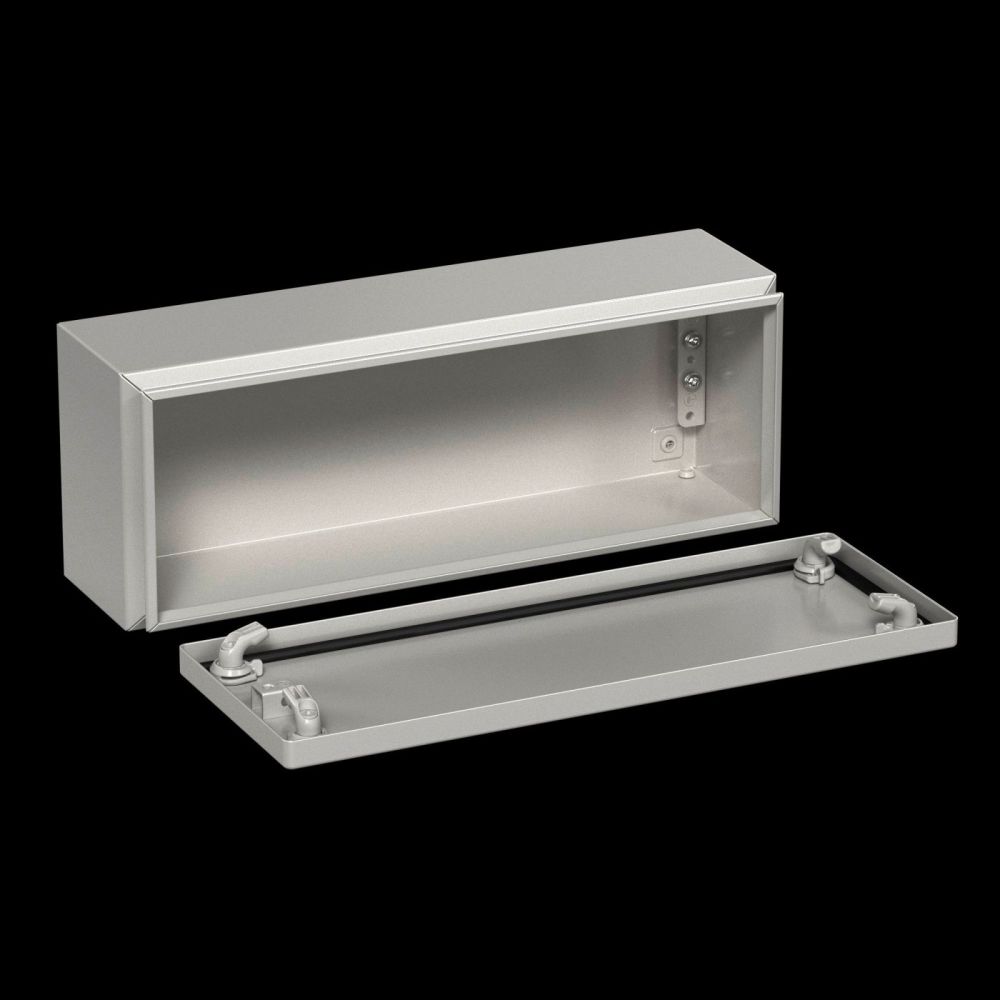

Functions and equipment in detail include an integrated earthing system with protective conductor connection in the housing and via a U-bracket in the lid, enabling quick and secure earthing. The lid is secured using a mini-snap lock, ensuring secure yet quick assembly and disassembly. A QR code is printed on the housing, lid, and type plate to enable unique identification and easy access to product information, as well as traceability of individual parts.

Compatibility and accessories include various additions suitable for use in enclosures or on wall surfaces. These include mounting clips for support rails, a TH 35/15 support rail, mounting brackets, condensate drain, baying sets for KX and AX housings, drilling screws, mounting brackets, spacing angles for shock protection covers, zinc die-cast lid hinges, mounting plates, and mounting claws for a second mounting level. These components allow for individual and flexible adaptation of the terminal box to specific requirements.

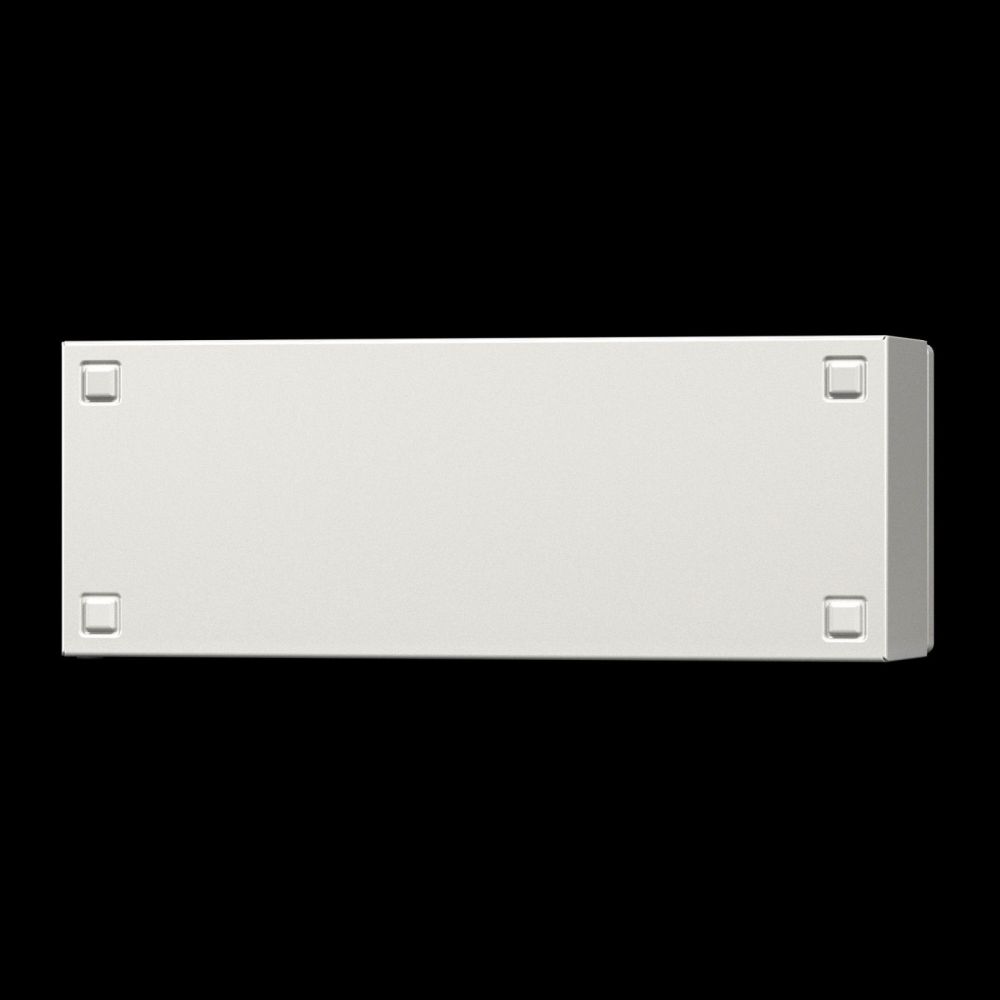

Mounting and installation are performed via the integrated pass-throughs on the rear wall of the housing, designed for attaching wall brackets. The one-piece construction, folded and welded, ensures a stable and tight build. Mounting is done without additional gland or mounting plates, increasing flexibility and simplifying integration into existing systems.

Operational advantages lie in the combination of high protection rating, robust material, and flexible mounting. The housing is designed for use in industrial environments with high demands on protection, stability, and maintainability. The surface treatment with nanoceramic coating, dip priming, and textured powder coating ensures long-term durability. The integrated earthing and secure locking mechanism support reliable and safe installation.

The delivery includes the housing with lid and a mini-snap lock.

General
MaterialHousing: steel sheet, cover: steel sheet, continuously foamed PU seal
Surface protectionHousing and cover: dip primed, externally powder coated, textured lacquer
ColourRAL 7035
Scope of deliveryhousing with cover, mini-quick-release latch
Width600 mm
Height300 mm
Depth120 mm
Degree of protection IP according to EN 60 529IP 66
NEMA degree of protectionNEMA 1, NEMA 3R, NEMA 4, NEMA 12
Type rating according to UL 50EType 1, Type 3R, Type 4, Type 12
IK codeIK08
Material thickness cover1,25 mm
Plate thickness cabinet1,25 mm
Base materialsteel sheet
PCF/VE (Cradle-to-Gate)39.91 kg CO2 eq (Cat B)
Note on PCF classCategory B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared


Product data sheet
Datasheet for Rittal 1510000, EAN: 4028177816244
