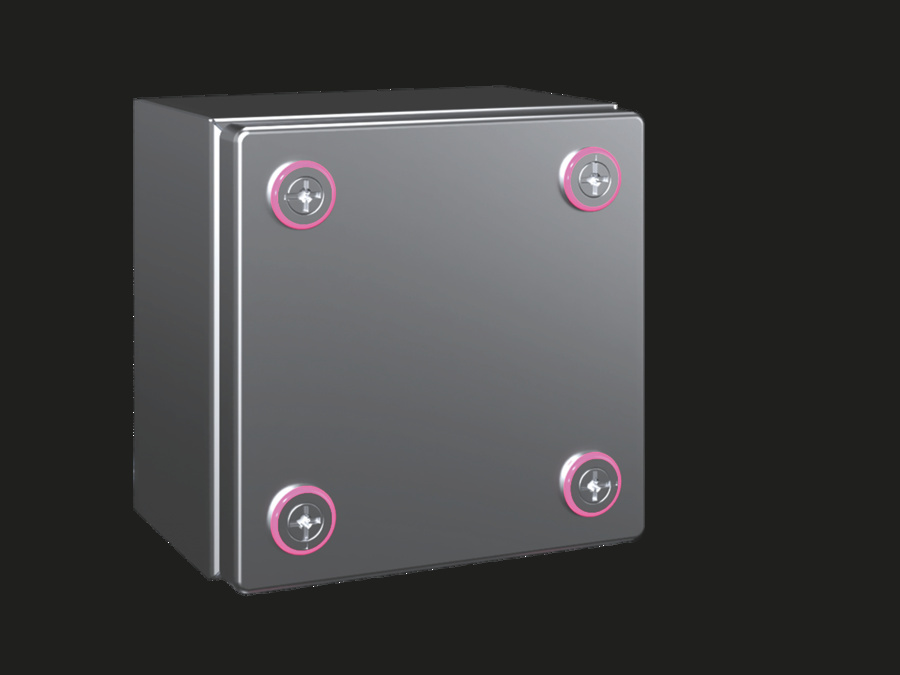

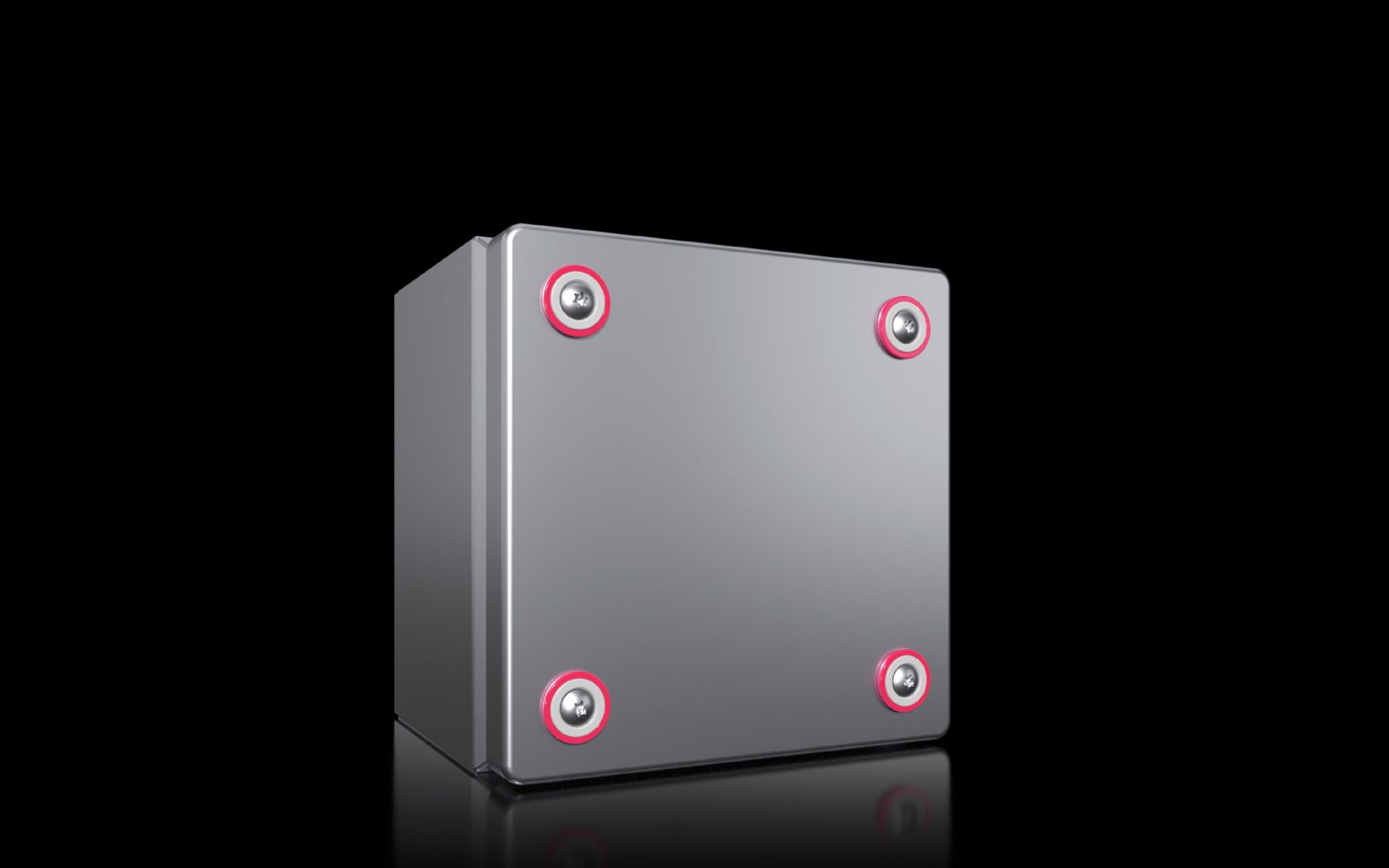

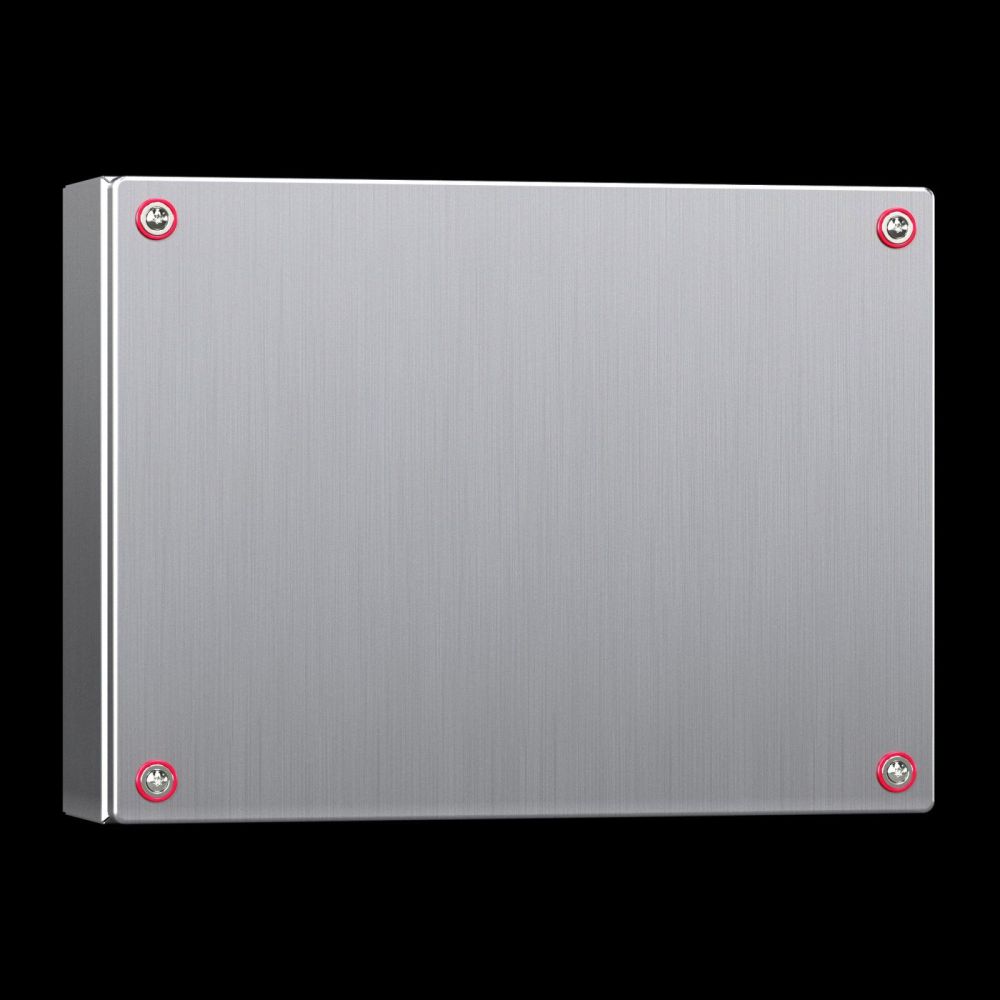

Rittal 1564000 terminal box KX, stainless steel 1.4301, without mounting plate

Your rating:
Average rating
product review for Rittal 1564000 terminal box KX, stainless steel 1.4301, without mounting plate
( 4.5 / 5 ) 2 ratings

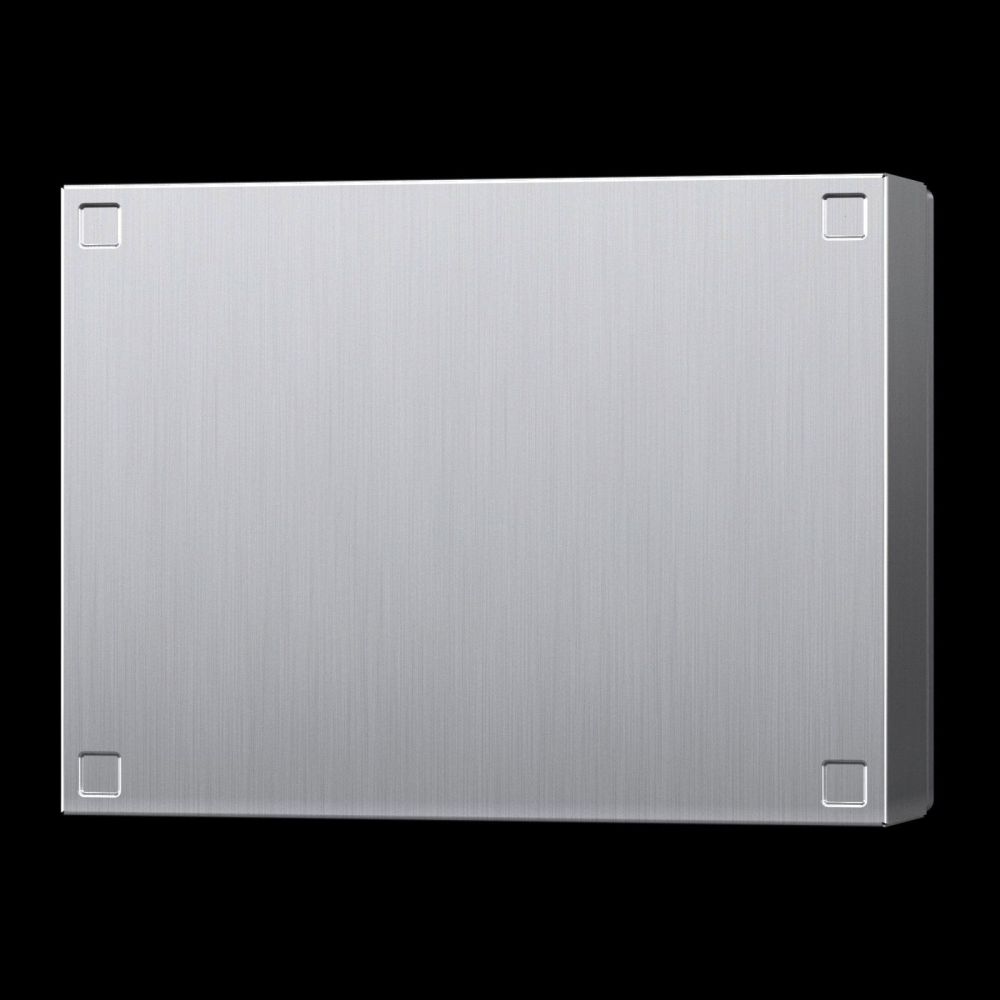

Rittal 1564000
This image may differ from the desired article.
Rittal 1564000Rittal 1564000Rittal 1564000Rittal 1564000Rittal 1564000Rittal 1564000Rittal 1564000Rittal 1564000Rittal 1564000Rittal 1564000
-10% 144,90 EUR 161,64 EUR
( 172,43 EUR incl. VAT )
≈ £121.28  |  ≈ $159.25
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 8 workdaysinfo_outline
In Stock: >100 pieces
1x Rittal 1564000 terminal box KX, stainless steel 1.4301, without mounting plate
Datasheet:file_download Download
Lieske Part No.:1778294
Mfg Part No: 1564000
UPC/EAN: 4028177919051
Weight:1.48 kg
Type:KX 1564000

Product information for Rittal 1564000:

Rittal KX 1564000 is a terminal box made of stainless steel 1.4301 (AISI 304), designed for use in industrial installations where high mechanical strength, corrosion resistance, and protection against environmental influences are required. The enclosure has dimensions of width 150 mm, height 150 mm, and depth 120 mm, and is suitable as a compact solution for installing terminals, connectors, or small electrical components. It features a fixed lid with a continuous foamed PU seal, ensuring a tight seal. The surface of the enclosure and lid is brushed with a grit of 180, providing a uniform, easy-to-clean, and corrosion-resistant surface.

Applications
This terminal box is suitable for applications in industrial electrical engineering, such as in automation technology, machine building, or plant engineering. It is suitable for indoor and outdoor use, particularly in environments with high humidity, splashing water, or dust, as it meets protection class IP 66 according to EN 60 529. This protection class means the enclosure is dust-tight and protected against heavy splashing water and short-term submersion. Additionally, the enclosure meets protection classes NEMA 1, NEMA 3R, NEMA 3RX, NEMA 4, NEMA 4X, and NEMA 12, as well as Type ratings according to UL 50E: Type 1, Type 3R, Type 3RX, Type 4, Type 4X, and Type 12, confirming its suitability for various industrial and commercial environments in different regions.

Functions and Equipment in Detail

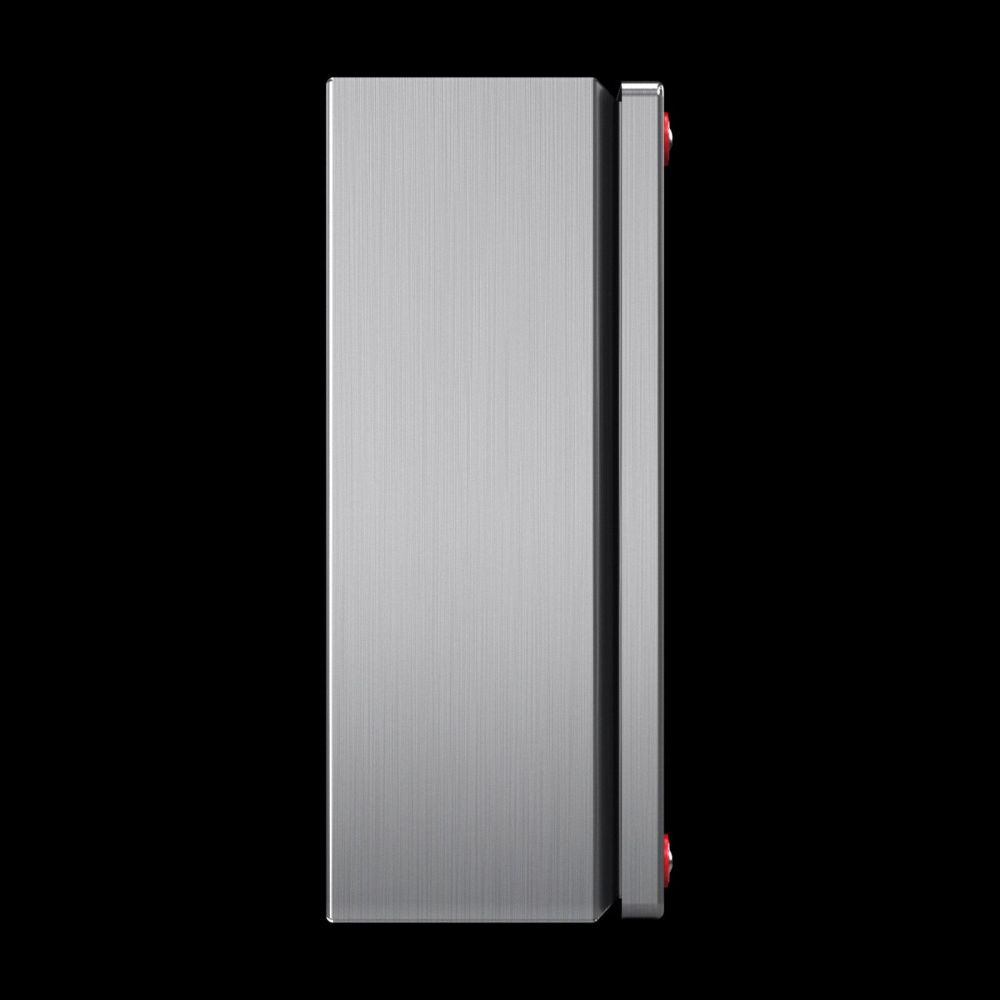

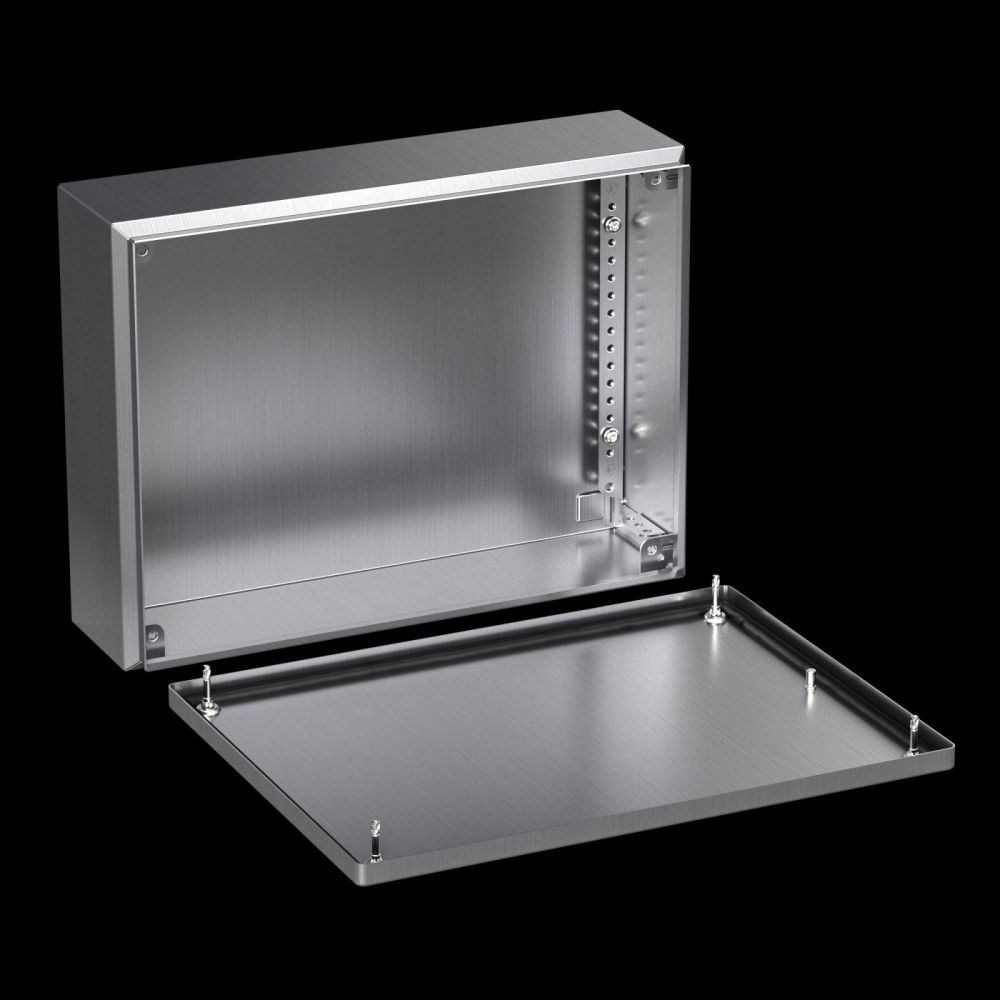

The enclosure is made as a single piece, bent and welded, resulting in a stable and robust construction. The rear wall is closed and features embossing for secure mounting. The lid is equipped with a continuous protective channel that supports the seal and ensures effective sealing. Earthing is achieved via a protective conductor connection in the enclosure and a bolt in the lid, enabling quick and secure earthing. The closure mechanism consists of four quick-release fasteners fitted with plastic bushings to ensure easy and secure assembly.

Technology Explained Simply
The use of stainless steel 1.4301 (AISI 304) ensures high corrosion resistance, especially against moisture, salt spray, and chemical influences. The material thickness of 1.25 mm for both the enclosure and lid ensures sufficient mechanical stability to withstand mechanical loads and vibrations. The continuous PU seal provides a tight seal, preventing the ingress of dust, water, and other environmental influences. Protection class IP 66 means the enclosure is protected even against heavy splashing water and short-term submersion, making it suitable for outdoor use.

Compatibility and Accessories
Various accessories are available for this terminal box, expanding mounting and usage options. These include support rails (e.g. SZ 2314000), mounting clips, mounting brackets, stainless steel 1.4404 lid hinges, condensate drains, baying sets for AX, KX, AE, KL, drill screws, mounting brackets, pressure equalization plugs made of stainless steel 1.4305, wall mounting brackets made of stainless steel 1.4301, earthing straps with cross-section 10 mm² in various lengths, mounting plates for terminal boxes and bus enclosures, mounting claws for a second mounting level, and AX mast mounting. These accessories enable flexible and application-specific mounting and integration into existing systems.

Mounting and Installation

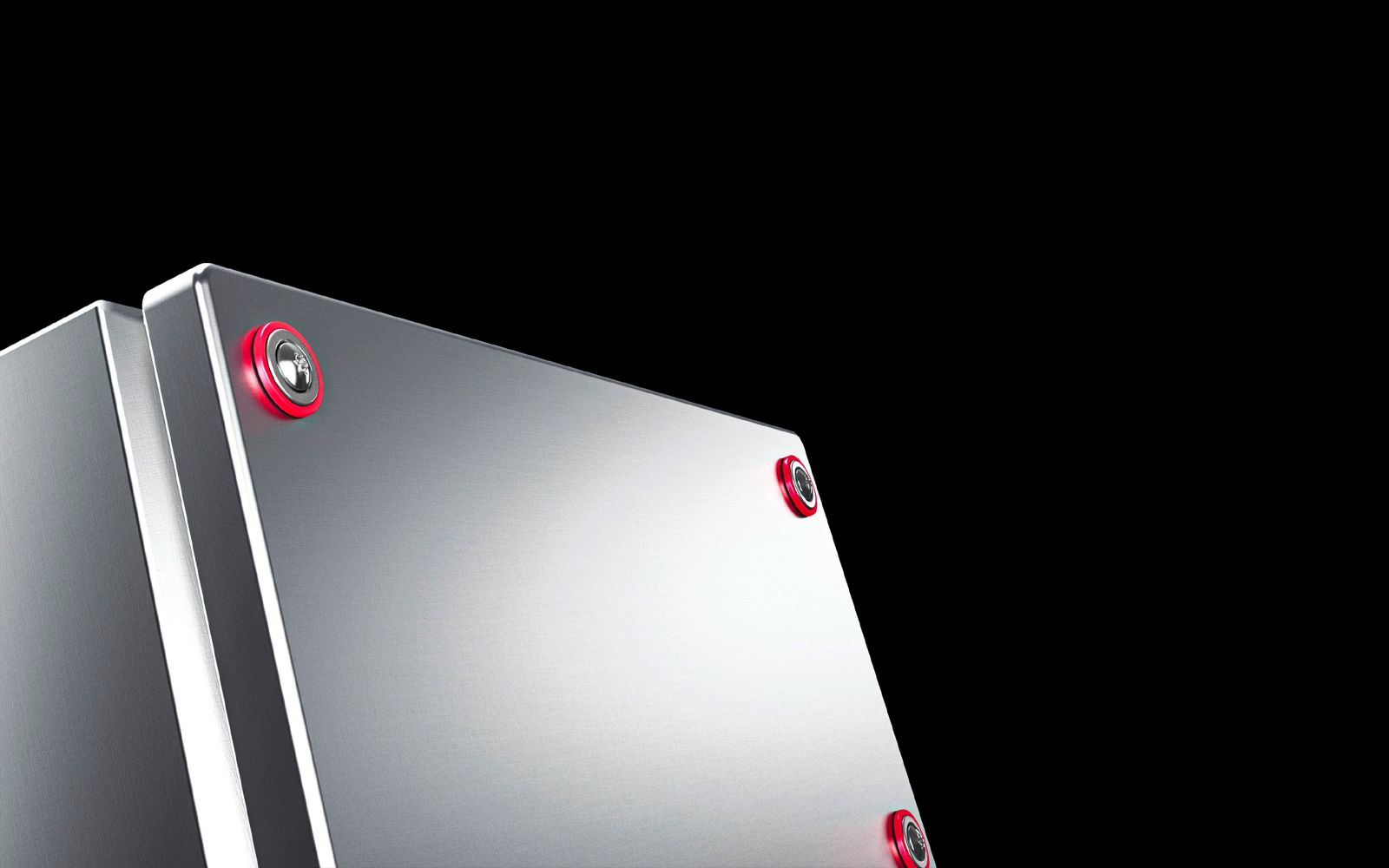

Mounting is performed using the integrated quick-release fasteners, which allow for quick and secure lid fastening. The use of mounting plates, wall mounting brackets, or mounting brackets allows flexible attachment to walls, machines, or other structures. Drill screws and mounting brackets support installation in various environments. The integrated earthing via protective conductor connection in the enclosure and bolt in the lid ensures a secure electrical connection to earth.

Operational Advantages
The terminal box offers high mechanical stability and corrosion resistance due to the use of stainless steel 1.4301. Protection class IP 66 and the corresponding NEMA and UL certifications enable use in demanding environments. Quick mounting via quick-release fasteners and integrated earthing reduce installation time. The continuous PU seal ensures reliable sealing, extending the enclosure's service life. The uniform surface treatment with brushed finish grit 180 facilitates cleaning and maintenance. A QR code on the enclosure, lid, and nameplate enables unique identification and easy access to relevant product information and documentation.

Scope of Delivery
The product is delivered as an enclosure with lid, including four quick-release fasteners with plastic bushings.

General
MaterialHousing: Stainless steel 1.4301 (AISI 304), Cover: Stainless steel 1.4301 (AISI 304), continuous foamed PU seal
Surface protectionHousing and cover: fine grinding, grit 180
Scope of deliveryHousing with cover, quick-release fastener including plastic inserts
Width150 mm
Height150 mm
Depth120 mm
Degree of protection IP according to EN 60 529IP 66
NEMA degree of protectionNEMA 1, NEMA 3R, NEMA 3RX, NEMA 4, NEMA 4X, NEMA 12
Type rating according to UL 50EType 1, Type 3R, Type 3RX, Type 4, Type 4X, Type 12
Material thickness cover1,25 mm
Plate thickness cabinet1,25 mm
LockNumber of locks: 4
Base materialStainless steel 1.4301 (AISI 304)
PCF/VE (Cradle-to-Gate)6,74


Product data sheet
Datasheet for Rittal 1564000, EAN: 4028177919051

Questions & answers

What is the delivery time of Rittal 1564000 terminal box KX, stainless steel 1.4301, without mounting plate?

The article Rittal 1564000 terminal box KX, stainless steel 1.4301, without mounting plate is currently in stock

According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 1564000 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 1564000 terminal box KX, stainless steel 1.4301, without mounting plate always at the best possible price. We can give you a discount of 2% on Rittal 1564000 terminal box KX, stainless steel 1.4301, without mounting plate if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.




Fitting accessory for Rittal 1564000 terminal box KX, stainless steel 1.4301, without mounting plate

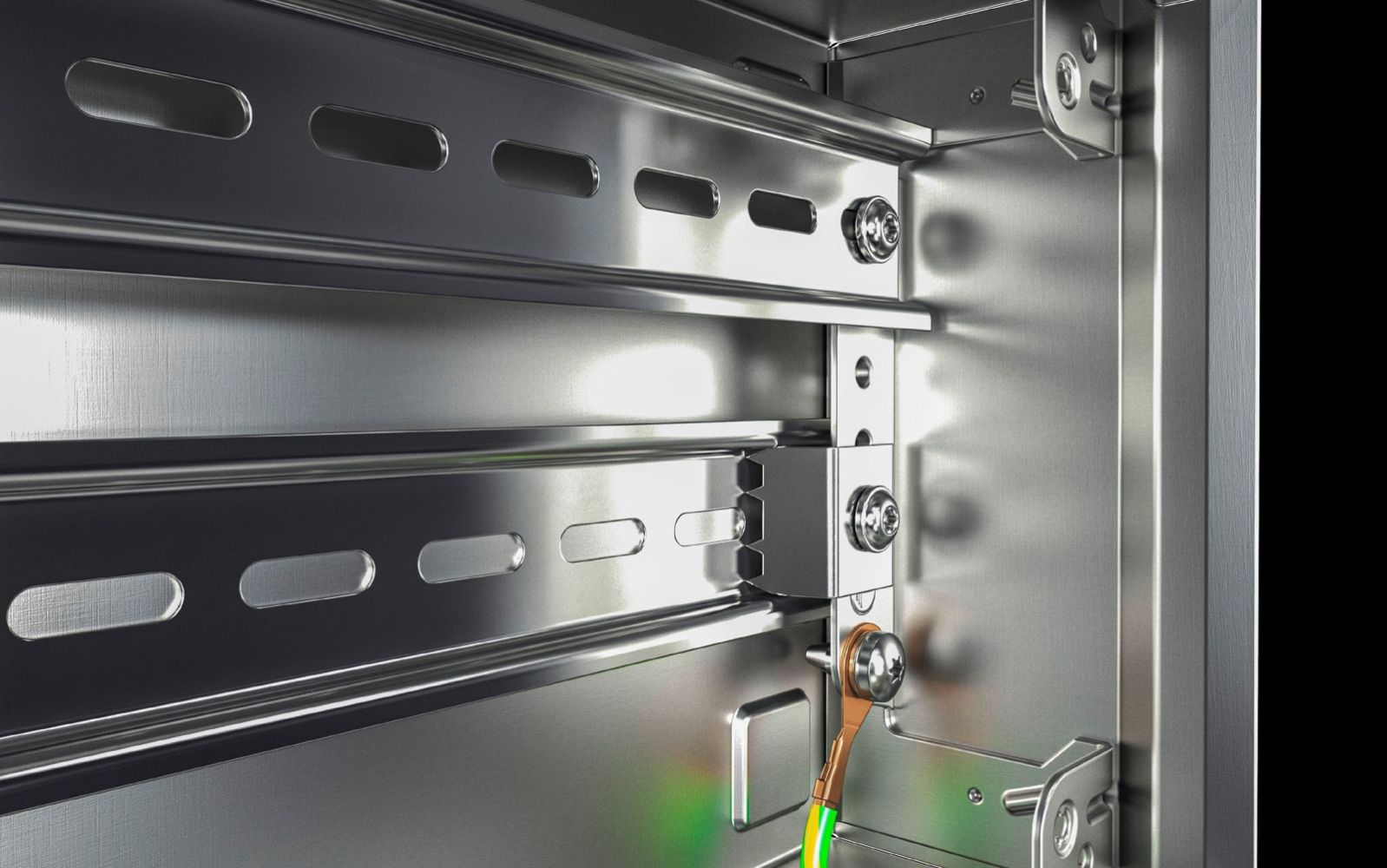

Rittal 2314000 SZ support rails pack of 10 TS35/7.5/15 for KL/KL-HD/AE L137 W150mm Rittal LogoRittal 2314000 SZ support rails pack of 10 TS35/7.5/15 for KL/KL-HD/AE L137 W150mm The Rittal SZ 2314000 is a support rail in the format TH 35/7.5, manufactured according to the standard EN 60 715. It serves as a mounting element for electrical components within enclosures and is ...

Lieske Part No.: 101277
Mfg Part No: 2314000
Type: SZ 2314000
23,57 EUR 23,58 EUR
Rittal 2314000 plus VAT
≈ £19.73  |  ≈ $25.90
Delivery time from supplier's stock (ca.) 8 workdaysinfo_outline
Rittal 2309000 Mounting clip for support rails Rittal LogoRittal 2309000 Mounting clip for support rails For fast, secure attachment of cable ducts, mounting plates, mounting angles on support rail TS 35/7.5 and TS 35/15 to EN 60 715. Simply pre-assemble the mounting clip on the part to be installed, ...

Lieske Part No.: 134243
Mfg Part No: 2309000
Type: SZ 2309000
25,42 EUR 26,44 EUR
Rittal 2309000 plus VAT
≈ £21.28  |  ≈ $27.94
Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline
Rittal 4597000 Mounting angle, for enclosure and expansion parts with system Rittal LogoRittal 4597000 Mounting angle, for enclosure and expansion parts with system May be screw-fastened onto all enclosures and mounting parts with system punchings on a 25 mm pitch pattern.
Material: Sheet steel
Surface finish: Zinc-plated
Supply includes: Assembly screws
Packs ...

Lieske Part No.: 465267
Mfg Part No: 4597000
Type: SZ 4597000
25,36 EUR 25,37 EUR
Rittal 4597000 plus VAT
≈ £21.23  |  ≈ $27.87
Delivery time from supplier's stock (ca.) 7 workdaysinfo_outline
Rittal 1592010 Lid hinge for KL, stainless steel 1.4404 Rittal LogoRittal 1592010 Lid hinge for KL, stainless steel 1.4404 The Rittal lid hinge type KL 1592010 is a system accessory for terminal boxes of the KL and KX series. It enables secure and rotatable fastening of the lid to the enclosure, allowing easy opening and ...

Lieske Part No.: 468636
Mfg Part No: 1592010
Type: KL 1592010
-12% 32,20 EUR 36,66 EUR
Rittal 1592010 plus VAT
≈ £26.95  |  ≈ $35.39
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
Rittal 2459000 SZ Condensate discharge Rittal LogoRittal 2459000 SZ Condensate discharge For reliable discharge from the inside and protection against splashes from the outside (labyrinth effect). A hole diameter of 16 mm is required. (With AE sheet steel, the holes are already provided ...

Lieske Part No.: 469525
Mfg Part No: 2459000
Type: SZ 2459000
10,88 EUR
Rittal 2459000 plus VAT
≈ £9.11  |  ≈ $11.96
Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline
Rittal 1199100 Baying set for AX, KX, AE, KL Rittal LogoRittal 1199100 Baying set for AX, KX, AE, KL Supports baying and sealing between KL/KL and AE/AE.
Benefits: Special screws and nuts limit compression of the seal to a predefined level, to ensure a long-lasting, permanent seal between enclosures ...

Lieske Part No.: 583514
Mfg Part No: 1199100
Type: SZ 1199100
32,32 EUR 33,69 EUR
Rittal 1199100 plus VAT
≈ £27.05  |  ≈ $35.52
Delivery time from supplier's stock (ca.) 7 workdaysinfo_outline

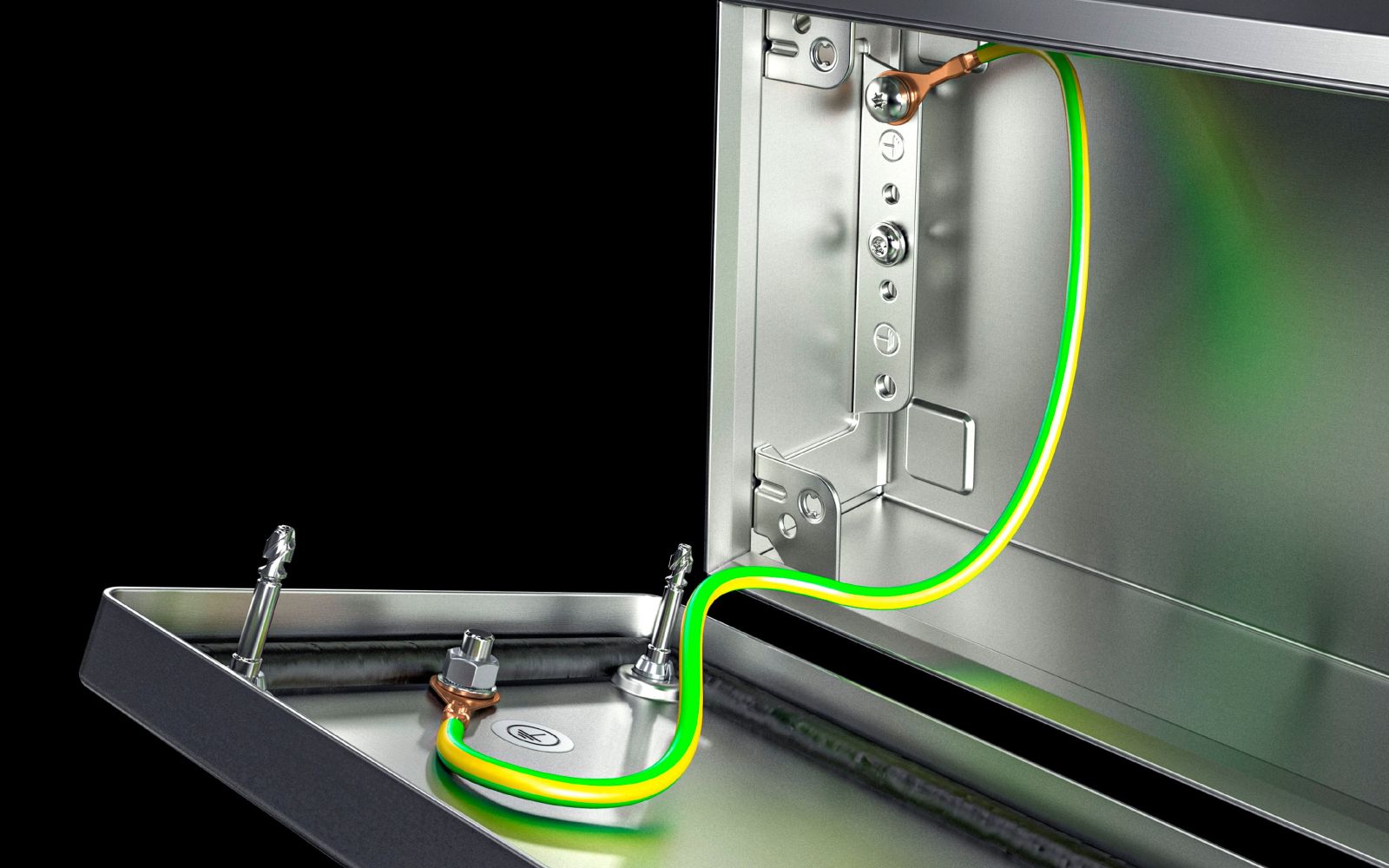

Rittal 2565100 Earthing straps M6-M6, cross-section 10 mm², length 200 m Rittal LogoRittal 2565100 Earthing straps M6-M6, cross-section 10 mm², length 200 m For configuring a reliable earthing connection with perfect contact.
