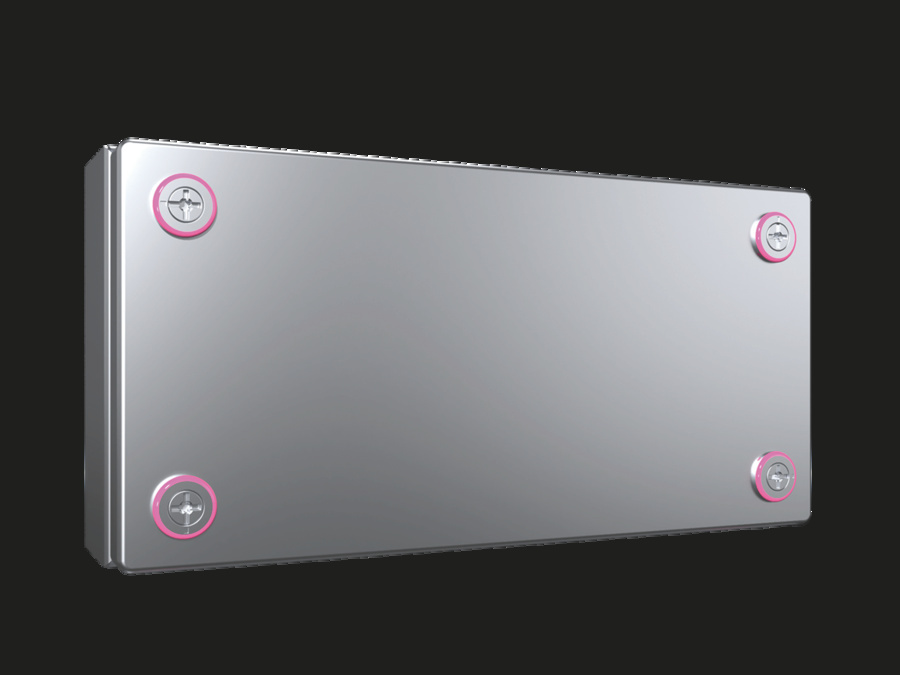

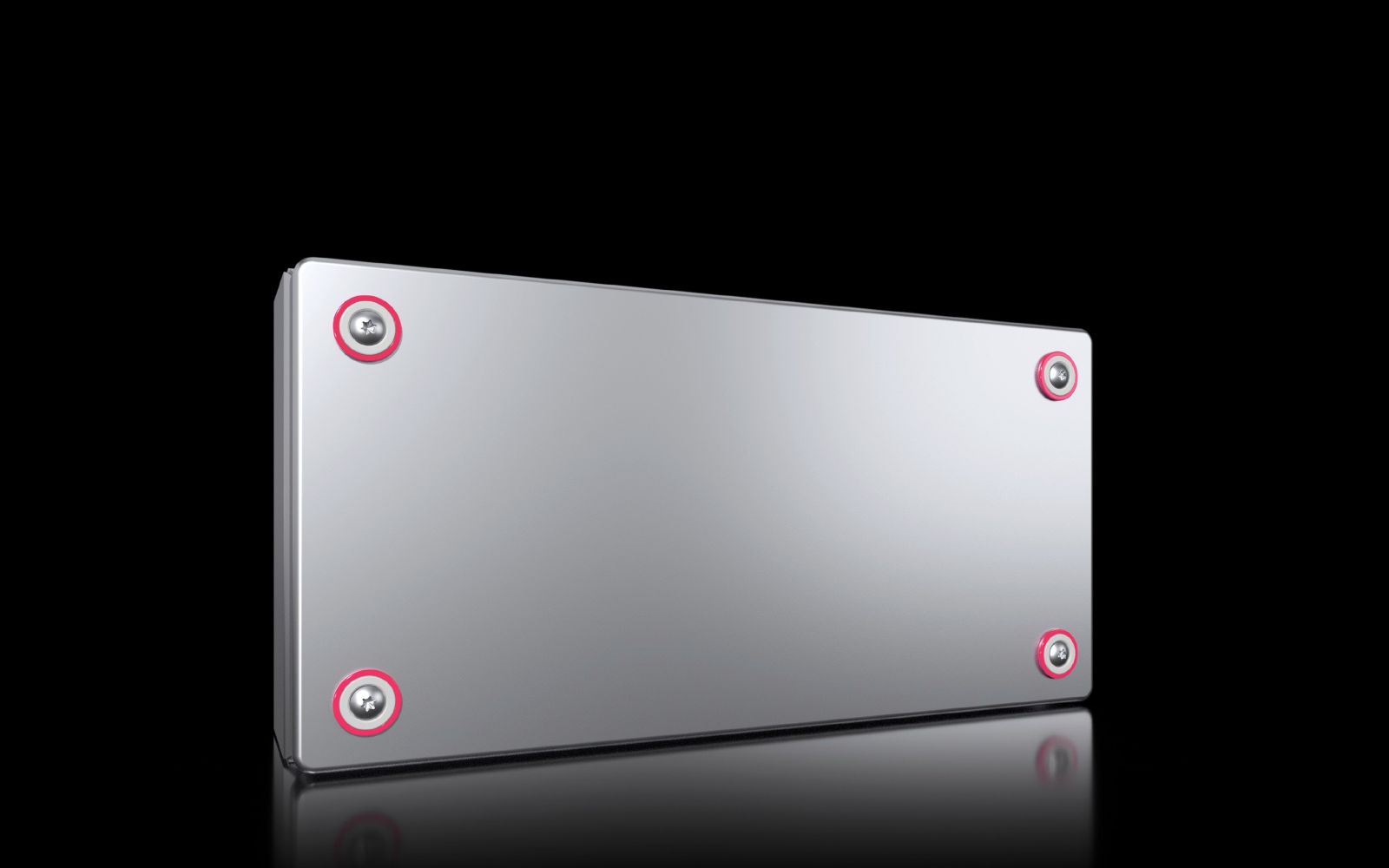

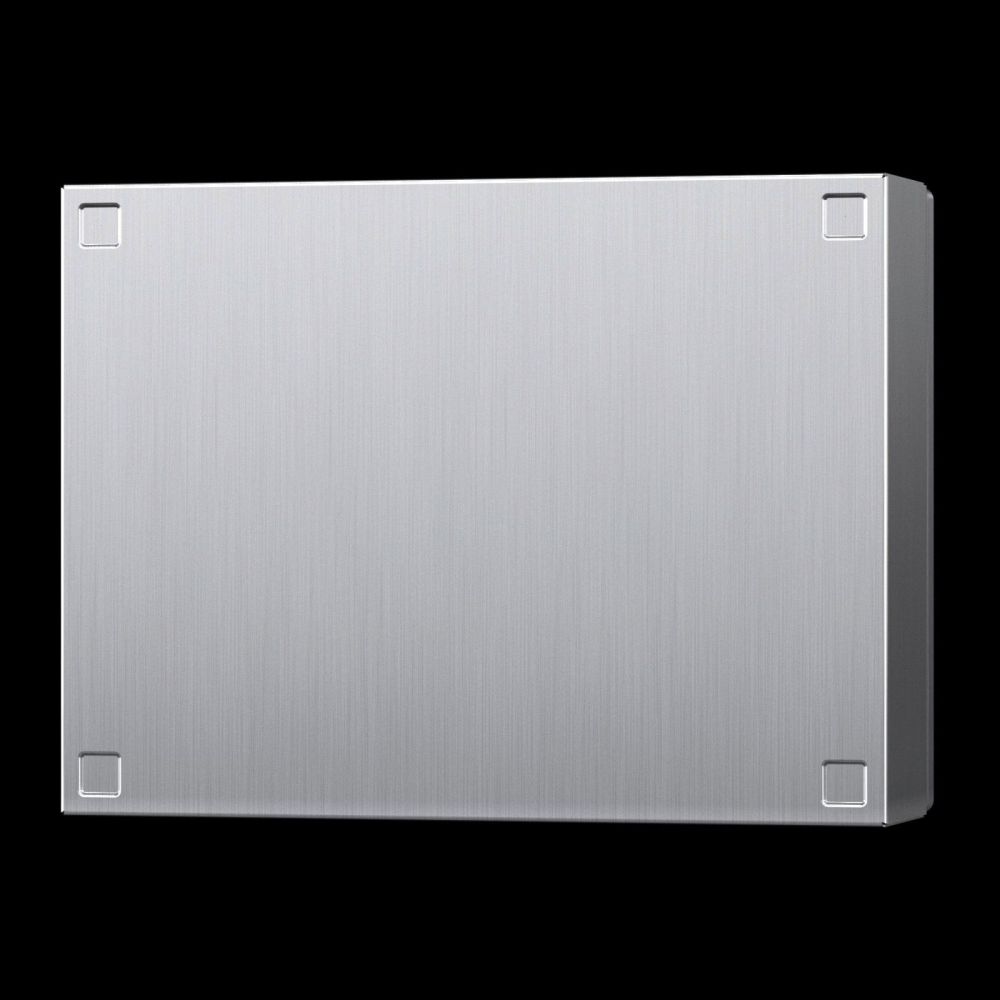

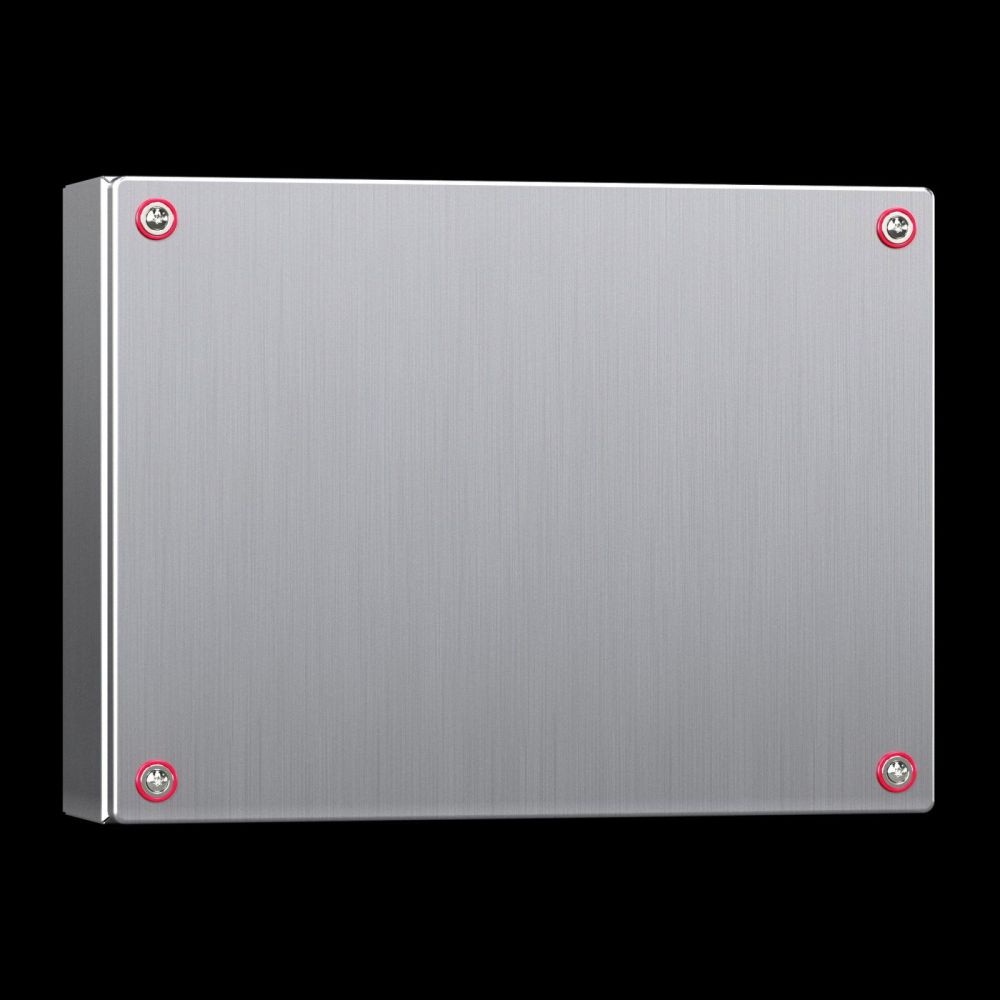

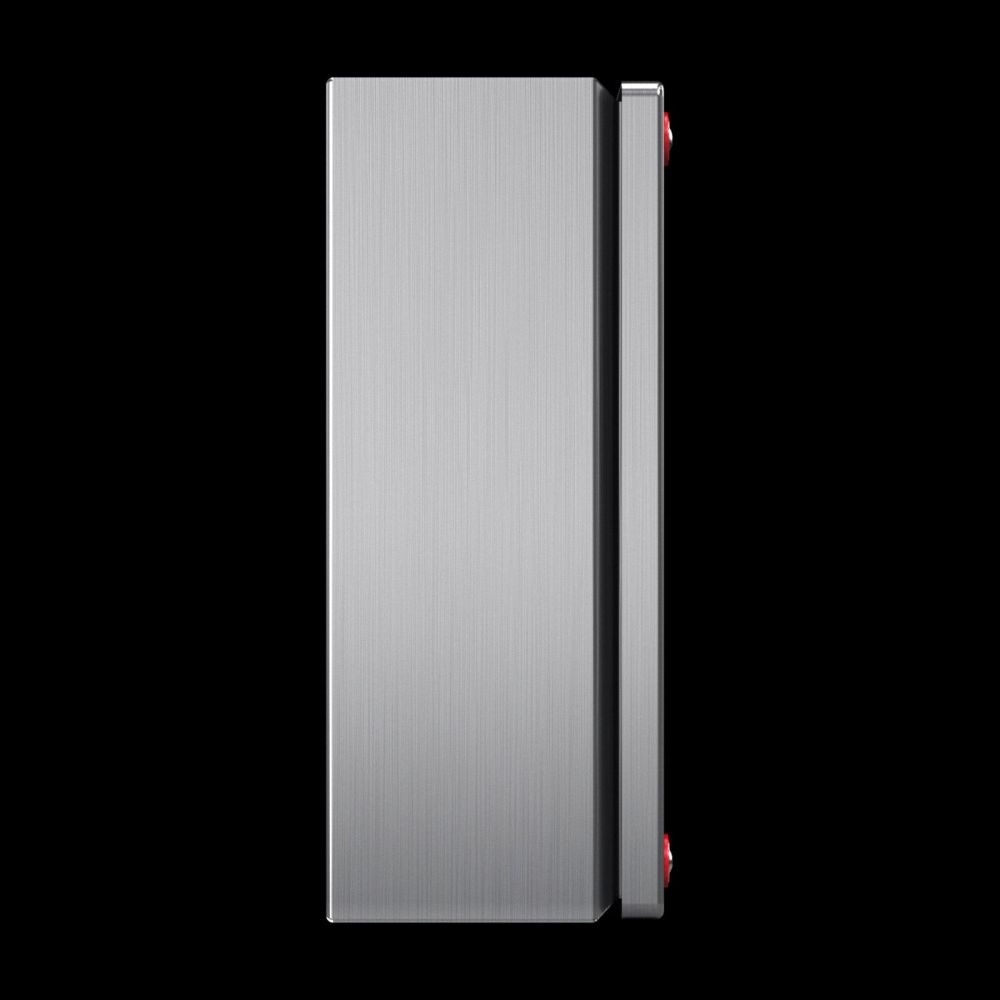

Rittal 1561000 terminal box KX, stainless steel 1.4301, without mounting plate
|
-10% 151,57 EUR 169,09 EUR |
|
|
( 180,37 EUR incl. VAT ) ≈ £126.86 | ≈ $166.58 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline | |
| In Stock: >100 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1778283 |
| Mfg Part No: | 1561000 |
| UPC/EAN: | 4028177919181 |
| Weight: | 1.971 kg |
| Type: | KX 1561000 |
Product information for Rittal 1561000:
Terminal box made of stainless steel 1.4301 (AISI 304) offers high corrosion resistance and is suitable for applications with high material quality requirements, for example in the food industry, chemical industry, or outdoor environments. The material thickness is 1.25 mm for both the enclosure and the lid, ensuring sufficient strength for use in industrial environments. The protection rating IP 66 according to EN 60 529 safeguards the box against dust and heavy splashing water, making it suitable for outdoor use or in humid indoor environments. Additionally, the product meets protection ratings NEMA 1, NEMA 3R, NEMA 3RX, NEMA 4, NEMA 4X, and NEMA 12, as well as Type ratings according to UL 50E: Type 1, Type 3R, Type 3RX, Type 4, Type 4X, and Type 12, confirming its suitability for various regional and industrial requirements.

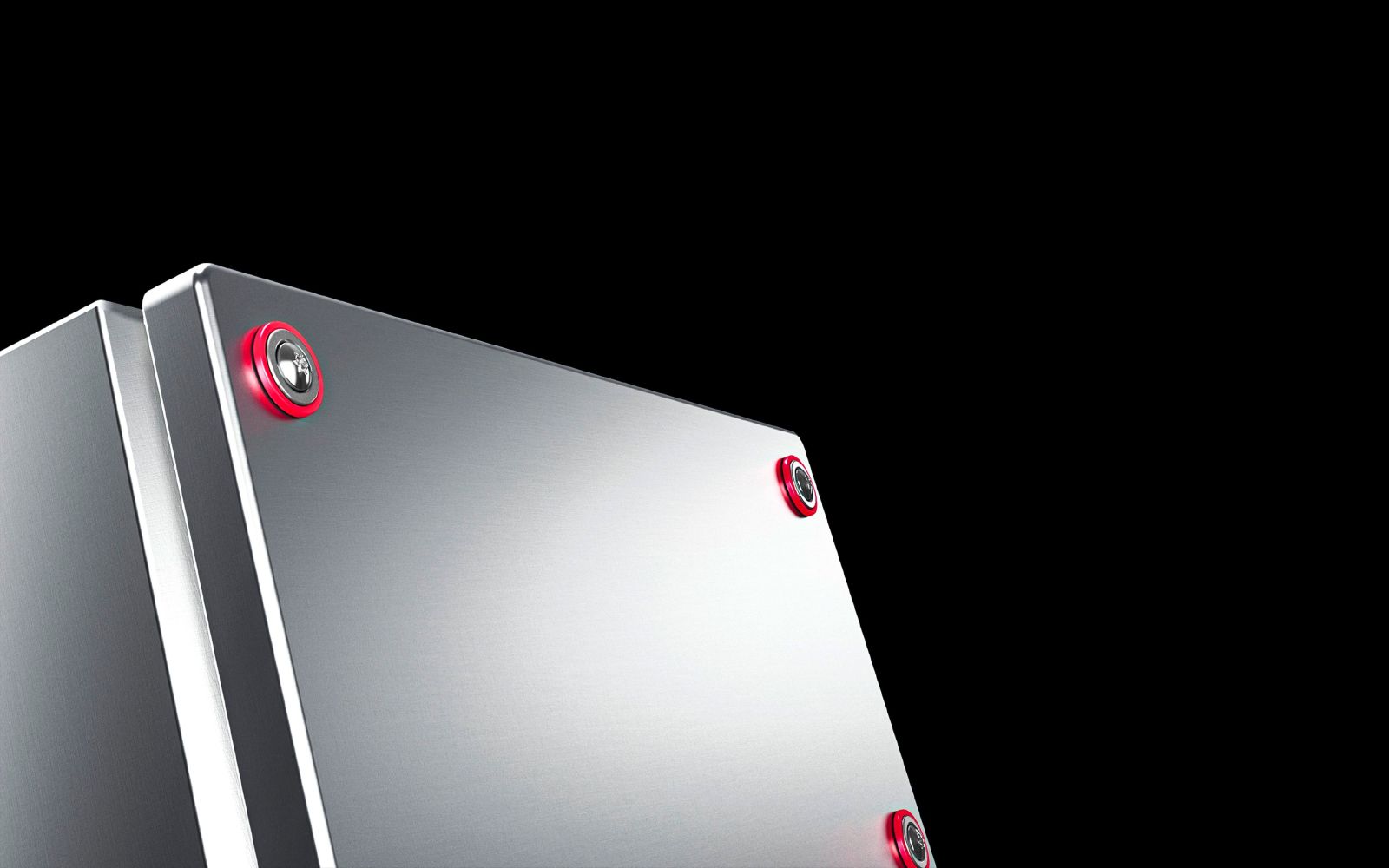

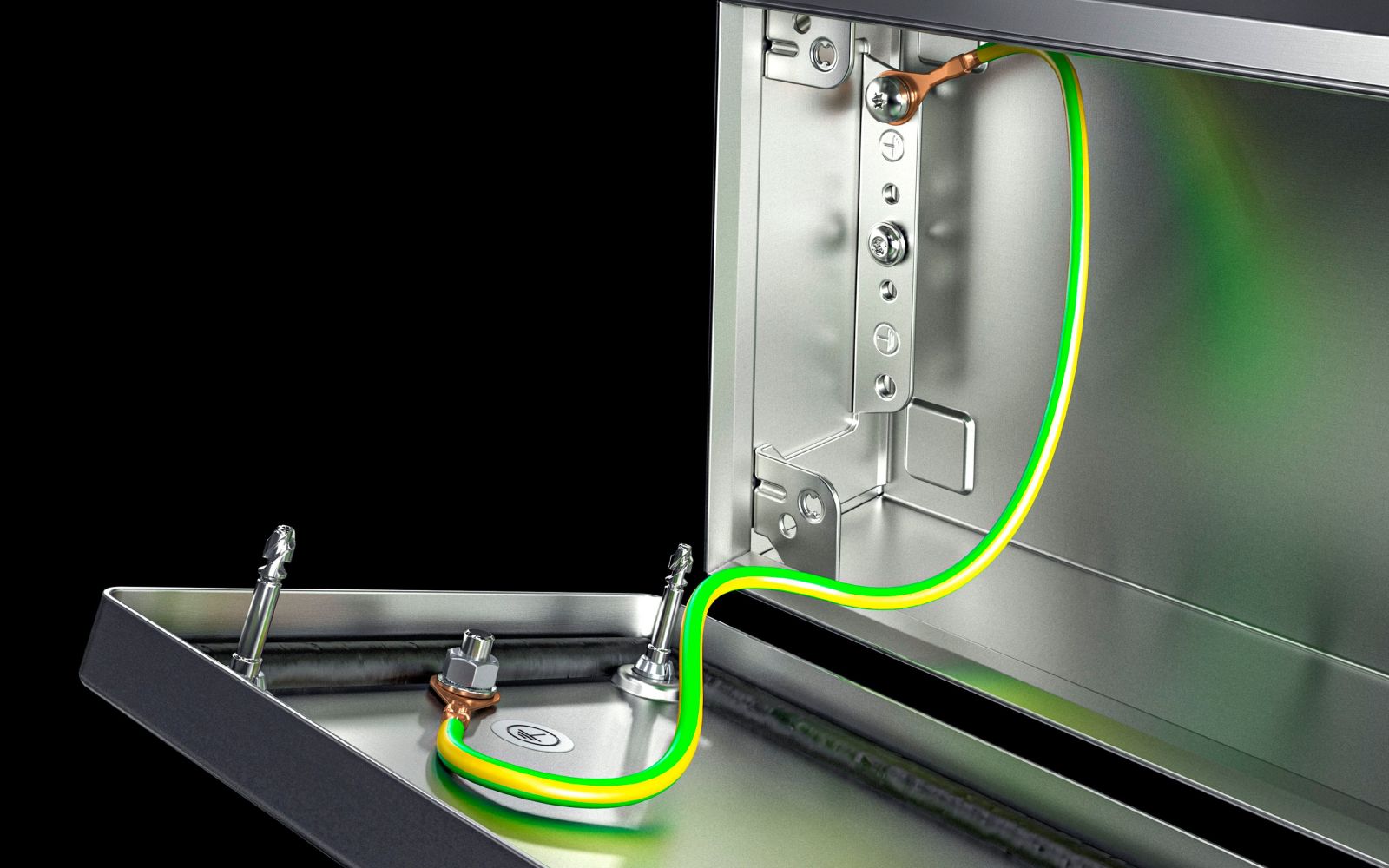

Quick-release fasteners are included in the delivery scope and enable quick and secure mounting of the lid. The fasteners are fitted with plastic bushings to prevent surface damage. The enclosure features an integrated protective earth connection, and the lid includes an earthing bolt, enabling simple and reliable earthing. The construction is designed to ensure long service life even with frequent opening and closing of the cover.

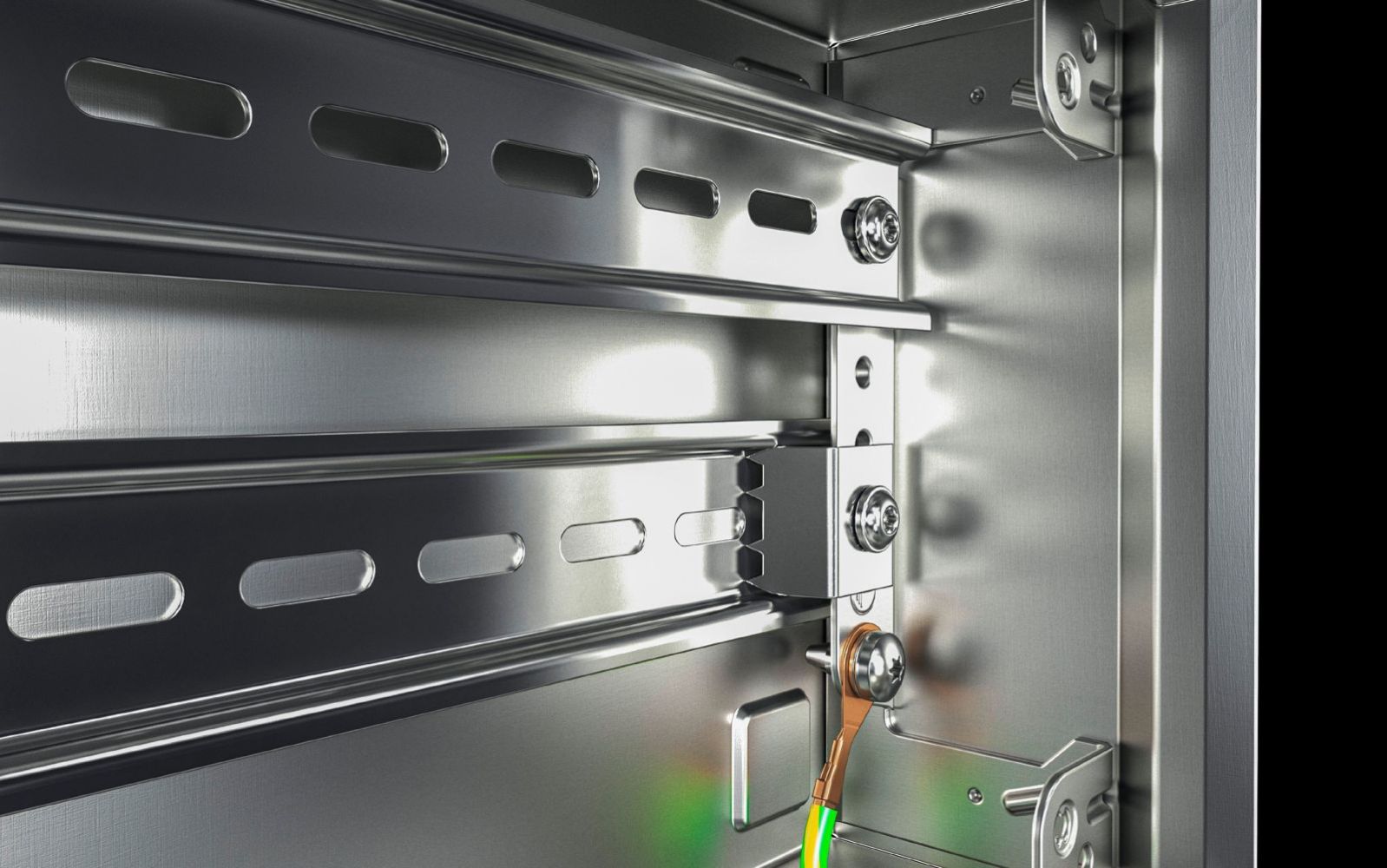

Included accessories comprise, for example, mounting clips for support rails, support rails TH 35/7,5/TS 35/15, mounting brackets, stainless steel 1.4404 lid hinges, condensate drains, earthing straps M6-M6 with a cross-section of 10 mm², drill screws type ST 4,8 L9,5 mm, stainless steel 1.4301 wall mounting brackets, flat mounting brackets, SZ pressure equalization plugs made of stainless steel 1.4305, AX mast mounting brackets, mounting plates for terminal boxes and bus enclosures, mounting claws for a second mounting level, and SZ wall mounting brackets made of stainless steel 1.4301. These components enable flexible and application-specific mounting of the terminal box on various substrates and in different installation scenarios.
Mounting and installation are performed using the integrated quick-release fasteners and the provided mounting options. The use of mounting plates, wall mounting brackets, or support rails enables secure and stable fixation. The drill screws and earthing straps are designed for safe mechanical and electrical connections. The integrated earthing in the lid and enclosure facilitates compliance with safety regulations during installation.
Operational advantages include high reliability, easy maintenance, and long service life of the enclosure. The IP 66 protection rating and the use of stainless steel 1.4301 ensure high resistance to environmental influences. The brush-finished surface is easy to clean and provides a uniform visual appearance. The integrated earthing options and quick lid mounting reduce installation time and increase efficiency during commissioning. The box is suitable for use in various industries, particularly in environments requiring high mechanical and chemical resistance.
A QR code is printed on the enclosure, lid, and nameplate to enable unique identification and easy access to relevant product information, as well as traceability of individual components. This supports documentation and maintenance during operation.

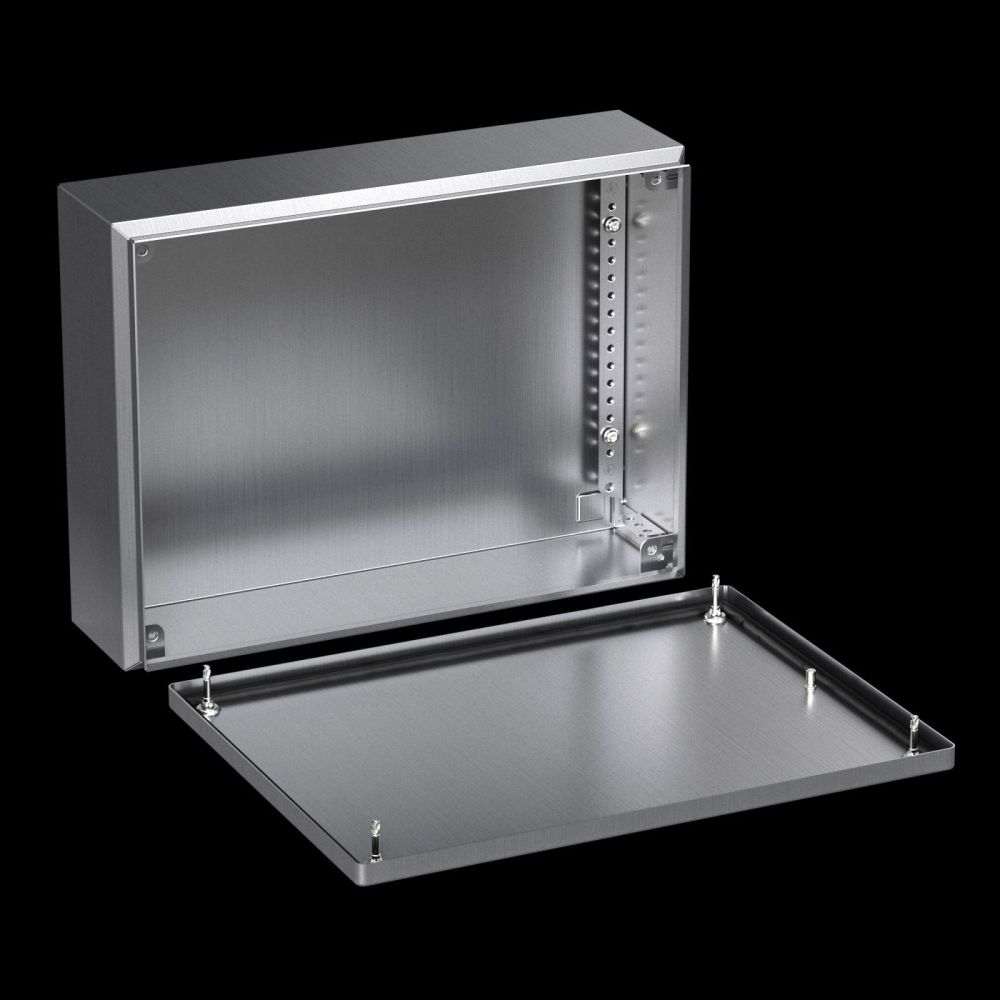

The delivery scope includes the enclosure with lid and the quick-release fasteners including plastic bushings.
The product description is based exclusively on information from the manufacturer's sources and takes into account the specified technical features, protection ratings, materials, and accessory components.
| General | |
| Material | Housing: Stainless steel 1.4301 (AISI 304), Cover: Stainless steel 1.4301 (AISI 304), continuous foamed PU seal |
| Surface protection | Housing and cover: fine grinding, grit 180 |
| Scope of delivery | Housing with cover, quick-release fastener including plastic inserts |
| Width | 300 mm |
| Height | 150 mm |
| Depth | 80 mm |
| Degree of protection IP according to EN 60 529 | IP 66 |
| NEMA degree of protection | NEMA 1, NEMA 3R, NEMA 3RX, NEMA 4, NEMA 4X, NEMA 12 |
| Type rating according to UL 50E | Type 1, Type 3R, Type 3RX, Type 4, Type 4X, Type 12 |
| Material thickness cover | 1,25 mm |
| Plate thickness cabinet | 1,25 mm |
| Lock | Number of locks: 4 |
| Base material | Stainless steel 1.4301 (AISI 304) |
| PCF/VE (Cradle-to-Gate) | 7,86 |
