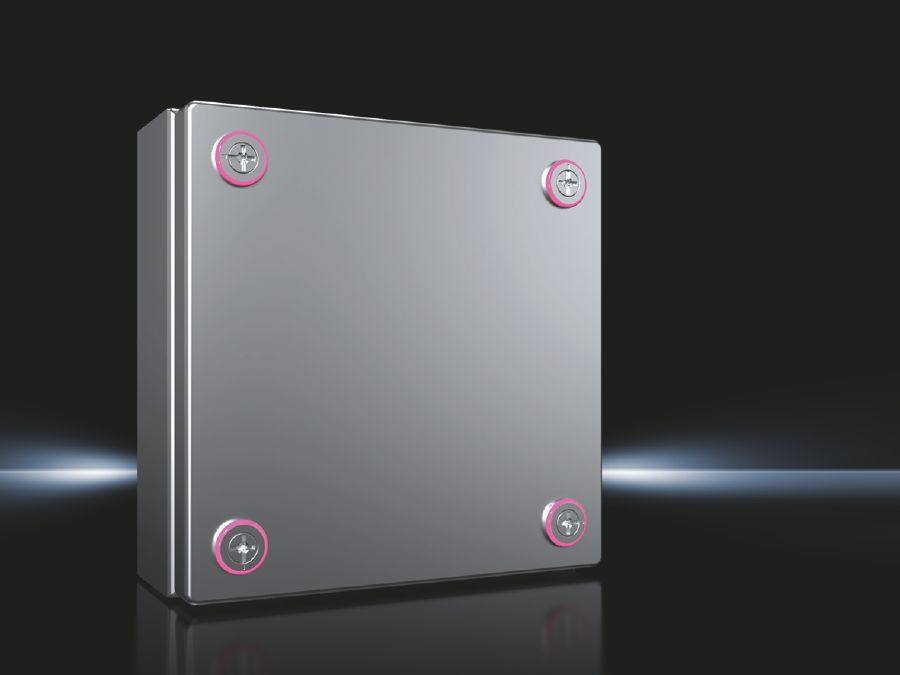

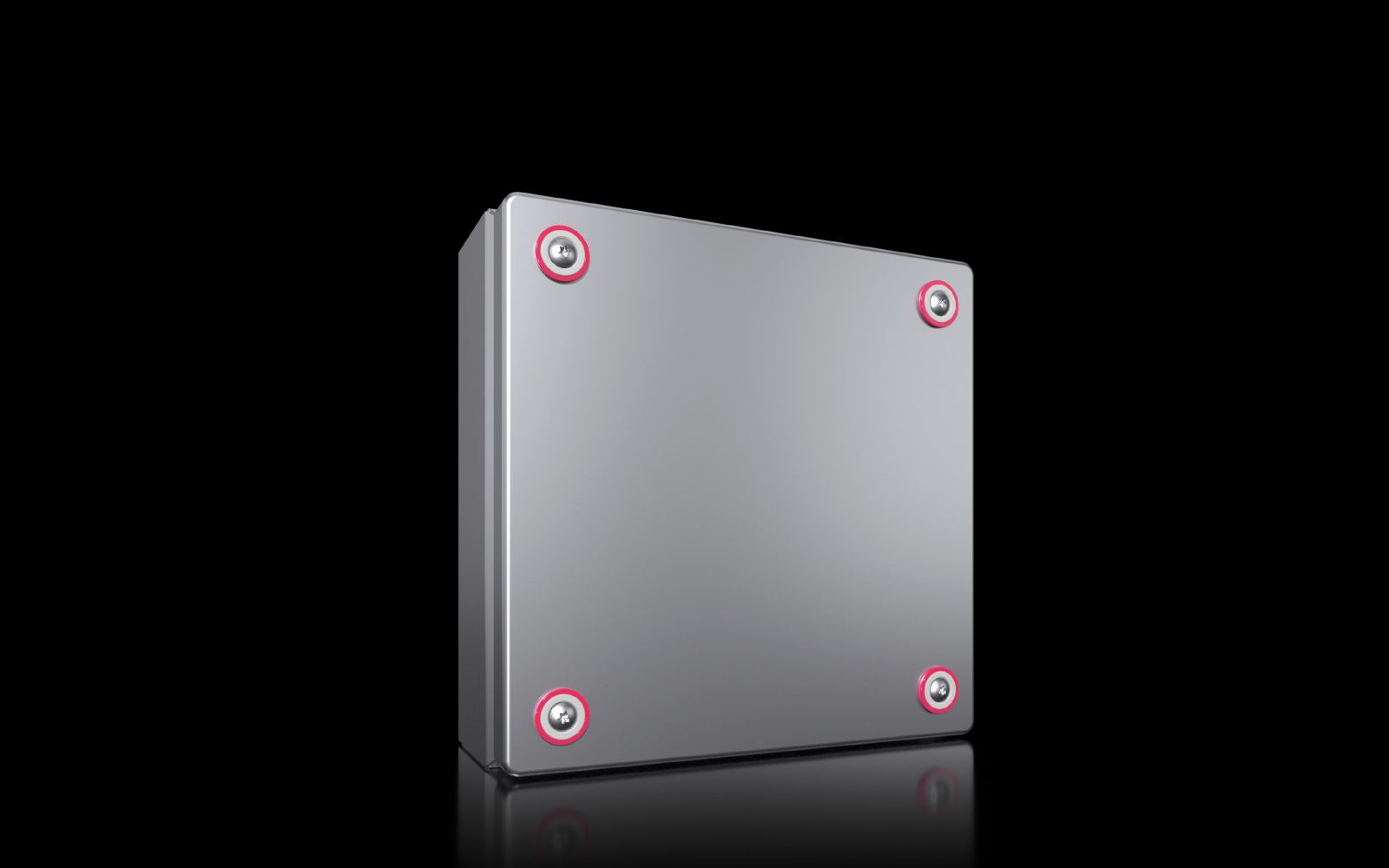

Rittal 1562000 terminal box KX, stainless steel 1.4301, without mounting plate
|
-10% 149,62 EUR 166,91 EUR |
|
|
( 178,05 EUR incl. VAT ) ≈ £125.23 | ≈ $164.43 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 8 workdaysinfo_outline | |
| In Stock: >100 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1778296 |
| Mfg Part No: | 1562000 |
| UPC/EAN: | 4028177919044 |
| Weight: | 1.726 kg |
| Type: | KX 1562000 |
Product information for Rittal 1562000:
Applications
This terminal box is suitable for use in environments with high requirements for protection against dust, water, and mechanical stress. It is particularly suitable for outdoor use, in humid or dusty industrial facilities, and in automation technology, where secure and durable installation of terminals, connectors, or small electrical components is required. The IP 66 protection rating according to EN 60 529 guarantees dust-tight and water-tight sealing, even under heavy spray water exposure. Additionally, the enclosure meets protection ratings NEMA 1, NEMA 3R, NEMA 3RX, NEMA 4, NEMA 4X, and NEMA 12, as well as Type ratings according to UL 50E (Type 1, Type 3R, Type 3RX, Type 4, Type 4X, Type 12), enabling broad compatibility with international standards.
Functions and Equipment in Detail

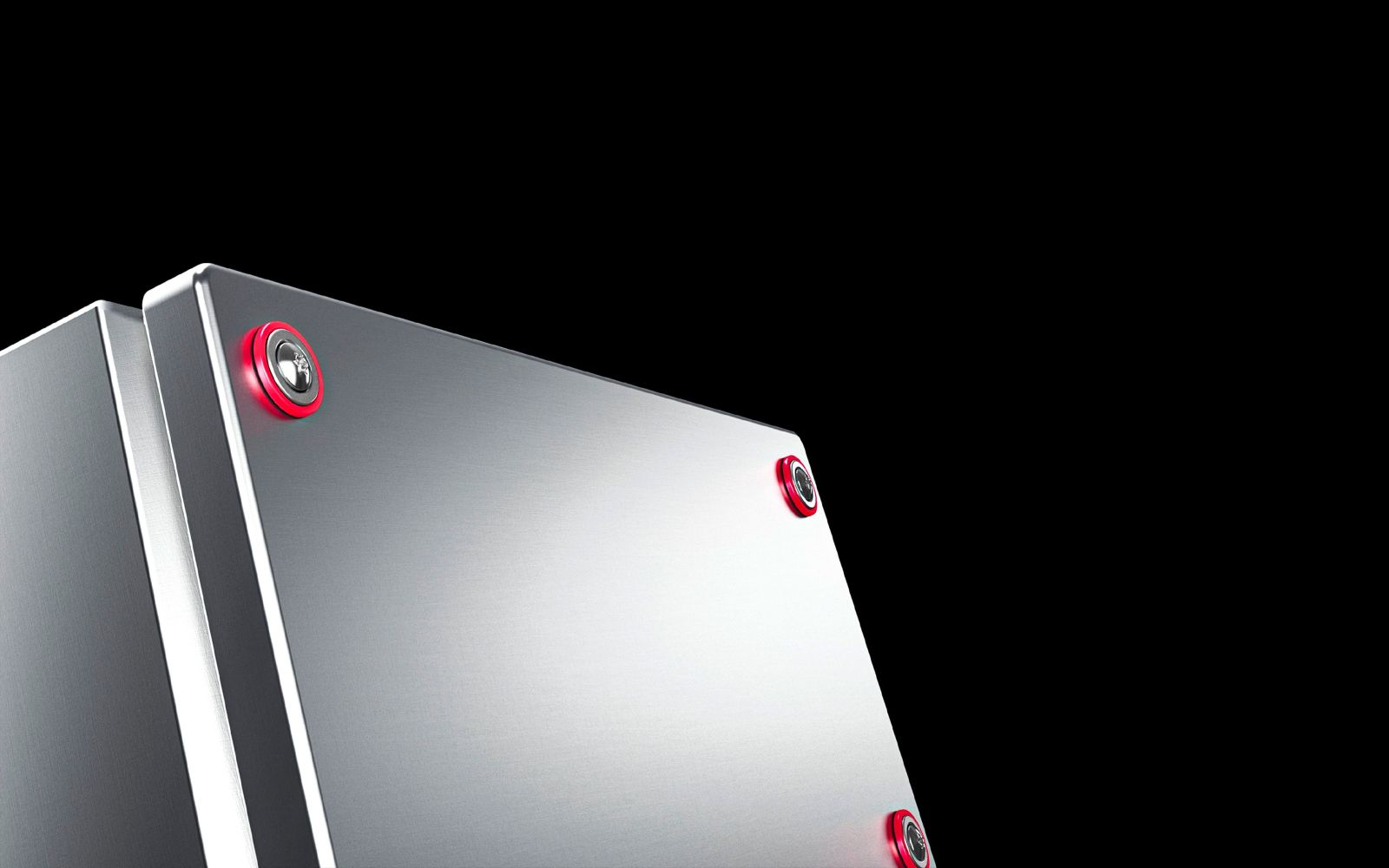

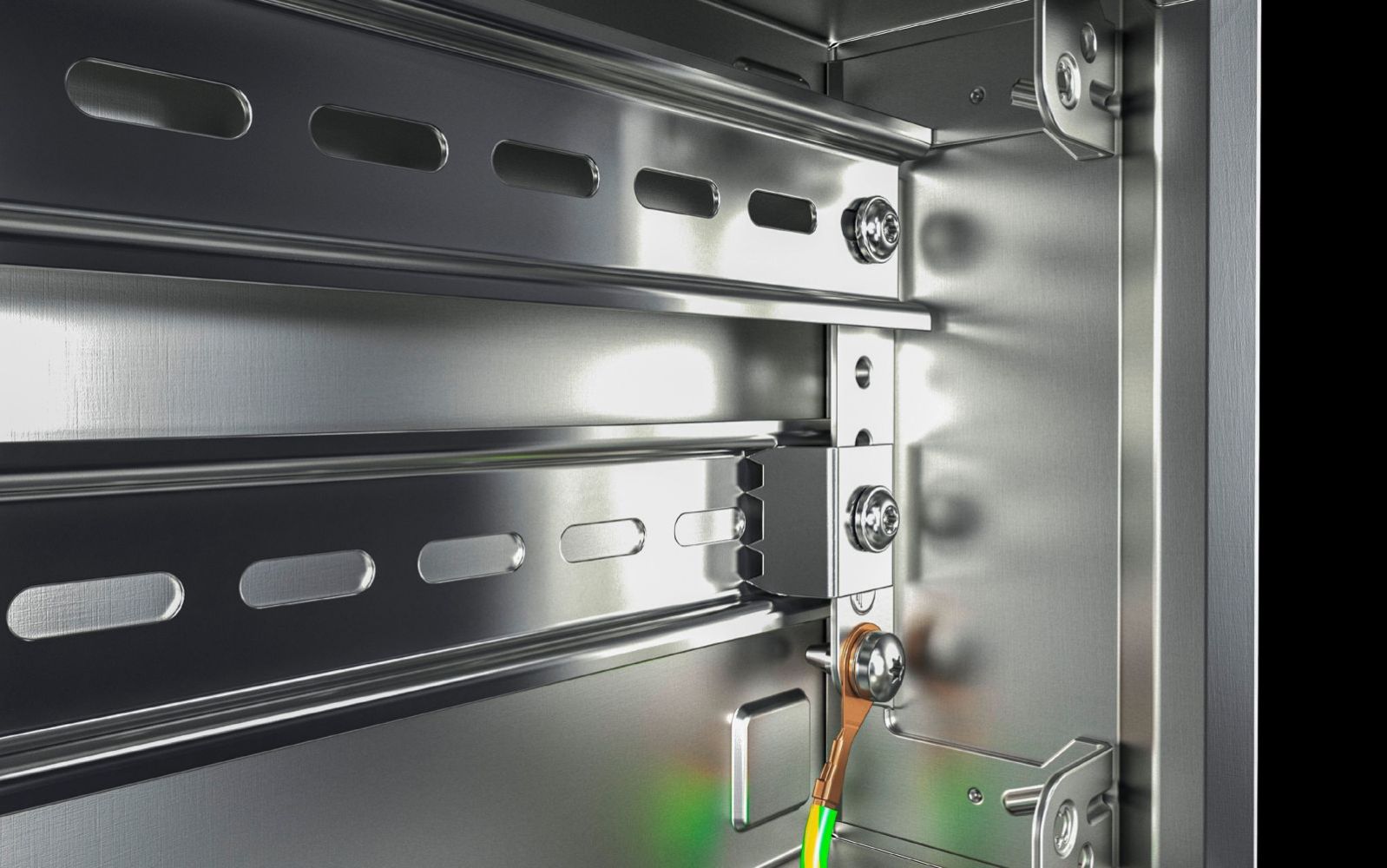

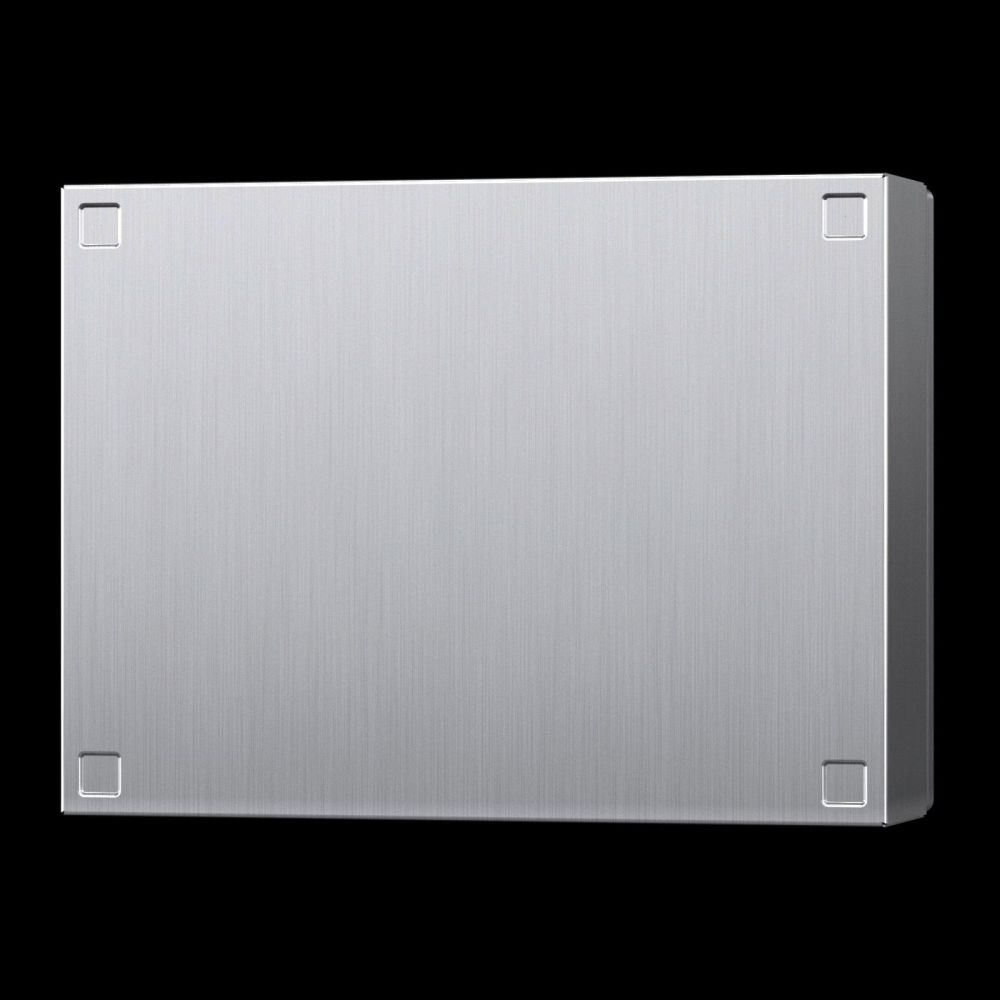

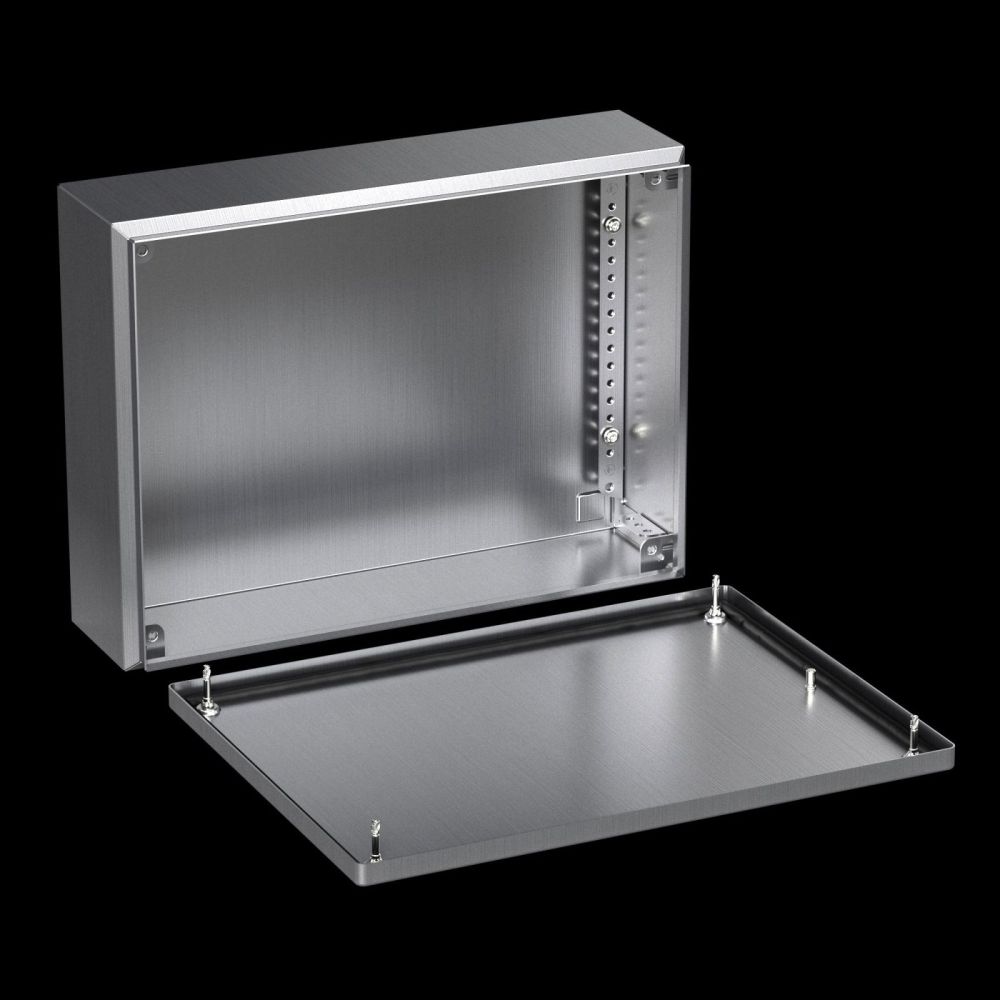

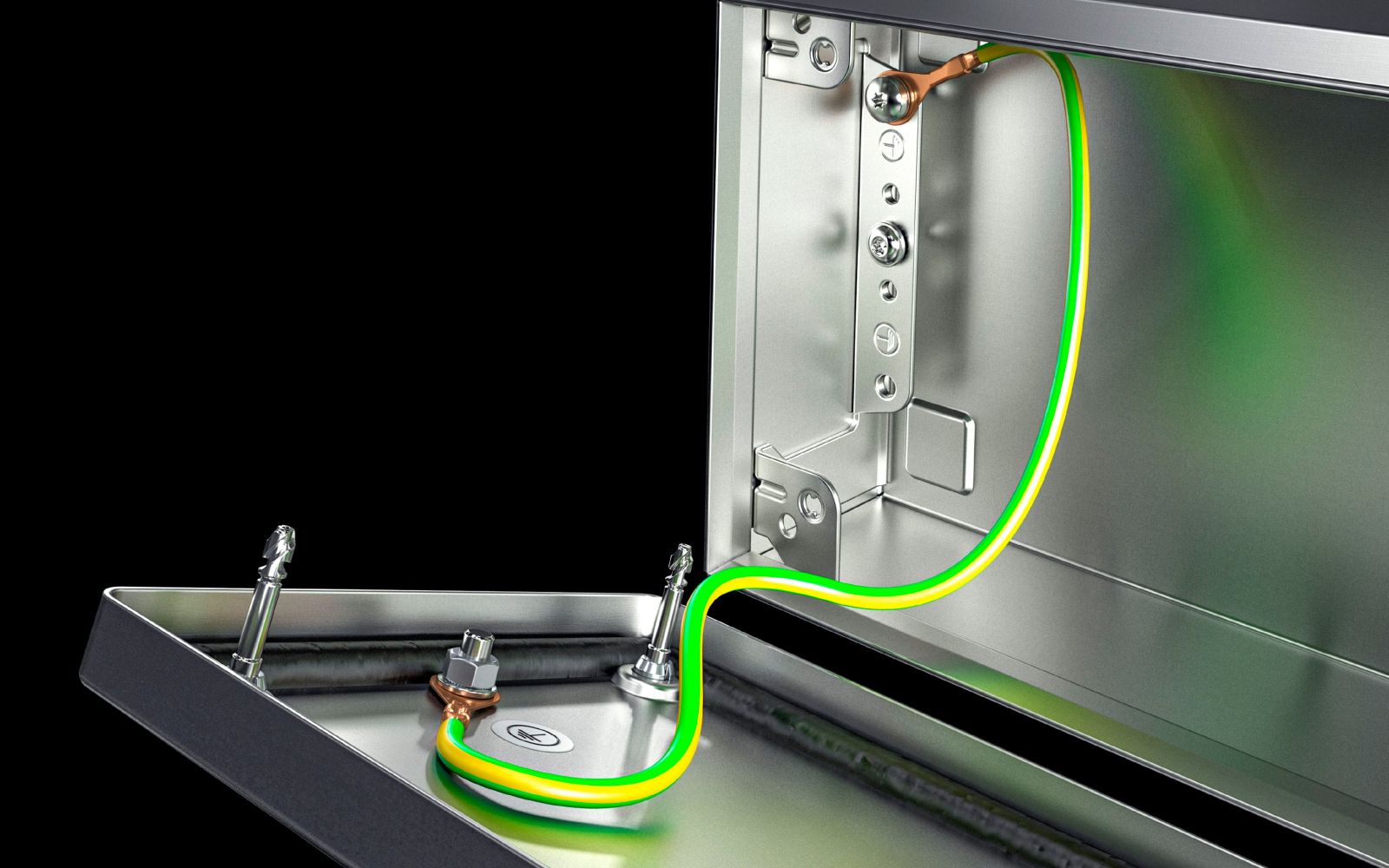

The enclosure is designed as a single-piece, flanged, and welded body, with a closed rear wall. The lid features a continuous protective channel that additionally protects the seal. Earthing is achieved via a protective conductor connection in the enclosure and a bolt in the lid, enabling quick and secure earthing. The box is equipped with four quick-release fasteners, supplied with plastic bushings, to ensure easy and secure mounting. A QR code is printed on the enclosure, lid, and type plate to enable unique identification and traceability of individual components.
Technology Explained Simply
The use of stainless steel 1.4301 (AISI 304) ensures high corrosion resistance and mechanical strength, even under harsh operating conditions. The brush-finished surface with grit 180 offers good visual appearance and is easy to clean. The IP 66 protection rating means the enclosure is dust-tight and protected against heavy spray water, making it suitable for outdoor use or in humid indoor environments. The PU seal ensures durable, weather-resistant sealing. The quick-release fasteners allow for rapid mounting and dismounting without tools, enabling more efficient maintenance work.
Compatibility and Accessories
The terminal box can be combined with various accessories to extend mounting and functionality. These include, for example, mounting clips for support rails, support rails TH 35/7,5/TS 35/15, mounting brackets, stainless steel 1.4404 lid hinges, condensate drains, earthing straps M6-M6 with a cross-section of 10 mm², ST 4,8 L9,5 mm screws, stainless steel 1.4301 wall mounting brackets, flat mounting brackets, SZ pressure equalization plugs made of stainless steel 1.4305, AX mast mounting brackets, mounting plates for terminal boxes and bus enclosures, mounting claws for a second mounting level, and SZ wall mounting brackets made of stainless steel 1.4301. These accessories enable flexible and application-specific installation.
Mounting and Installation

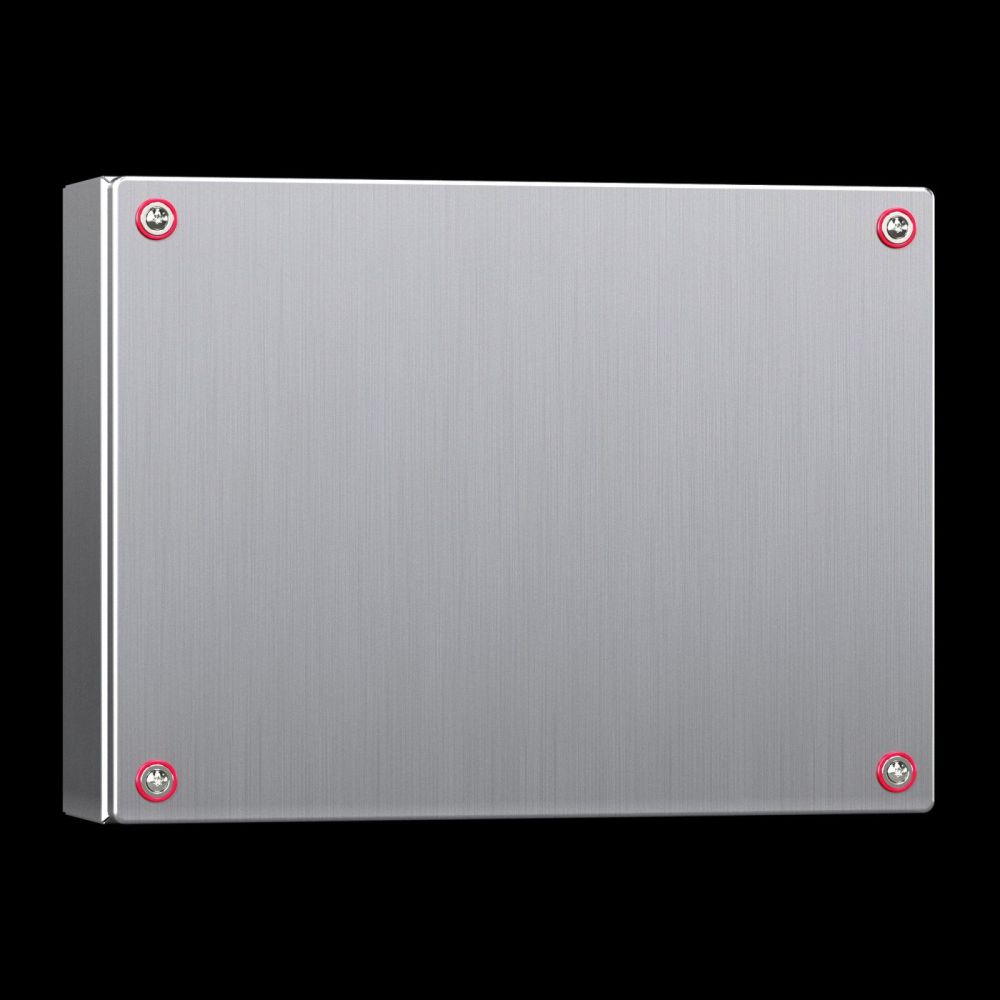

Mounting is done using the included quick-release fasteners, which ensure secure and tool-free fastening of the lid. Wall mounting is done through the pre-drilled holes in the enclosure, with additional wall mounting brackets or mounting brackets optionally used to enable mounting on different substrates. Mounting plates and support rails allow integration into existing enclosure systems. Earthing is achieved via the integrated protective conductor connection in the enclosure and the bolt in the lid, ensuring a secure electrical connection.
Operational Advantages
The terminal box offers high mechanical stability and corrosion resistance due to the use of stainless steel 1.4301. The IP 66 protection rating and NEMA classification enable use in demanding environments. The quick-release fasteners simplify maintenance and inspection, while the integrated earthing safety ensures electrical safety. The unique identification via QR code supports documentation and traceability in operation. The combinability with various accessories extends application possibilities and enables customized installation.
| General | |
| Material | Housing: Stainless steel 1.4301 (AISI 304), Cover: Stainless steel 1.4301 (AISI 304), continuous foamed PU seal |
| Surface protection | Housing and cover: fine grinding, grit 180 |
| Scope of delivery | Housing with cover, quick-release fastener including plastic inserts |
| Width | 200 mm |
| Height | 200 mm |
| Depth | 80 mm |
| Degree of protection IP according to EN 60 529 | IP 66 |
| NEMA degree of protection | NEMA 1, NEMA 3R, NEMA 3RX, NEMA 4, NEMA 4X, NEMA 12 |
| Type rating according to UL 50E | Type 1, Type 3R, Type 3RX, Type 4, Type 4X, Type 12 |
| Material thickness cover | 1,25 mm |
| Plate thickness cabinet | 1,25 mm |
| Lock | Number of locks: 4 |
| Base material | Stainless steel 1.4301 (AISI 304) |
| PCF/VE (Cradle-to-Gate) | 7,11 |
