Rittal 1587000 KX E-Box W x H x D 200x300x155 mm sheet metal mounting plate

Your rating:
Average rating
product review for Rittal 1587000 KX E-Box W x H x D 200x300x155 mm sheet metal mounting plate
( 5 / 5 ) 1 ratings

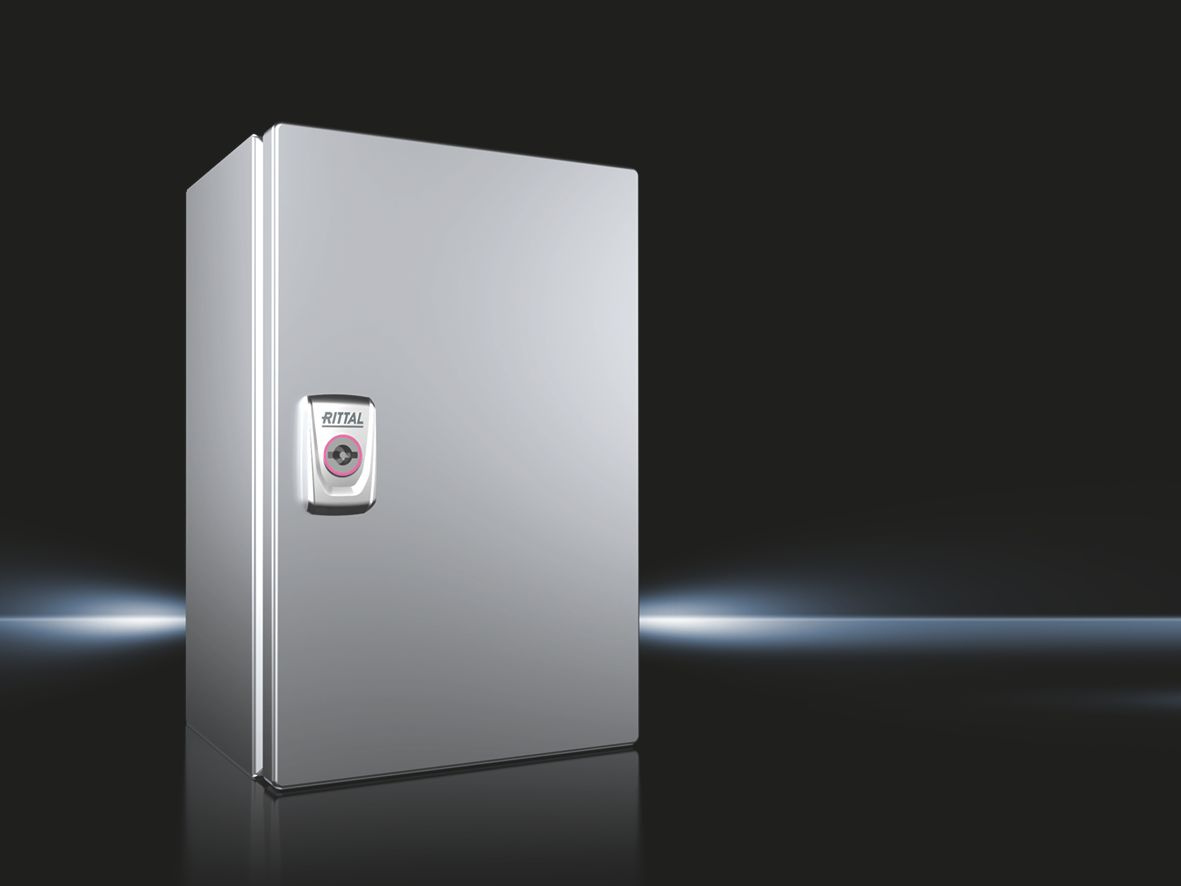

Rittal 1587000
This image may differ from the desired article.
Rittal 1587000Rittal 1587000Rittal 1587000Rittal 1587000Rittal 1587000Rittal 1587000Rittal 1587000Rittal 1587000Rittal 1587000Rittal 1587000Rittal 1587000
186,70 EUR 186,73 EUR
( 222,17 EUR incl. VAT )
≈ £156.27  |  ≈ $205.18
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 8 workdaysinfo_outline
In Stock: >100 pieces
1x Rittal 1587000 KX E-Box W x H x D 200x300x155 mm sheet metal mounting plate
Datasheet:file_download Download
Lieske Part No.:1778270
Mfg Part No: 1587000
UPC/EAN: 4028177919136
Weight:4.05 kg
Type:KX 1587000

Product information for Rittal 1587000:

The Rittal KX 1587000 is an industrial E-Box made of stainless steel, designed for use in demanding environments where high mechanical stability, corrosion resistance, and protection against dust and water are required. The housing has dimensions of 200 mm (width) × 300 mm (height) × 155 mm (depth) and is made from a single piece of bent and welded stainless steel 1.4301 (AISI 304), creating a stable and durable construction. The door is hinged on the right and features a continuous foamed PU seal, which together with the protective groove at the door opening provides effective protection against ingress of dust and liquids. The surface of the housing and door is brush-finished (grit 180), offering a uniform, easy-to-clean surface. The mounting plate made of galvanized steel sheet enables secure attachment to walls or support rails.

Applications

The E-Box is suitable for use in industry, machine building, process automation, and outdoor installations where high environmental requirements exist. The protection rating IP 66 according to EN 60 529 ensures complete protection against dust and heavy splashing water from any direction, making it suitable for outdoor use as well. The UL type rating (Type 1, 3R, 3RX, 4, 4X, 12) confirms suitability for dry, damp, and dusty environments, as well as for use in low-voltage installations. Integrated earthing via a bolt on the door and the protective conductor connection in the housing meet the requirements for electrical safety.

Functions and Equipment in Detail

The housing is equipped with a cam lock that operates with a 3 mm double-barrel lock insert according to DIN 43668. This lock ensures a secure and reliable door locking. The standard 180° hinges allow full door opening, facilitating access to the interior for installation, maintenance, and inspection. The rear wall is solid and features embossings that enable flexible mounting of components. A QR code is printed on the housing, door, and type plate to enable unique identification and traceability of individual parts.

Technology Explained Simply

The use of stainless steel 1.4301 (AISI 304) ensures high corrosion resistance, especially against moisture, salt, and chemical influences. The material thickness of 1.25 mm for housing and door ensures mechanical strength and resistance to mechanical stress. The continuous PU seal and protective groove at the door opening provide a tight seal, supporting the IP 66 protection rating. The mounting plate with dimensions 175 mm × 285 mm allows flexible mounting on various substrates.

Compatibility and Accessories

Various accessories are available to extend functionality, including mounting clips for support rails, lock inserts made of zinc die-cast, support rails TH 35/7,5/TS 35/15, mounting brackets, condensate drain, drill screws type ST 4,8 L9,5 mm, mounting brackets, SZ pressure equalization plugs made of stainless steel 1.4305, AX mast mounting, earthing straps M6-M6 with cross-section 10 mm², and mini comfort handles AX for padlocks. These components enable individual adaptation to specific mounting and operating environments.

Mounting and Installation

Mounting is done via the included mounting plate, which can be attached to walls or support rails. The holes in the mounting plate allow for secure and stable fastening. The E-Box can also be supplemented with additional mounting accessories such as wall mounting brackets or support rails to enable installation on various substrates.

Operational Advantages

The combination of stainless steel construction, IP 66 protection rating, and integrated earthing ensures high reliability and longevity. The 180° hinges and cam lock facilitate maintenance and inspection. The uniform surface finish (brush finish grit 180) provides a consistent and low-maintenance surface. The integrated QR codes enable quick access to technical documentation and product information, supporting maintenance and traceability.

General
MaterialHousing: stainless steel, door: stainless steel, continuous foamed PU seal, mounting plate: sheet steel, stainless steel 1.4301 (AISI 304)
Surface protectionEnclosure and cover: Brushed finish, grit 180, mounting plate: galvanized
Scope of deliveryMounting plate, pre-lubricated lock with 3 mm double-barrel insert
Width200 mm
Height300 mm
Depth155 mm
Mounting plate dimensions (W x H)175 mm x 285 mm
Degree of protection IP according to EN 60 529IP 66
Type rating according to UL 50EType 1, Type 3R, Type 3RX, Type 4, Type 4X, Type 12
Plate thickness cabinet1,25 mm
Door material thickness1,25 mm
LockNumber of locks: 1
Base materialStainless steel 1.4301 (AISI 304)
PCF/VE (Cradle-to-Gate)13,5


Product data sheet
Datasheet for Rittal 1587000, EAN: 4028177919136
