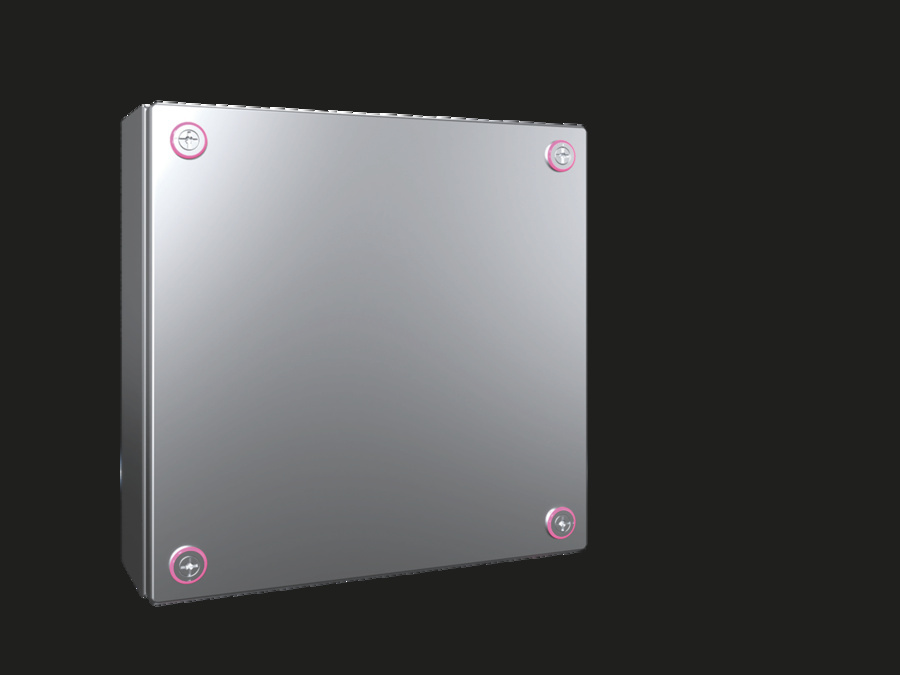

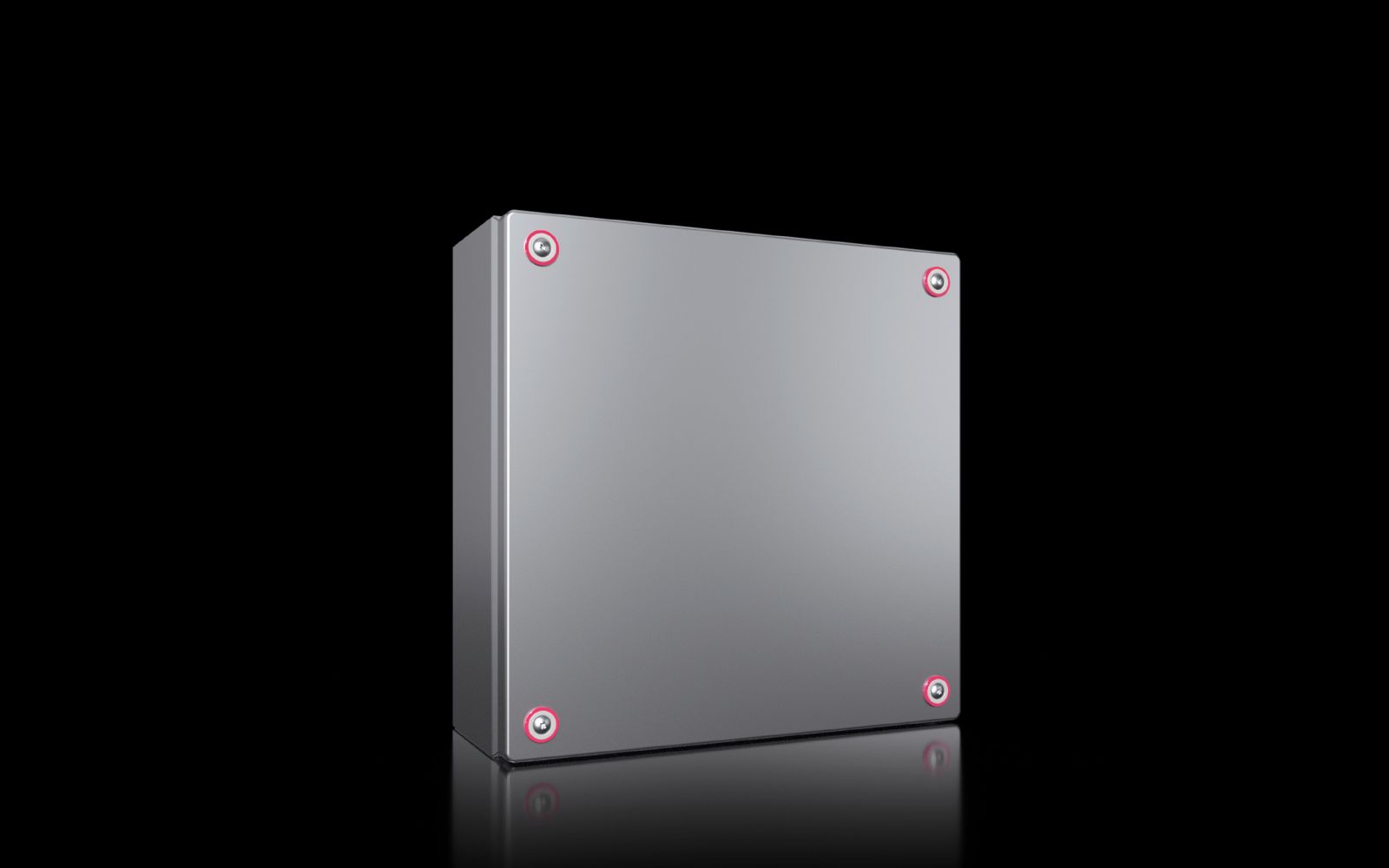

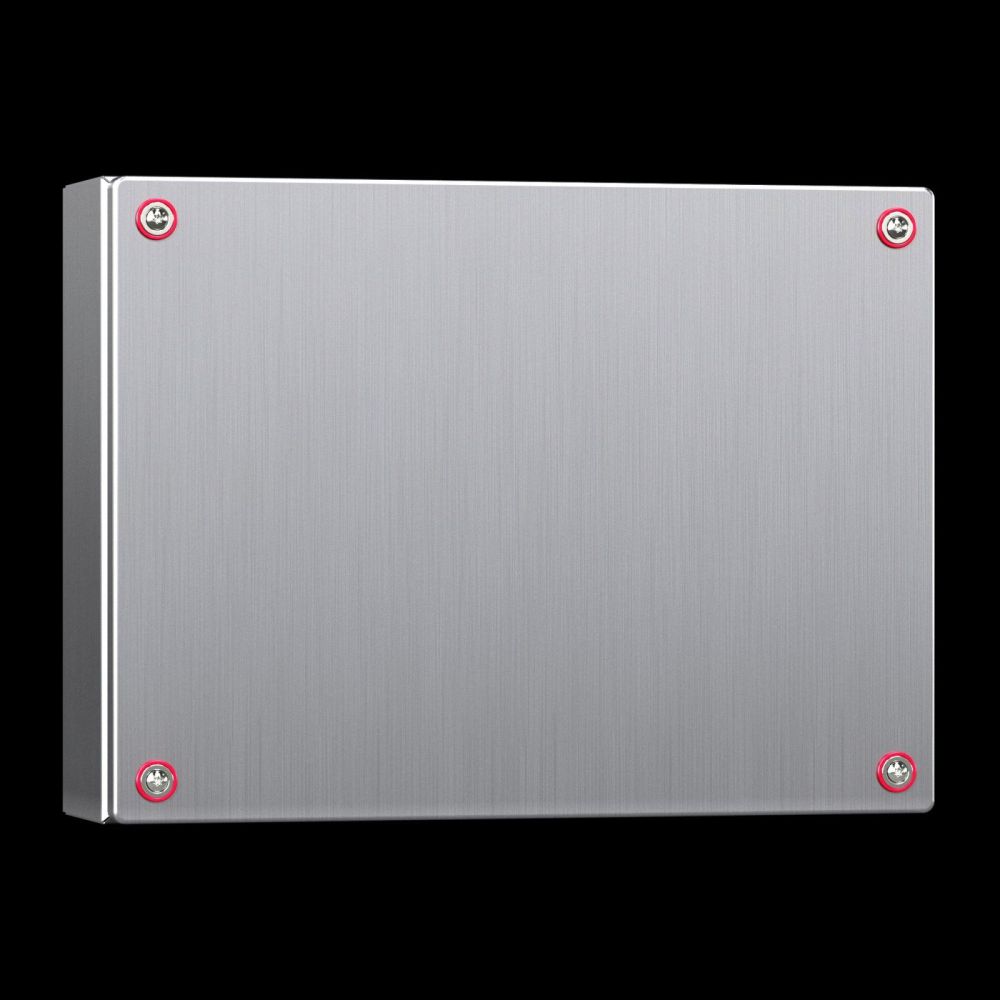

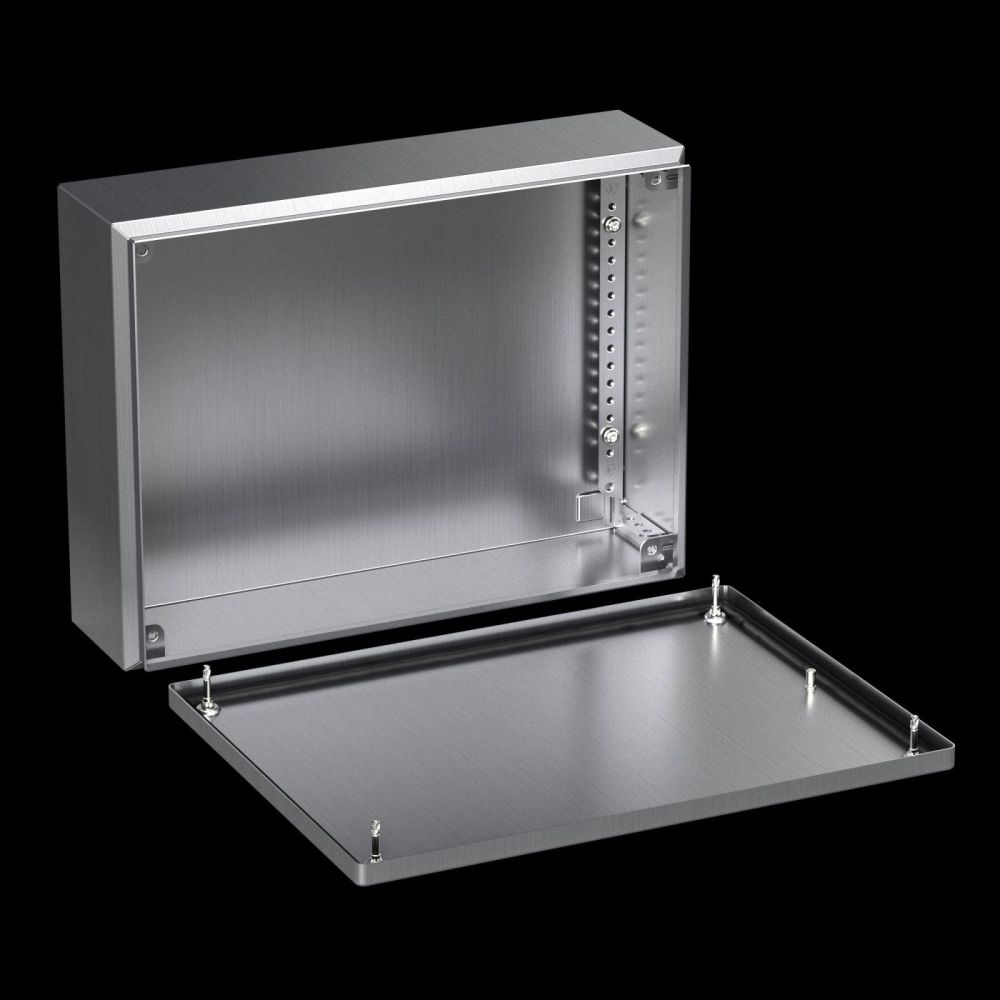

Rittal 1567000 terminal box KX, stainless steel 1.4301, without mounting plate
|
-10% 210,57 EUR 234,90 EUR |
|
|
( 250,58 EUR incl. VAT ) ≈ £176.25 | ≈ $231.42 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 8 workdaysinfo_outline | |
| In Stock: >100 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1778291 |
| Mfg Part No: | 1567000 |
| UPC/EAN: | 4028177919075 |
| Weight: | 3.68 kg |
| Type: | KX 1567000 |
Product information for Rittal 1567000:
Applications
The terminal box is designed for use in environments subject to high mechanical stress, moisture, or dirt. It is suitable for applications in manufacturing automation, power supply, process control, or transportation technology. The protection rating IP 66 according to EN 60 529 ensures complete dust tightness and protection against strong splashing water from any direction, making it suitable for outdoor use as well. Additionally, it meets protection ratings NEMA 1, NEMA 3R, NEMA 3RX, NEMA 4, NEMA 4X, and NEMA 12, as well as type ratings according to UL 50E (Type 1, Type 3R, Type 3RX, Type 4, Type 4X, Type 12), enabling international use in various standards regions.
Functions and Equipment in Detail

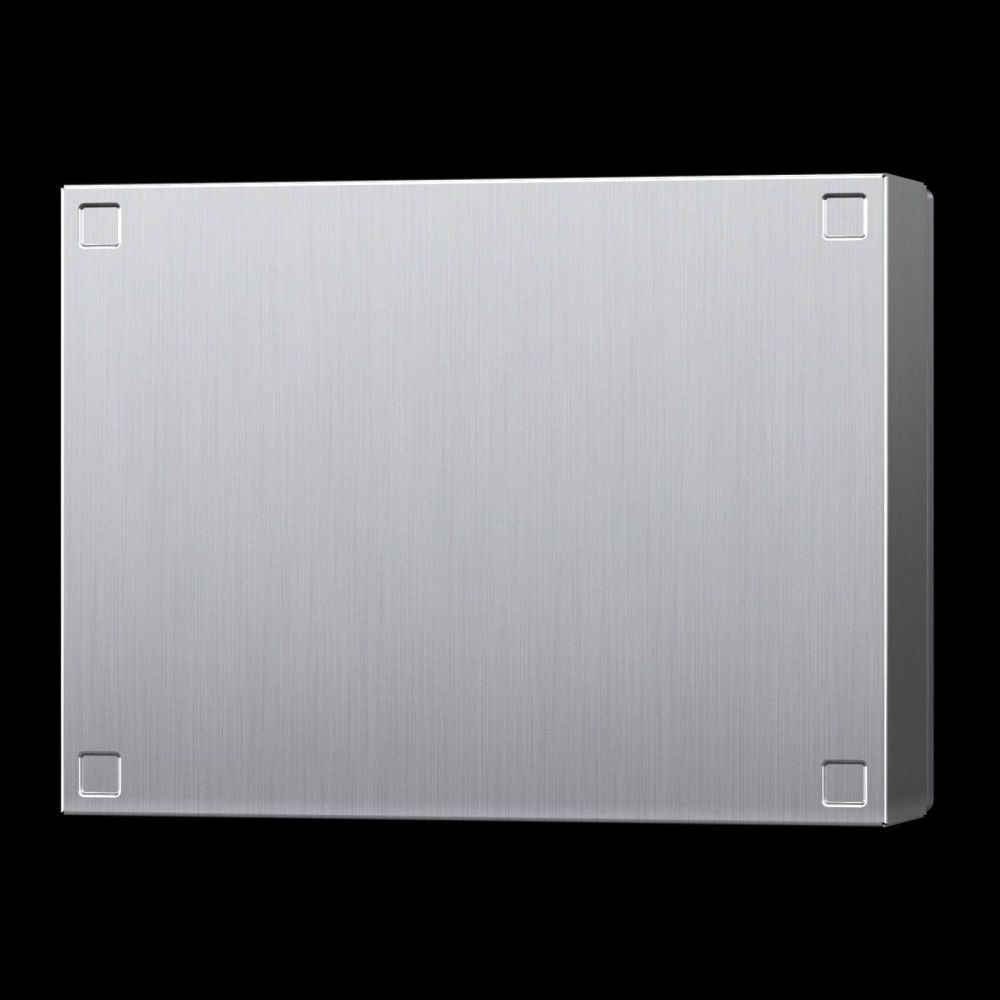

The housing consists of a single, formed and welded body made of stainless steel 1.4301, ensuring high stability and long-term durability. The rear wall is closed and features embossings for secure mounting. The lid is equipped with a continuous protective flange around the opening, providing additional protection. Earthing is achieved via a protective conductor connection in the housing and a bolt in the lid, ensuring quick and secure earthing. The locking mechanism consists of four quick-release latches fitted with plastic bushings to enable easy and secure locking.
Technology Explained Simply
The material thickness of 1.25 mm for both the housing and lid ensures sufficient mechanical strength to withstand mechanical loads such as vibrations or impact. The PU seal provides a tight seal that maintains its function even under temperature fluctuations. The IP 66 protection rating means the housing is dust-tight and protected against strong splashing water, making it suitable for use in damp or wet environments. The NEMA and UL approvals extend its application possibilities, particularly in the USA and other countries with corresponding standards.
Compatibility and Accessories

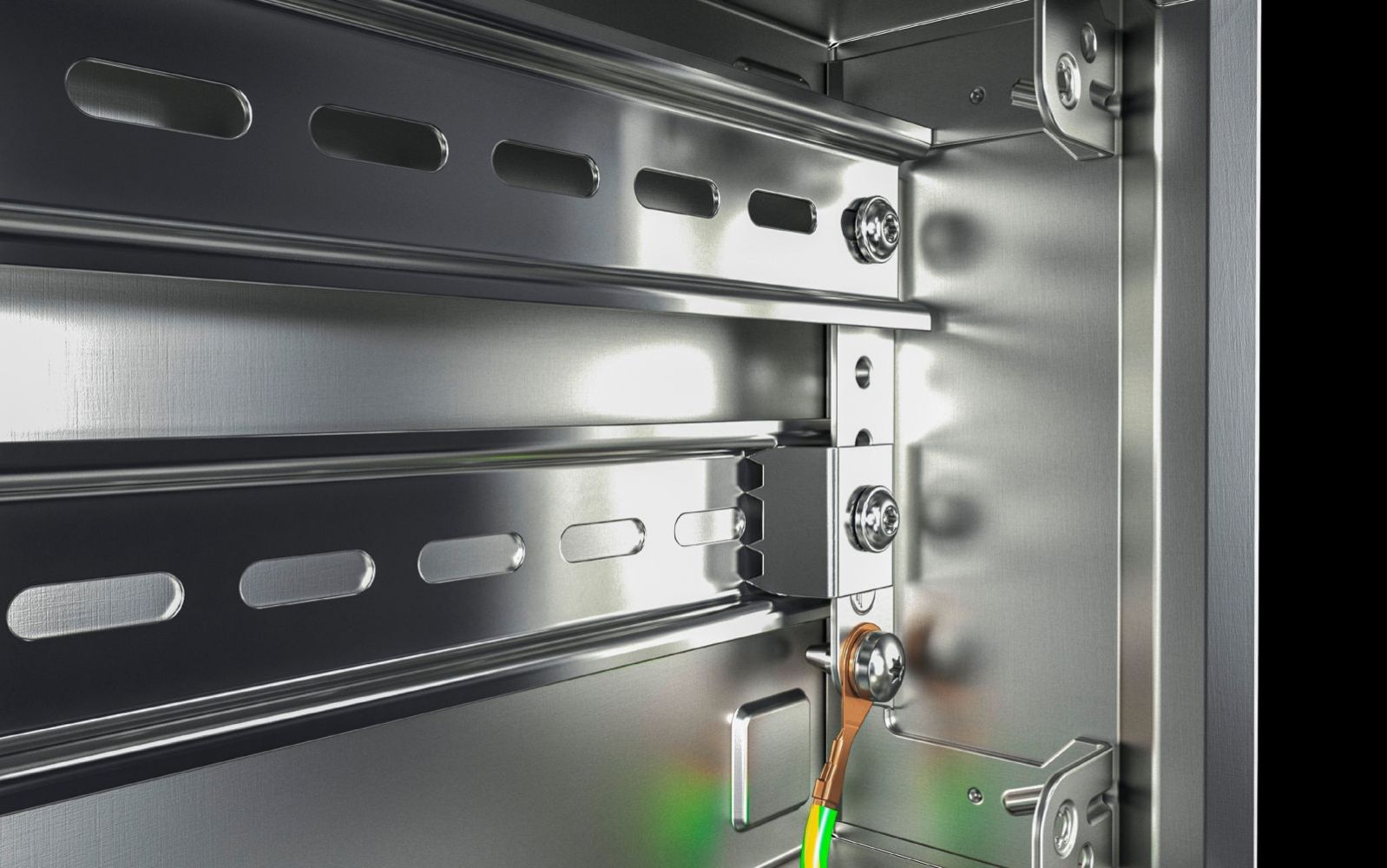

Various accessories are available to extend the functionality and can be directly combined with the terminal box. These include mounting clips for support rails, support rails TH 35/7.5/TS 35/15, mounting brackets, stainless steel 1.4404 lid hinges, condensate drains, baying sets for AX, KX, AE, KL, ST 4.8 L9.5 mm screws, mounting brackets, stainless steel 1.4301 wall mounting angles, SZ pressure equalization plugs made of stainless steel 1.4305, AX mast mounting brackets, earthing straps M6-M6 with a cross-section of 10 mm², mounting plates for terminal boxes and bus housings, mounting claws for a second mounting level, and SZ wall mounting brackets made of stainless steel 1.4301. These components enable flexible and application-specific mounting and integration into existing systems.
Mounting and Installation

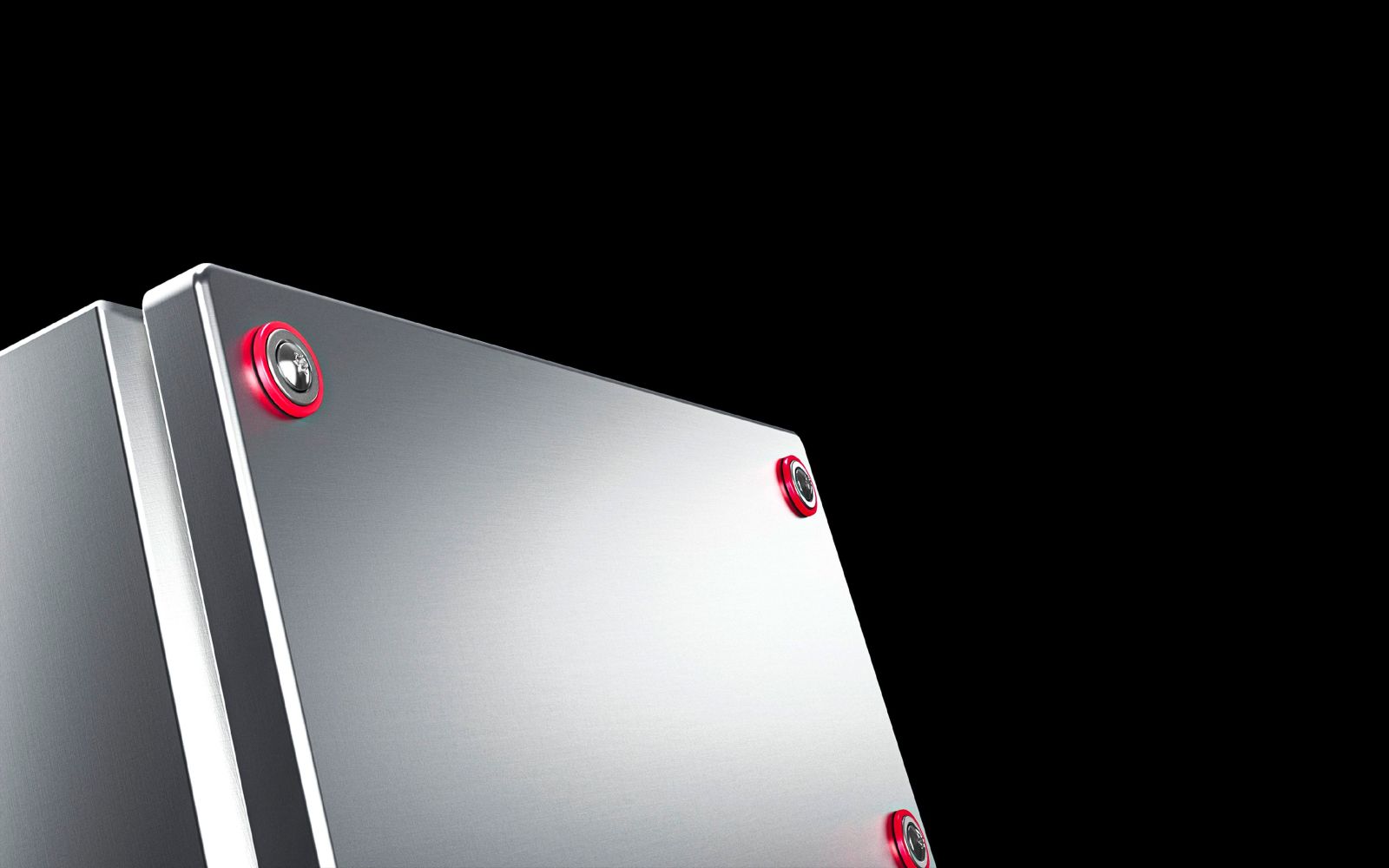

Mounting is done via the integrated quick-release latches, which allow for easy and quick lid locking. Wall mounting is achieved using the designated mounting points on the housing, with additional wall mounting angles or mounting brackets optionally used to enable mounting on various substrates. Mounting plates and support rails allow integration into enclosure systems or onto support rails. Earthing is done via the designated connections in the housing and lid, ensuring a safe and standard-compliant installation.
Advantages in Operation
The terminal box offers high mechanical stability, corrosion resistance, and long-term durability due to the use of stainless steel 1.4301. The IP 66 protection rating and NEMA approvals enable use in demanding environments. The quick mounting and dismounting via quick-release latches reduces installation time. The integrated earthing and the possibility to extend the housing with various accessories increase flexibility and adaptability to specific requirements. The QR code, printed on the body, lid, and type plate, enables unique identification and easy access to relevant product information, as well as traceability of individual parts.
The delivery includes the housing with lid and the quick-release latches including plastic bushings.
| General | |
| Material | Housing: Stainless steel 1.4301 (AISI 304), Cover: Stainless steel 1.4301 (AISI 304), continuous foamed PU seal |
| Surface protection | Housing and cover: fine grinding, grit 180 |
| Scope of delivery | Housing with cover, quick-release fastener including plastic inserts |
| Width | 300 mm |
| Height | 300 mm |
| Depth | 120 mm |
| Degree of protection IP according to EN 60 529 | IP 66 |
| NEMA degree of protection | NEMA 1, NEMA 3R, NEMA 3RX, NEMA 4, NEMA 4X, NEMA 12 |
| Type rating according to UL 50E | Type 1, Type 3R, Type 3RX, Type 4, Type 4X, Type 12 |
| Material thickness cover | 1,25 mm |
| Plate thickness cabinet | 1,25 mm |
| Lock | Number of locks: 4 |
| Base material | Stainless steel 1.4301 (AISI 304) |
| PCF/VE (Cradle-to-Gate) | 14,36 |
