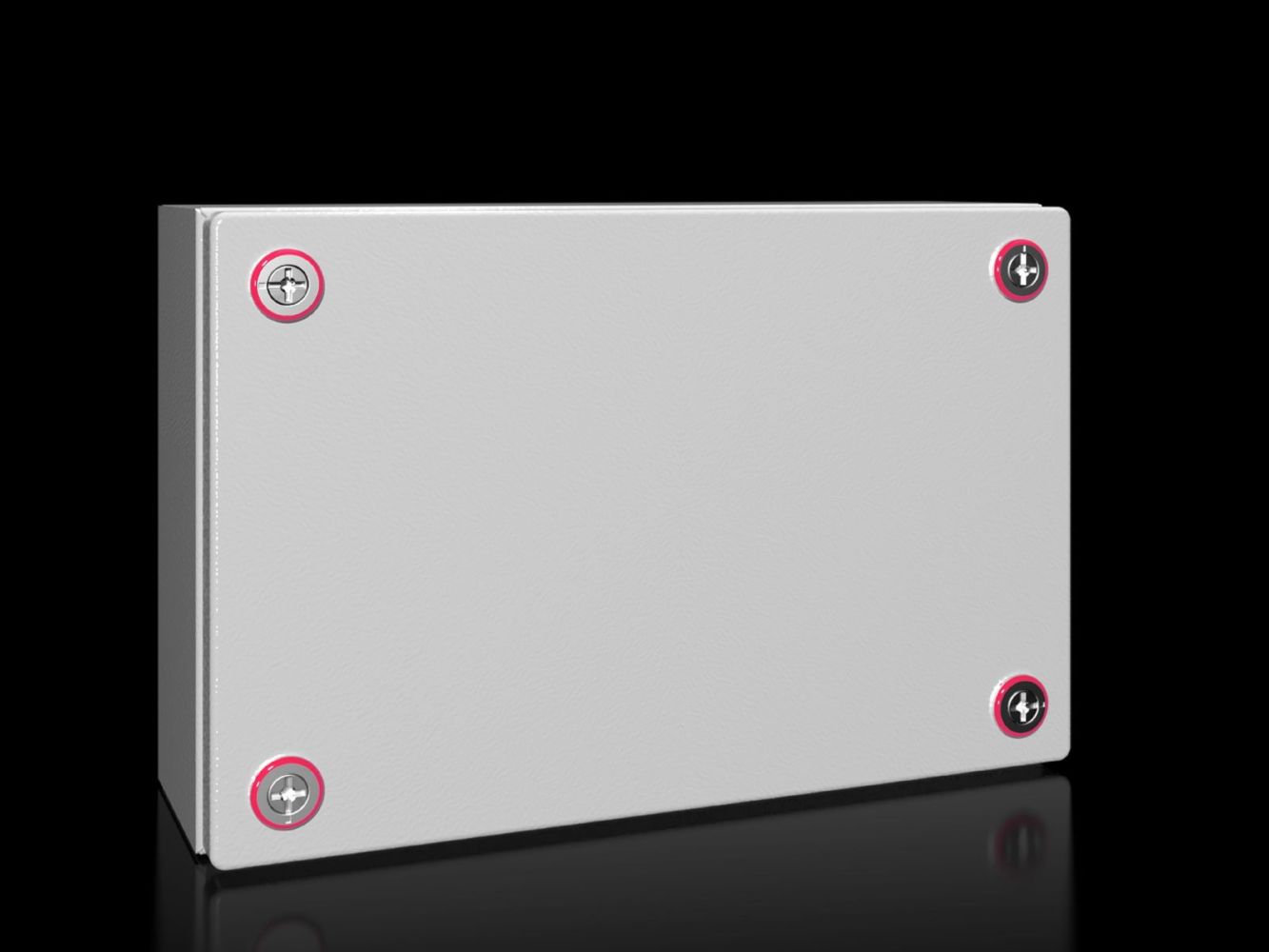

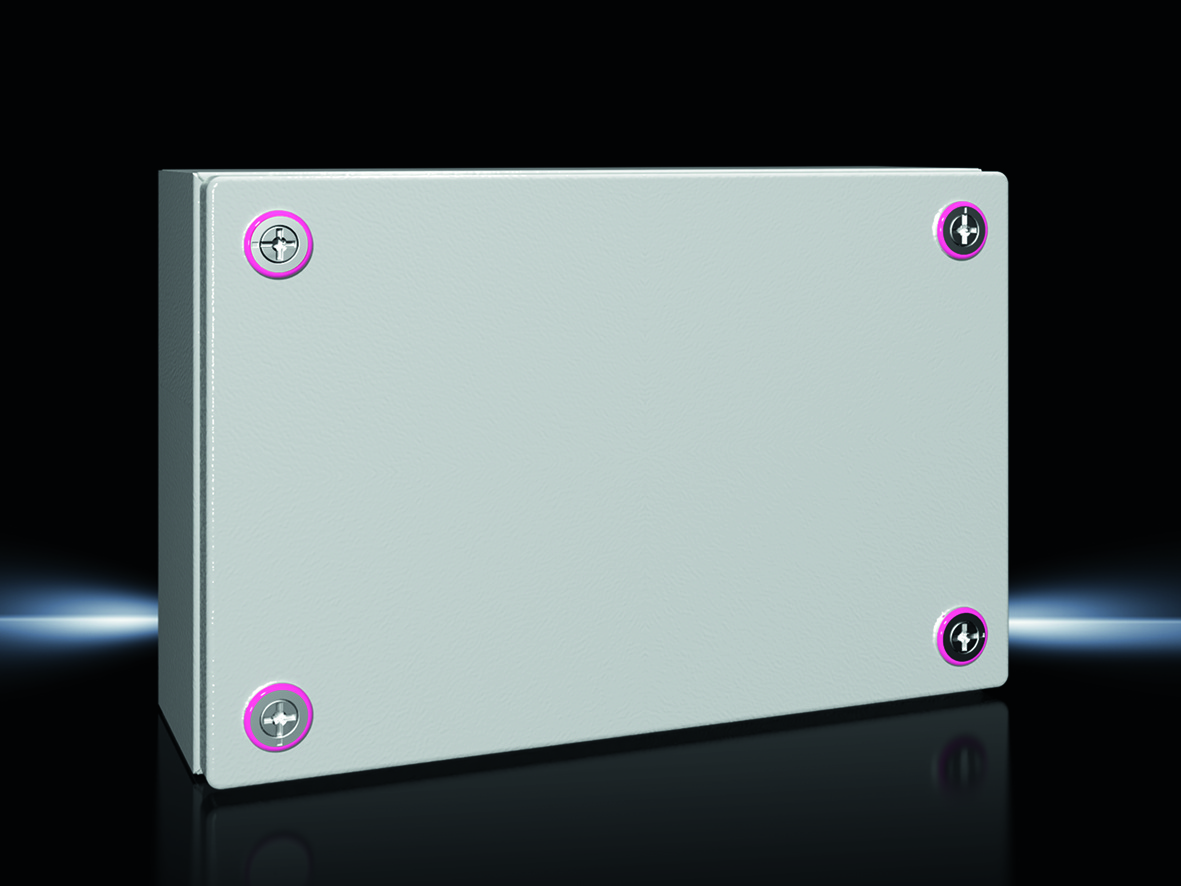

Rittal 1503000 terminal box KX, without gland plate 300x200x120 mm

Your rating:
Average rating
product review for Rittal 1503000 terminal box KX, without gland plate 300x200x120 mm
( 4.4 / 5 ) 7 ratings
Rittal 1503000
This image may differ from the desired article.
Rittal 1503000Rittal 1503000Rittal 1503000Rittal 1503000Rittal 1503000Rittal 1503000Rittal 1503000
36,88 EUR 36,90 EUR
( 43,89 EUR incl. VAT )
≈ £30.87  |  ≈ $40.53
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline
In Stock: >50 pieces
1x Rittal 1503000 terminal box KX, without gland plate 300x200x120 mm
Datasheet:file_download Download
Lieske Part No.:1598140
Mfg Part No: 1503000
UPC/EAN: 4028177816176
Weight:2.838 kg
Type:KX 1503000

Product information for Rittal 1503000:

The KX 1503000 is a terminal box from the KX product series by Rittal, designed as a small housing made of sheet steel. It serves as a protected enclosure for electrical components, terminals, switches, or small control units in industrial applications. The housing is designed without a gland plate and without a mounting plate, allowing for flexible use in various installation scenarios. Dimensions are 300 mm width, 200 mm height, and 120 mm depth, providing a compact yet sufficiently sized internal space for small electrical components.

Small housing with high protection rating
The housing is made of sheet steel, with both the housing and lid having a material thickness of 1.25 mm. The surface is dip-primed and externally powder-coated with a textured finish in the color RAL 7035, ensuring high corrosion resistance and resistance against mineral oils, lubricants, machining emulsions, and solvents. The triple surface treatment — consisting of nanoceramic coating, electrophoretic dip priming, and powder-coated texture — ensures long service life even in demanding environments.

Protection rating IP 66 and NEMA 4
The KX 1503000 meets protection rating IP 66 according to EN 60 529, meaning it is dust-tight and protected against strong splashing water and short-term immersion. This makes it suitable for outdoor use or in damp, dusty industrial environments. Additionally, it is certified with NEMA protection ratings NEMA 1, NEMA 3R, NEMA 4, and NEMA 12, as well as Type Ratings according to UL 50E (Type 1, Type 3R, Type 4, Type 12). The IK classification IK08 indicates high mechanical strength against mechanical impacts, such as shocks or vibrations.

Functions and equipment in detail
The housing features a continuous foamed PU seal, ensuring a tight seal between housing and lid. The lid is secured using a mini-press-lock fastener, enabling secure and quick assembly. Internally, the rear panel area is equipped with knockouts for wall mounting brackets, allowing flexible mounting on walls or other structures. A protective earth conductor connection inside the housing and via a U-bracket in the lid ensures simple and reliable earthing.

Compatibility and accessories
The housing is suitable for use with various accessories available in the range. These include mounting clips for support rails, plug-throughs, pressure equalization plugs, support rails (TH 35/7.5/TS 35/15), mounting brackets, condensate drains, baying sets, drill screws, mounting brackets, spacing angles for shock protection covers, zinc die-cast lid hinges, mounting plates, and mounting claws for a second mounting plane. These components expand the range of applications and allow for application-specific customization.

Mounting and installation
Mounting is done via the integrated knockouts in the housing for wall mounting brackets. The holes are arranged to allow secure fastening to vertical or horizontal surfaces. The use of mounting brackets or wall mounting flanges expands mounting options. The internal dimensions allow installation of terminals, small control units, or other electrical components. Mounting plates and support rails enable integration into existing enclosure systems.

Advantages in operation
The KX 1503000 offers a robust, weather-resistant, and corrosion-resistant construction designed for industrial environments. The high protection rating IP 66 and mechanical strength IK08 ensure long service life even under harsh operating conditions. Easy mounting and compatibility with various accessories increase flexibility during installation. The integrated QR code on the housing, lid, and nameplate enables unique identification and easy access to relevant product information and documentation, simplifying traceability and maintenance.

General
MaterialHousing: steel sheet, cover: steel sheet, continuously foamed PU seal
Surface protectionHousing and cover: dip primed, externally powder coated, textured lacquer
ColourRAL 7035
Scope of deliveryhousing with cover, mini-quick-release latch
Width300 mm
Height200 mm
Depth120 mm
Degree of protection IP according to EN 60 529IP 66
NEMA degree of protectionNEMA 1, NEMA 3R, NEMA 4, NEMA 12
Type rating according to UL 50EType 1, Type 3R, Type 4, Type 12
IK codeIK08
Material thickness cover1,25 mm
Plate thickness cabinet1,25 mm
Base materialsteel sheet
PCF/VE (Cradle-to-Gate)29.5 kg CO2 eq (Cat B)
Note on PCF classCategory B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared


Product data sheet
Datasheet for Rittal 1503000, EAN: 4028177816176
