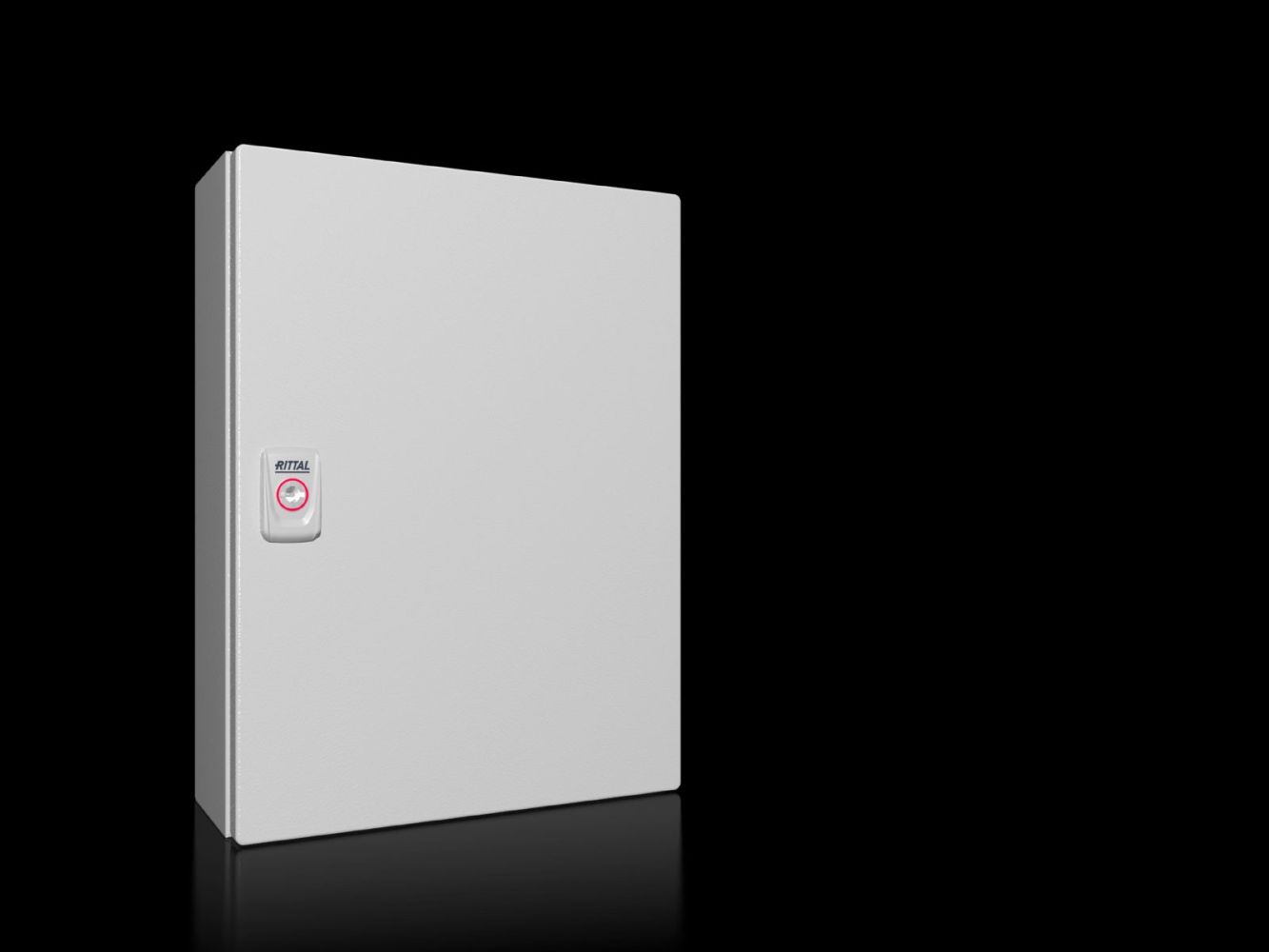

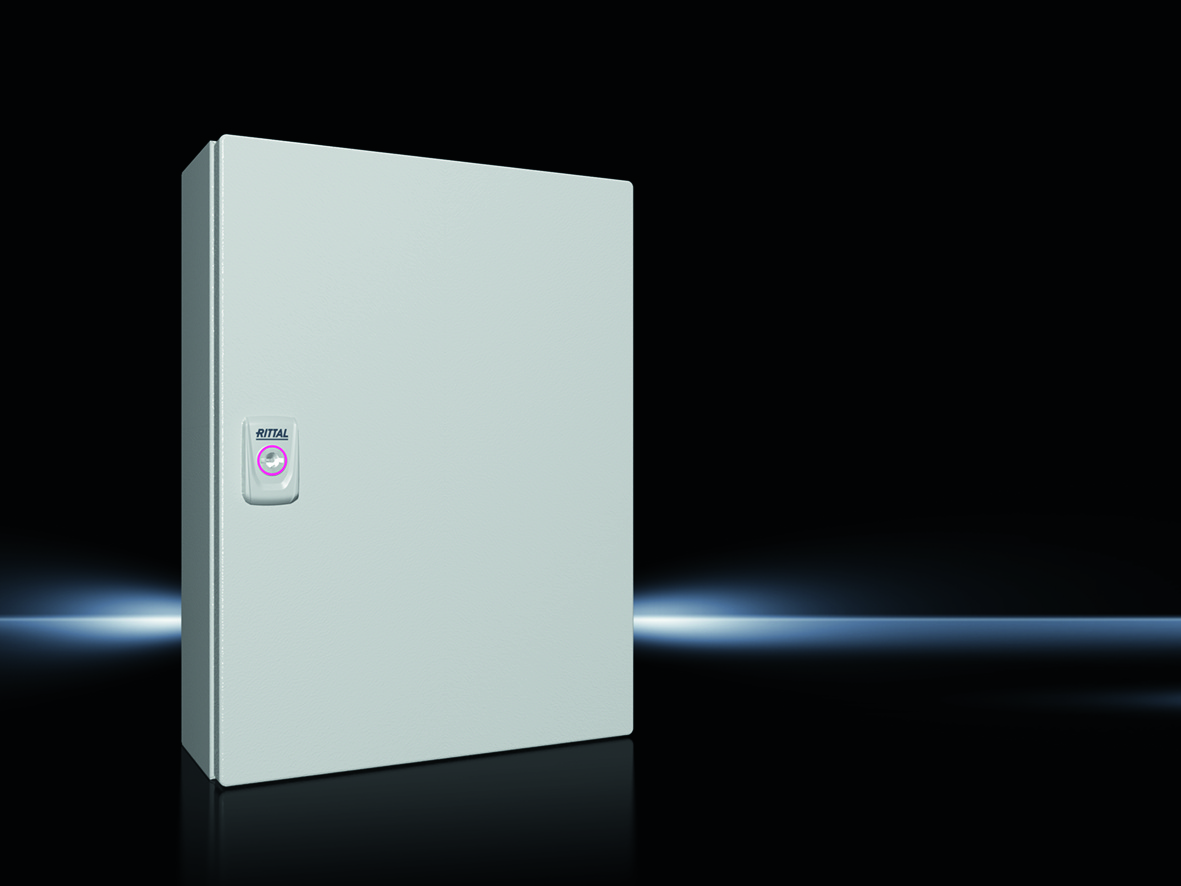

Rittal 1556000 KX E-Box 300x400x120 mm steel sheet
|
57,24 EUR 57,26 EUR |
|
|
( 68,12 EUR incl. VAT ) ≈ £47.91 | ≈ $62.91 plus delivery charges: 100,00 € |
|
| Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline | |
| In Stock: >500 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1598312 |
| Mfg Part No: | 1556000 |
| UPC/EAN: | 4028177816589 |
| Weight: | 6.38 kg |
| Type: | KX 1556000 |
Product information for Rittal 1556000:
Applications
This housing is suitable for use in indoor and outdoor environments, particularly in settings with increased requirements for protection against dust, water, and mechanical impacts. The protection rating IP 66 according to EN 60 529 ensures complete protection against dust and heavy splashing water, making it suitable for use in damp or wet environments such as production halls, outdoor installations, or outdoor areas. The NEMA ratings include NEMA 1, NEMA 3R, NEMA 4, and NEMA 12, enabling use in various industrial environments, including damp or dusty areas. The type rating according to UL 50E includes Type 1, Type 3R, Type 4, and Type 12, confirming compliance with international safety standards.
Functions and Equipment in Detail
The housing is supplied with a door featuring a continuously foamed PU seal to ensure a tight seal. The door is hinged on the right side with a 180° hinge, allowing for easy and secure opening. The locking mechanism consists of a cam lock with a 3 mm double-barrel lock insert, manufactured according to DIN 43668, enabling secure and quick locking. The mounting plate is zinc-coated and provides a stable mounting surface for electrical components. The rear wall of the housing features pass-throughs for wall mounting brackets, enabling flexible mounting on walls or other structures.
Technology Explained Simply
The IP 66 protection rating means the housing is completely dust-tight and protected against heavy splashing water, making it suitable for use in damp or wet environments. The IK code rating IK08 indicates that the housing is protected against mechanical impacts such as shocks or vibrations up to a certain energy level. The triple surface treatment – nanoceramic coating, electrophoretic dip priming, and powder-coated textured lacquer – ensures high corrosion resistance and long service life. The integrated protective earth connection function in the housing and via a U-bracket on the door enables quick and secure grounding of installed components.
Compatibility and Accessories
The housing is compatible with various accessories that extend its functionality. These include mounting clips for support rails, lock inserts made of zinc die-cast, plug-throughs such as SZ 2400500, lock box covers, pressure equalization plugs, support rails (TH 35/7.5/TS 35/15), mounting brackets, condensate drains, handles such as SZ 2577000 or AX 2533100, drill screws, and mounting brackets for individual mounting requirements. These components allow for application-specific adaptation of the housing to different mounting and protection requirements.
Mounting and Installation

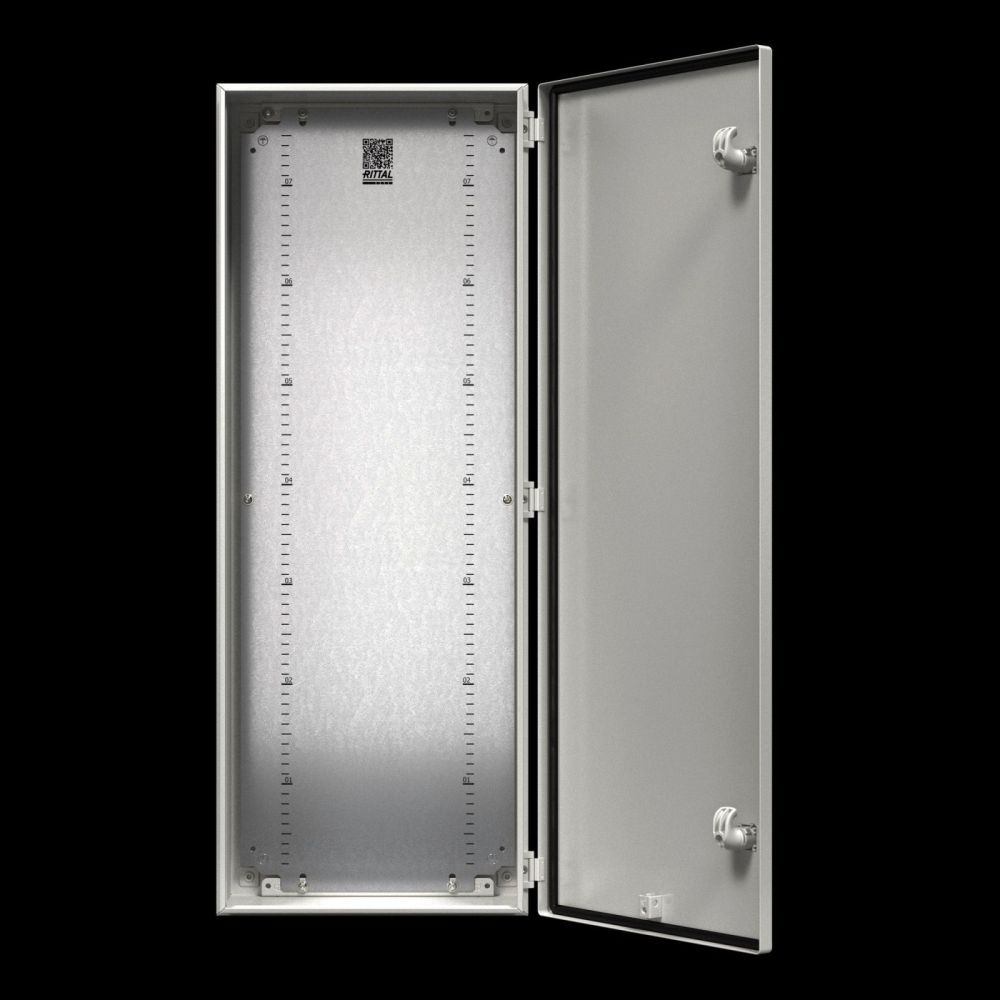

Mounting is performed via the integrated mounting plate and the pass-throughs on the rear wall. The door is hinged on the right side, providing easy accessibility. The use of support rails or mounting brackets enables flexible fixation of components within the housing. The pre-drilled holes and mounting elements facilitate integration into existing systems. The surface is designed for mounting standard components such as DIN rails or plug connectors.
Advantages in Operation
The housing offers high mounting convenience and a flexible selection of locking and mounting systems. The robust sheet metal construction and the high protection rating IP 66 ensure long service life and reliability in demanding environments. The integrated grounding function and the corrosion-resistant surface treatment reduce maintenance requirements. The clear identification via a printed QR code on the housing, door, and nameplate enables easy traceability and quick access to relevant product information and documentation.
| General | |
| Material | Housing: sheet steel, door: sheet steel, continuous foamed PU seal |
| Surface protection | Casing and door: dip primed, externally powder coated, textured lacquer, mounting plate: galvanized |
| Colour | RAL 7035 |
| Scope of delivery | Enclosure with door, mounting plate, latch with 3 mm double bar insert, 180° hinge |
| Width | 300 mm |
| Height | 400 mm |
| Depth | 120 mm |
| Mounting plate dimensions (W x H) | 275 mm x 385 mm |
| Degree of protection IP according to EN 60 529 | IP 66 |
| NEMA degree of protection | NEMA 1, NEMA 3R, NEMA 4, NEMA 12 |
| Type rating according to UL 50E | Type 1, Type 3R, Type 4, Type 12 |
| IK code | IK08 |
| Plate thickness cabinet | 1,25 mm |
| Door material thickness | 1,25 mm |
| Mounting plate material thickness | 2 mm |
| Lock | Number of locks: 1 |
| Base material | steel sheet |
| PCF/VE (Cradle-to-Gate) | 37.68 kg CO2 eq (Cat B) |
| Note on PCF class | Category B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared |
