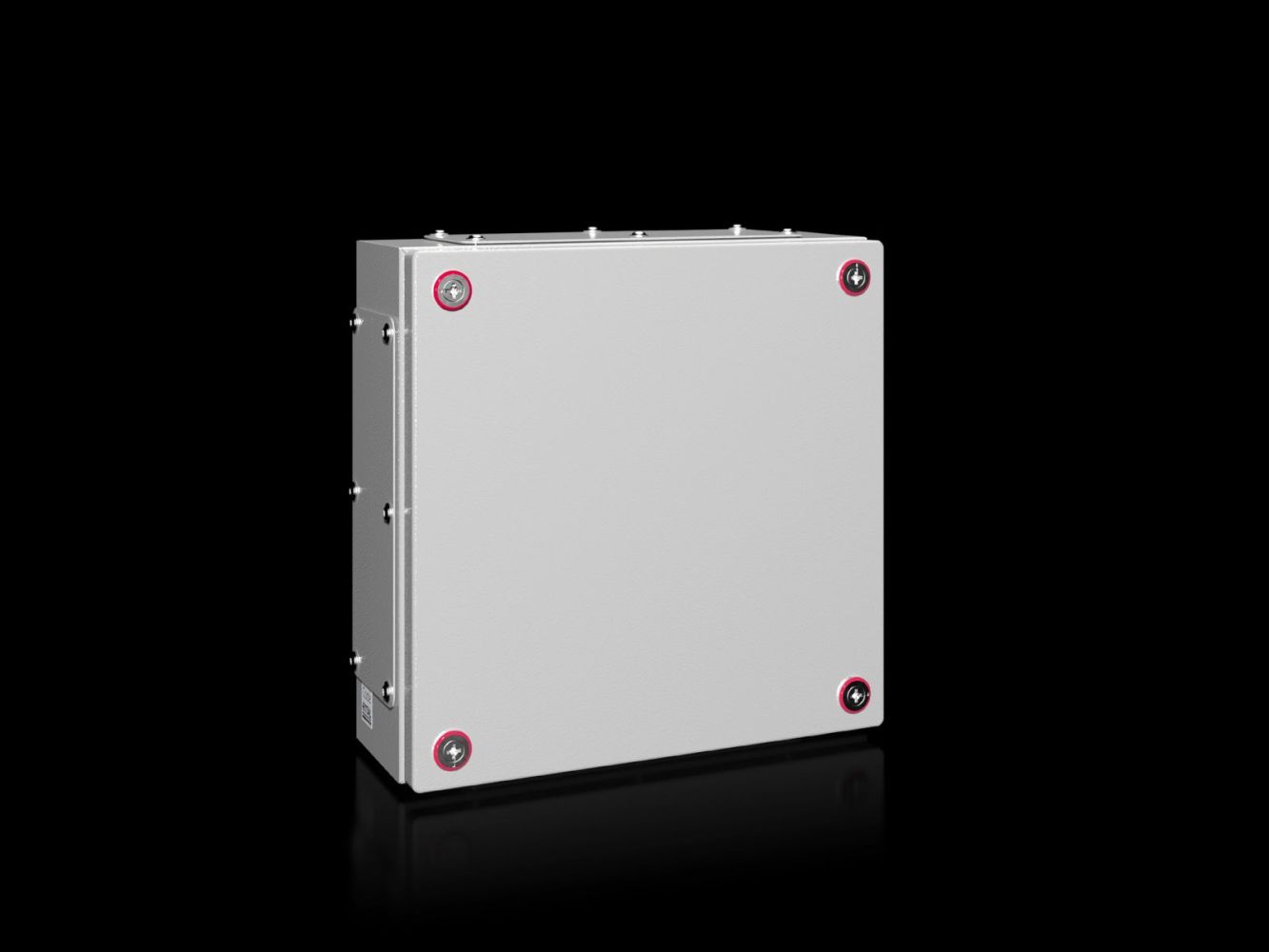

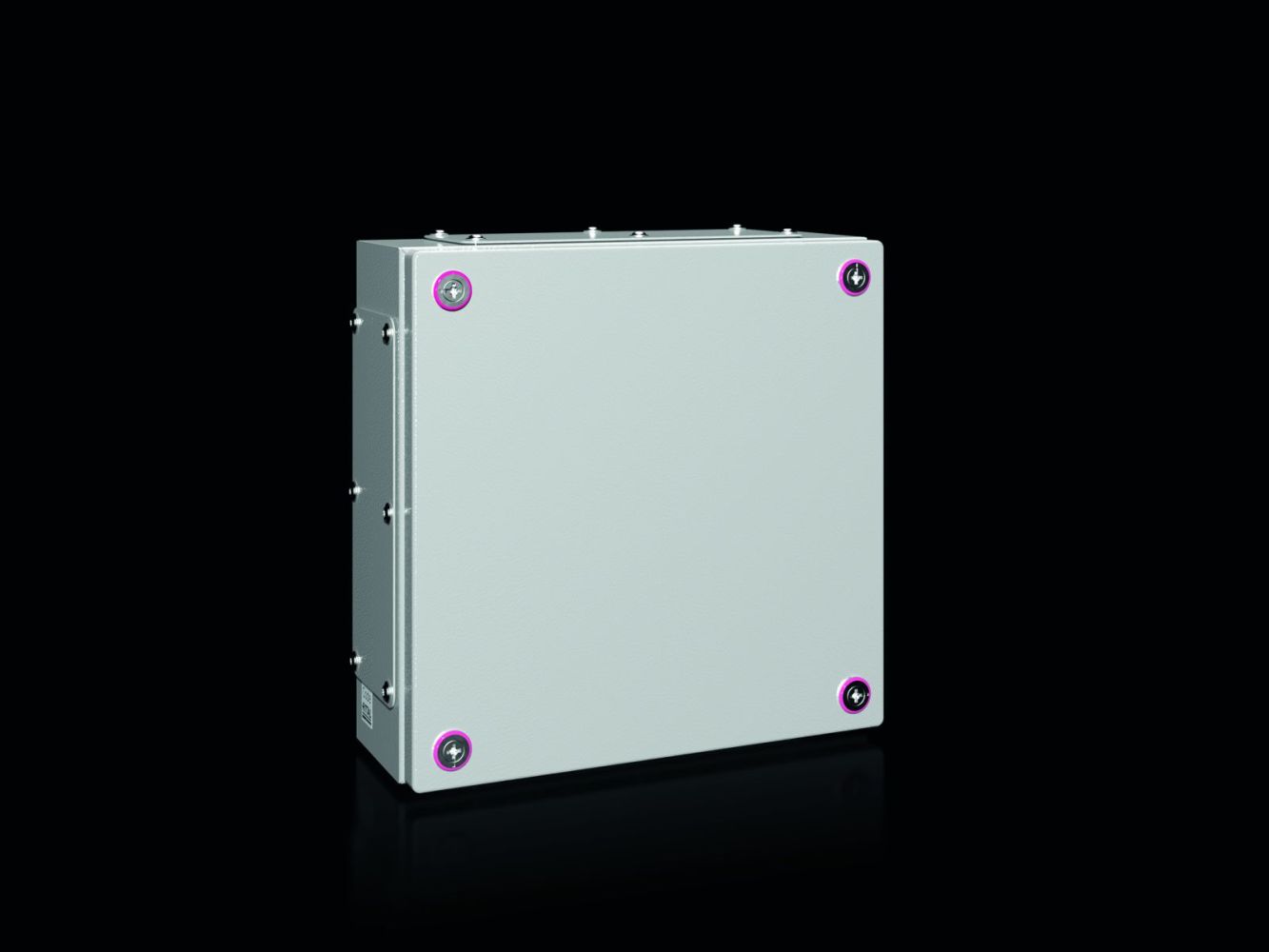

Rittal 1535000 terminal box KX, with gland plate, 300x300x120 mm

Your rating:
Average rating
product review for Rittal 1535000 terminal box KX, with gland plate, 300x300x120 mm
( 4.3 / 5 ) 4 ratings
Rittal 1535000
This image may differ from the desired article.
Rittal 1535000Rittal 1535000Rittal 1535000Rittal 1535000Rittal 1535000Rittal 1535000
56,58 EUR
( 67,33 EUR incl. VAT )
≈ £47.36  |  ≈ $62.18
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 7 workdaysinfo_outline
In Stock: >500 pieces
1x Rittal 1535000 terminal box KX, with gland plate, 300x300x120 mm
Datasheet:file_download Download
Lieske Part No.:1598159
Mfg Part No: 1535000
UPC/EAN: 4028177816404
Weight:4.24 kg
Type:KX 1535000

Product information for Rittal 1535000:

The KX terminal box from Rittal, type 1535000, is a robust small housing made of sheet steel, designed for use in industrial plants where secure and flexible mounting of terminals, plug connectors or small control components is required. The housing has dimensions of 300 mm width, 300 mm height and 120 mm depth and is equipped with a lid as well as integrated gland plates, enabling simple mounting on walls or other structures. The surface is dip-primed and powder-coated externally with a textured lacquer in the colour RAL 7035, ensuring high resistance to corrosion and chemical influences such as mineral oils, lubricants or solvents.

Applications
The terminal box is suitable for use in production plants, machine construction, automation technology and other industrial environments where a compact, impact-resistant and dust- and splash-water-protected enclosure for electrical components is required. The protection class IP 55 according to EN 60 529 protects against dust and splashing water from any direction, making it suitable for outdoor areas or humid indoor spaces. Certification according to NEMA 1 and NEMA 12 as well as Type 1 and Type 12 according to UL 50E confirms suitability for dry and humid indoor areas as well as environments with light contamination. The IK code IK08 guarantees protection against mechanical impacts, such as light shocks or vibrations.

Functions and equipment in detail

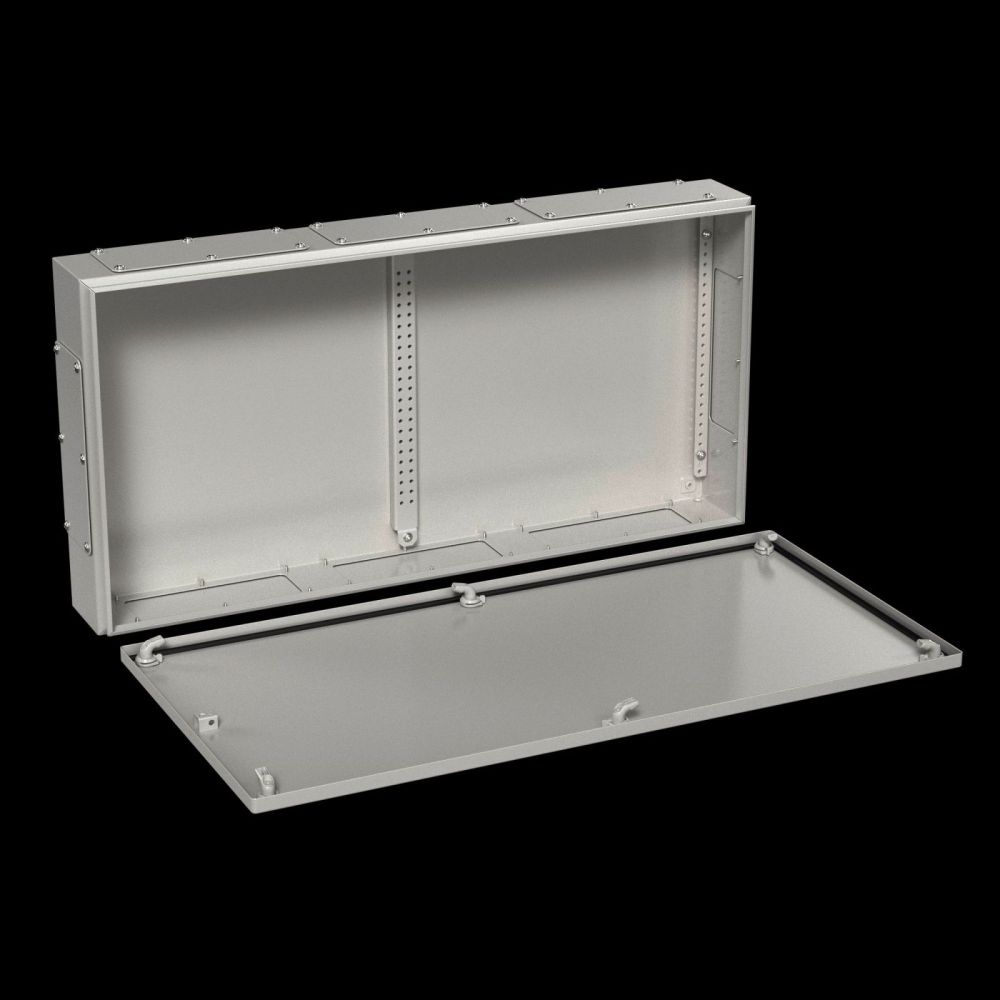

The housing is made of a single piece of sheet steel, bent and welded, creating a stable and tight construction. The lid is fitted with a continuous foamed PU seal, ensuring a tight seal and supporting the IP 55 protection class. Fastening is achieved via mini-latch locks, enabling quick and secure locking. The gland plates on the sides and underside of the housing are made of sheet steel and supplied with seals and fastening materials to enable secure mounting on various substrates.

Technology explained clearly
The material thickness of 1.25 mm for the housing and lid ensures sufficient stability and impact resistance. The triple surface treatment – nanoceramic coating, electrophoretic dip priming and powder-coated textured lacquer – provides high corrosion protection and is resistant to industrial chemicals. The integrated protective channel at the lid opening prevents water or dust from entering. A protective conductor connection in the housing and via a U-bracket in the lid enables quick and secure earthing. The QR code, printed on the body, lid and type plate, enables unique identification and easy access to product information and documentation.

Compatibility and accessories
The terminal box is modular and can be extended with various accessories. These include mounting clips for support rails, plug-throughs, pressure equalization plugs, support rails (TH 35/7.5/TS 35/15), mounting angles, condensate drains, baying sets for AX, KX, AE, KL, drill screws, mounting brackets, spacing angles for shock protection covers, zinc die-cast lid hinges, mast mountings, mounting plates and wall mounting brackets. These components enable flexible adaptation to different mounting conditions and requirements.

Mounting and installation

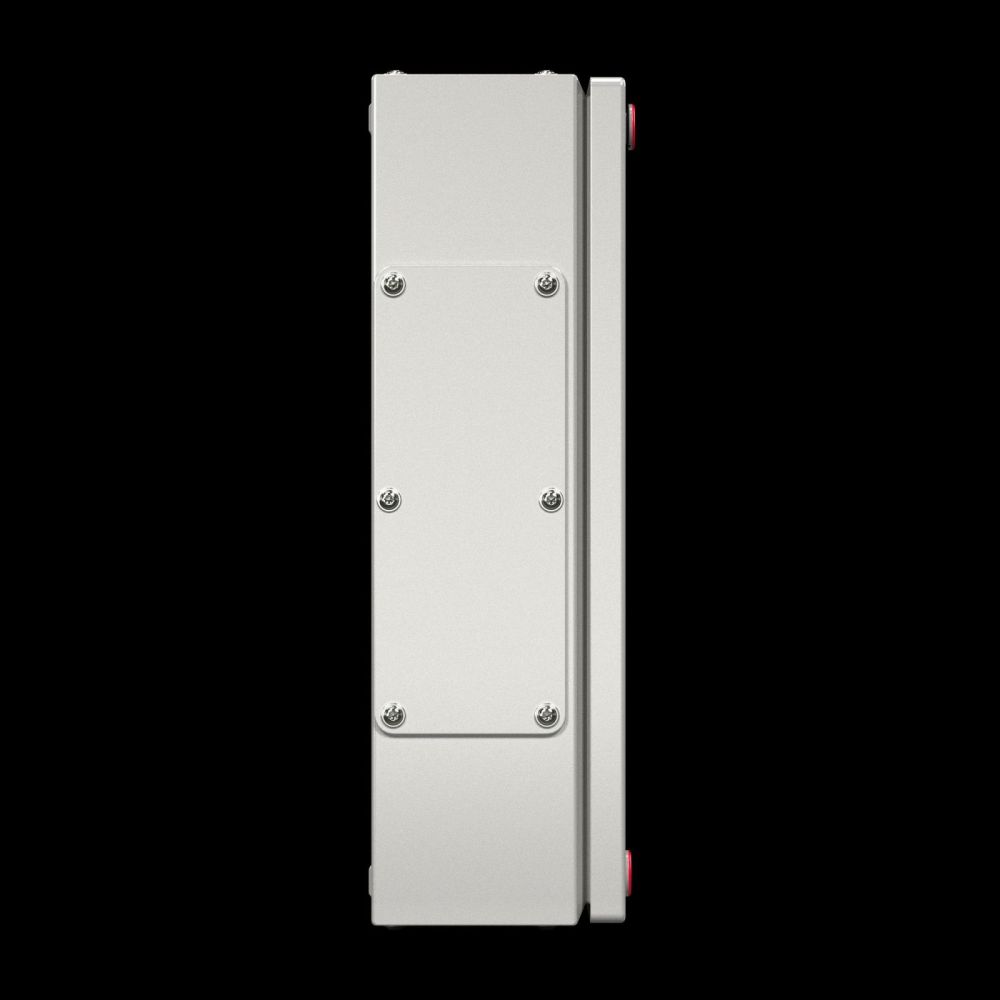

Mounting is done via the pre-fabricated gland plates on the sides and underside of the housing. The fastening materials are included in the delivery scope, enabling quick and secure installation on walls or other structures. The integrated pass-throughs on the rear wall facilitate wall mounting with brackets. Cable entry is via the gland plates, with additional plug-throughs or cable entry plates available as accessories.

Advantages in operation
The KX terminal box offers optimal space utilization due to its compact design and flexible internal fitting options. The robust construction and high protection class ensure long service life and low maintenance. The integrated fastening elements and modular expandability reduce mounting time and increase flexibility during maintenance. The unique identification via QR code supports traceability and documentation in operation.

General
MaterialHousing: steel sheet, cover: steel sheet, continuously foamed PU seal
Surface protectionHousing and cover: dip primed, externally powder coated, textured lacquer
ColourRAL 7035
Scope of deliveryEnclosure with cover, mini-recessed latches, steel sheet flange plates with seals and mounting hardware
Width300 mm
Height300 mm
Depth120 mm
Degree of protection IP according to EN 60 529IP 55
NEMA degree of protectionNEMA 1, NEMA 12
Type rating according to UL 50EType 1, Type 12
IK codeIK08
Material thickness cover1,25 mm
Plate thickness cabinet1,25 mm
Flange platesFlange plate (left + right) quantity: 1 + 1, flange plate (top + bottom) quantity: 1 + 1
Base materialsteel sheet
PCF/VE (Cradle-to-Gate)34.37 kg CO2 eq (Cat B)
Note on PCF classCategory B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared


Product data sheet
Datasheet for Rittal 1535000, EAN: 4028177816404
