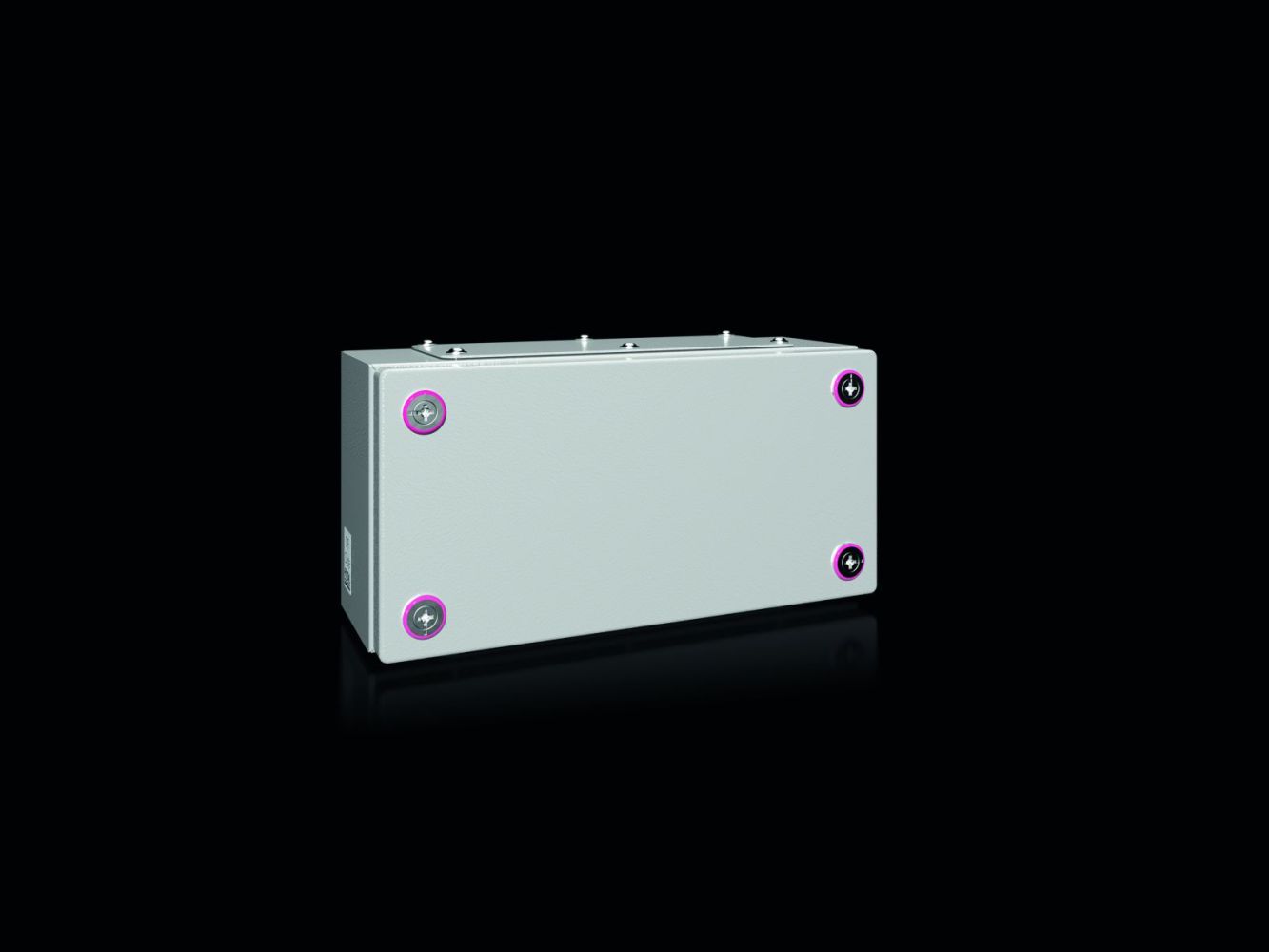

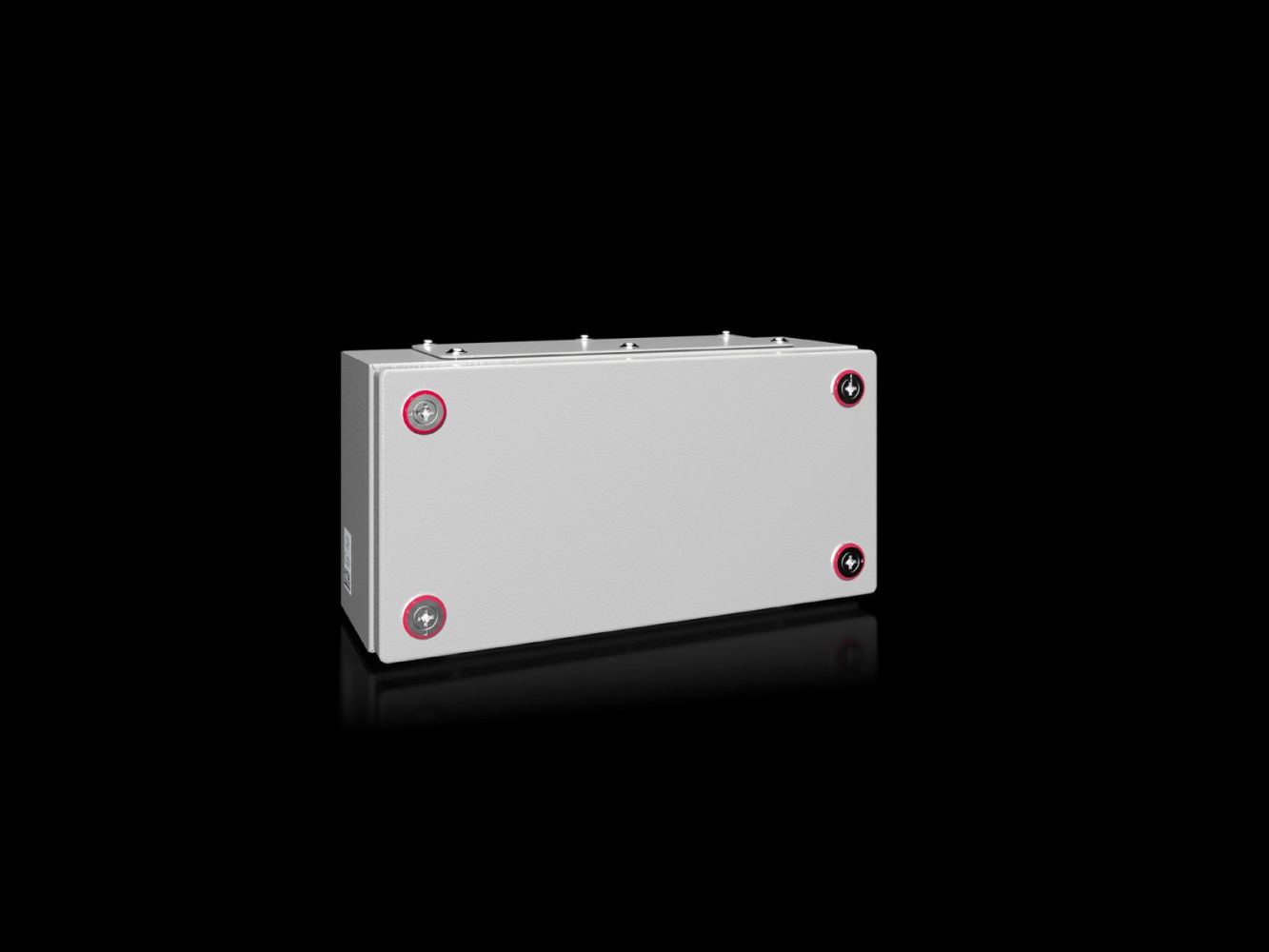

Rittal 1530000 terminal box KX, with gland plate, 300x150x120 mm
|
43,93 EUR 45,22 EUR |
|
|
( 52,28 EUR incl. VAT ) ≈ £36.77 | ≈ $48.28 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline | |
| In Stock: >100 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1598163 |
| Mfg Part No: | 1530000 |
| UPC/EAN: | 4028177816367 |
| Weight: | 2.58 kg |
| Type: | KX 1530000 |
Product information for Rittal 1530000:
Applications
This terminal box is suitable for use in indoor environments as well as in areas with increased contamination risk. The protection rating IP 55 according to EN 60 529 protects against dust and splashing water, making it suitable for industrial plants, machine construction, and electrical installations. The NEMA classification includes NEMA 1 and NEMA 12, confirming suitability for dry indoor areas and environments with minor contamination risk. The type rating according to UL 50E includes Type 1 and Type 12, underscoring compliance with North American safety standards. The IK code IK08 guarantees protection against mechanical impacts, such as blows from tools or workpieces.
Functions and Equipment in Detail

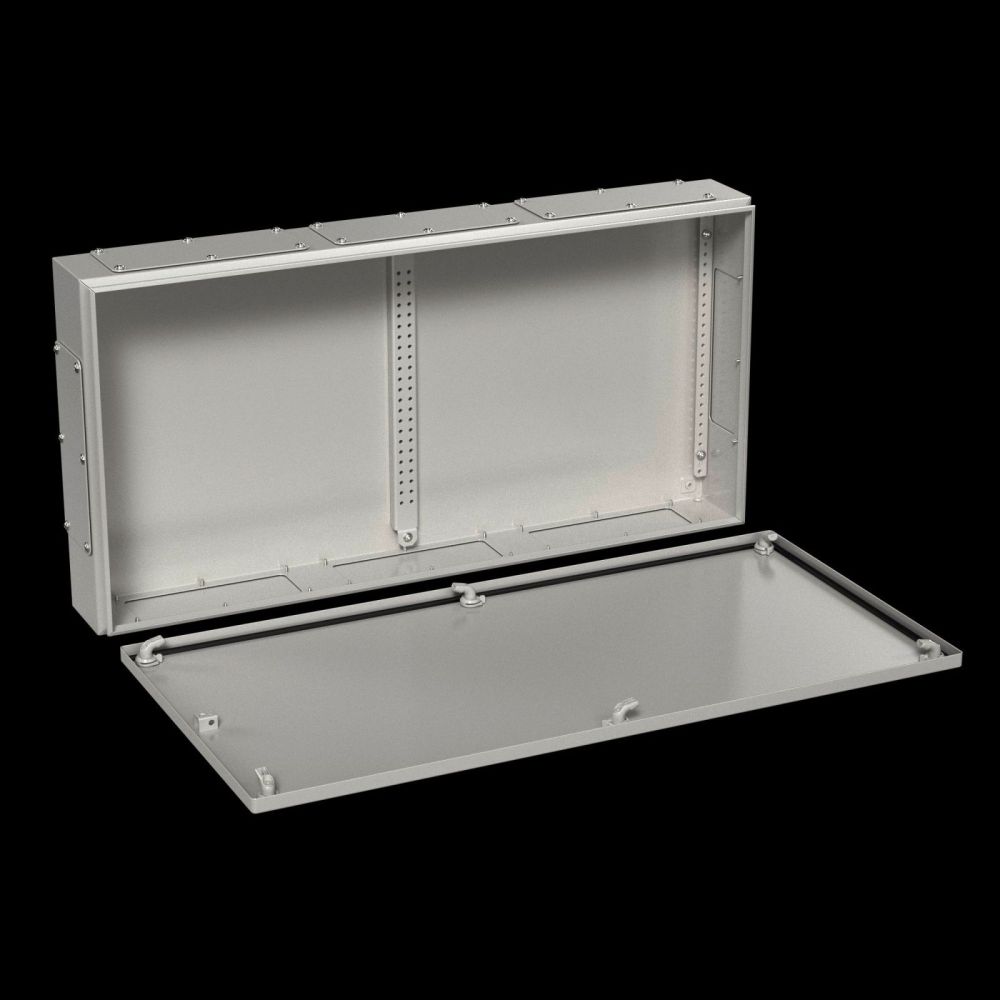

The housing is delivered with a lid secured by mini-latch fasteners. These allow for quick and secure assembly as well as easy access to the interior. The delivery also includes sheet steel gland plates with seals and fastening materials, enabling secure mounting to walls or other structures. The gland plates are located at the top and bottom, providing flexible mounting options. The rear wall of the housing features knockouts for mounting wall mounting brackets.
Technology Explained Simply
The housing is constructed from a single piece of sheet steel, bent and welded, creating a stable and tight structure. The continuous protective flange around the lid opening supports sealing. The PU foam seal ensures a tight closure, even under temperature fluctuations or vibrations. Surface treatment consists of three steps: nanoceramic coating, electrophoretic dip priming, and external powder coating in RAL 7035 textured finish. This ensures high resistance to corrosion and chemical influences. A QR code is printed on the housing, lid, and type plate to enable unique identification and traceability of individual parts.
Compatibility and Accessories
Various accessories are available for this terminal box to extend its functionality. These include mounting clips for support rails, plug-throughs, pressure equalization plugs, support rails in various lengths, mounting angles, condensate drains, baying sets for other KX models, drill screws, mounting brackets, spacing angles for shock protection covers, zinc die-cast lid hinges, mast mounting brackets, mounting plates, mounting claws for a second mounting level, and wall mounting brackets. These components allow flexible adaptation to different mounting and installation scenarios.
Mounting and Installation

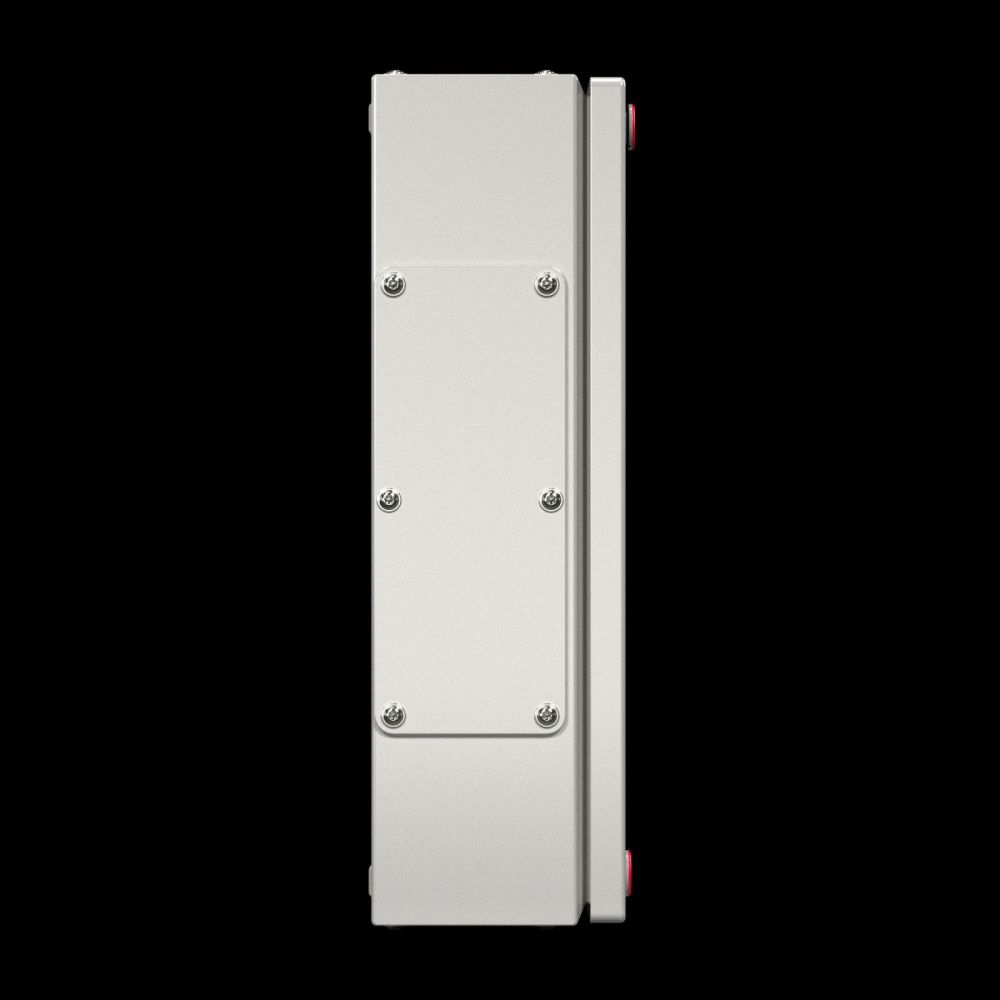

Mounting is done via the integrated gland plates with fastening materials. The gland plates are located at the top and bottom, allowing flexible mounting to walls or other structures. The mini-latch fasteners ensure secure and quick closure of the lid. The rear wall with knockouts allows mounting of wall mounting brackets, providing additional mounting options. Cable entry is via the gland plates, with additional plug-throughs or cable entry plates available as accessories.
Operational Advantages
The KX terminal box offers optimal space utilization due to its compact design and flexible interior equipment. The robust sheet steel construction and high protection rating IP 55 ensure long service life and reliability in demanding environments. Easy mounting and maintenance via mini-latch fasteners and integrated gland plates reduce installation effort. The surface treatment ensures high resistance to corrosion and chemical influences, increasing operational safety. The integrated QR codes enable easy identification and document retrieval for maintenance and service.
| General | |
| Material | Housing: steel sheet, cover: steel sheet, continuously foamed PU seal |
| Surface protection | Housing and cover: dip primed, externally powder coated, textured lacquer |
| Colour | RAL 7035 |
| Scope of delivery | Enclosure with cover, mini-recessed latches, steel sheet flange plates with seals and mounting hardware |
| Width | 300 mm |
| Height | 150 mm |
| Depth | 120 mm |
| Degree of protection IP according to EN 60 529 | IP 55 |
| NEMA degree of protection | NEMA 1, NEMA 12 |
| Type rating according to UL 50E | Type 1, Type 12 |
| IK code | IK08 |
| Material thickness cover | 1,25 mm |
| Plate thickness cabinet | 1,25 mm |
| Flange plates | Flange plate (top + bottom) quantity: 1 + 1 |
| Base material | steel sheet |
| PCF/VE (Cradle-to-Gate) | 29.3 kg CO2 eq (Cat B) |
| Note on PCF class | Category B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared |
