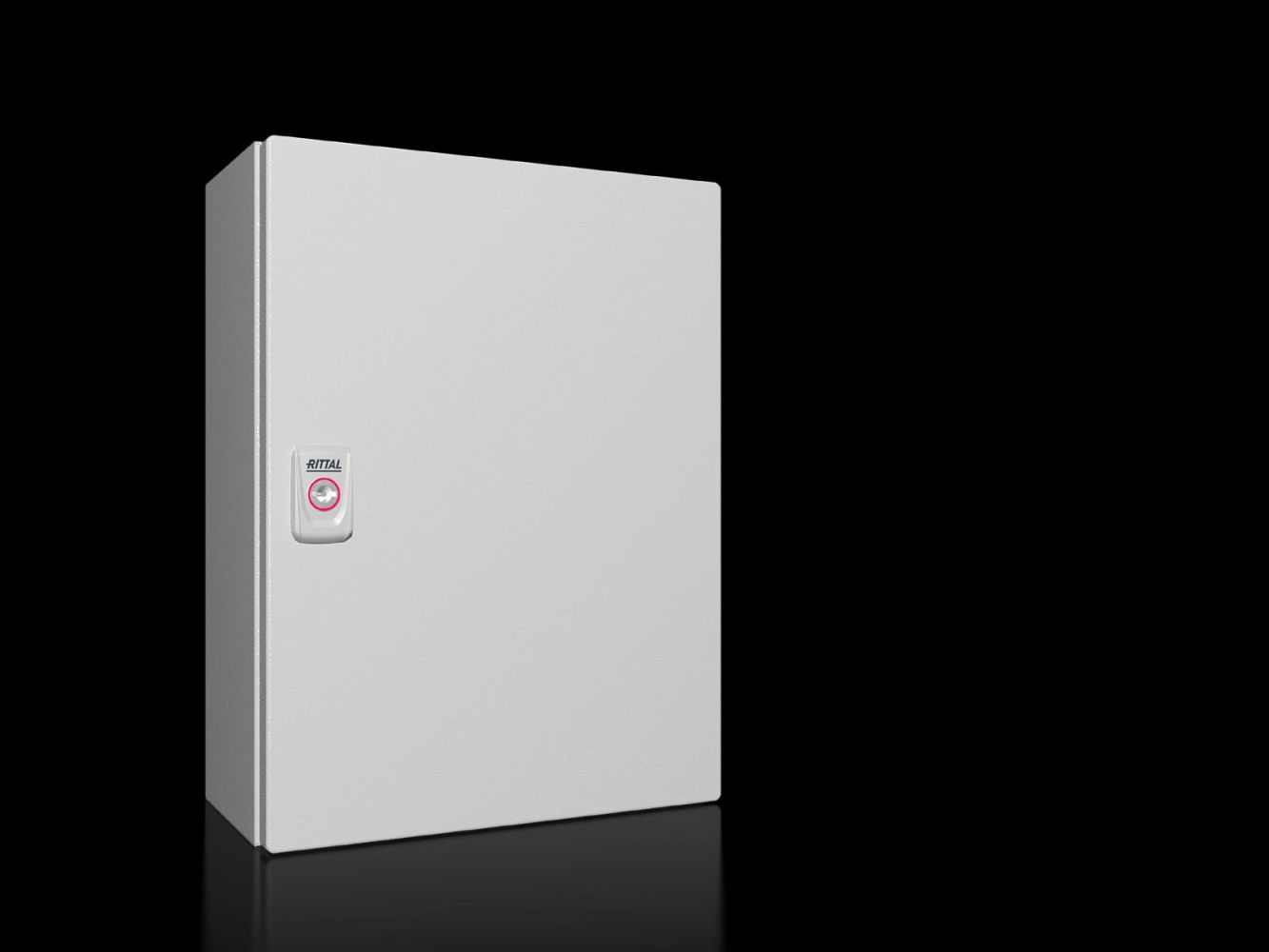

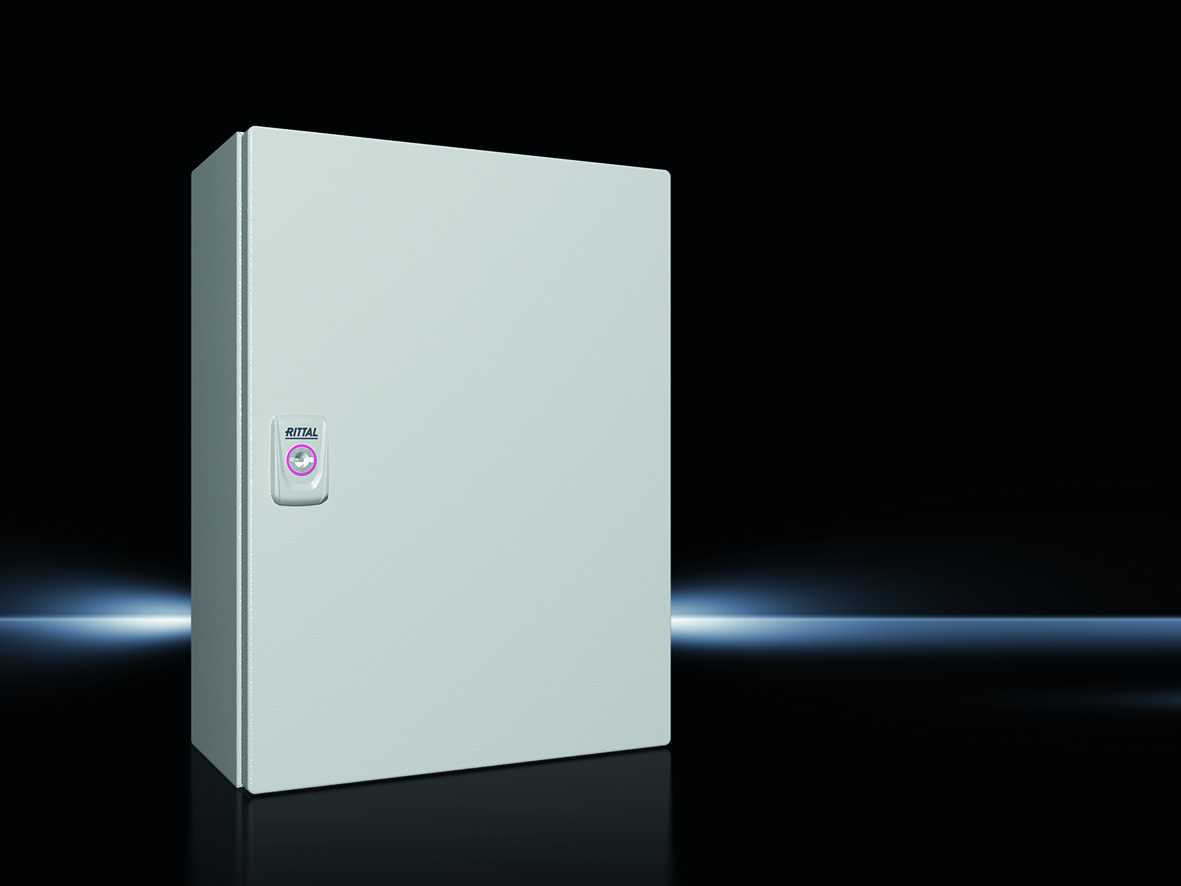

Rittal 1577000 KX E-Box, 300x400x155 mm, sheet metal, with mounting plates,
|
68,24 EUR |
|
|
( 81,21 EUR incl. VAT ) ≈ £57.12 | ≈ $75.00 plus delivery charges: 100,00 € |
|
| Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline | |
| In Stock: >500 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1598346 |
| Mfg Part No: | 1577000 |
| UPC/EAN: | 4028177816633 |
| Weight: | 6.98 kg |
| Type: | KX 1577000 |
Product information for Rittal 1577000:
Applications
This enclosure is suitable for use in indoor and outdoor environments, particularly in areas with high requirements for protection against dust, water, and mechanical impacts. The protection class IP 66 according to EN 60 529 means that the enclosure is dust-tight and protected against water jets from any direction. Additionally, it meets protection classes NEMA 1, NEMA 3R, NEMA 4, and NEMA 12, as well as Type ratings according to UL 50E: Type 1, Type 3R, Type 4, and Type 12. The IK code IK08 indicates high mechanical resistance against impact and shock. The surface treatment with nanoceramic, electrophoretic dip priming, and textured powder coating provides additional protection against mineral oils, lubricants, machining emulsions, and solvents.
Functions and Equipment in Detail

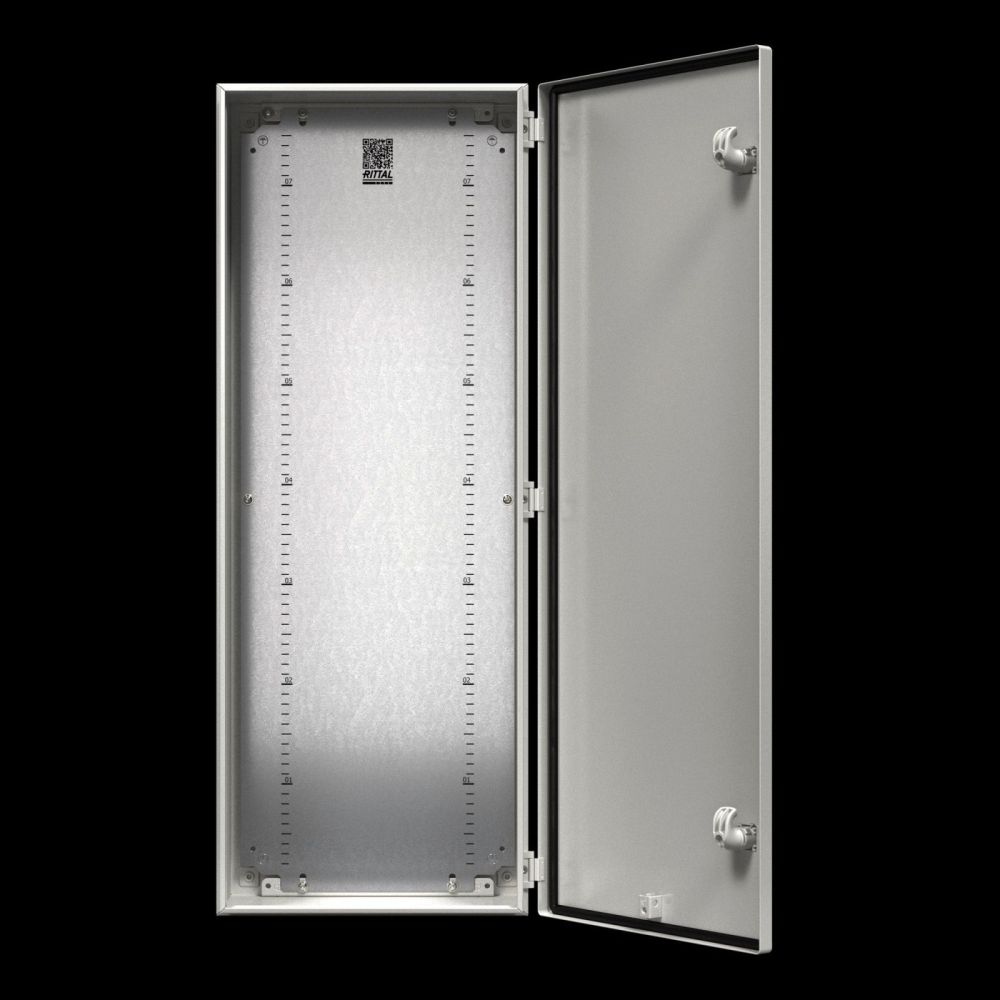

The enclosure is supplied with a door hinged on the right side with a 180° hinge. The cam lock with a 3 mm double-leaf insert according to DIN 43668 allows for secure and easy locking. The mounting plate made of galvanized sheet metal (2 mm thick) provides a stable mounting surface for electrical components. The enclosure and door feature an earth conductor connection via a U-bracket, enabling quick and reliable grounding. The rear wall of the enclosure has knockouts for wall mounting brackets, allowing flexible installation on walls or other structures.
Technology Explained Simply
The protection class IP 66 means the enclosure is completely dust-tight and protected against water jets from any direction – ideal for outdoor or damp environments. The NEMA classification includes protection against weather influences (NEMA 3R), against splashing water and dust (NEMA 4), and against dust and splashing water (NEMA 12). The UL Type ratings correspond to the NEMA classes and confirm suitability for industrial applications. The IK08 code guarantees high mechanical protection against impact, for example from tools or moving parts. The triple surface treatment – nanoceramic, dip priming, and textured powder coating – ensures long service life and resistance to aggressive environmental conditions.
Compatibility and Accessories
The enclosure is compatible with various accessories that enable use in different application scenarios. These include mounting clips for support rails, lock inserts made of zinc die-cast, plug-throughs (e.g. SZ 2400500), lock box covers (e.g. SZ 2493000), pressure equalization plugs (e.g. SZ pressure equalization plug M12x1.5), support rails (e.g. TH 35/7.5/TS 35/15), mounting brackets, condensate drains, handles (e.g. SZ 2577000 or AX 2533100), drill screws (type ST 4.8 L9.5 mm), and mounting brackets for custom installations. These components extend the functionality and adaptability of the enclosure.
Mounting and Installation
Mounting is done via the integrated knockouts on the rear wall, designed for wall mounting brackets. The mounting plate allows for securing components and controls within the enclosure. The door is hinged on the right side and can be fully opened, facilitating access to installed components. The integrated grounding via U-brackets in the enclosure and door ensures a safe electrical connection. The surface is suitable for mounting support rails and other fastening elements.
Advantages in Operation
The enclosure offers high mounting convenience thanks to the integrated mounting plate and flexible mounting options. The robust sheet metal construction and high-quality surface treatment ensure long service life even in demanding environments. The IP 66 protection class and NEMA classification allow use in damp, dusty, or outdoor installations. The integrated grounding and compatible accessory selection increase efficiency during installation and maintenance. A QR code on the enclosure, door, and nameplate enables unique identification and easy access to product information and documentation.
Scope of Delivery
The product is delivered with the enclosure including door, mounting plate, cam lock with 3 mm double-leaf insert, and 180° hinge. The mentioned components are included in the scope of delivery and enable immediate mounting and use of the enclosure.
| General | |
| Material | Housing: sheet steel, door: sheet steel, continuous foamed PU seal |
| Surface protection | Casing and door: dip primed, externally powder coated, textured lacquer, mounting plate: galvanized |
| Colour | RAL 7035 |
| Scope of delivery | Enclosure with door, mounting plate, latch with 3 mm double bar insert, 180° hinge |
| Width | 300 mm |
| Height | 400 mm |
| Depth | 155 mm |
| Mounting plate dimensions (W x H) | 275 mm x 385 mm |
| Degree of protection IP according to EN 60 529 | IP 66 |
| NEMA degree of protection | NEMA 1, NEMA 3R, NEMA 4, NEMA 12 |
| Type rating according to UL 50E | Type 1, Type 3R, Type 4, Type 12 |
| IK code | IK08 |
| Plate thickness cabinet | 1,25 mm |
| Door material thickness | 1,25 mm |
| Mounting plate material thickness | 2 mm |
| Lock | Number of locks: 1 |
| Base material | steel sheet |
| PCF/VE (Cradle-to-Gate) | 40.18 kg CO2 eq (Cat B) |
| Note on PCF class | Category B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared |
