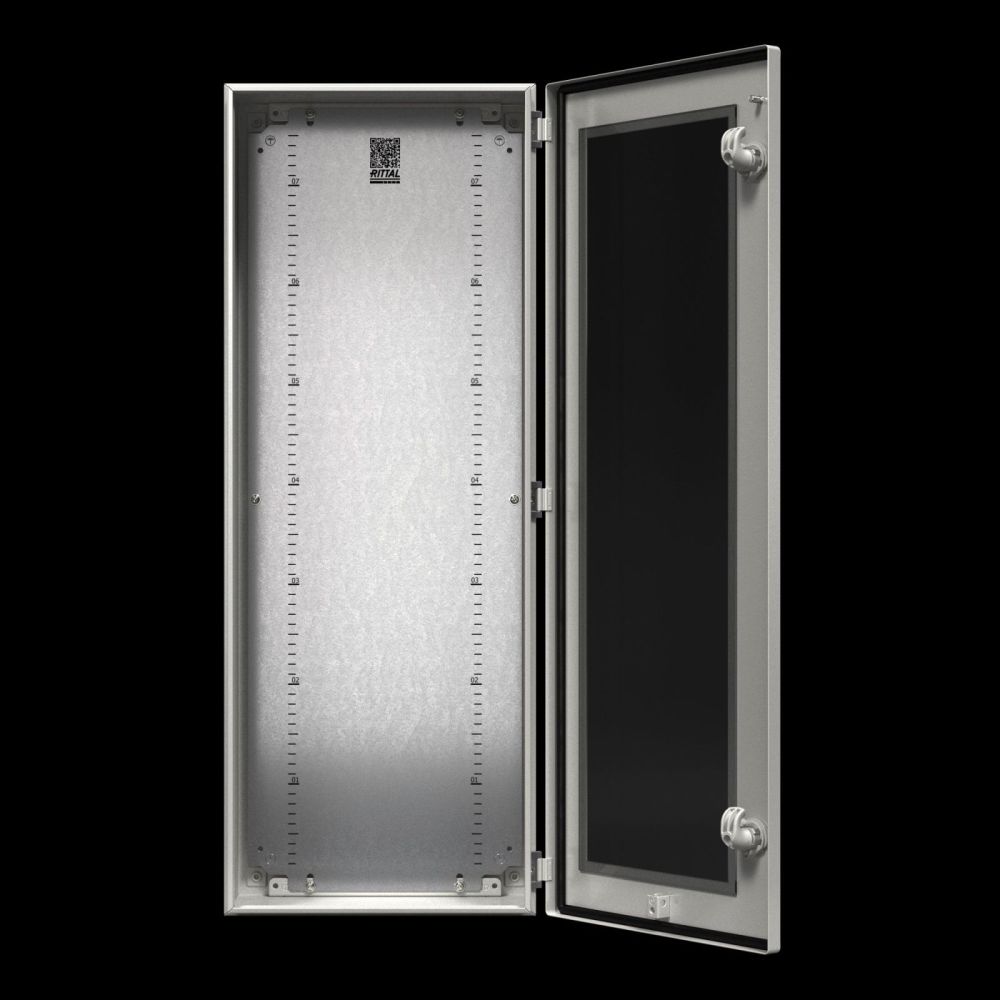

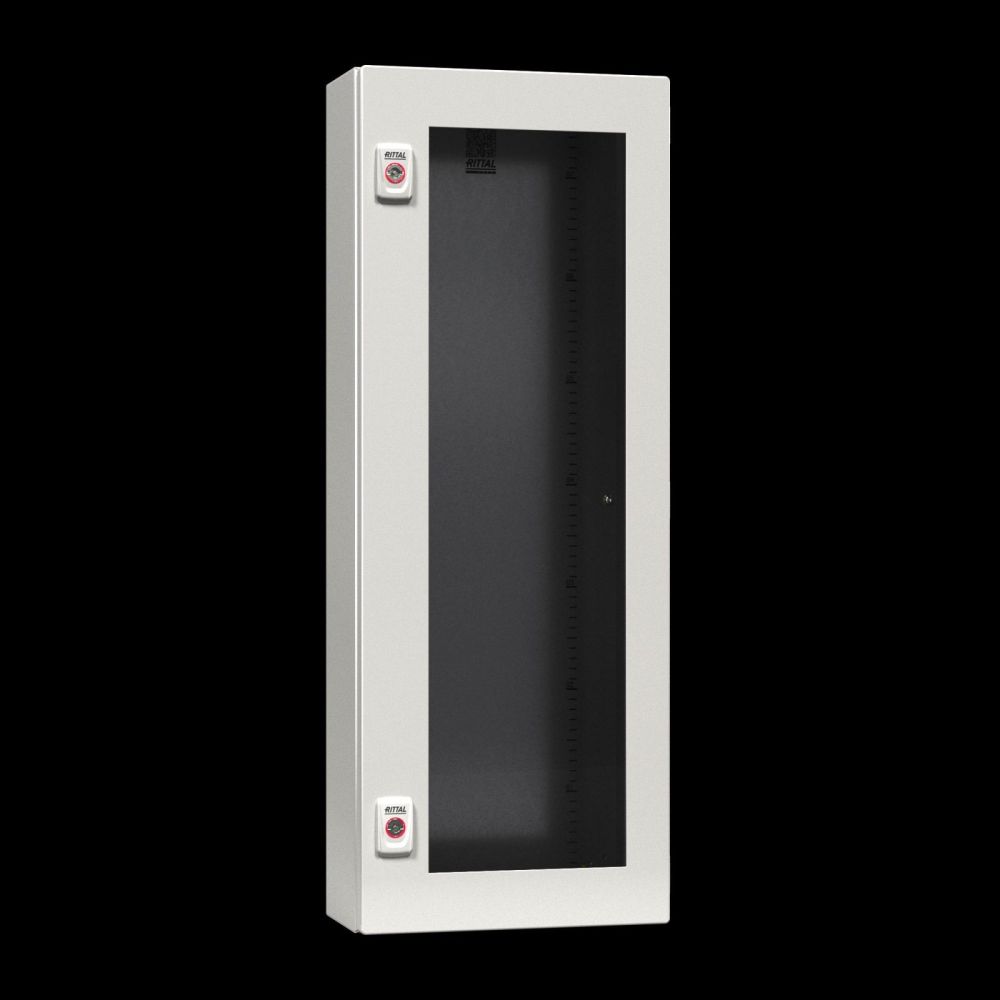

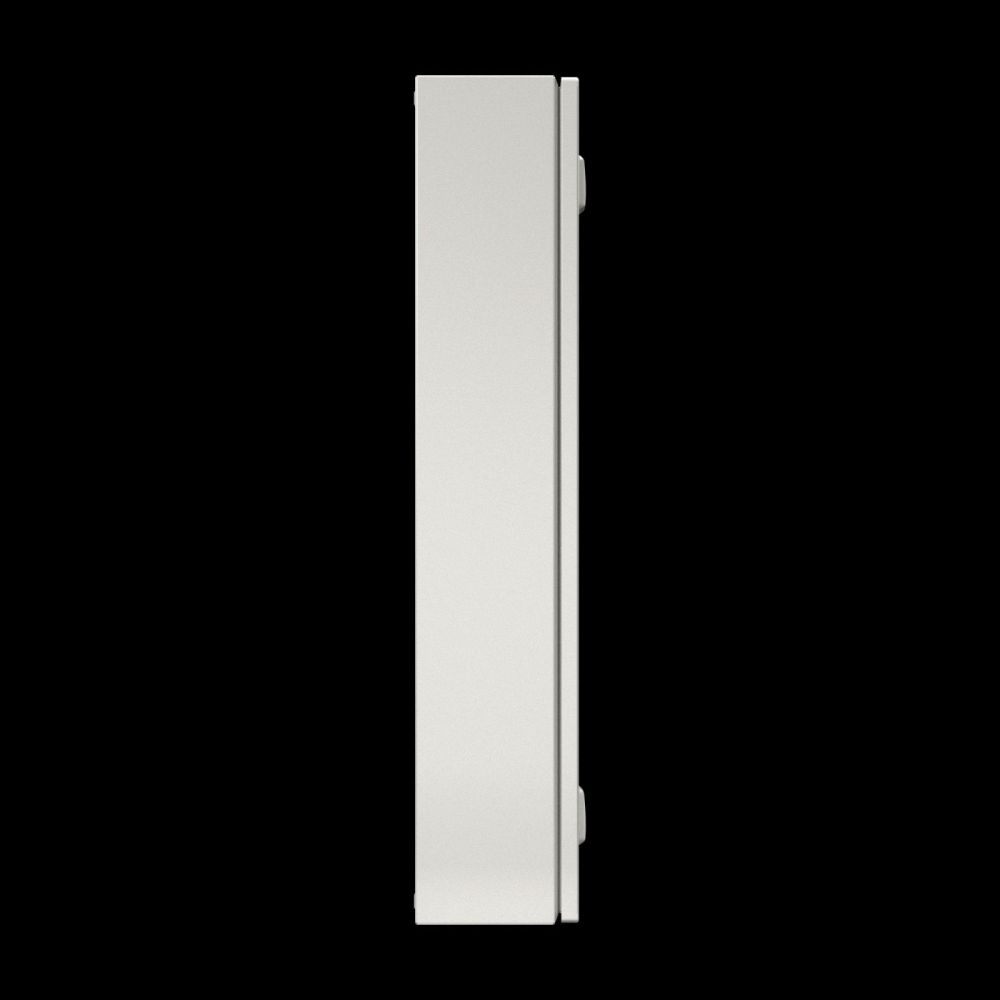

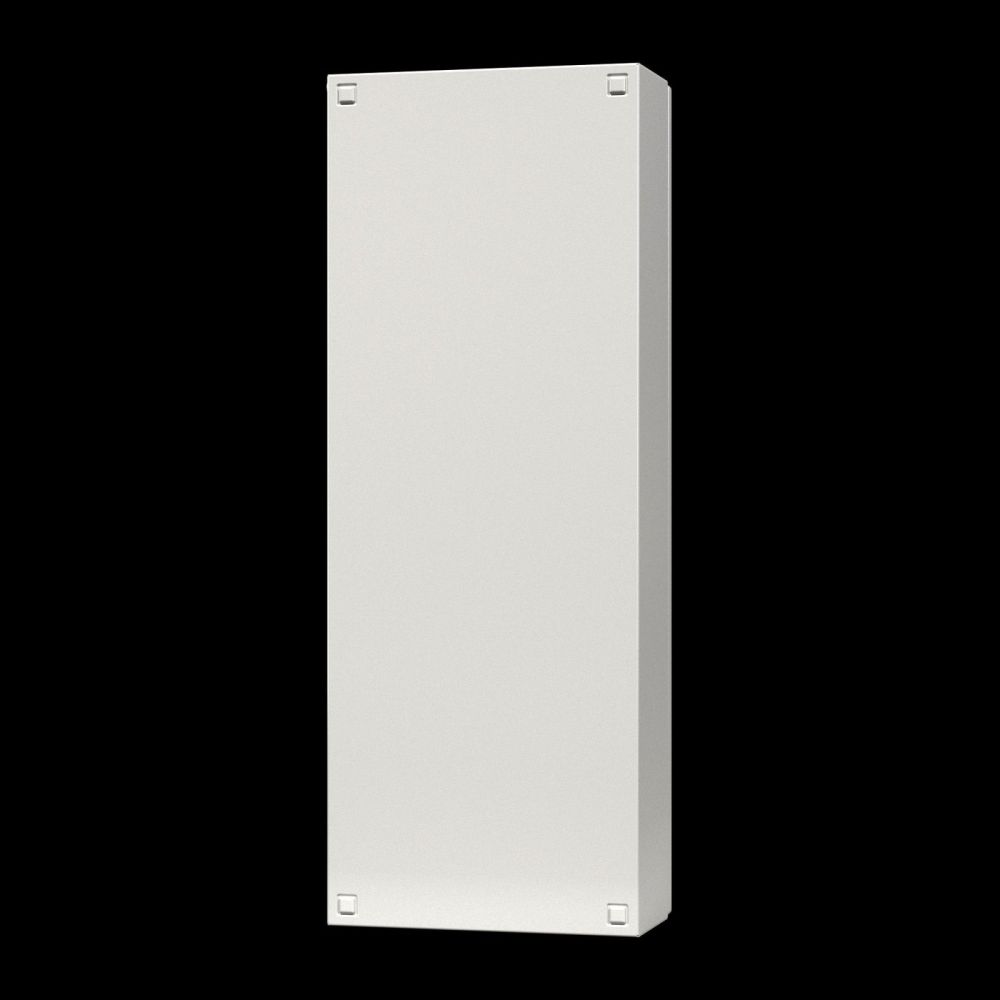

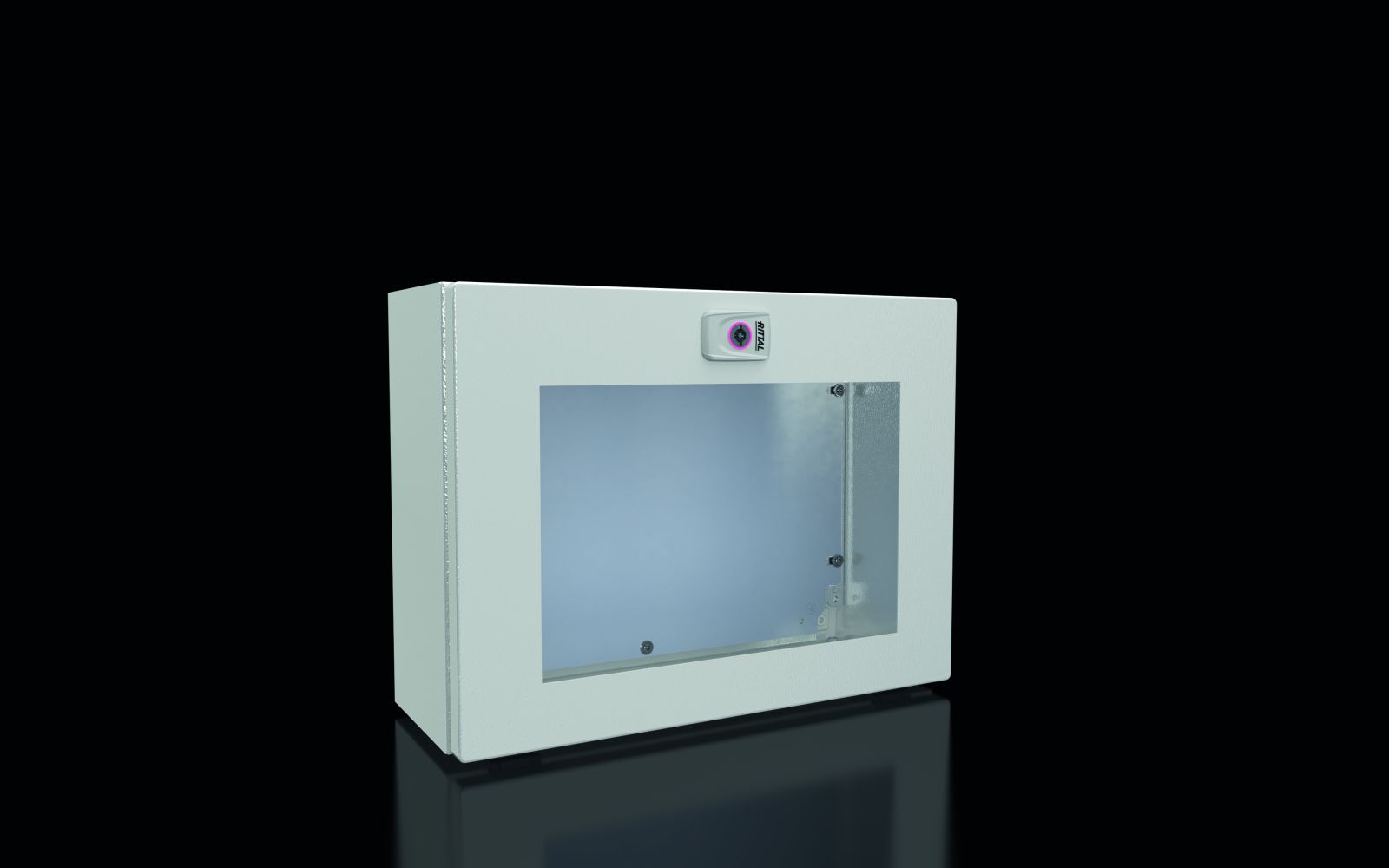

Rittal 1611100 KX bus enclosure, 400x300x155 mm, with mounting plate
|
-9% 125,24 EUR 138,30 EUR |
|
|
( 149,04 EUR incl. VAT ) ≈ £104.83 | ≈ $137.64 plus delivery charges: 100,00 € |
|
| Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline | |
| In Stock: >100 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1101810 |
| Mfg Part No: | 1611100 |
| UPC/EAN: | 4028177970083 |
| Weight: | 6.614 kg |
| Type: | KX 1611100 |
Product information for Rittal 1611100:
Applications
This enclosure is designed for use in industrial environments, particularly in areas requiring a high degree of protection against dust, water, and mechanical impacts. It is suitable for wall mounting and is frequently used in automation technology, manufacturing technology, or process control. The integrated mounting plate enables simple and secure attachment of electronic components and modules.
Functions and Equipment in Detail
The enclosure is equipped with a hinged lid featuring a continuous foamed PU seal to ensure a tight seal. Integrated into the lid is a viewing window made of polycarbonate with a thickness of 4 mm, allowing clear visibility of the installed components without compromising the protection of internal parts. The lid is secured using a latch lock with a 3 mm double-barrel lock insert, ensuring secure and quick operation. The mounting plate, made of zinc-plated sheet steel (2 mm thickness), provides a stable mounting point for electronic modules.
Technology Explained Simply
The protection rating IP 65 according to EN 60 529 means the enclosure is dust-tight and protected against water jets from any direction, making it suitable for outdoor use or humid environments. The protection ratings NEMA 1 and NEMA 12, along with the type rating according to UL 50E (Type 1, Type 12), confirm suitability for dry indoor environments as well as environments with light dirt and splashing water. The IK code IK08 guarantees protection against mechanical impacts, such as shocks or vibrations, with an energy of up to 20 J. The material thickness of 1.25 mm for the enclosure and lid ensures sufficient strength and durability.
Compatibility and Accessories
The enclosure is suitable for mounting bus modules and sensors from nearly all manufacturers. It can be expanded with various accessories, including mounting clips for support rails, lock inserts made of zinc die-cast, plug-throughs (e.g. SZ 2400500), pressure equalization plugs (e.g. SZ pressure equalization plug M12x1.5), mounting brackets, condensate drains, baying sets for AX, KX, AE, KL, and various handles (e.g. SZ 2577000, AX 2533100, AX 2577010). Drill screws (type ST 4.8 L9.5 mm) and mounting brackets are also available to facilitate installation.
Mounting and Installation
Mounting is done on a wall using the designated holes in the enclosure and the mounting plate. The rear wall of the enclosure features mounting holes that enable secure wall attachment. The integrated mounting plate simplifies the installation of electronic components. The QR code, printed on the body, lid, mounting plate, and type label, allows for unique identification and easy access to relevant product information and documentation.
Operational Advantages
The enclosure offers high mechanical stability and reliable protection for the installed electronic components. The viewing window allows visual inspection without opening the enclosure, simplifying maintenance and diagnostics. The powder-coated surface in RAL 7035 provides an attractive appearance and high resistance to environmental influences. Integrated earthing via protective conductor connection in the enclosure and via U-bracket in the lid ensures safe and quick earthing of components. The combination of IP 65, IK08, and NEMA 12 makes this enclosure a robust solution for demanding industrial applications.
| General | |
| Model | with viewing window |
| Material | Housing: sheet steel, cover: sheet steel, continuous foamed PU seal, viewing window: polycarbonate, 4 mm, mounting plate: sheet steel, galvanized |
| Surface protection | Housing and cover: dip primed, externally powder coated, textured lacquer |
| Colour | RAL 7035 |
| Scope of delivery | Housing with hinged cover, viewing window in cover, mounting plate, latching lock with 3 mm double-barrel insert |
| Width | 400 mm |
| Height | 300 mm |
| Depth | 155 mm |
| Degree of protection IP according to EN 60 529 | IP 65 |
| NEMA degree of protection | NEMA 1, NEMA 12 |
| Type rating according to UL 50E | Type 1, Type 12 |
| IK code | IK08 |
| Material thickness cover | 1,25 mm |
| Plate thickness cabinet | 1,25 mm |
| Mounting plate material thickness | 2 mm |
| Base material | steel sheet |
| Note on PCF class | Category B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared |
