Rittal 6712000 CX console center section W:1200 mm

Your rating:
Average rating
product review for Rittal 6712000 CX console center section W:1200 mm
( 4.6 / 5 ) 5 ratings
Rittal 6712000
This image may differ from the desired article.
Rittal 6712000Rittal 6712000Rittal 6712000Rittal 6712000Rittal 6712000
445,05 EUR 462,85 EUR
( 529,61 EUR incl. VAT )
≈ £372.51  |  ≈ $489.11
Delivery time from supplier's stock (ca.) 5 workdaysinfo_outline
In Stock: 2 pieces
1x Rittal 6712000 CX console center section W:1200 mm
Datasheet:file_download Download
Lieske Part No.:2145728
Mfg Part No: 6712000
UPC/EAN: 4028177983700
Weight:36.5 kg
Type:CX 6712000

Product information for Rittal 6712000:

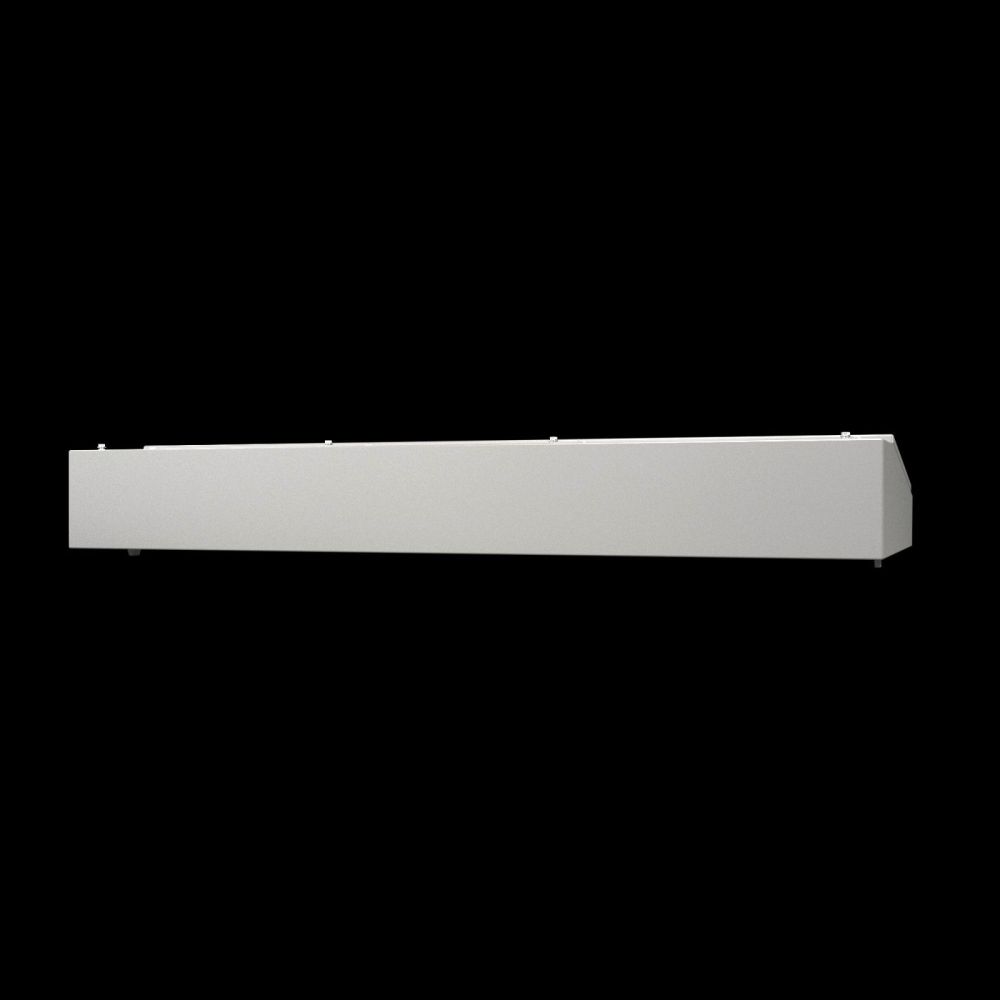

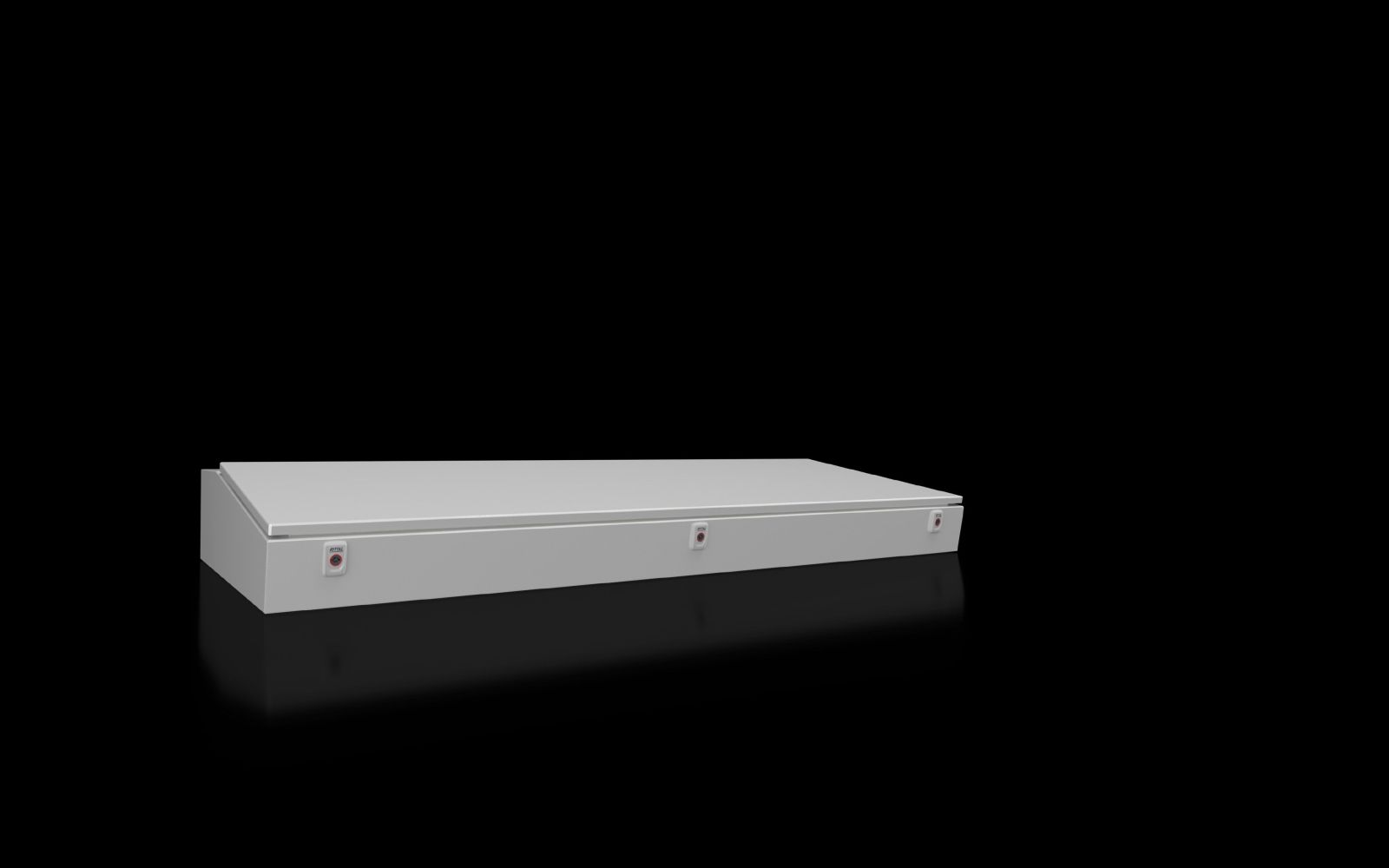

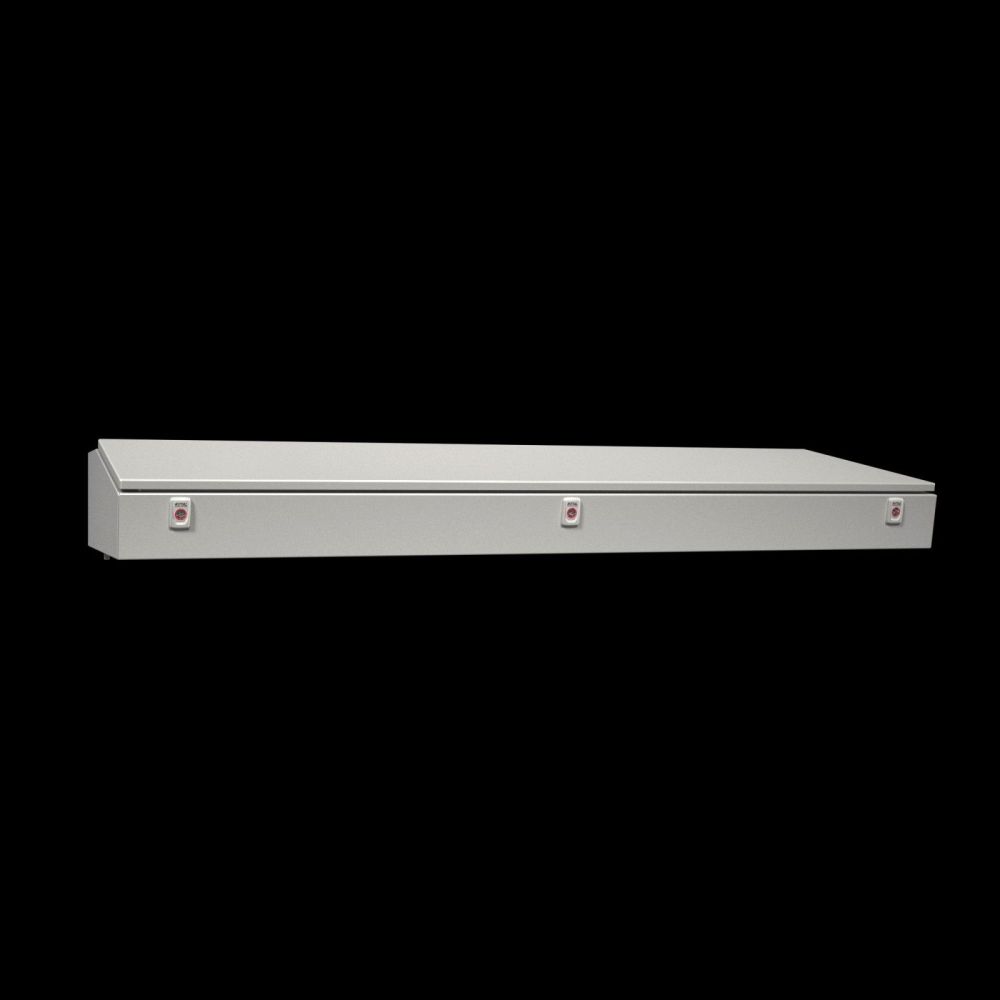

The Rittal CX 6712000 is a console center section for the CX console system, designed as a center section in a modular configuration. It serves as a central component in two-part or three-part console configurations, with a width of 1,200 mm providing a bridge between individual modules. The enclosure is made of sheet steel with a wall thickness of 1.5 mm, and the console lid is made of 2.0 mm thick sheet steel. The surface is dip-primed and externally powder-coated with a textured finish in the color RAL 7035. A continuously foamed PU seal ensures a tight connection between the enclosure and the lid.

Applications
This console center section is designed for use in industrial environments where a robust and flexible mounting structure is required. It is suitable for systems requiring modular division into lower, center, and upper sections, for example in automation technology, manufacturing technology, or machine control consoles. The protection rating IP 55 according to IEC 60 529 ensures protection against dust and splashing water, making it suitable for use outdoors or in humid indoor environments. The protection ratings NEMA 1 and NEMA 12 extend the range of applications to various regions and standardization requirements.

Functions and Equipment in Detail

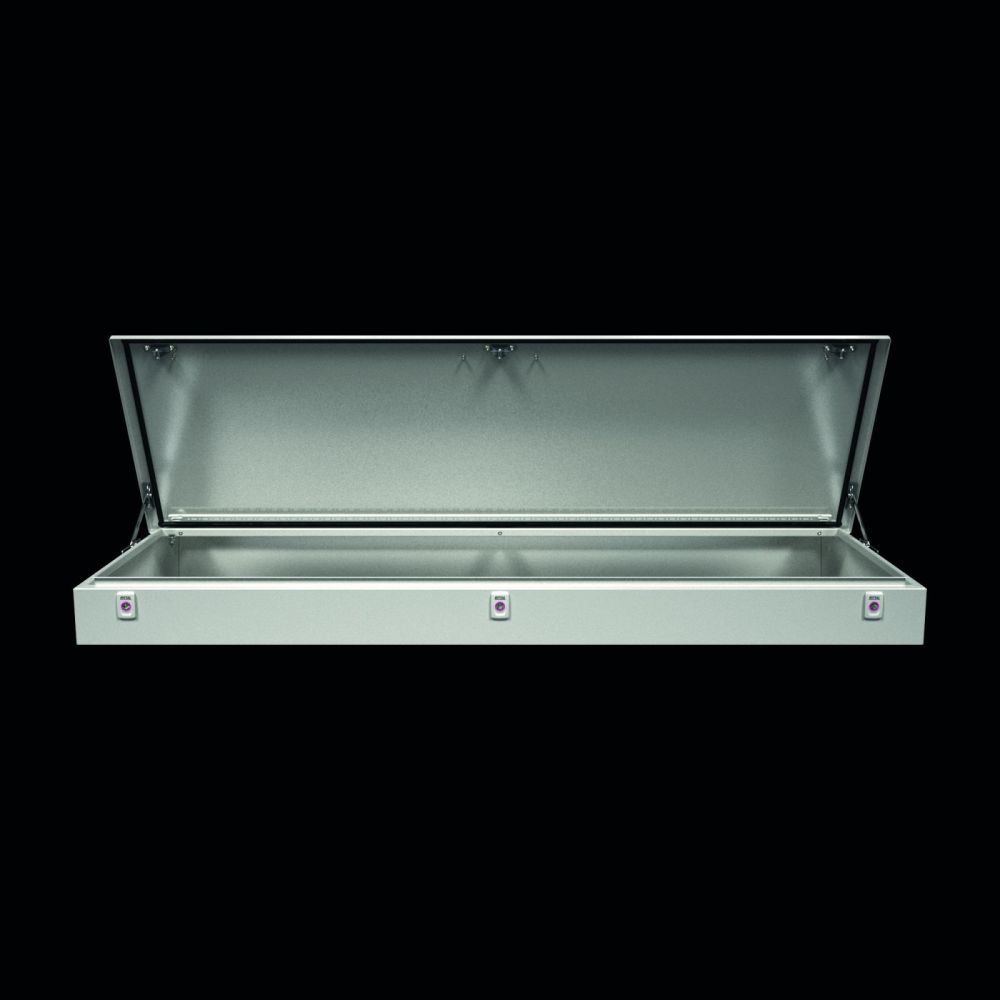

The enclosure features a rear-hinged lid, providing convenient access to the interior. Unlocking is automatic on the left and manual on the right, ensuring a secure and controlled opening. Two stands with automatic locking ensure stable mounting. An opening for cable entry is integrated into the enclosure base, simplifying the installation of wiring and cables. The locking system consists of three latches with a 3 mm double-barrel lock insert, ensuring secure closure. The IK classification IK10 means the enclosure is protected against mechanical impacts such as shocks or vibrations up to a certain intensity.

Technology Explained Simply
The use of sheet steel with the specified wall thicknesses ensures high mechanical stability and durability. The powder-coated surface in RAL 7035 offers not only an attractive appearance but also corrosion protection. The PU seal ensures a tight seal, preventing the ingress of dust and moisture. The IP protection rating 55 means the enclosure is dust-tight and protected against splashing water, making it suitable for many industrial applications. The NEMA classification NEMA 1 and NEMA 12 covers requirements in various countries, particularly in the USA and Canada.

Compatibility and Accessories
The console center section is part of the CX console system and can be combined with other modules. For a two-part configuration, a console base section and an end plate for the center section are required. For a three-part configuration, a console base and a console top section are necessary. Compatible accessories include, for example, zinc die-cast lock box covers, mounting brackets for internal mounting levels, multitools, system chassis, plastic gland plates, and aluminum strips. These components allow for individual adaptation to specific mounting and operating requirements.

Mounting and Installation
Mounting is done via the integrated stands, which offer automatic locking. The cable entry opening in the enclosure base simplifies wiring. The locks with double-barrel lock insert enable secure and reliable closure.

Advantages in Operation
The console center section offers a modular, robust, and flexible solution for industrial control and operating systems. The high mechanical stability, IP 55 protection rating, and IK10 classification ensure reliability in demanding environments. The integrated cable entry and automatic locking mechanisms reduce installation time and increase operational safety. Compatibility with other modules in the CX system enables scalable and future-proof system design.

General
ModelMiddle part
MaterialHousing: steel sheet 1.5 mm, console cover: steel sheet 2.0 mm, continuous foamed PU seal
Surface protectionHousing and cover: dip primed, externally powder coated, textured lacquer
ColourRAL 7035
Scope of deliveryHousing, rear cover hinged, 2 feet with automatic locking. Unlocking left automatic, right manual, opening for cable passage in housing base, closure: 3 mm double barb
Width1.200 mm
Depth745 mm

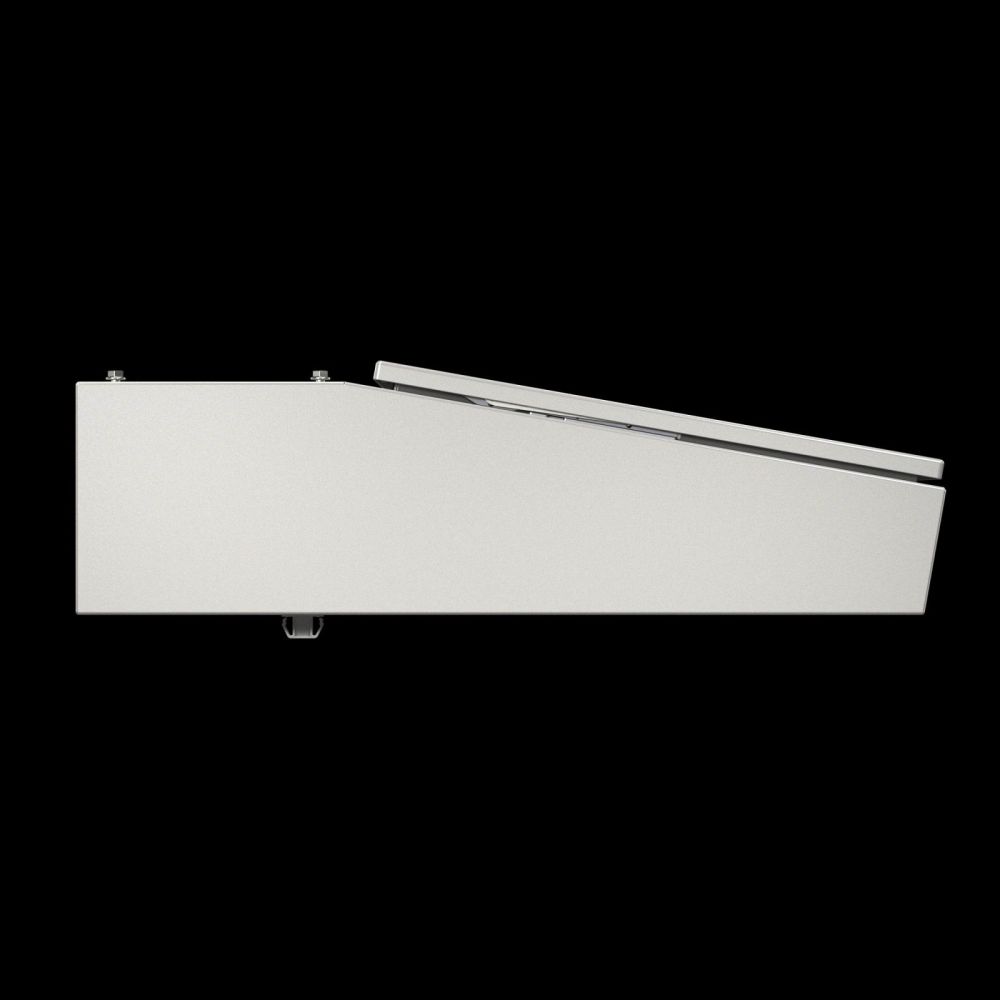

Height front130 mm
Height at rear200 mm
Number of doors2
IK codeIK10
NoteTo close the console center section, an end plate is required. For a 2-part console setup, a console base and an end plate for the console center section are required. For a 3-part console setup, a console base and a console top section are required.
Degree of protection IP according to IEC 60 529IP 55
NEMA degree of protectionNEMA 1, NEMA 12
Base materialsteel sheet
Number of locks3
Closure typePre-wiper
Closure insert3 mm double barb
LockClosure type: Deadbolt, Number of closures: 3, Closure insert: 3 mm double barb


Please note...
This article has over-size and needs to be seperately taken care of. This is why we want to inform you, that the calculation of the delivery charges in the shopping cart will disregard this aspect. Though, there will be corresponding surcharges after you send us your order.
Product data sheet
Datasheet for Rittal 6712000, EAN: 4028177983700
