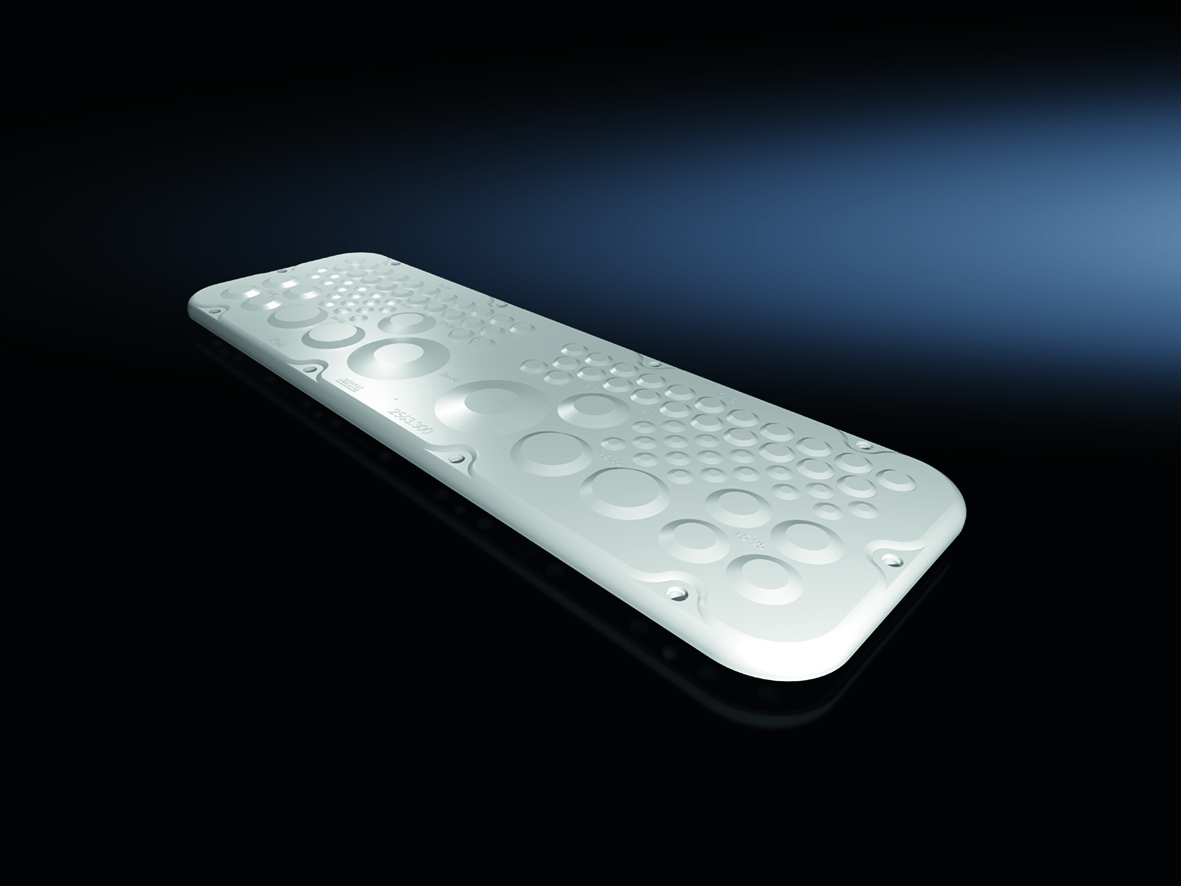

Rittal 2563300 SZ plastic gland plates, for AX, with membranes,

Your rating:
Average rating
product review for Rittal 2563300 SZ plastic gland plates, for AX, with membranes,
( 4.8 / 5 ) 5 ratings
Rittal 2563300
This image may differ from the desired article.
Rittal 2563300Rittal 2563300Rittal 2563300
32,09 EUR 33,36 EUR
( 38,19 EUR incl. VAT )
≈ £26.86  |  ≈ $35.27
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 7 workdaysinfo_outline
In Stock: >500 pieces
1x Rittal 2563300 SZ plastic gland plates, for AX, with membranes,
Datasheet:file_download Download
Lieske Part No.:1598245
Mfg Part No: 2563300
UPC/EAN: 4028177935754
Weight:0.63 kg
Type:AX 2563300

Product information for Rittal 2563300:

The Rittal AX 2563300 is a plastic gland plate for enclosures of type AX, specifically designed for use in industrial applications. It serves as a cable entry element on the front side of the enclosure and enables secure and structured cable routing. The gland plate is sized 3 and matches the standard dimensions of AX enclosures. Its material is plastic to UL 94-V0, a flame-retardant polymer that exhibits low flammability at high temperatures and is therefore suitable for use in electrical installations. The color corresponds approximately to RAL 7035, a gray tone that integrates well visually in industrial environments.

Applications
The gland plate is intended for use in industrial electrical installations, particularly in environments subject to high mechanical stress and certain levels of moisture or dust. It is mounted on the front side of AX enclosures to guide cables in an organized and secure manner into the enclosure. Typical use cases include manufacturing, automation technology, or process industries. The protection rating IP 66 with proper installation ensures high protection against dust and water, including strong water jets, making it suitable for outdoor use or humid indoor environments. The type rating according to UL 50E includes categories Type 1 and Type 12, confirming suitability for dry indoor spaces and environments with light contamination.

Functions and Equipment in Detail
The gland plate features a variety of pre-drilled cable entries, which can be selected according to cable diameter. The number and diameters of the openings are as follows: 36 openings with a diameter of 5 to 11 mm, 46 openings of 10 to 15 mm, 8 openings of 15 to 25 mm, 2 openings of 19 to 34 mm, 4 openings of 26 to 35 mm, and 2 openings of 26 to 54 mm. This variety allows flexible adaptation to different cable types and diameters. The membranes at the openings ensure a tight seal when no cable is inserted, preventing dust or moisture ingress. Installation is performed by inserting the cable with a pointed tool into the plastic plate and then pulling it through — a method enabling quick and secure mounting.

Technology Explained Simply
The gland plate is made of a robust, flame-retardant plastic that meets safety requirements for electrical installations. The IP 66 protection rating means the device is fully protected against dust and resistant to strong water jets — particularly important in humid environments or during cleaning operations. The UL approval Type 1 and Type 12 refers to protection categories under UL 50E, where Type 1 is for dry indoor spaces and Type 12 for environments with light contamination. The dimensions of 447 mm width and 149 mm depth are matched to the standard sizes of AX enclosures, enabling direct installation without additional modifications.

Compatibility and Accessories
The gland plate is specifically developed for enclosures of type AX and adapts to the respective enclosure sizes. The assignment of gland plate size is based on the specifications provided for the respective enclosures. The gland plate is supplied as a single unit.

Installation and Mounting
Mounting is performed on the front side of the AX enclosure. Cables are routed through the pre-drilled openings, with the membranes ensuring a tight seal. Installation is done by inserting the cable with a pointed tool into the plastic plate and then pulling it through. This method is quick and requires no additional tools. Proper installation is a prerequisite for achieving the IP 66 protection rating.

Operational Advantages
The gland plate provides structured and secure cable entry, facilitating maintenance and inspection of installations. The integrated membranes ensure a tight seal, increasing the reliability of the system. The use of plastic to UL 94-V0 enhances safety in case of fire hazards. The high number of cable entries in various sizes allows flexible use, even in complex installations. The standardized dimensions enable easy integration into existing systems.

General
MaterialPlastic according to UL 94-V0
ColourSimilar to RAL 7035
NoteThe assignment of flange plate size can be found with the respective enclosures
Width447 mm
Depth149 mm
Suitable forHousing type: AX
Flange plateSize: 3
Degree of protection IP according to EN 60 529IP 66 when installed correctly
Type rating according to UL 50EType 1, Type 12
Number of cable entries and Ø (mm) min.-max.36 x 5-11, 46 x 10-15, 8 x 15-25, 2 x 19-34, 4 x 26-35, 2 x 26-54


Product data sheet
Datasheet for Rittal 2563300, EAN: 4028177935754
