Rittal 6320550 AX command panel housing with grip strips, 600x380x210 mm, S

Your rating:
Average rating
product review for Rittal 6320550 AX command panel housing with grip strips, 600x380x210 mm, S
( 4.5 / 5 ) 6 ratings
Rittal 6320550
This image may differ from the desired article.
Rittal 6320550Rittal 6320550Rittal 6320550Rittal 6320550Rittal 6320550Rittal 6320550Rittal 6320550
228,39 EUR
( 271,78 EUR incl. VAT )
≈ £191.16  |  ≈ $251.00
plus delivery charges: 148,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >10 pieces
1x Rittal 6320550 AX command panel housing with grip strips, 600x380x210 mm, S
Datasheet:file_download Download
Lieske Part No.:1598184
Mfg Part No: 6320550
UPC/EAN: 4028177923195
Weight:12.6 kg
Type:AX 6320550

Product information for Rittal 6320550:

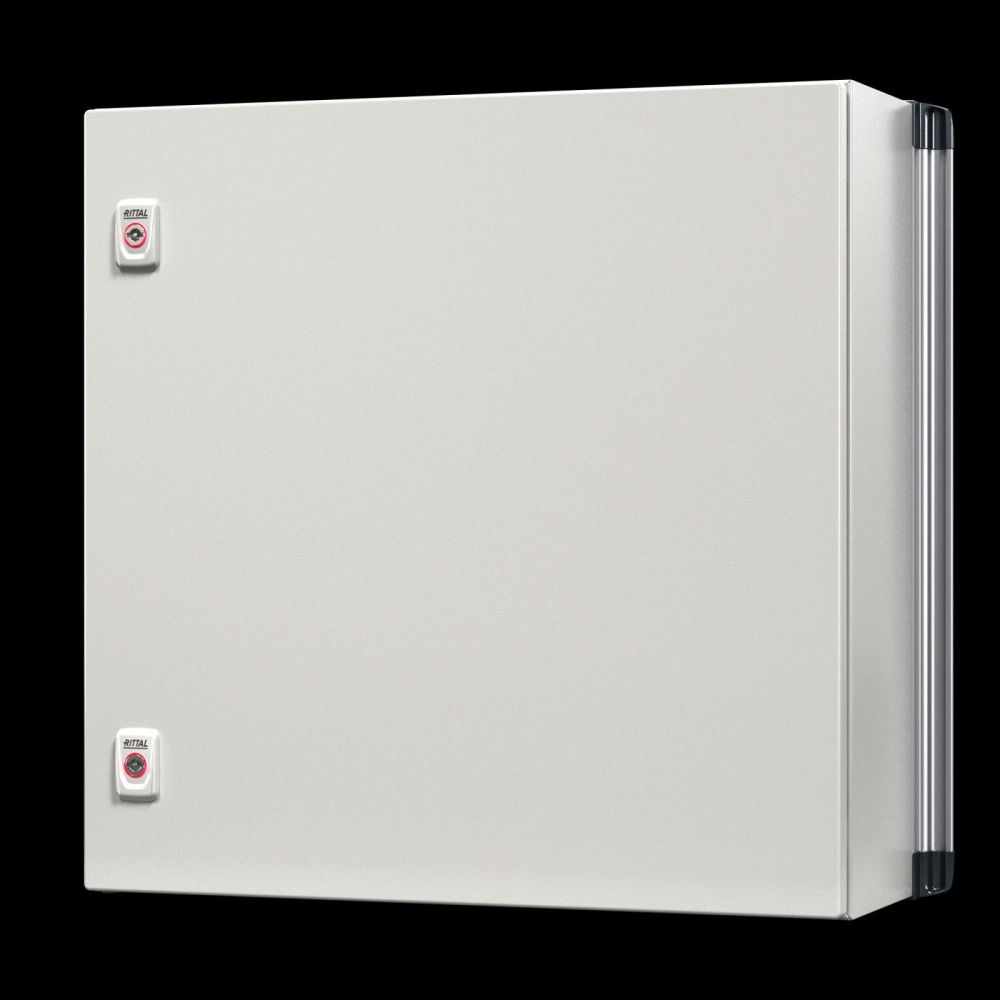

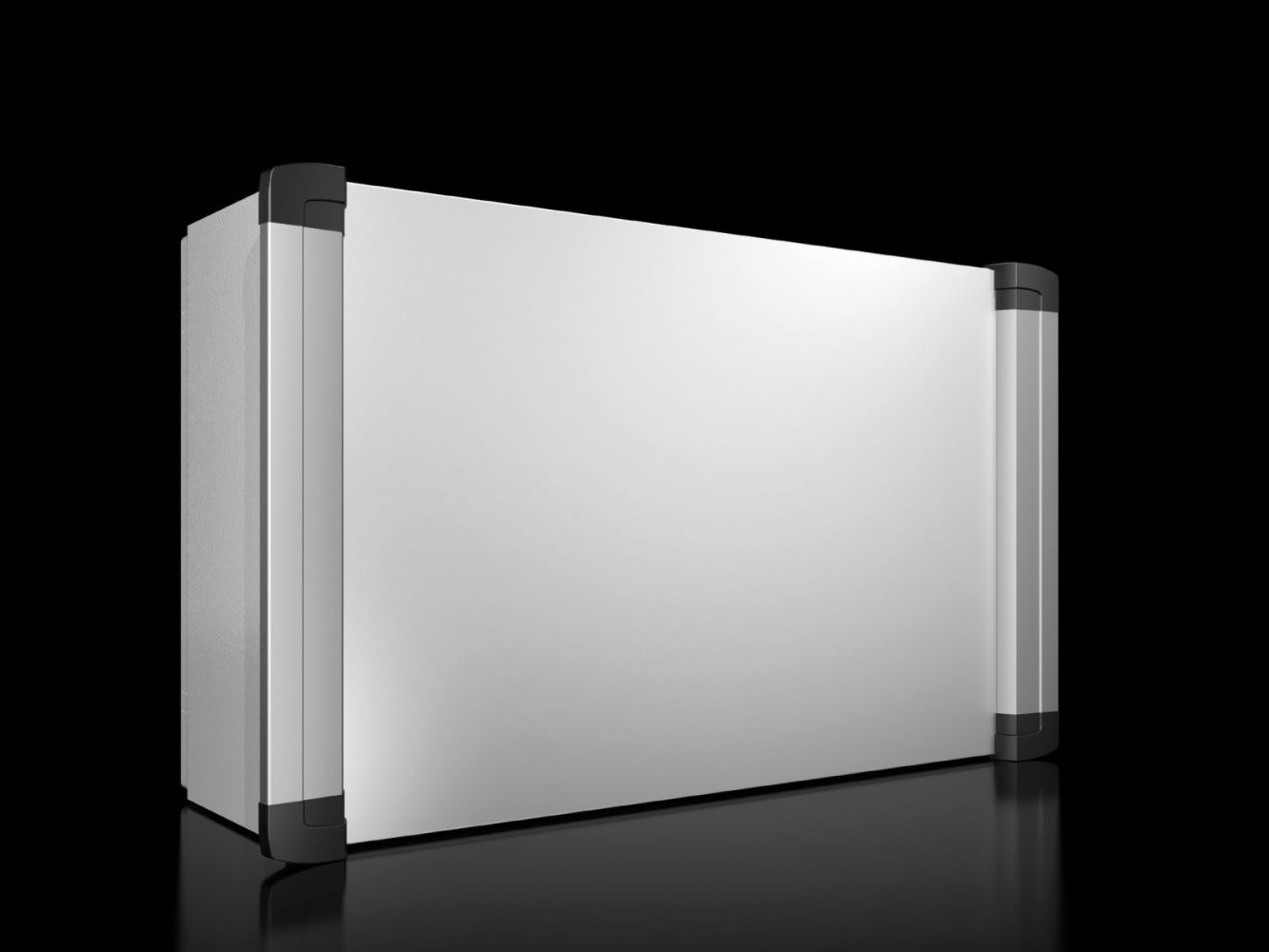

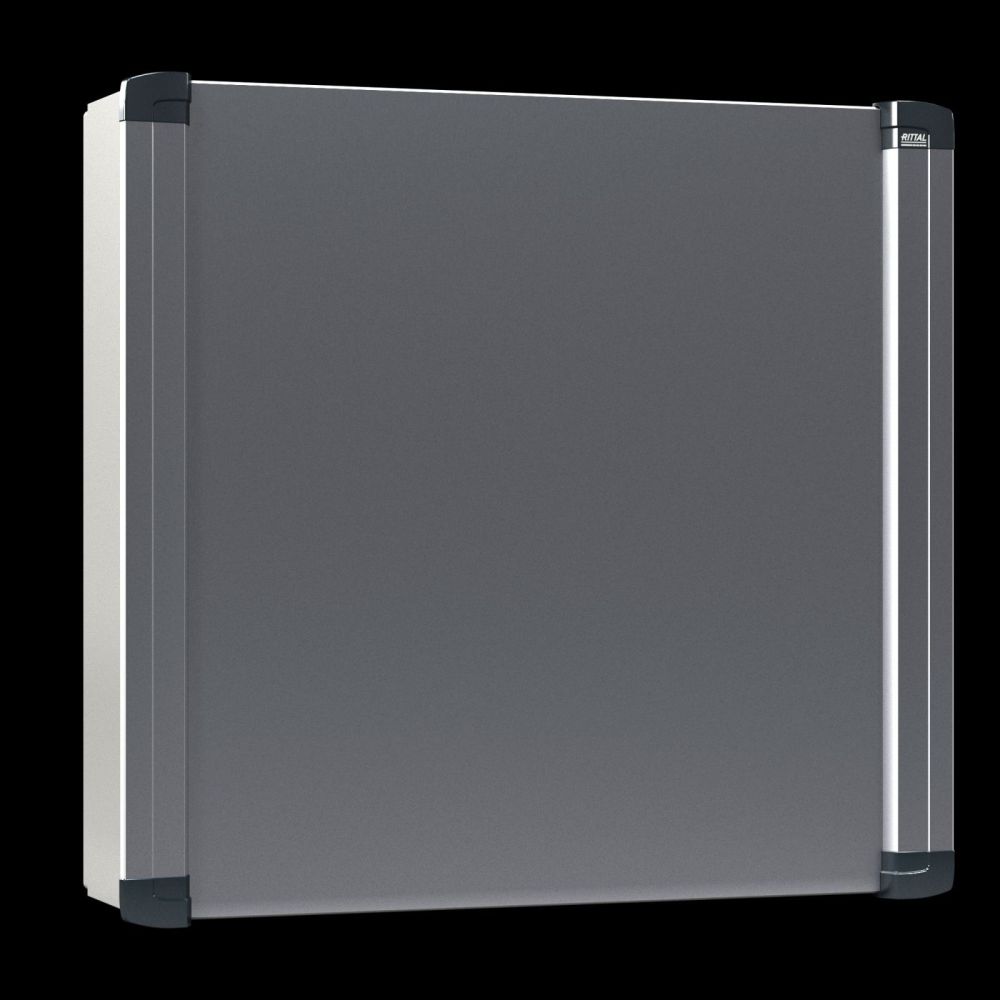

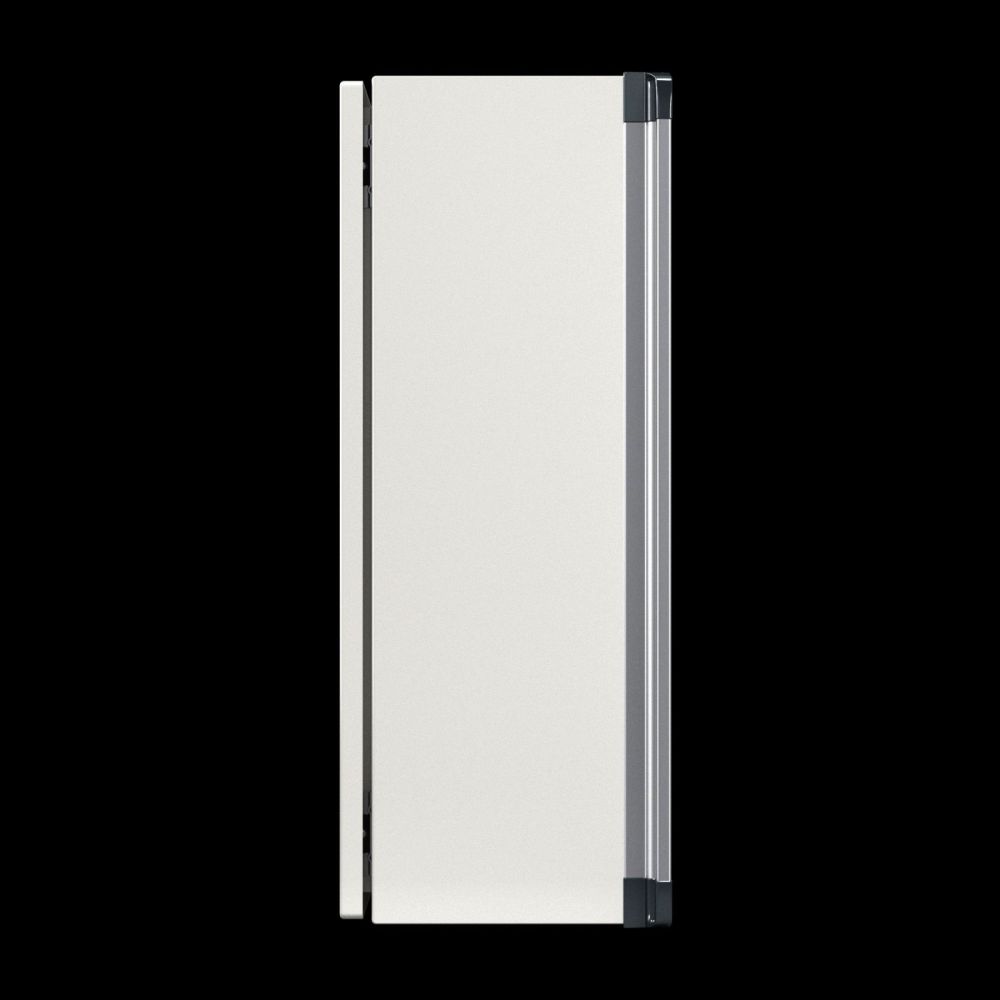

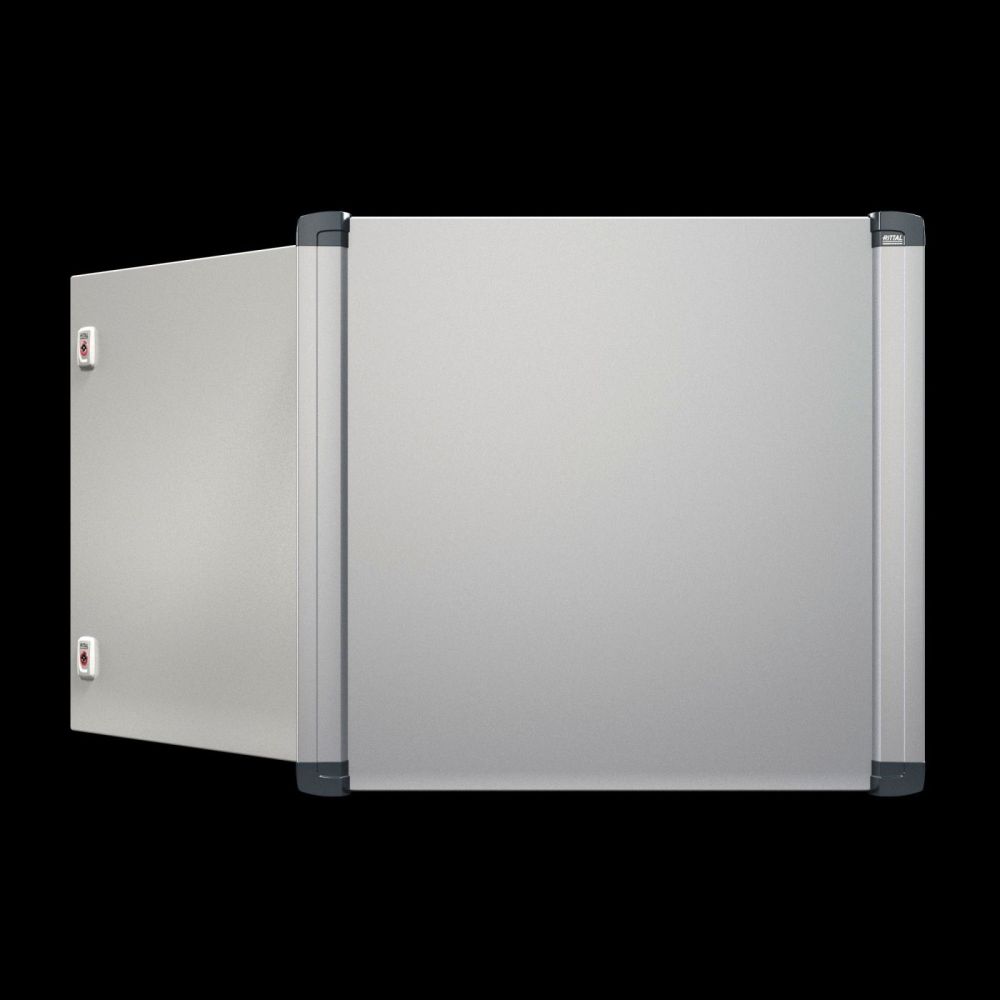

The Rittal AX 6320550 is a command panel housing made of sheet steel, designed for use in industrial applications where safe and accessible operation of control or regulation devices is required. The housing features an aluminium grip strip on the sides, providing a secure and ergonomic grip. The front side is equipped with a 3 mm thick aluminium front plate, which is easy to process and intended for individual control panels or displays. Service access is from the rear, which is advantageous in machine building or automation applications, as the front side remains undisturbed. Dimensions are 600 mm width, 380 mm height and 210 mm depth, making it suitable for medium-sized control panels.

Applications

The housing is designed for use in industrial environments, particularly in areas subject to mechanical stress and dirt. It is commonly used in manufacturing automation, packaging technology, or machine control. The protection rating IP 55 ensures high protection against dust and splashing water, making it suitable for outdoor areas or damp indoor spaces. The protection ratings NEMA 1 and NEMA 12 as well as the type rating according to UL 50E: Type 1 and Type 12 confirm suitability for dry indoor environments and areas with light dirt. The IK code IK08 provides protection against mechanical impacts, such as shocks or vibrations, that may occur during operation.

Functions and equipment in detail

The housing is equipped with a carrier arm connection Ø 130 mm, enabling connection to the carrier arm system CP 60/120/180. This connection is pre-formed and can be enlarged if necessary, allowing flexible mounting. The door features a perimeter-foamed PU seal, ensuring tight sealing and supporting the IP 55 protection rating. The latch lock with 3 mm double-barrel lock insert ensures secure locking. The grip strips are made of natural anodized aluminium and provide a secure grip. The plastic end caps in a colour similar to RAL 7024 protect the ends of the grip strips and enhance the visual appearance.

Technology explained simply

The surface of the housing and door is dip-primed and externally powder-coated with a structured lacquer, providing high corrosion resistance and mechanical strength. The colour is RAL 7035, a grey standard tone widely used in industry. The aluminium front plate is easy to process, making it suitable for individual control panels, displays, or keyboards. The system perforation in the pre-formed internal mounting angle enables easy mounting of modules and components. The PU foam seal ensures tight sealing, supporting the IP 55 protection rating.

Compatibility and accessories

The housing is compatible with the carrier arm system CP 60/120/180. It can be combined with various lock inserts, including 27 mm long zinc die-cast inserts, type A, which can be used for service access from the front or rear. Optionally, the latch lock can be replaced with a Mini Comfort Handle AX to facilitate access. Additional compatible accessories include keyboard trays, mounting brackets, and VX system chassis, suitable for integrating control elements.

Mounting and installation

Mounting is done via the pre-formed carrier arm connection Ø 130 mm, which connects to the carrier arm system. The door hinge can be changed by rotating the housing, allowing flexible installation at different locations. The system perforation in the internal mounting angle simplifies mounting of modules. The aluminium front plate can be easily removed to process or adjust control panels.

Advantages in operation

The housing offers high mechanical stability and protection through the IP 55 and IK08 ratings. The easy-to-process front plate allows for individual adaptations. The rear service access ensures the front side remains free for control elements. Compatibility with the carrier arm system and flexible mounting via the interchangeable door hinge increase operational flexibility. The powder-coated surface ensures high corrosion resistance and durability in industrial environments.

General
ModelBracket connection Ø 130 mm
MaterialHousing: sheet steel, door: sheet steel, continuous foamed PU seal, front plate: aluminium, cover caps: plastic
Surface protectionEnclosure and door: dip primed, externally powder coated, textured lacquer, handle strip: natural anodized, front plate: natural anodized
Basic colourRAL 7035
ColourHousing and door: RAL 7035, handle strip: natural anodized, front plate: natural anodized, cover caps: similar to RAL 7024
Scope of deliveryHousing with cutout and reinforcement for mounting arm connection Ø 130 mm, front with max. cutout, covered by easily machinable 3 mm aluminium front plate, side grip rails with end caps, shaped internal mounting angle with system perforation, pre-ribbed latch with 3 mm double-barrel insert
Width600 mm
Height380 mm
Depth210 mm
NEMA degree of protectionNEMA 1, NEMA 12
Type rating according to UL 50EType 1, Type 12
IK codeIK08
NoteChange of mounting arm connection and door hinge possible by rotating the housing; optional: mounting arm connection Ø 130 mm, offset in the reinforcement plate, pre-formed, can be easily drilled out; locking systems for service access from rear: locking insert, interchangeable with Mini-Comfort handle AX, locking inserts 27 mm, type A; locking systems for service access from front: locking insert, interchangeable with locking inserts 27 mm, type A
Base materialsteel sheet
PCF/VE (Cradle-to-Gate)57.1 kg CO2 eq (Cat B)
Note on PCF classCategory B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared


Product data sheet
Datasheet for Rittal 6320550, EAN: 4028177923195
