Rittal 6315650 AX command panel housing with grip strips, 600x600x210 mm, S,

Your rating:
Average rating
product review for Rittal 6315650 AX command panel housing with grip strips, 600x600x210 mm, S,
( 4.6 / 5 ) 5 ratings

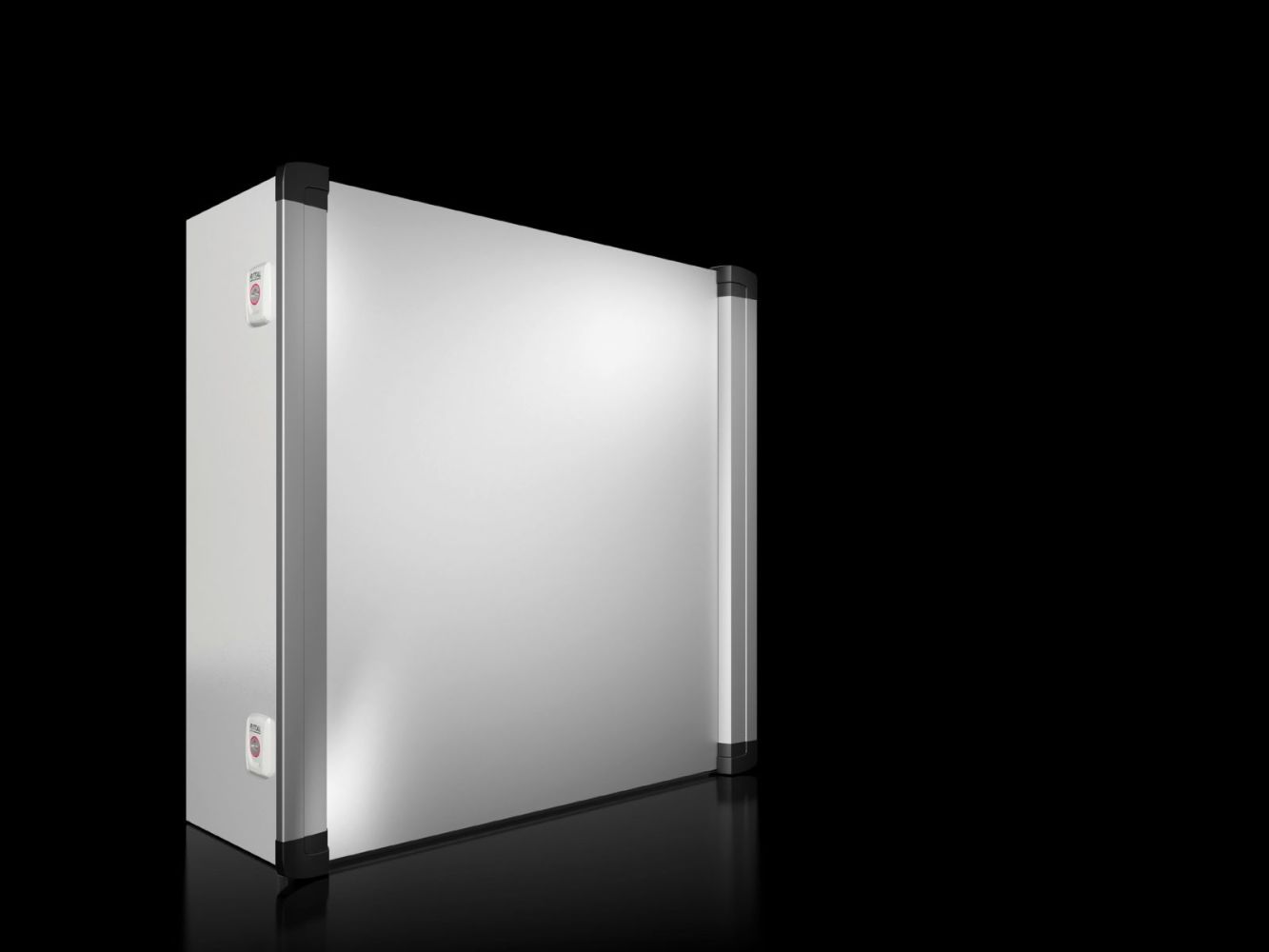

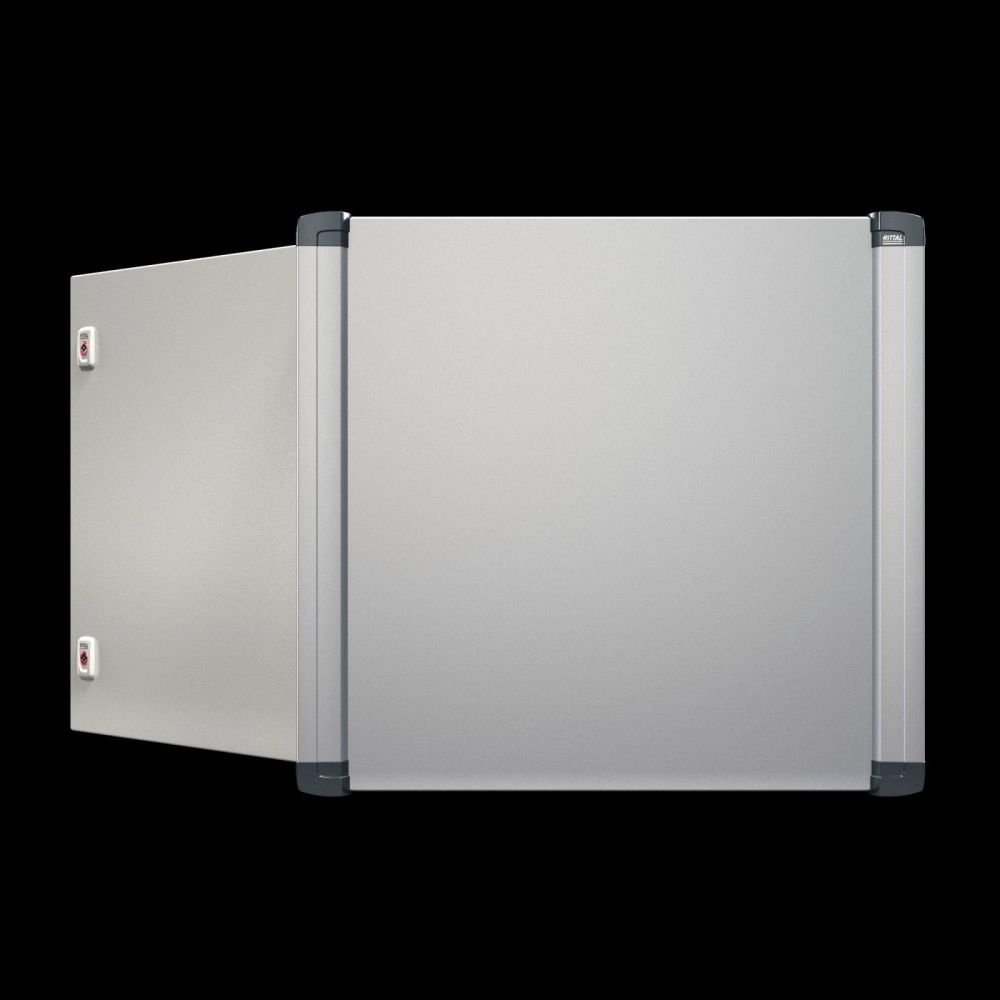

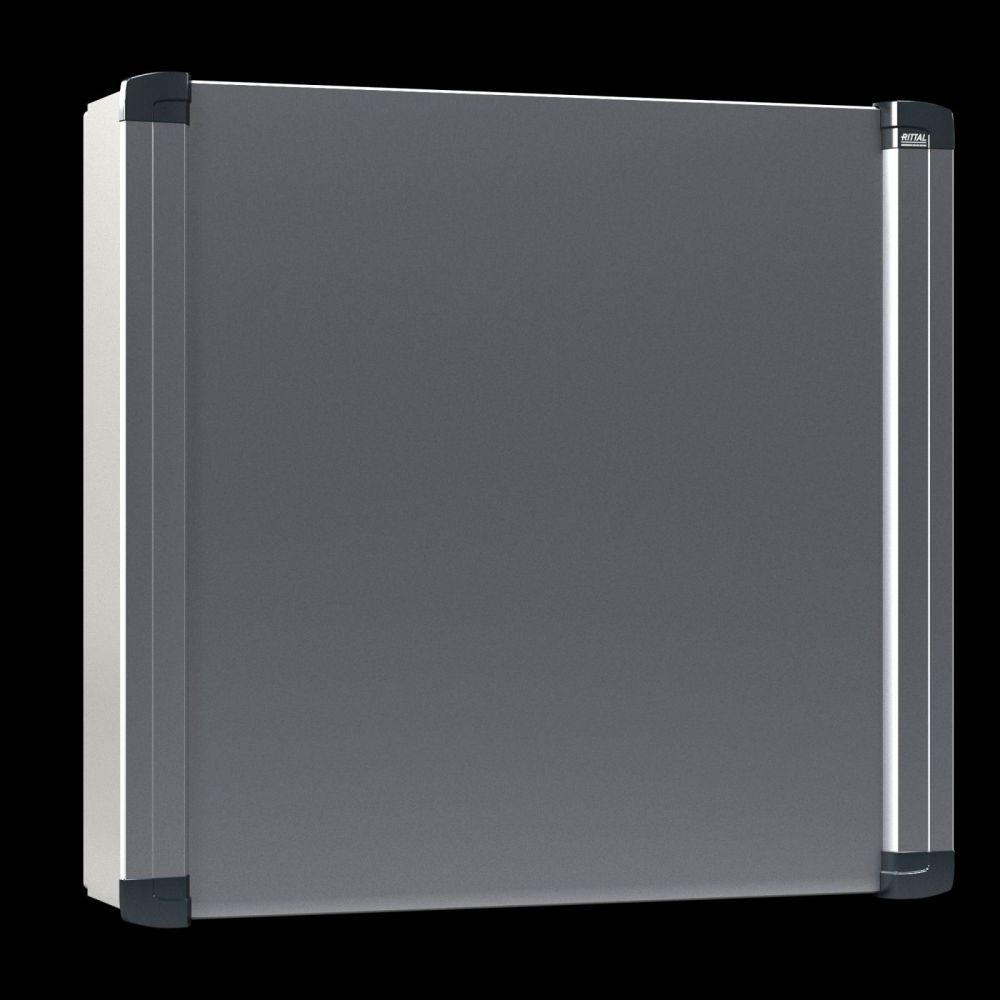

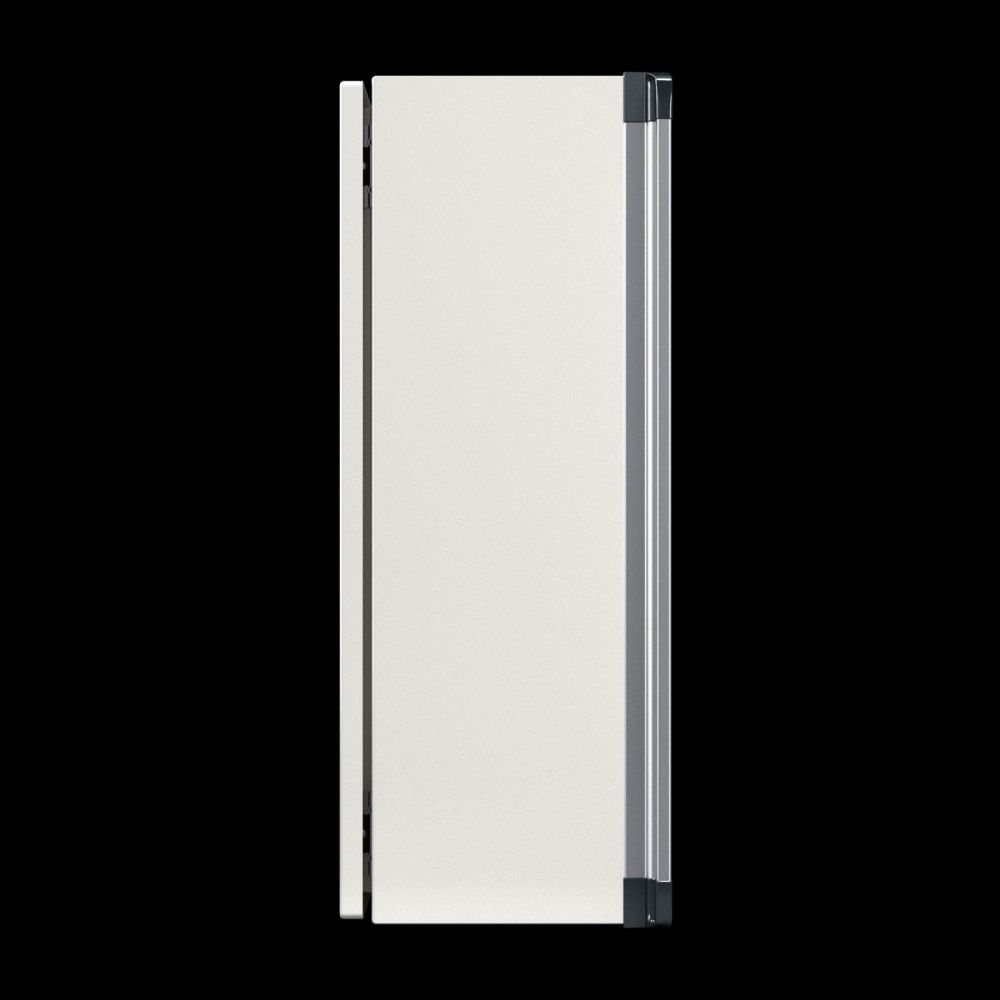

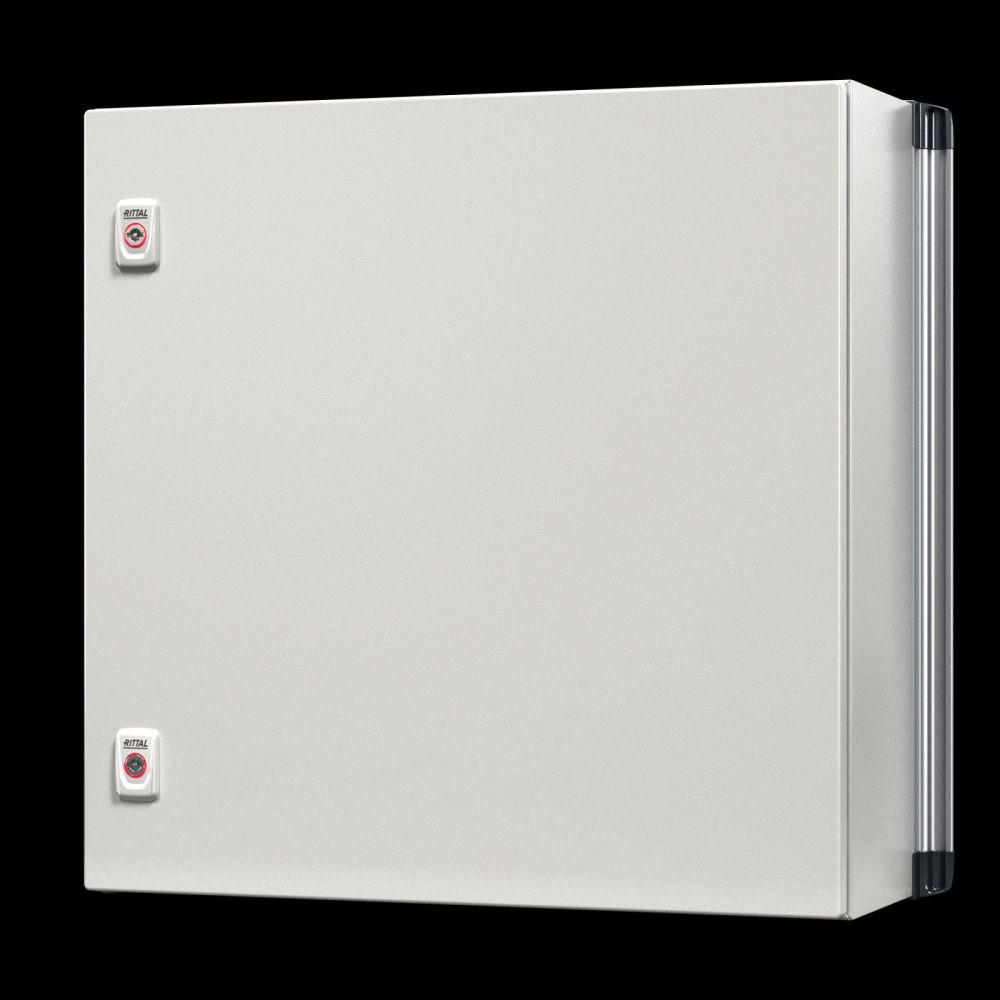

Rittal 6315650
This image may differ from the desired article.
Rittal 6315650Rittal 6315650Rittal 6315650Rittal 6315650Rittal 6315650Rittal 6315650Rittal 6315650
-6% 307,05 EUR 325,47 EUR
( 365,39 EUR incl. VAT )
≈ £257.00  |  ≈ $337.45
plus delivery charges: 148,00 €
Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline
In Stock: >10 pieces
1x Rittal 6315650 AX command panel housing with grip strips, 600x600x210 mm, S,
Datasheet:file_download Download
Lieske Part No.:1598188
Mfg Part No: 6315650
UPC/EAN: 4028177923188
Weight:17.934 kg
Type:AX 6315650

Product information for Rittal 6315650:

The Rittal AX 6315650 is a command panel housing made of sheet steel, designed for use in industrial plants and control systems. It features dimensions of 600 mm width, 600 mm height, and 210 mm depth, and is specifically designed for front-side service access. The housing is equipped with aluminium grip strips that enable secure handling, and provides a mounting arm connection with a diameter of 130 mm, compatible with the mounting arm system CP 60/120/180. The 3 mm aluminium front plate is easy to process and can be removed to facilitate access to internal components.

Applications
This command panel housing is suitable for use in industrial environments where a robust and accessible control panel is required. It is particularly suitable for control systems used in production plants, machine construction, or automation technology. The protection rating IP 55 ensures high protection against dust and splashing water, making it suitable for outdoor or damp environments as well. The protection ratings NEMA 1 and NEMA 12, along with the type rating according to UL 50E (Type 1 and Type 12), confirm suitability for indoor and lightly contaminated environments.

Functions and Equipment in Detail
The housing is fitted with a continuous foamed PU seal that ensures a tight door seal. The surface of the housing and door is dip-primed and externally powder-coated with a textured lacquer, providing high corrosion resistance and mechanical strength. The grip strips and front plate are naturally anodized, creating a uniform, durable surface. The plastic end caps are in a colour similar to RAL 7024, ensuring a consistent appearance. The delivery includes the housing with cut-out and reinforcement for the mounting arm connection, a front maximum cut-out area with a covered aluminium front plate, side grip strips with end caps, a pre-shaped internal mounting angle with system perforation, and a latch lock with a 3 mm double-barrel lock insert.

Technology Explained Simply
The mounting arm connection Ø 130 mm allows for secure mounting of the housing onto mounting arms of the CP 60/120/180 system. The pre-formed reinforcement plate allows for easy drilling setup if an off-centre connection is desired. Front-side service access is enabled by the easily removable aluminium front plate, allowing maintenance and installations to be carried out efficiently. The latch lock with double-barrel lock insert provides a secure closure, which can optionally be replaced with other locking systems such as lock inserts 27 mm, type A, or a mini comfort handle AX. The IK code classification IK08 indicates the mechanical strength of the housing against mechanical impacts.

Compatibility and Accessories
The housing is compatible with various accessories that enable use in complex systems. These include lock inserts made of zinc die-cast with a length of 27 mm, adjustable keyboard trays (128 to 228 mm depth), mounting brackets for enclosures and expansion parts, and VX system chassis 14 x 39 mm. The mounting plate 5051.378 and shipping bag 5051.300 are available as suitable additions. The locking systems for front and rear service access are interchangeable, allowing adaptation to different requirements.

Mounting and Installation
Mounting is performed via the mounting arm connection Ø 130 mm, which connects directly to the mounting arm system. The door hinge can be changed by rotating the housing, enabling flexible installation. The pre-shaped internal mounting angle with system perforation facilitates the mounting of internal components and allows structured fixation of modules. The pre-drilled system perforation supports integration into existing enclosure systems.

Operational Advantages
The Rittal AX 6315650 offers high mechanical and chemical resistance due to the use of sheet steel and powder-coated surface. The protection rating IP 55 and IK08 classification ensure reliable operation in demanding environments. The easily processable aluminium front plate and interchangeable locking systems increase flexibility during maintenance and service work. The integrated grip strips and robust construction ensure secure handling and long service life of the housing.

General
ModelBracket connection Ø 130 mm
MaterialHousing: sheet steel, door: sheet steel, continuous foamed PU seal, front plate: aluminium, cover caps: plastic
Surface protectionEnclosure and door: dip primed, externally powder coated, textured lacquer, handle strip: natural anodized, front plate: natural anodized
Basic colourRAL 7035
ColourHousing and door: RAL 7035, handle strip: natural anodized, front plate: natural anodized, cover caps: similar to RAL 7024
Scope of deliveryHousing with cutout and reinforcement for mounting arm connection Ø 130 mm, front with max. cutout, covered by easily machinable 3 mm aluminium front plate, side grip rails with end caps, shaped internal mounting angle with system perforation, pre-ribbed latch with 3 mm double-barrel insert
Width600 mm
Height600 mm
Depth210 mm
NEMA degree of protectionNEMA 1, NEMA 12
Type rating according to UL 50EType 1, Type 12
IK codeIK08
NoteChange of mounting arm connection and door hinge possible by rotating the housing; optional: mounting arm connection Ø 130 mm, offset in the reinforcement plate, pre-formed, can be easily drilled out; locking systems for service access from rear: locking insert, interchangeable with Mini-Comfort handle AX, locking inserts 27 mm, type A; locking systems for service access from front: locking insert, interchangeable with locking inserts 27 mm, type A
Base materialsteel sheet
Note on part numbercompatible mounting plate 5051.378 with shipping bag 5051.300
PCF/VE (Cradle-to-Gate)78.5 kg CO2 eq (Cat B)
Note on PCF classCategory B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared


Product data sheet
Datasheet for Rittal 6315650, EAN: 4028177923188
