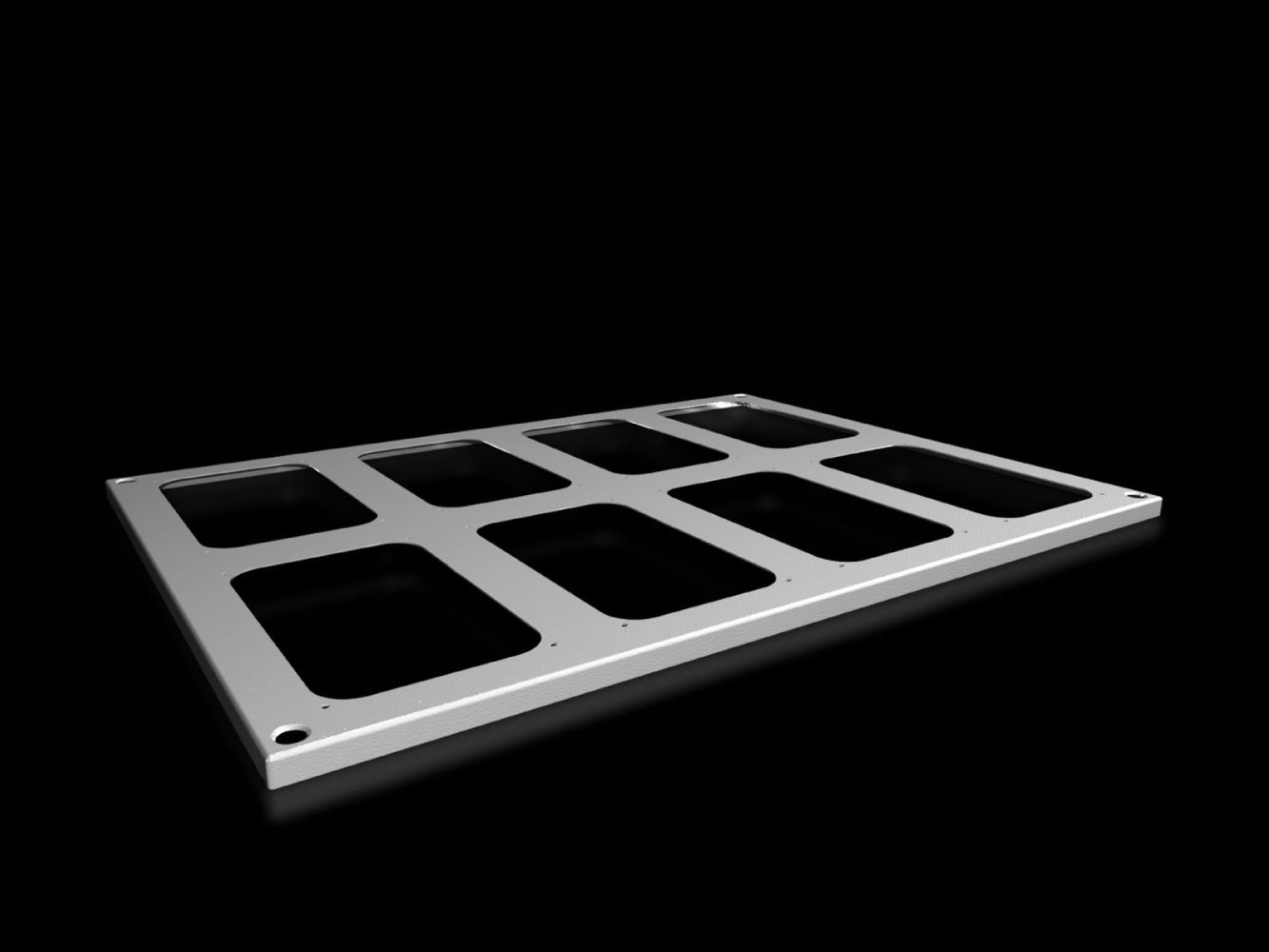

Rittal 9681586 SV roof plate for VX, width: 800 mm, depth: 600 mm, for cable entry

Your rating:
Average rating
product review for Rittal 9681586 SV roof plate for VX, width: 800 mm, depth: 600 mm, for cable entry
( 4.1 / 5 ) 7 ratings
Rittal 9681586
This image may differ from the desired article.
Rittal 9681586Rittal 9681586
73,03 EUR
( 86,91 EUR incl. VAT )
≈ £61.13  |  ≈ $80.26
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >50 pieces
1x Rittal 9681586 SV roof plate for VX, width: 800 mm, depth: 600 mm, for cable entry
Datasheet:file_download Download
Lieske Part No.:1597405
Mfg Part No: 9681586
UPC/EAN: 4028177926592
Weight:4.38 kg
Type:SV 9681586

Product information for Rittal 9681586:

The Rittal SV 9681586 is a roof plate for enclosures of the VX series, specifically designed for dimensions of 800 mm width and 600 mm depth. It serves as a replacement for the standard roof or is used in enclosures without a pre-installed roof plate. The product is made of steel sheet with a thickness of 1.5 mm and features a surface coated with structured paint in the colour RAL 7035, ensuring a robust and uniform coating suitable for industrial operating conditions. The roof plate is designed for mounting cable entry flanges and requires a total of eight such flanges for complete installation.

Applications

The roof plate is primarily intended for enclosures of the VX series with external dimensions of 800 mm width and 600 mm depth. It is used to protect the upper cover of the enclosure while enabling a structured and secure cable routing across the roof surface. Its use is particularly beneficial in industrial environments where a robust and maintenance-friendly roof system is required.

Features and Equipment in Detail

The integrated structured paint coating provides high protection against corrosion and mechanical stress. The colour RAL 7035 corresponds to a grey-beige standard tone commonly used in many industrial facilities. The use of eight cable entry flanges allows for flexible and secure cable connections from above into the enclosure.

Technology Explained Simply

The roof plate is made of steel sheet with a wall thickness of 1.5 mm, ensuring sufficient stability for use in enclosures. The structured paint coating provides a uniform surface that is resistant to mechanical impacts and environmental influences. The colour RAL 7035 is a standardised grey tone used in many industrial facilities to enable a consistent visual design. Installation is carried out using the included mounting hardware, with the positioning of the eight cable entry flanges adaptable to the specific cable routing requirements.

Compatibility and Accessories

The roof plate is specifically designed for enclosures with dimensions of 800 mm width and 600 mm depth. It is compatible with the VX series and can be used as a replacement for the standard roof. Suitable accessories include transport eyes for VX, TS and SE, suitable for freight shipping.

Installation and Mounting

Installation is performed by securing the roof plate to the upper edge of the enclosure using the mounting hardware included in the delivery. The positioning of the eight cable entry flanges is adjusted according to the cable routing requirements.

Operational Advantages

The roof plate provides a stable and corrosion-resistant cover for the upper section of the enclosure. The integrated structured paint coating increases service life and ease of maintenance. The use of eight cable entry flanges enables flexible and secure cable routing, simplifying the installation and maintenance of electrical systems. Compatibility with the VX series and the option to replace the standard roof enhance flexibility in planning and modernising enclosures.

General
MaterialSheet steel, 1.5 mm
Surface protectionStructured lacquer
ColourRAL 7035
Scope of deliveryIncluding mounting hardware
Number of required cable entry flanges8
Suitable forWidth: = 800 mm, Depth: = 600 mm
PCF/VE (Cradle-to-Gate)16.7 kg CO2 eq (Cat B)
Note on PCF classCategory B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared


Product data sheet
Datasheet for Rittal 9681586, EAN: 4028177926592

Questions & answers

What is the delivery time of Rittal 9681586 SV roof plate for VX, width: 800 mm, depth: 600 mm, for cable entry?

The article Rittal 9681586 SV roof plate for VX, width: 800 mm, depth: 600 mm, for cable entry is currently in stock

According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 9681586 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 9681586 SV roof plate for VX, width: 800 mm, depth: 600 mm, for cable entry always at the best possible price. We can give you a discount of 2% on Rittal 9681586 SV roof plate for VX, width: 800 mm, depth: 600 mm, for cable entry if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
