Rittal 5301284 VX IT baying partition vertically divided 2000x1200

Your rating:
Average rating
product review for Rittal 5301284 VX IT baying partition vertically divided 2000x1200
( 4.5 / 5 ) 2 ratings

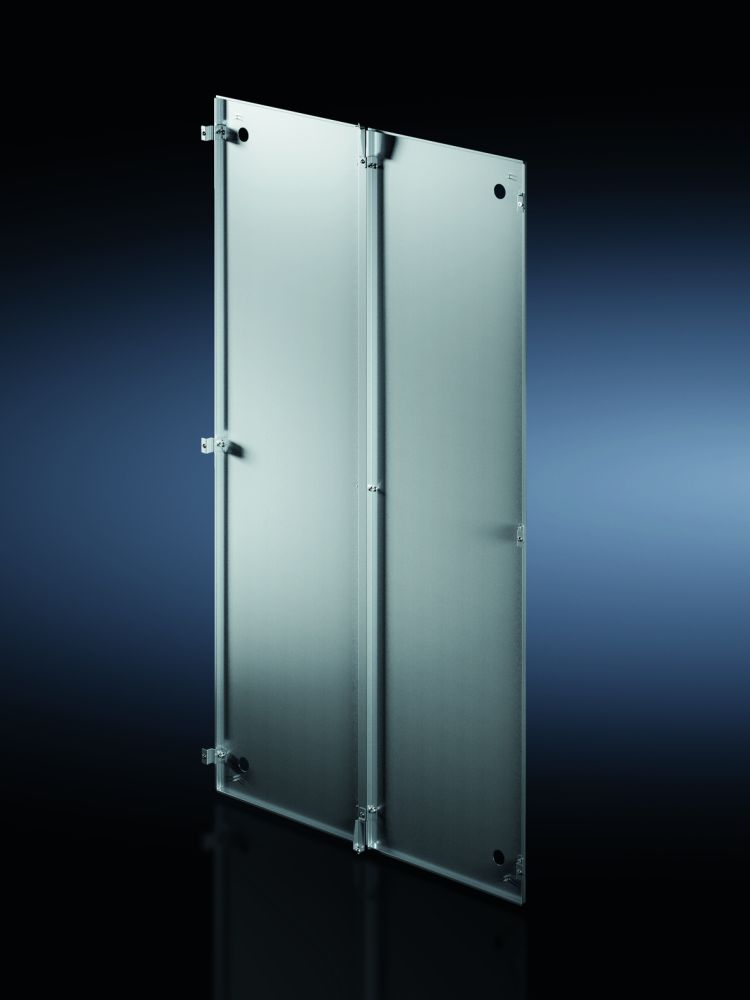

Rittal 5301284
This image may differ from the desired article.
Rittal 5301284Rittal 5301284
-8% 276,69 EUR 299,66 EUR
( 329,26 EUR incl. VAT )
≈ £231.59  |  ≈ $304.08
plus delivery charges: 235,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >10 pieces
1x Rittal 5301284 VX IT baying partition vertically divided 2000x1200
Datasheet:file_download Download
Lieske Part No.:593658
Mfg Part No: 5301284
UPC/EAN: 4028177954854
Weight:28 kg
Type:VX 5301284

Product information for Rittal 5301284:

The baying partition VX 5301284 from Rittal is a vertically split, screwable component for VX IT enclosures, specifically designed for the subsequent mounting and dismounting of bayed enclosures. It enables flexible separation of enclosure sections within a baying arrangement, without requiring a fixed baying spacing. Installation can be carried out either from the outside, prior to baying, or from the inside, after the enclosures have already been connected.

Applications

The baying partition is designed for enclosures with a height of 2,000 mm and a depth of 1,200 mm. It is particularly used in systems requiring modular expansion or flexible utilisation of enclosure spaces. The integrated sealing profile ensures improved enclosure tightness, which is especially relevant for climate control systems or applications involving fire-extinguishing gas. The sealing supports protection against dust, moisture, or fire-extinguishing gases, contributing to the safety and functionality of the system.

Functions and Equipment in Detail

The product consists of two baying panels made of galvanised steel sheet, vertically split and connected via a screwable joint. The delivery includes, in addition, four cover caps, a mounting rail, a sealing profile, and the required fastening material. The cover caps serve to visually close the mounting points and prevent edge injuries. The mounting rail enables secure fastening within the enclosure frame.

Technology Explained Simply

The baying partition is mounted within the frame structure of the enclosure, allowing it to be installed independently of the baying. The screwable construction ensures a stable connection that withstands mechanical loads during operation. The material, galvanised steel sheet, provides sufficient strength and corrosion protection. The sealing is directly integrated into the construction and ensures durable sealing, which is important for climate-controlled or gas-protected systems.

Compatibility and Accessories

The baying partition is specifically designed for VX IT enclosures and matches the standard dimensions of 2,000 mm height and 1,200 mm depth. As suitable accessories, the VX IT baying connector, external, 3 mm, single-piece is offered, which serves for secure connection of multiple enclosures in a baying arrangement. The combination of baying partition and baying connector enables a modular and flexible enclosure layout.

Mounting and Installation

Mounting and dismounting of the baying partition is only possible in enclosures without internal installation. This means that all internal components, such as devices, cables, or mounting elements, must be removed before mounting. The baying partition is fastened to the mounting rail in the frame and screwed together with the baying panels. The cover caps are finally mounted to visually complete the connection.

Advantages in Operation

The baying partition offers high flexibility in planning and reconfiguring enclosure systems. Since it can be mounted subsequently, it is ideal for expansions or changes during operation. The integrated sealing increases safety in critical applications, such as when using fire-extinguishing gases or in climate-controlled rooms. The use of galvanised steel sheet ensures long service life and resistance to environmental influences. The modular design supports efficient maintenance and adaptation of the enclosure system without requiring comprehensive disassembly of the entire unit.

General
MaterialSheet steel, galvanised
Scope of delivery2 partition plates, 4 cover caps, mounting rail, seal, including fastening material
Suitable forHeight: = 2.000 mm, Depth: = 1.200 mm
Mounting noteInstallation/removal is only possible in the cabinet without internal fitting
PCF/VE (Cradle-to-Gate)106.7 kg CO2 eq (Cat B)
Note on PCF classCategory B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared


Product data sheet
Datasheet for Rittal 5301284, EAN: 4028177954854

Questions & answers

What is the delivery time of Rittal 5301284 VX IT baying partition vertically divided 2000x1200?

The article Rittal 5301284 VX IT baying partition vertically divided 2000x1200 is currently in stock

According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 5301284 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 5301284 VX IT baying partition vertically divided 2000x1200 always at the best possible price. We can give you a discount of 2% on Rittal 5301284 VX IT baying partition vertically divided 2000x1200 if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
