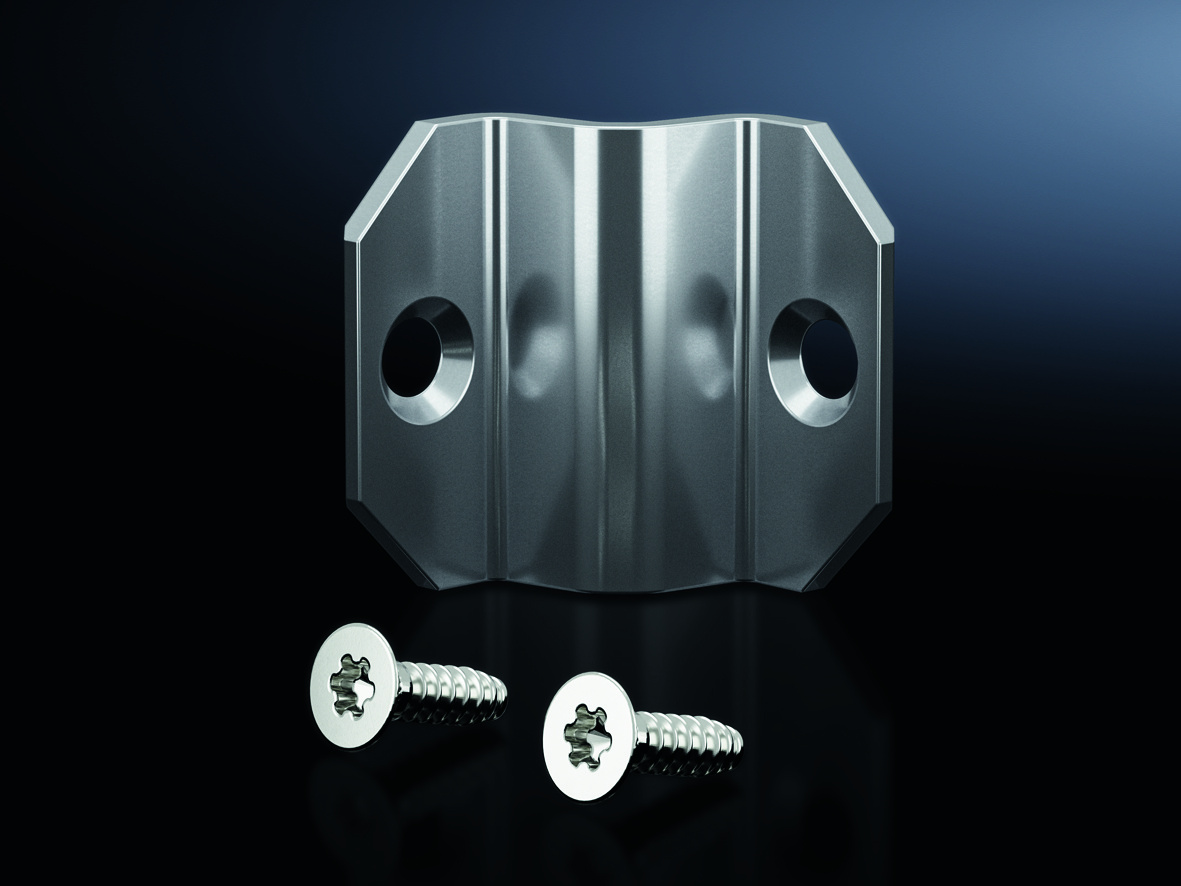

Rittal 5301310 VX IT baying connector, external, 3 mm, one-piece
|
23,00 EUR |
|
|
( 27,37 EUR incl. VAT ) ≈ £19.25 | ≈ $25.28 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline | |
| In Stock: >100 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1910583 |
| Mfg Part No: | 5301310 |
| UPC/EAN: | 4028177950801 |
| Weight: | 0.86 kg |
| Type: | VX 5301310 |
Product information for Rittal 5301310:
Applications
The baying connector is specifically designed for use in enclosure rows where modular expansion or reconfiguration is required. It enables the replacement of racks or LCP units without dismantling the entire enclosure row. Additionally, it is suitable for the subsequent installation and removal of baying partitions, ensuring flexible use of the enclosure structure. The application is exclusively for enclosures of type VX IT.
Functions and Equipment in Detail
The connector ensures a defined baying spacing of 3 mm, which is required for carrying out modifications. It is made of sheet steel with a galvanized surface, providing high corrosion resistance and mechanical stability. The delivery includes 4 baying connectors, a baying seal with a length of 8 m, and the necessary mounting hardware. The seal ensures a clean connection between the enclosures and supports achieving the maximum protection rating IP 20 according to IEC 60 529.
Technology Explained Simply
The design of the baying connector is intended for easy installation. The single-piece, insertable construction allows for quick and precise positioning between the enclosure frames. The galvanized sheet steel surface provides protection against environmental influences such as moisture and minor corrosion. The provided mounting elements are designed for secure anchoring to the enclosure side panels. The baying seal serves to seal the connection line and contributes to achieving protection rating IP 20, which protects against contact with fingers and ingress of solid foreign objects larger than 12.5 mm.
Compatibility and Accessories
The baying connector is exclusively intended for enclosures of type VX IT. It is not suitable for other housing types. Use with LCP cooling solutions is explicitly supported, allowing the replacement of an integrated frame with an LCP solution.
Installation and Mounting
Installation is carried out by inserting the baying connector into the designated mounting points on the enclosure side panels. The provided mounting hardware is used to securely fix the connector. The baying seal is installed along the connection line to ensure a tight connection. Within an enclosure row, the external dimensions increase by 2 mm per enclosure, which must be considered when planning overall dimensions.
Operational Advantages
The baying connector enables flexible and maintenance-friendly use of enclosure rows. It reduces effort during modifications, as no complete disassembly is required. The precise spacing of 3 mm ensures uniform alignment of the enclosures. The use of galvanized sheet steel ensures long service life and high reliability under industrial conditions. Achieving protection rating IP 20 provides sufficient protection for use in indoor environments with low environmental stress.
| General | |
| Applications | For retrofitted replacement of racks or LCP devices, for retrofitted installation/removal of partition walls, single-piece, slide-in |
| Material | steel sheet |
| Surface protection | Galvanized |
| Scope of delivery | 4 stacking connectors, external, 3 mm, stacking seal, 8 m, incl. fastening material |
| Note | Within a row of cabinets, the external dimension increases by 2 mm per cabinet. The maximum achievable degree of protection IP according to IEC 60 529 is IP 20. |
| Suitable for | Housing type: VX IT |
| PCF/VE (Cradle-to-Gate) | 3.4 kg CO2 eq (Cat B) |
| Note on PCF class | Category B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared |
