Rittal 7990000 Fan extension set for VX IT, TS IT

Your rating:
Average rating
product review for Rittal 7990000 Fan extension set for VX IT, TS IT
( 4.3 / 5 ) 4 ratings
Rittal 7990000
This image may differ from the desired article.
Rittal 7990000Rittal 7990000Rittal 7990000
39,78 EUR 39,79 EUR
( 47,34 EUR incl. VAT )
≈ £33.30  |  ≈ $43.72
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 7 workdaysinfo_outline
In Stock: >500 pieces
1x Rittal 7990000 Fan extension set for VX IT, TS IT
Datasheet:file_download Download
Lieske Part No.:1101512
Mfg Part No: 7990000
UPC/EAN: 4028177966345
Weight:0.308 kg
Type:SK 7990.000

Product information for Rittal 7990000:

The Rittal SK 7990.000 is a fan extension kit with integrated speed controller, specifically developed for installation in fan modules of the 5503.xxx series (e.g. 5503.010, 5503.020, 5503.025). It is designed to extend cooling capacity in enclosures and IT systems, particularly within the VX IT and TS IT product lines. The complete solution is ready-to-connect and enables energy-efficient fan control via a pre-set characteristic curve, allowing airflow to be optimised according to operating conditions. It is intended for use in indoor environments where controlled ventilation is required, and is designed for operation within a temperature range of 5 °C to 55 °C.

Applications

The fan extension kit is primarily intended for use in industrial enclosures and IT infrastructures, particularly in systems equipped with Rittal fan modules 5503.xxx. It is used to increase cooling capacity when heat generation rises or to adapt to specific airflow requirements. The integrated speed control enables adjustable cooling performance that matches the actual load in the enclosure, resulting in potential energy savings. Use is restricted to indoor environments, as the IP 20 protection rating does not offer protection against dust or water.

Functions and Equipment in Detail

The fan extension kit features an integrated speed controller that regulates fan speed according to a pre-set characteristic curve. This allows precise adjustment of airflow to match the respective operating conditions. Airflow at operating point is 150 m³/h at a back pressure of 25 Pa, while free-blown airflow reaches 192 m³/h. The sound pressure level at operating point is 44 dB(A), ensuring relatively quiet operation. The rated operating voltage is 24 V (DC), and the maximum rated current is 0.32 A, regardless of frequency (50 Hz or 60 Hz). The nominal power of the device is 7.7 W.

Technology Explained Simply

The integrated speed control operates using a pre-set characteristic curve, adjusting fan speed based on temperature or other parameters. This ensures airflow is maintained only at the level required for cooling, enhancing energy efficiency. The airflow of 150 m³/h at 25 Pa back pressure corresponds to performance under realistic operating conditions, while the free-blown airflow of 192 m³/h represents maximum airflow without resistance. The IP 20 protection rating means the device is protected against contact with fingers and against solid foreign objects larger than 12.5 mm, but not against dust or water. The operating temperature range of 5 °C to 55 °C covers typical indoor conditions.

Compatibility and Accessories

The fan extension kit is specifically designed for installation in Rittal fan modules 5503.010, 5503.020, and 5503.025. It is part of the VX IT and TS IT product families and can be used to extend the cooling capacity of these modules. Compatibility is limited to these model series due to specific dimensions (W x H x D: 119 x 25 x 119 mm) and mounting requirements.

Mounting and Installation

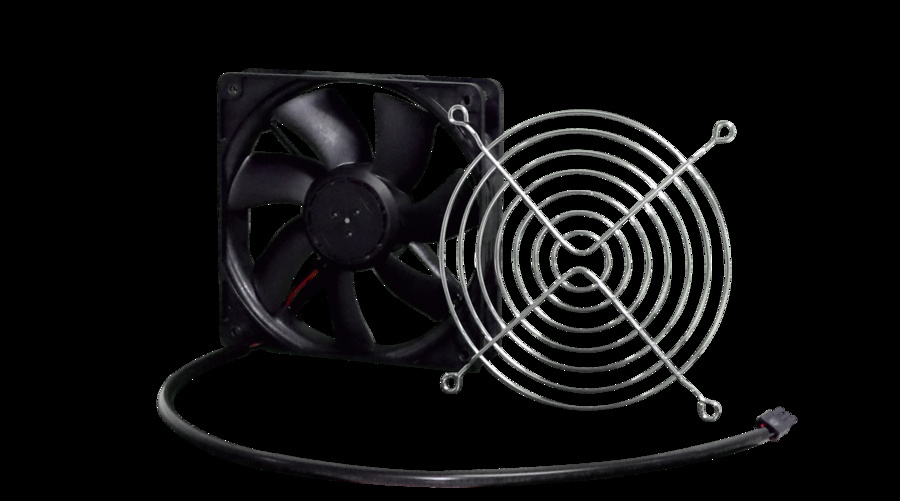

Installation is carried out directly into the designated fan modules 5503.xxx. The delivery includes the fan, a protective grille, mounting hardware, and an installation and quick operating manual. The installation is ready-to-connect, meaning no additional electrical or mechanical adjustments are required. Mounting is performed using the included hardware, which is designed for installation in the modules. The manual contains the necessary steps for correct installation and commissioning.

Operational Advantages

The use of the fan extension kit provides energy-efficient cooling through the integrated speed control, which adjusts airflow to match the actual load. The pre-set characteristic curve ensures optimised cooling performance without unnecessary energy consumption. The quiet operation, with a sound pressure level of 44 dB(A) at operating point, is suitable for environments requiring low noise levels. International approval and multi-voltage capability enable worldwide use, with a rated voltage of 24 V (DC). The dimensions of 119 x 25 x 119 mm fit precisely into the designated modules, ensuring easy integration.

General
Modelwithout roof sheet
MaterialPlastic
ColourRAL 9005
Scope of deliveryfan, protective grille, including mounting material, installation and quick start guide
Airflow (at operating point)150 m³/h
Rated operating voltage24 V (DC)
Rated current max.At 50 Hz: 0.32 A, At 60 Hz: 0.32 A
Width119 mm
Height25 mm
Depth119 mm
Degree of protection IP according to IEC 60 529IP 20
Rotational speed100 %
NoteReduction of specified air flow to 150 m³/h at 25 Pa back pressure
Sound pressure level (at operating point)44 dB(A)
Operating temperature range5 °C...55 °C
Nominal power7,7 W


Product data sheet
Datasheet for Rittal 7990000, EAN: 4028177966345
