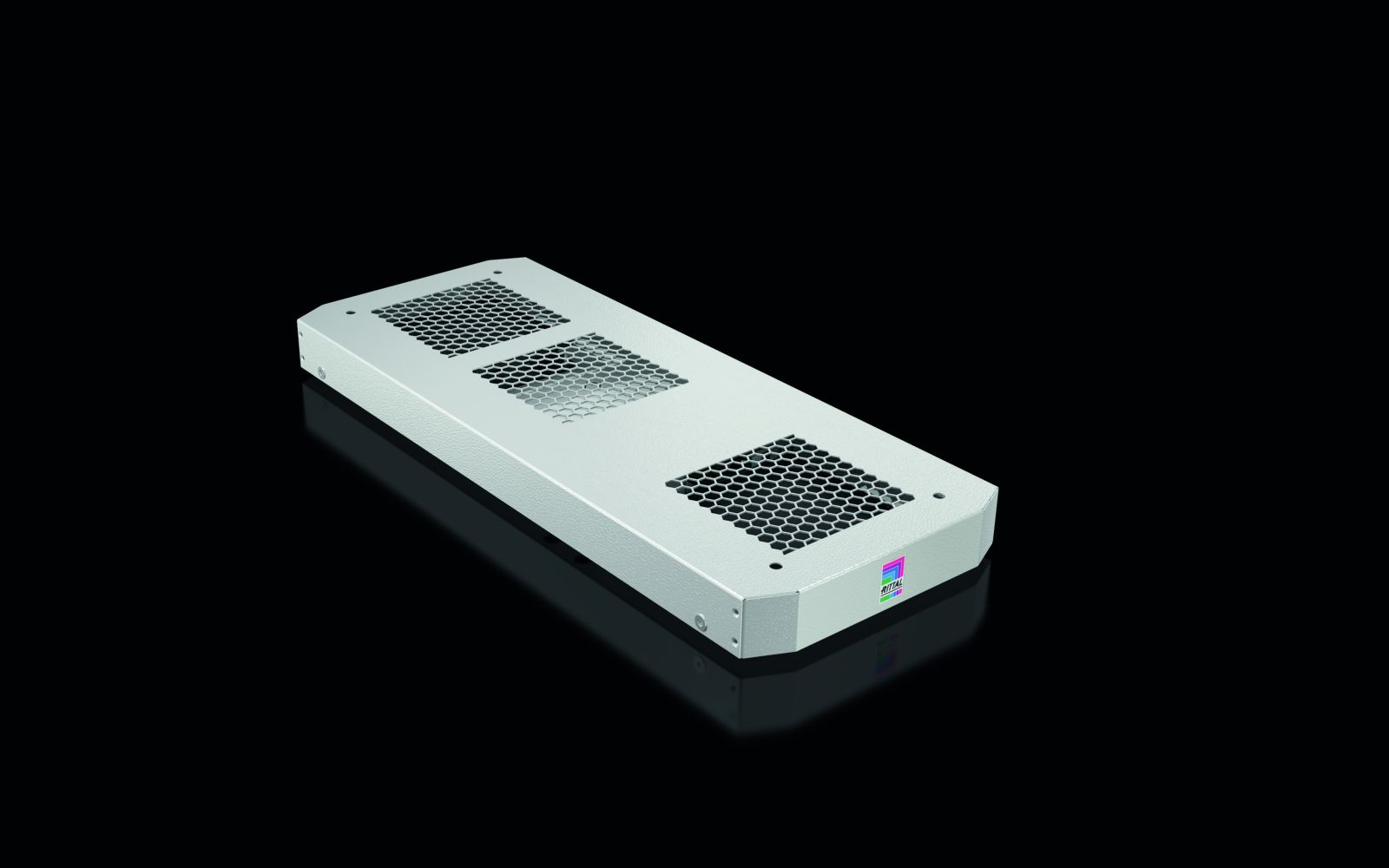

Rittal 5503010 Fan module for VX IT, TS IT, TX CableNet

Your rating:
Average rating
product review for Rittal 5503010 Fan module for VX IT, TS IT, TX CableNet
( 5 / 5 ) 3 ratings
Rittal 5503010
This image may differ from the desired article.
Rittal 5503010Rittal 5503010
172,96 EUR 176,65 EUR
( 205,82 EUR incl. VAT )
≈ £144.77  |  ≈ $190.08
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 7 workdaysinfo_outline
In Stock: >100 pieces
1x Rittal 5503010 Fan module for VX IT, TS IT, TX CableNet
Datasheet:file_download Download
Lieske Part No.:1920783
Mfg Part No: 5503010
UPC/EAN: 4028177966253
Weight:2.653 kg
Type:SK 5503.010

Product information for Rittal 5503010:

The Rittal SK 5503.010 is a fan module for active ventilation of enclosures, specifically designed for enclosure types VX IT, TS IT and TX CableNet. It serves for cooling and air circulation inside the enclosures, ensuring an optimal operating temperature for installed electronic components. The module is made of sheet steel and painted in RAL 7035, enabling a robust and visually uniform integration into industrial environments. The design is without roof plate, allowing it to be directly installed into the integrated cutout of the enclosure roof with dimensions 490 x 120 mm.

Applications
This fan module is intended for use in industrial and IT infrastructure environments where controlled climate conditioning of enclosures is required. It is particularly suitable for installations operated in rooms with limited air circulation or increased heat generation. The ability to install in various enclosure sizes (e.g. 600 x 600 mm to 800 x 600 mm) enables flexible use in different enclosure configurations.

Functions and Equipment in Detail
The module features two integrated axial fans equipped with speed-controlled regulation. The speed control operates via a pre-set characteristic curve, ensuring energy-efficient operation. The air performance is 280 m³/h at a back pressure of 25 Pa, providing sufficient air circulation for most standard applications. The maximum number of fans can be extended to three, increasing cooling capacity under higher thermal loads. The unit is pre-wired and includes a C13 cold appliance socket, enabling simple and secure power supply.

Technology Explained Simply
The rated operating voltage is between 100 V and 240 V, 1~, and designed for frequencies of 50 Hz and 60 Hz, enabling worldwide use. The rated power is 21.5 W, with maximum rated current at 50 Hz being 0.39 A and at 60 Hz 0.36 A. The integrated fuse with 10 A protects the system against overloads. The sound pressure level at operating point is 46 dB(A), ensuring acoustically pleasant operation in work environments. The operating temperature range is between 5 °C and 55 °C, enabling use in climatically varying environments.

Compatibility and Accessories
The fan module is specifically developed for enclosure types VX IT, TS IT and TX CableNet. It can be combined with a fan extension kit to increase the number of fans up to a maximum of three. Additionally, thermostats for internal temperature control and socket strips with cold appliance sockets are available, enabling extended control and power supply within the enclosure.

Mounting and Installation
Mounting is done directly into the designated cutout of the enclosure roof. The module is mounted using included fastening material and is pre-wired. The installation and quick operating instructions, included in the delivery, support the installer in correct mounting and commissioning.

Operational Advantages
The speed-controlled regulation ensures efficient energy use and reduces power consumption compared to constant-speed fans. The integrated C13 socket enables simple and standardized power supply. The high air performance at moderate sound pressure ensures quiet and even cooling. The multi-voltage capability and international approvals (e.g. UL, C-UL) allow use in various countries without additional modifications.

Protection Rating and Material
The module has protection rating IP 20 according to IEC 60 529, providing protection against contact with fingers and against solid foreign objects larger than 12.5 mm. It is not suitable for outdoor use or in damp environments. The material consists of painted sheet steel, offering high mechanical stability and corrosion resistance.

Scope of Delivery
Included in the delivery: 1 fan unit, 2 fans, pre-wired, fastening material, and installation and quick operating instructions.

General
Modelwithout roof sheet
Materialsheet steel, painted
ColourRAL 7035
Scope of delivery1 fan unit, 2 fans, pre-wired, including mounting material, installation and quick operating instructions
Airflow (at operating point)280 m³/h
Rated operating voltage100 V - 240 V, 1~, 50 Hz/60 Hz
Rated current max.At 50 Hz: 0.39 A, At 60 Hz: 0.36 A
Width550 mm
Height42 mm
Depth220 mm
Degree of protection IP according to IEC 60 529IP 20
Rotational speed100 %
FuseCircuit breaker/fuse: 10 A
Mounting optionsIn VX IT with W x D (mm): 600 x 600 / 600 x 800 / 600 x 1000 / 600 x 1200 / 800 x 600, In TS IT with W x D (mm): 600 x 600 / 600 x 800 / 600 x 1000 / 600 x 1200 / 800 x 600, In TX CableNet with W x D (mm): 600 x 600 / 600 x 800 / 600 x 1000 / 600 x 1200 / 800 x 600
NoteReduction of specified air performance to 280 m³/h at 25 Pa back pressure
Sound pressure level (at operating point)46 dB(A)
Suitable forCabinet type: VX IT, TS IT, TX CableNet
Operating temperature range5 °C...55 °C
Nominal power21,5 W


Product data sheet
Datasheet for Rittal 5503010, EAN: 4028177966253
