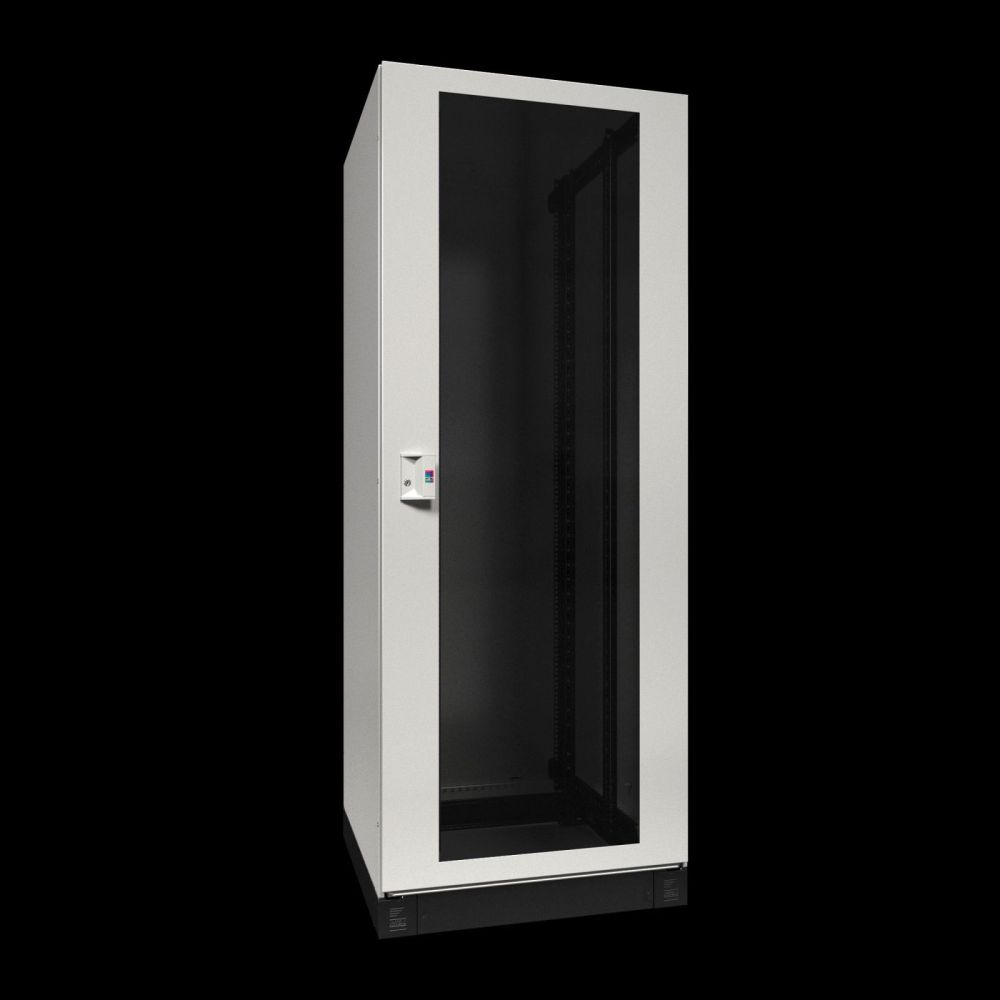

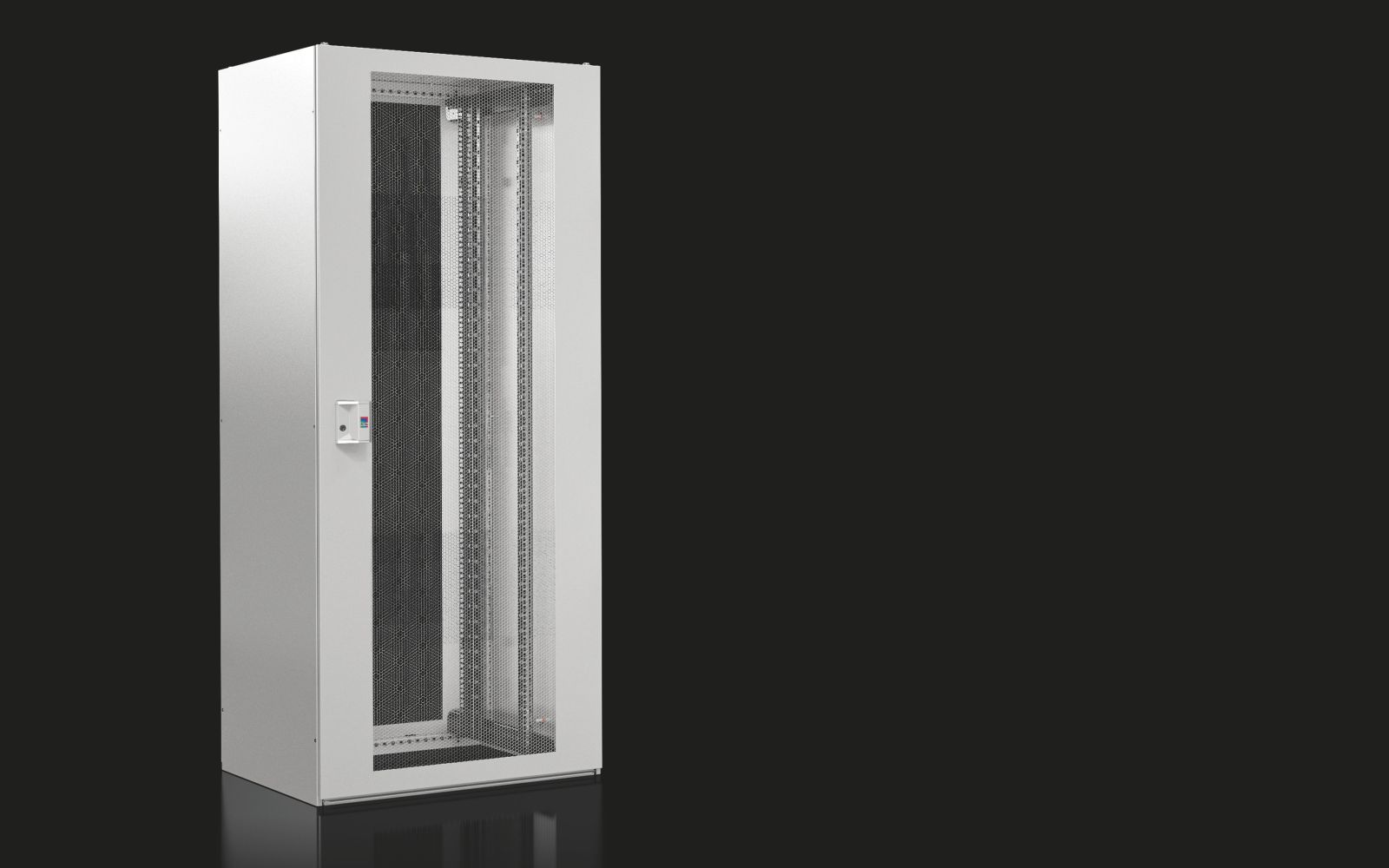

Rittal 7888718 TX CableNet network enclosure 800x1200x800 mm 24 U disassemblable
|
786,69 EUR |
|
|
( 936,16 EUR incl. VAT ) ≈ £658.46 | ≈ $864.57 plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline | |
| In Stock: >5 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 2145882 |
| Mfg Part No: | 7888718 |
| UPC/EAN: | 4028177997561 |
| Weight: | 93 kg |
| Type: | TX 7888718 |
Product information for Rittal 7888718:
Applications
This enclosure is suitable for use in smaller IT network infrastructures where a compact yet powerful solution is required. The optimized design avoids unnecessarily large dimensions and enables efficient use of available space. The standard configuration offers 24 HE (height units) with a rack spacing of 445 mm, providing sufficient space for standard IT components. The static load capacity is 500 kg, ensuring safe installation even with heavy equipment. The protection rating IP 20 according to EN 60 529 protects against finger contact and solid foreign objects, but is not intended for outdoor use or in damp environments.
Functions and Equipment in Detail
The enclosure is made of steel sheet, with doors and side panels having a thickness of 1.2 mm and the 19“ profile rails 2 mm. The surface is dip-primed and powder-coated, ensuring high corrosion resistance and uniform color in RAL 7035. The front and rear 19“ profile rails are depth-adjustable, allowing flexible device mounting. The enclosure frame features integrated system perforation in a 25 mm grid, enabling easy installation of expansion components. Baying of enclosures is possible at the front, rear, and sides.
Technology Explained Simply
The disassemblable frame construction allows modular assembly and simplifies transport and installation in confined spaces. The screwed side panels provide quick access to the interior. The roof plate with concealed cable entry ensures orderly cabling and reduces the risk of cable damage. The integrated opening in the roof plate allows easy installation of a fan module, enabling targeted ventilation inside the enclosure.
Compatibility and Accessories
Various accessories are available for individual interior configuration, including slide rails, component shelves, levelling feet, plinth trim panels, and transport kit. Slide rails are available for rack spacings of 400–600 mm or specifically for 445 mm. Component shelves in various height units (0.5 HE, 1 HE, 1.5 HE) allow flexible device placement. Plinth trim panels and corner pieces support visual and functional integration into existing systems. The brush kit for TX CableNet is specifically designed for covering cable entries.
Assembly and Installation

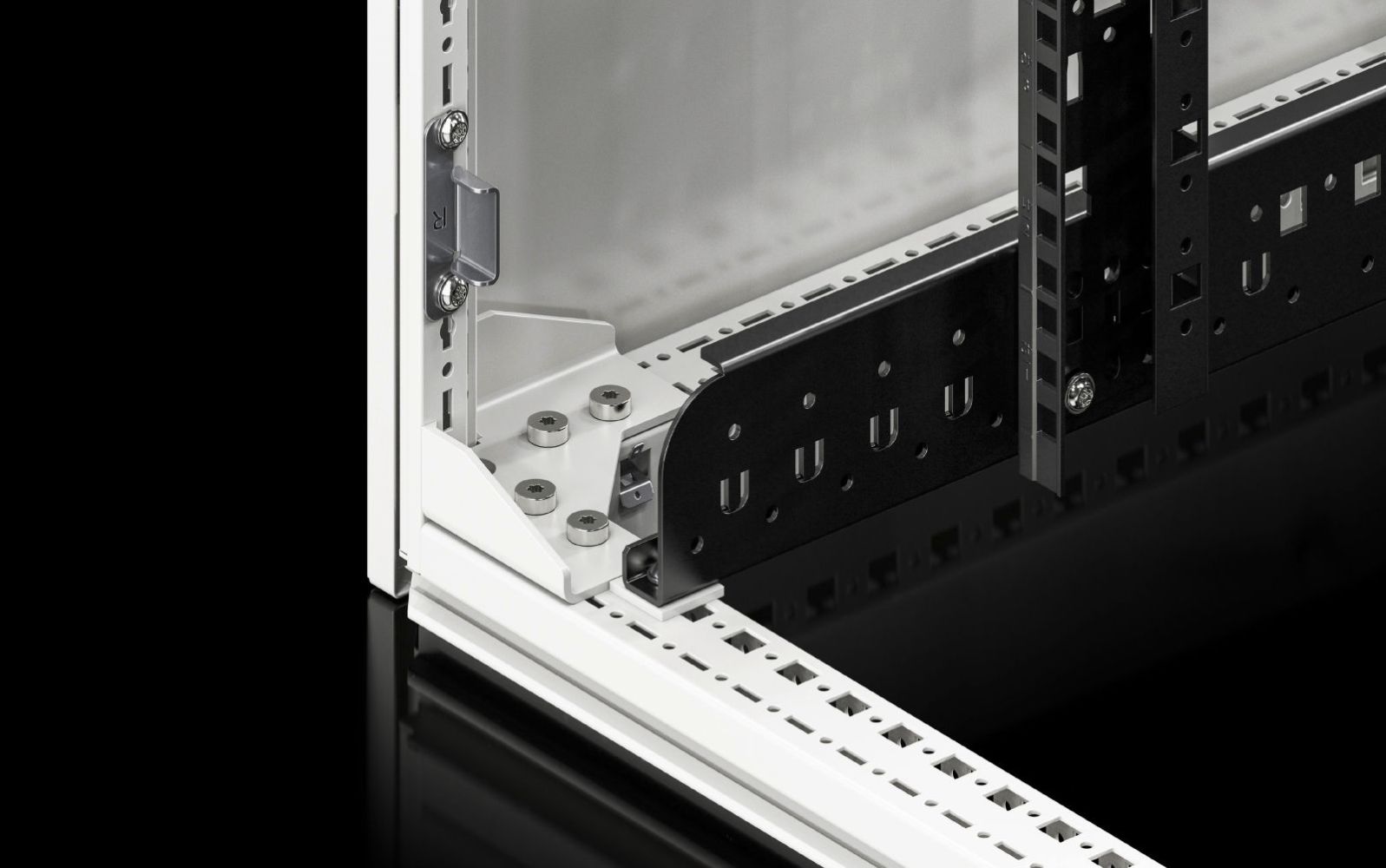

Assembly is performed using the disassemblable enclosure frame, which consists of a torsion-resistant, welded frame structure. The vertical profiles feature two mounting planes offset in depth and width, enabling flexible component mounting. Baying is possible at the front, rear, and sides. The base construction is an open base frame without base plates, allowing flexible adaptation to the respective floor surface.
Operational Advantages
The enclosure offers optimal space utilization due to its compact design and flexible interior configuration. The disassemblable construction simplifies transport and installation. The integrated system perforation and adjustable profile rails enable quick and secure device mounting. The static load capacity of 500 kg and the robust steel sheet construction ensure long service life and high operational safety. The viewing door provides direct visibility of installed components, simplifying maintenance and diagnostics.
| General | |

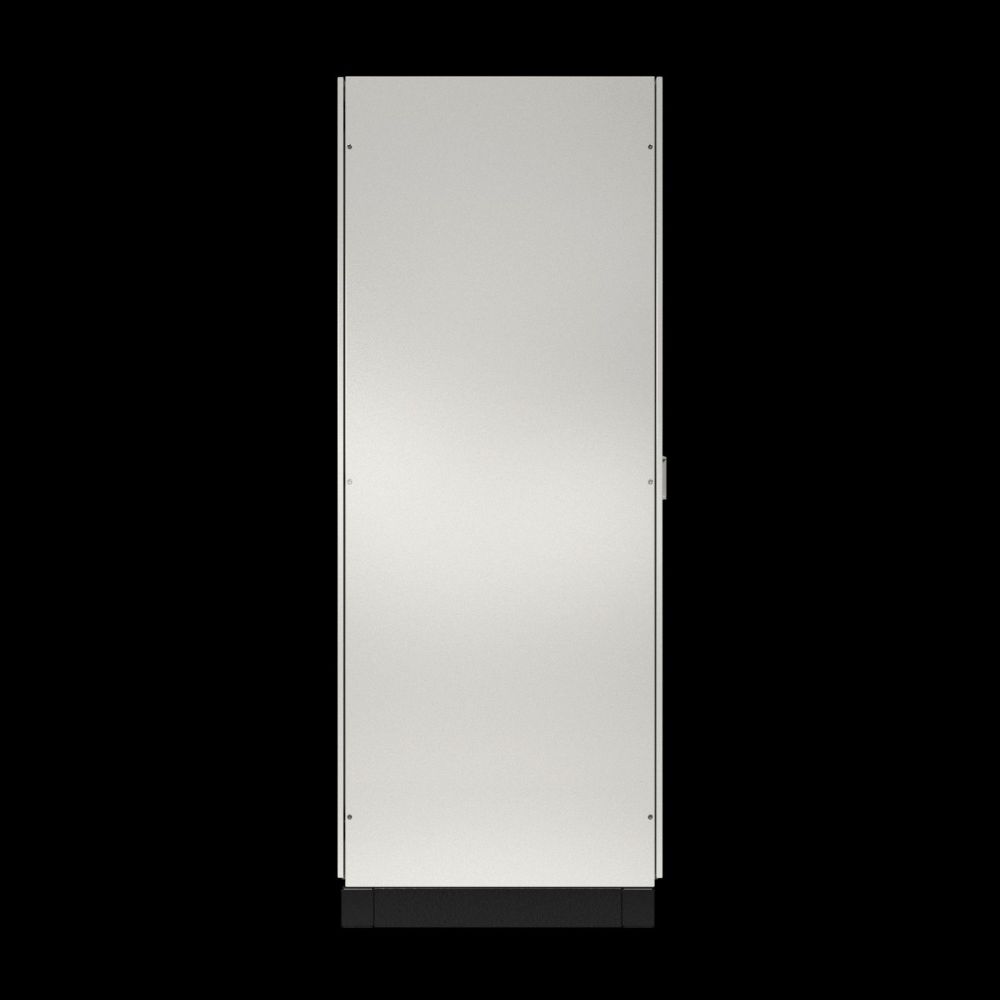

| Model | 2nd generation, disassemblable, with vision door, with side walls, with roof sheet |
| Material | Enclosure: sheet steel, door: sheet steel, 1.2 mm, side wall: sheet steel, 1.2 mm, 19“-profile rails: sheet steel, 2 mm, side wall: sheet steel, 1.2 mm |
| Surface protection | Cabinet frame: dip-primed, flat parts: dip-primed, powder-coated |
| Basic colour | RAL 7035 |
| Colour | RAL 7035 |
| Scope of delivery | Housing with front viewing door and rear door, cabinet frame, disassemblable, with 19" profile rails front and rear, side walls, screwed roof sheet with double-sided concealed cable entry over the entire cabinet depth and central, concealed opening for easy integration of a fan module. |
| Width | 800 mm |
| Height | 1.200 mm |
| Depth | 800 mm |
| Height units | 24 HE |
| Layer spacing (as delivered) | 445 mm |
| 19" mounting | disassemblable |

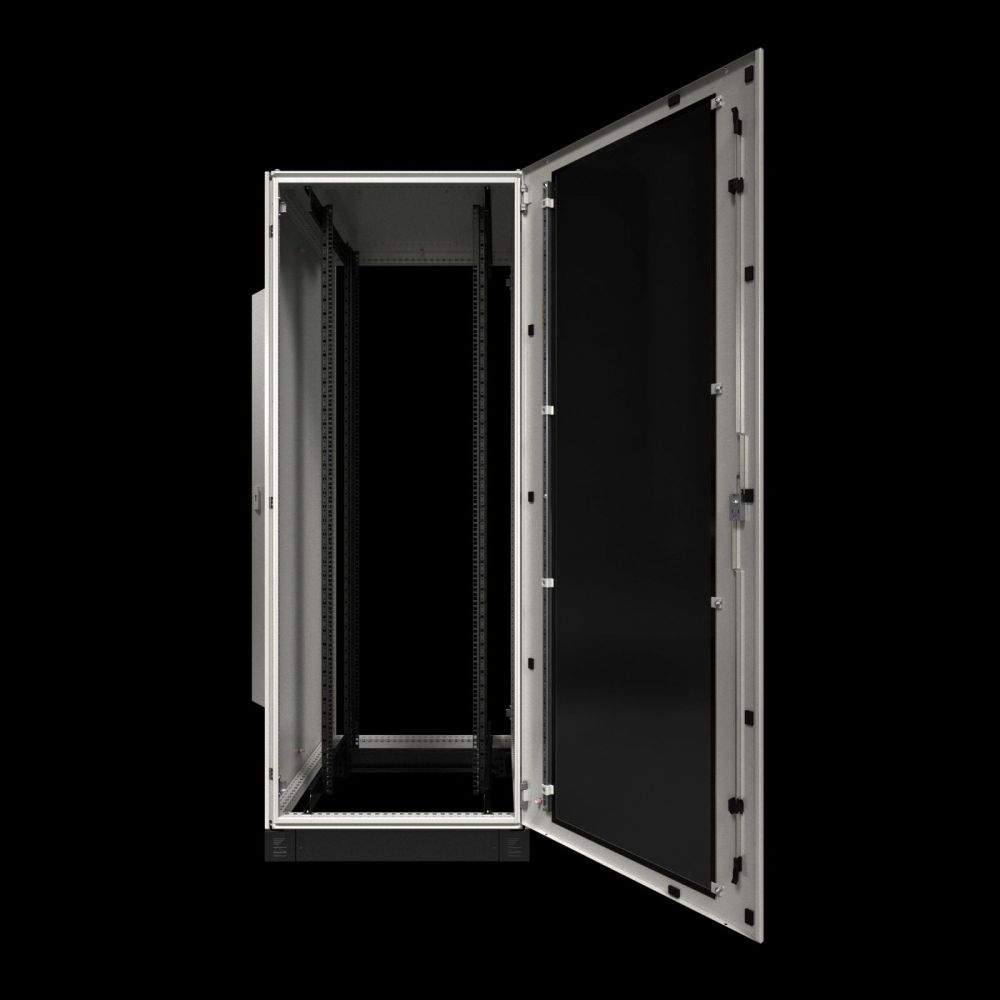

| Door configuration rear | Sheet steel door, single-piece closed |
| Front door configuration | Vision door, single-piece, with single-pane safety glass 3 mm, door opening angle in rowing max. 105° |
| Load capacity | 5000 N |
| Load capacity (static) | 500 kg |
| Degree of protection IP according to EN 60 529 | IP 20 |
| Note | For installation of a fan module, brush strips are required for equipping the cable passage openings, if these are used or the cover plates have been removed. Brush strips for covering the cable entry are available separately and can be conveniently ordered through our accessory range. |
| Base material | steel sheet |
Questions & answers
What is the delivery time of Rittal 7888718 TX CableNet network enclosure 800x1200x800 mm 24 U disassemblable?
The article Rittal 7888718 TX CableNet network enclosure 800x1200x800 mm 24 U disassemblable is currently in stock
According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 7888718 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Rittal 7888718 TX CableNet network enclosure 800x1200x800 mm 24 U disassemblable always at the best possible price. We can give you a discount of 2% on Rittal 7888718 TX CableNet network enclosure 800x1200x800 mm 24 U disassemblable if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
