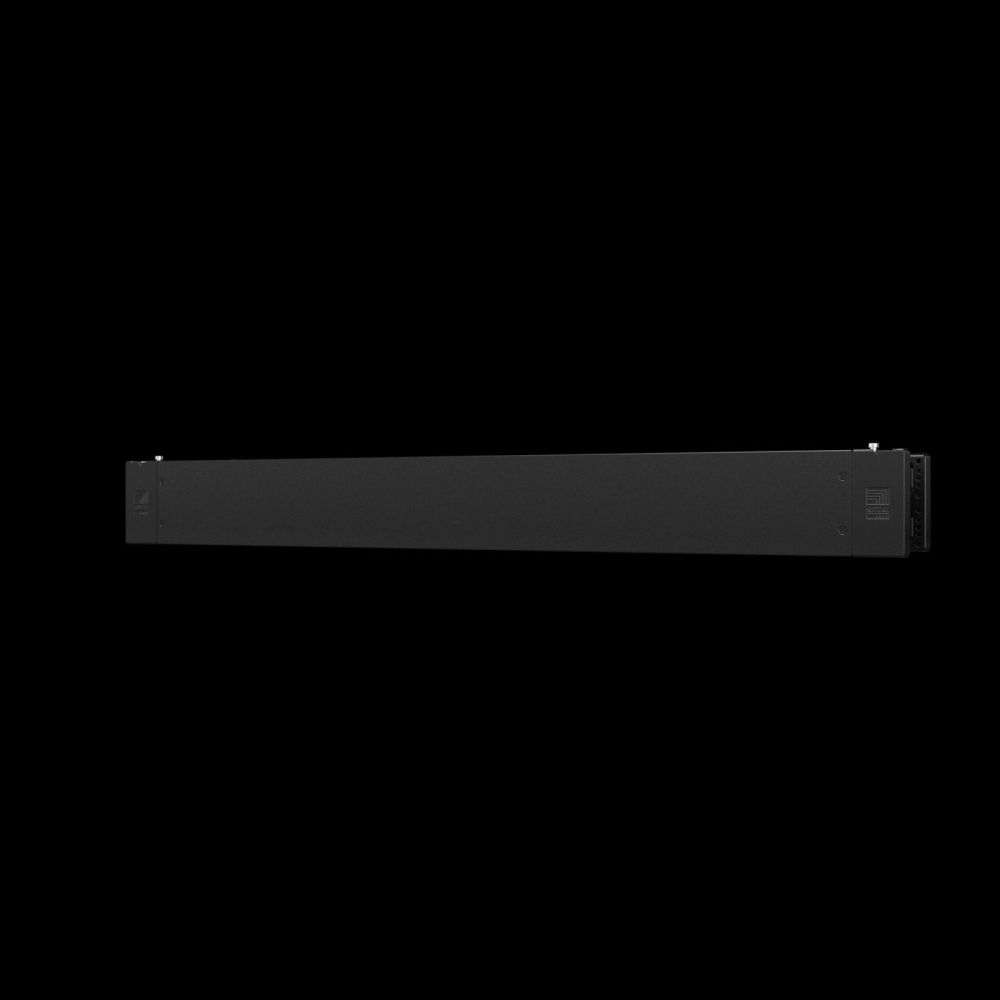

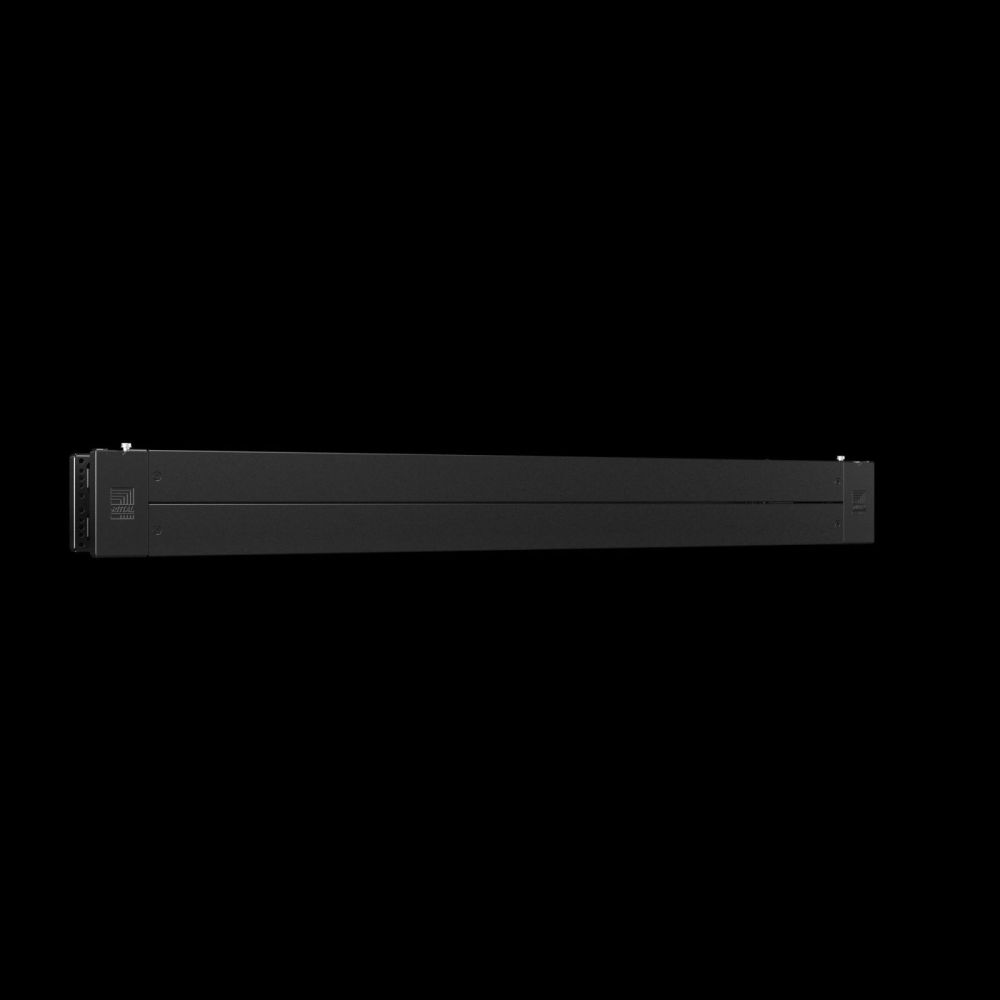

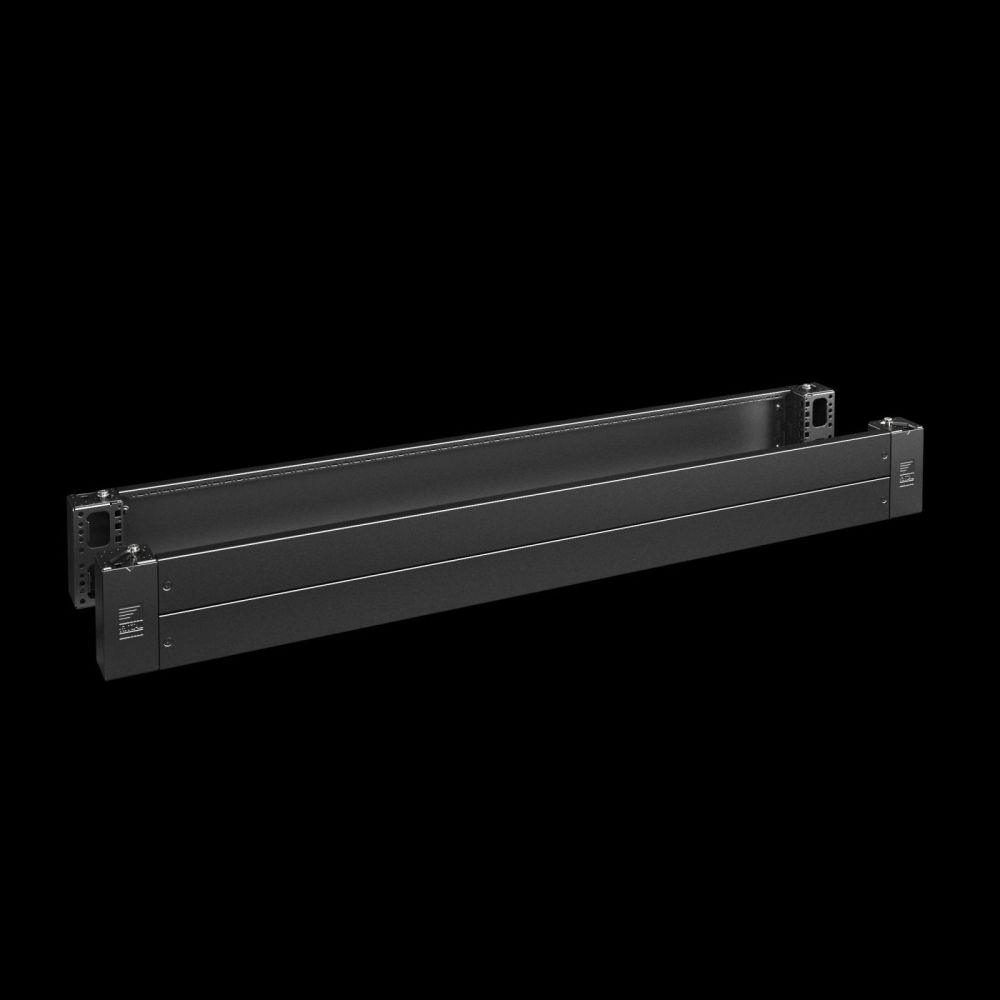

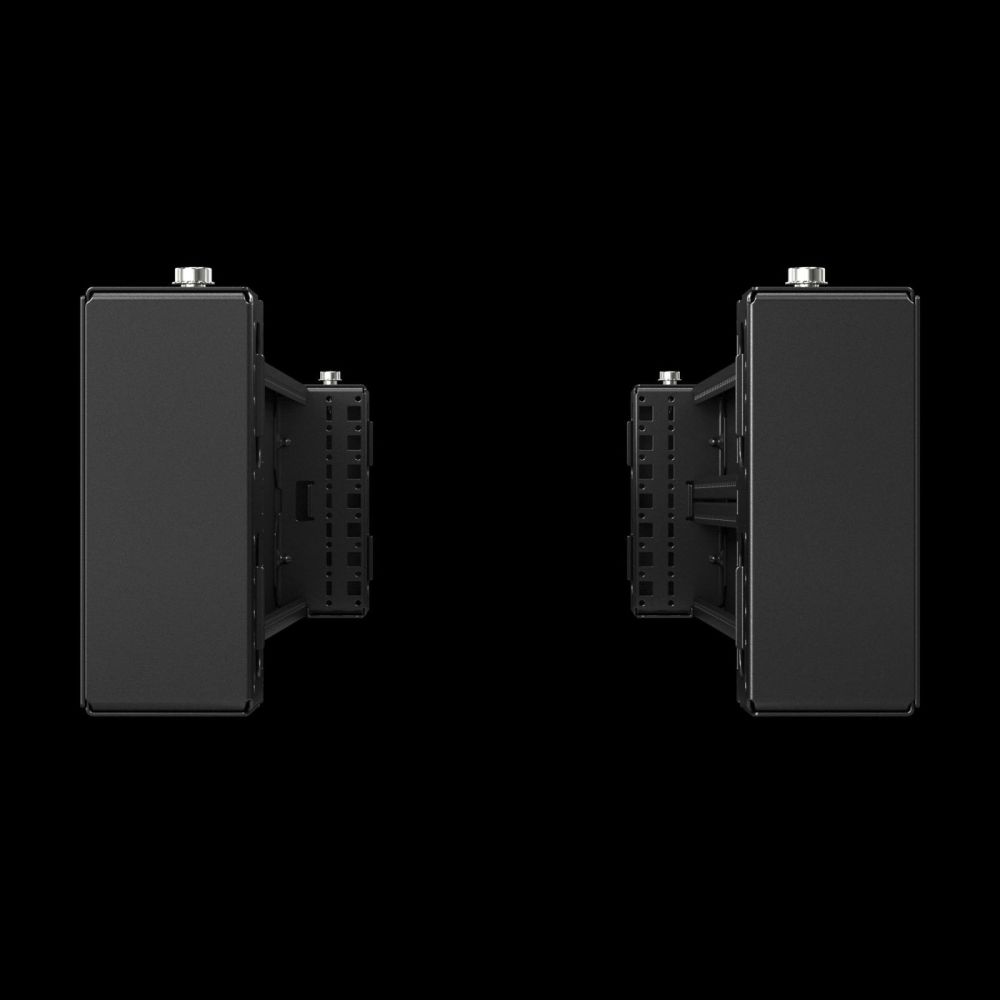

Rittal 8660020 VX plinth corner piece with trim panel, front/rear, H: 200

Your rating:
Average rating
product review for Rittal 8660020 VX plinth corner piece with trim panel, front/rear, H: 200
( 4.7 / 5 ) 3 ratings
Rittal 8660020
This image may differ from the desired article.
Rittal 8660020Rittal 8660020Rittal 8660020Rittal 8660020Rittal 8660020Rittal 8660020
-10% 122,59 EUR 136,75 EUR
( 145,88 EUR incl. VAT )
≈ £102.61  |  ≈ $134.73
plus delivery charges: 100,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >100 pieces
1x Rittal 8660020 VX plinth corner piece with trim panel, front/rear, H: 200
Datasheet:file_download Download
Lieske Part No.:682734
Mfg Part No: 8660020
UPC/EAN: 4028177978119
Weight:5.128 kg
Type:VX 8660020

Product information for Rittal 8660020:

The Rittal VX 8660020 is a plinth corner piece with integrated plinth trim panels at the front and rear, specifically developed for plinth systems with a width of 300 mm. It serves as a stable closure for the corners of plinth elements in the VX system and enables a clean, flush connection between adjacent units. The component consists of sheet steel for the corner pieces and front/rear trim panels, while the corner and baying covers are made of plastic. The colour is RAL 9005, a dark grey, which blends well visually in industrial environments.

Applications
This product is suitable for a wide range of enclosure types, including VX, VX IT, VX SE, TX CableNet, TS, TS IT, TP, PC, IW and CX. It is particularly used in installations where high mechanical stability and proper cable routing are required. The plinth trim panels serve not only as an aesthetic finish but also for additional stabilisation between plinths or as a base for internal installation, such as cable routing or mounting additional components.

Functions and Equipment in Detail
The plinth corner piece has a height of 200 mm and is delivered in a packaging unit of two pieces. The delivery includes 4 corner covers, 4 plinth corner pieces (200 mm high), 1 plinth trim panel front/rear (200 mm), and 2 plinth trim panels front/rear (100 mm). All necessary mounting materials are also included to ensure secure installation. The trim panels are side-mountable and can be used depending on requirements for finishing or stabilisation.

Technology Explained Simply
The use of sheet steel for the corner pieces and trim panels ensures high mechanical strength and durability, especially in industrial environments with high loads. The plastic covers at the corners and baying points provide a clean visual finish and protect against mechanical damage. The height of 200 mm is standardised and matches the typical plinth heights in the VX system. The colour RAL 9005 is an industry standard and allows for uniform design of installations.

Compatibility and Accessories
The plinth corner piece is compatible with various enclosure types in the VX system as well as with other Rittal systems such as TS, TP, PC and CX, provided the width is 300 mm. As accessories, additional elements such as levelling feet, castors, plinth baying brackets or plinth expansion angles can be combined to extend the functionality of the plinth. The use of VX system chassis or optional trim panel mounting brackets is also possible to optimise mounting and internal installation.

Mounting and Installation
Mounting is done by securing the corner pieces to the corners of the plinth, with the integrated front and rear trim panels mounted simultaneously. The included mounting materials enable a secure and durable fixation. The side trim panels (100 mm and 200 mm) can be attached to the sides of the plinth as needed to create a closed surface or to provide additional stability.

Advantages in Operation
The high stability of the plinth ensures secure mounting of enclosures and prevents shifting under load. The flexible internal installation function allows individual adaptation to specific requirements, such as cable routing or mounting of additional components. The flush finish between baying points provides a professional appearance and facilitates maintenance. Compliance with UL 50E Type 1 and Type 12 standards ensures suitability for indoor use under various environmental conditions.

General
MaterialSocket corner piece: sheet steel, socket front/rear cover: sheet steel, corner and gang cover: plastic
ColourRAL 9005
Scope of delivery4 corner covers, including fastening material, 4 base corner pieces, 200 mm high, 1 base panel front/back, 200 mm, 2 base panels front/back, 100 mm
NoteSocket inserts, side-mounted, serve to terminate a socket unit or for additional stabilization between sockets or for internal fitting of sockets
Height200 mm
Suitable forHousing type: VX, VX IT, VX SE, TX CableNet, TS, TS IT, TP, PC, IW, CX, width: = 300 mm
Type rating according to UL 50EType 1, Type 12
Weight/PU5,13 kg
PCF/VE (Cradle-to-Gate)19.95 kg CO2 eq (Cat B)
Note on PCF classCategory B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared


Product data sheet
Datasheet for Rittal 8660020, EAN: 4028177978119
