Rittal 3378380 LWWT LCP Industry, L35 W10 9.5 kW, 300 x 2000 x 800

Your rating:
Average rating
product review for Rittal 3378380 LWWT LCP Industry, L35 W10 9.5 kW, 300 x 2000 x 800
( 4 / 5 ) 1 ratings

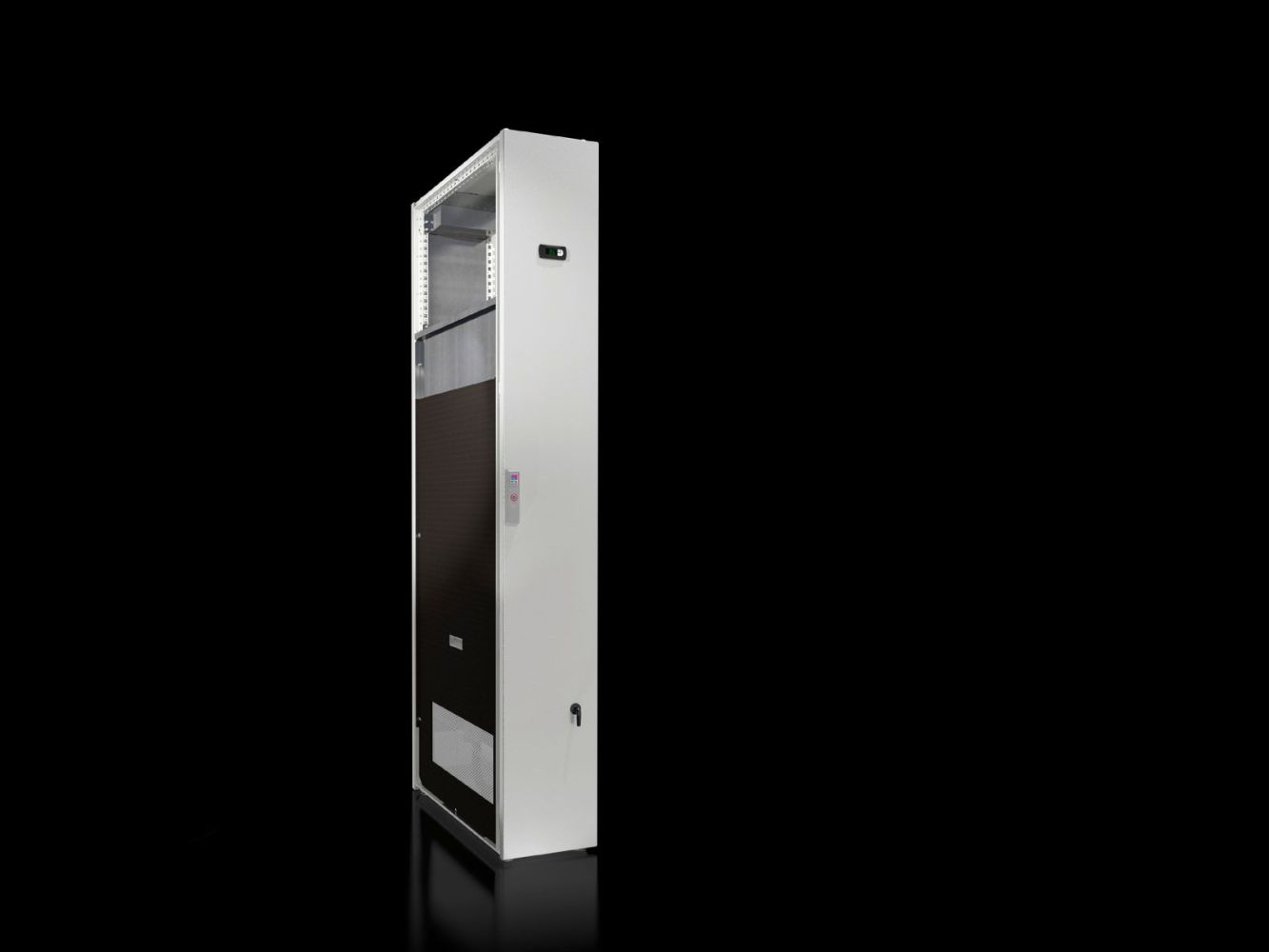

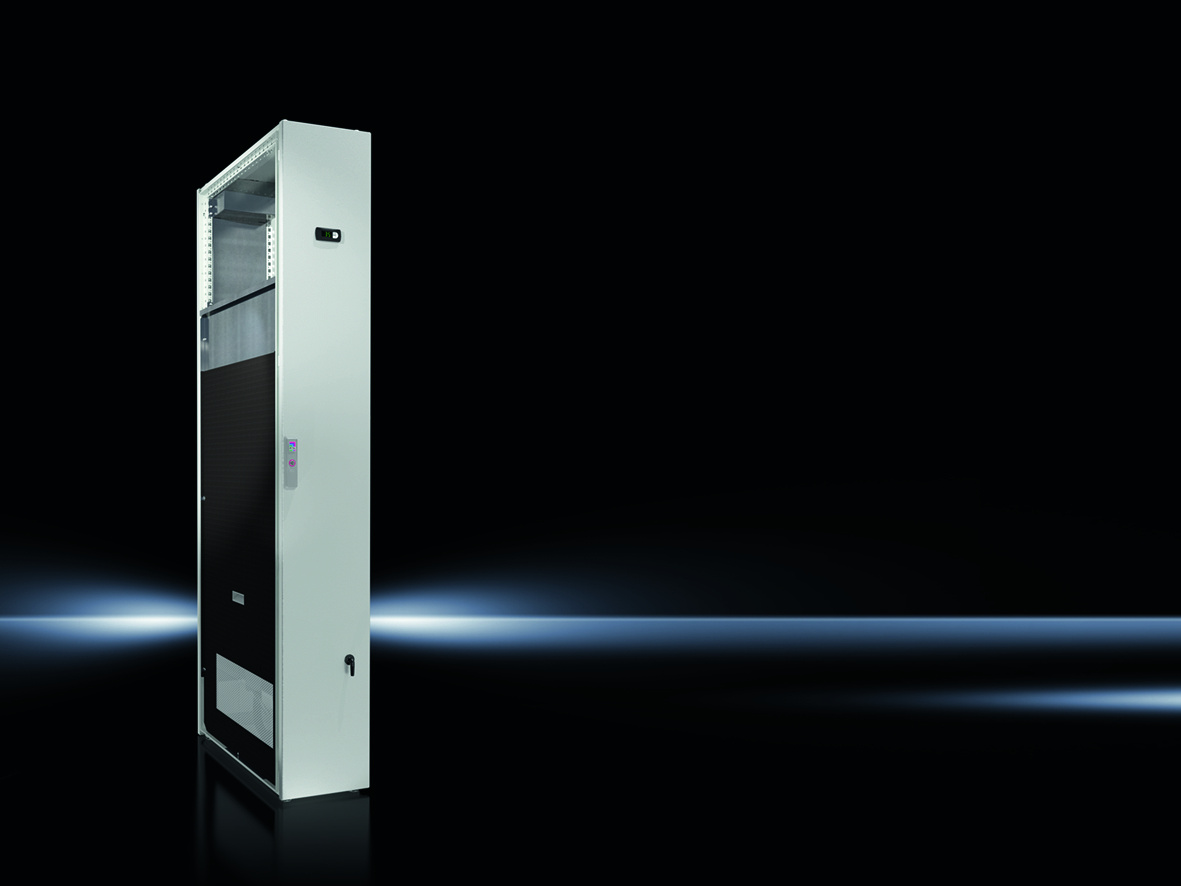

Rittal 3378380
This image may differ from the desired article.
Rittal 3378380Rittal 3378380Rittal 3378380
-8% 4.564,35 EUR 4.943,31 EUR
( 5.431,58 EUR incl. VAT )
≈ £3,820.36  |  ≈ $5,016.22
Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline
In Stock: 5 pieces
1x Rittal 3378380 LWWT LCP Industry, L35 W10 9.5 kW, 300 x 2000 x 800
Datasheet:file_download Download
Lieske Part No.:1989298
Mfg Part No: 3378380
UPC/EAN: 4028177958272
Weight:135.5 kg
Type:SK 3378380

Product information for Rittal 3378380:

The Rittal SK 3378380 is an air/water heat exchanger in the bayed enclosure system VX25, specifically designed for industrial applications. It serves for climate control of enclosures and ensures efficient cooling under high thermal loads. The unit is designed for enclosures with a depth of 600 or 800 mm and a height of 2000 mm. The total cooling capacity is 9.5 kW at a water flow rate of 2000 l/h, with cooling capacity available as 5 kW on each side or 10 kW on one side, depending on the air outlet configuration. Cooling is achieved via a water circulation system, with water as the coolant medium, whose specifications can be retrieved from the manufacturer’s website. The water-carrying parts are made of copper and brass (Cu/CuZn), ensuring high corrosion resistance and thermal conductivity.

Applications

The SK 3378380 is intended for use in industrial environments, particularly in enclosures exhibiting high heat generation. It is suitable for installations in manufacturing, energy supply, automation technology, and other areas requiring reliable and continuous cooling. The operating temperature range is between 5 °C and 70 °C, enabling broad applicability under various ambient conditions. The flexible connection option for coolant water – either at the top or bottom of the unit – facilitates integration into existing water circuits.

Functions and Equipment in Detail

The cooling unit is delivered ready for connection and wired to a terminal block, simplifying installation. The front door features a display indicating the operating status. Temperature control is managed by an e-Comfort controller, factory-set to +35 °C. The temperature control range is between 20 °C and 55 °C, allowing cooling capacity to be adjusted according to specific requirements. The unit is designed for 100 % duty cycle, ensuring continuous operational readiness. Electrical connection is made via a connection terminal, with a rated operating voltage of 230 V, 1~, 50 Hz/60 Hz. The rated power is 350 W at 50 Hz and 350 W at 60 Hz, with a maximum rated current of 2.65 A (50 Hz) or 2.62 A (60 Hz). A 4 A fuse is provided to ensure electrical safety.

Technology Explained Simply

The heat exchanger operates on the principle of transferring heat from the air inside the enclosure to the coolant water. Warm air inside the enclosure is passed through the heat exchanger, where heat is transferred to the flowing coolant water. The coolant water, supplied at an inlet temperature between 7 °C and 30 °C, absorbs the heat and transports it outside the enclosure. The copper and brass components carrying water ensure efficient heat transfer and high mechanical stability. The protection rating IP 55 according to EN 60 529 protects the unit against dust and splashing water, making it suitable for industrial environments. The sound pressure level is 60 dB(A), representing an acoustically acceptable operating noise level.

Compatibility and Accessories

The unit is specifically developed for the bayed enclosure system VX25 and fits enclosures with a depth of 600 or 800 mm and a height of 2000 mm. Baying is achieved by side bolting, enabling modular expansion. Compatible accessories include, for example, Rifrost-Outdoor and Rifrost-Standard water circuits in various volumes (10 L, 25 L), SK condensate hoses, SK Master/Slave cables for the SK-Bus system, VX plinth corner pieces, plinth trim panels, as well as VX side panels and baying connectors. These components support integration into existing systems and allow individual adaptation to specific requirements.

Installation and Mounting

Mounting is performed in the VX25 enclosure, with the unit dimensions (width 300 mm, height 2000 mm, depth 800 mm) matched to the enclosure dimensions. Water connections are equipped with G ¾" internal thread, enabling universal connection to standard piping. Electrical connection is made via the provided terminal block. The front door with display allows easy monitoring of the operating status. The rear panel is included in the delivery and ensures a closed installation within the enclosure. Multilingual documentation supports installation and maintenance.

Operational Advantages

The SK 3378380 offers high cooling capacity of 9.5 kW at low energy consumption of 350 W. Continuous operational readiness (100 % duty cycle) and flexible coolant water connection options enhance reliability and adaptability. The IP 55 protection rating ensures high mechanical and electrical safety. Integrated temperature control via the e-Comfort controller enables precise regulation of cooling capacity. Modular baying via side bolting supports scalability of installations. The unit is delivered with a connected cooling unit, front door with display, rear panel, and multilingual documentation, simplifying installation.

General
ModelWater-carrying parts copper/brass (Cu/CuZn)
ColourRAL 7035
Scope of deliveryReady-to-connect cooling unit, wired to terminal block, front door with display, rear panel, multilingual documentation
Total cooling capacityL 35 W 10 at 2000 l/h: 9.5 kW
Rated operating voltage230 V, 1~, 50 Hz/60 Hz
Rated power PelAt 50 Hz: 350 W, At 60 Hz: 350 W
Rated current max.At 50 Hz: 2.65 A, At 60 Hz: 2.62 A
Permissible operating pressure (p max.)1: 6 bar
Electrical connection typeConnection terminal
Working time100 %
Cooling mediumWater (specification see internet)
Water supply temperature7 °C...30 °C
Water connectionsG ¾" IG
Conduit volume5 l
Temperature controle-Comfortcontroller (factory setting +35 °C)
Operating temperature range5 °C...70 °C
NoteStacking by side mounting possible
Width300 mm
Height2.000 mm
Depth800 mm
Sound pressure level60 dB(A)
FuseCircuit breaker/fuse: 4 A
Adjustment range20 °C...55 °C
Degree of protection IP according to EN 60 529IP 55
