Rittal 8176245 VX side panel, screwable, for HT 1200x1000 mm, pack of 2

Your rating:
Average rating
product review for Rittal 8176245 VX side panel, screwable, for HT 1200x1000 mm, pack of 2
( 4.4 / 5 ) 12 ratings

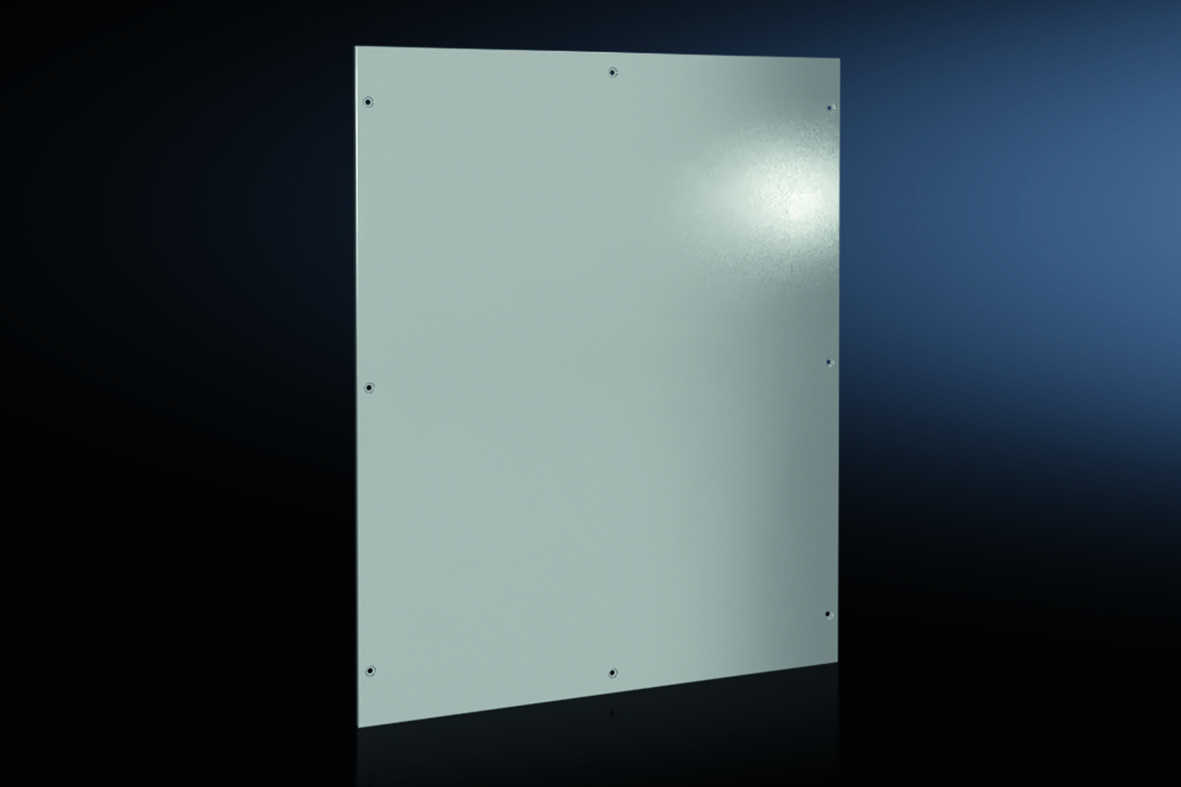

Rittal 8176245
This image may differ from the desired article.
Rittal 8176245Rittal 8176245Rittal 8176245
144,10 EUR
( 171,48 EUR incl. VAT )
≈ £120.61  |  ≈ $158.37
plus delivery charges: 235,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >50 pieces
1x Rittal 8176245 VX side panel, screwable, for HT 1200x1000 mm, pack of 2
Datasheet:file_download Download
Lieske Part No.:1440648
Mfg Part No: 8176245
UPC/EAN: 4028177921658
Weight:28.8 kg
Type:VX 8176.245

Product information for Rittal 8176245:

Rittal VX 8176.245 is a screw-mounted side panel made of sheet steel, specifically designed for enclosures of type VX with a height of 1,200 mm and a depth of 1,000 mm. The product serves as a component for complete coverage of the side surfaces of enclosures and ensures a defined protection rating. The side panel is manufactured from 1.5 mm thick sheet steel, which is dip-primed and powder-coated on the outside, providing uniform surface quality and corrosion protection. The colour is RAL 7035, a grey tone commonly used in industrial applications. The packaging unit includes two pieces, with the fastening material already included in the delivery scope.

Applications

The side panel is intended for use in industrial electrical and automation systems, particularly in enclosures of the VX system. It is used in installations requiring a protection rating of IP 55 according to IEC 60 529, which means protection against dust and splashing water. The application is suitable for indoor environments as well as areas where occasional splashing water may occur, such as production halls or machine installations. The type rating according to UL 50E (Type 1 and Type 12) also makes it suitable for use in the USA and Canada, where these standards apply.

Functions and Equipment in Detail

The side panel is mounted by screwing, with clip-on side panel holders enabling time-saving installation. The holders are designed to support easy positioning in height and depth using a hanging aid. This allows for one-person installation, simplifying on-site assembly. The flat part holders integrate internal contact elements that ensure automatic equipotential bonding and enhance electromagnetic compatibility (EMC) protection. The earthing bolts feature a large, paint-free contact surface to ensure optimal electrical connection and grounding.

Technology Explained Simply

The use of 1.5 mm thick sheet steel ensures sufficient mechanical stability to protect the side panel against external loads such as mechanical vibrations or pressure. The dip priming and external powder coating provide durable corrosion protection, especially in humid or slightly aggressive environments. The protection class IP 55 means the side panel is dust-tight and protected against splashing water from all directions, making it suitable for industrial environments. The type rating according to UL 50E (Type 1 and Type 12) refers to protection against dust, splashing water, and foreign objects, with Type 1 for indoor use and Type 12 for environments with splashing water and dust.

Compatibility and Accessories

The side panel is specifically designed for enclosures of the VX system with a height of 1,200 mm and a depth of 1,000 mm. As compatible accessories, the VX internal locking mechanism for side panel, galvanised, is offered, which enables additional securing of the side panel. This locking mechanism can be used to prevent unintended openings or to increase safety in critical operational installations.

Installation and Mounting

Installation is carried out by screwing onto the designated holders inside the enclosure. The clip-on holders facilitate mounting, as they can be attached without additional tools or aids. The hanging aid enables precise alignment in height and depth, ensuring a clean and secure installation. The earthing bolts are designed to allow direct and firm electrical connection, which is important for safety and EMC compatibility.

Operational Advantages

The side panel provides reliable coverage of the enclosure sides, withstanding both mechanical and electromagnetic influences. The integrated earthing and automatic equipotential bonding contribute to safety and reduce the risk of disturbances in the electrical system. The simple mounting and one-person installation reduce labour effort and installation time. The use of sheet steel and the IP 55 protection rating ensure long service life and easy maintenance in industrial applications. The colour RAL 7035 matches common colour schemes in industrial facilities, enabling a uniform appearance.

General
MaterialSheet steel, 1.5 mm
Surface protectionDip-coated, powder-coated exterior
ColourRAL 7035
Scope of deliveryIncluding mounting hardware
Suitable forHousing type: VX, height: = 1,200 mm, depth: = 1,000 mm
Degree of protection IP according to IEC 60 529IP 55
Type rating according to UL 50EType 1, Type 12
Base materialsteel sheet
PCF/VE (Cradle-to-Gate)86.85 kg CO2 eq (Cat B)
Note on PCF classCategory B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared


Please note...
This article has over-size and needs to be seperately taken care of. This is why we want to inform you, that the calculation of the delivery charges in the shopping cart will disregard this aspect. Though, there will be corresponding surcharges after you send us your order.
Product data sheet
Datasheet for Rittal 8176245, EAN: 4028177921658

Questions & answers

What is the delivery time of Rittal 8176245 VX side panel, screwable, for HT 1200x1000 mm, pack of 2?

The article Rittal 8176245 VX side panel, screwable, for HT 1200x1000 mm, pack of 2 is currently in stock

According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 8176245 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 8176245 VX side panel, screwable, for HT 1200x1000 mm, pack of 2 always at the best possible price. We can give you a discount of 2% on Rittal 8176245 VX side panel, screwable, for HT 1200x1000 mm, pack of 2 if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
