Rittal 1479000 AX plastic enclosure 800x1000x300 mm with S.

Your rating:
Average rating
product review for Rittal 1479000 AX plastic enclosure 800x1000x300 mm with S.
( 4.5 / 5 ) 2 ratings

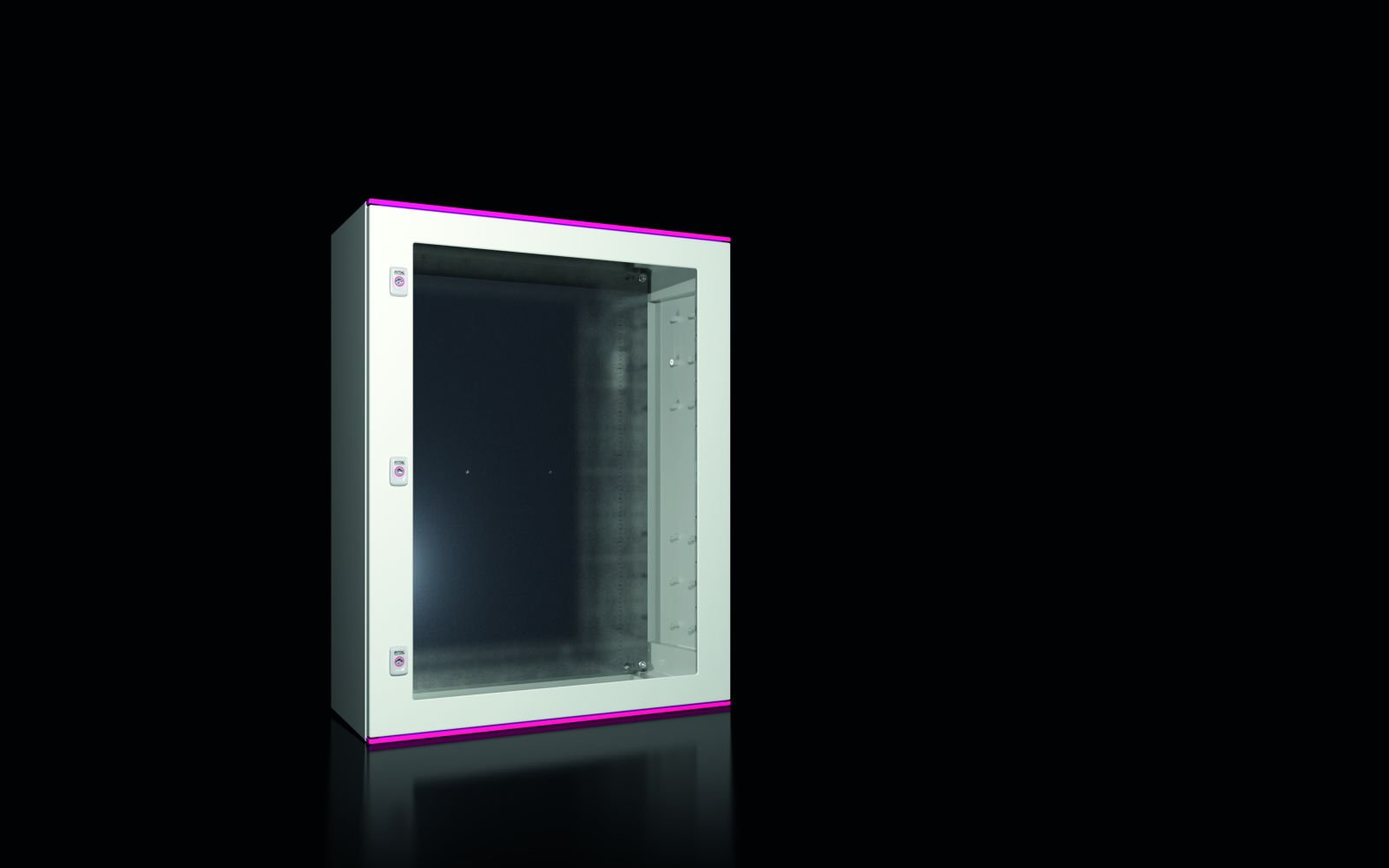

Rittal 1479000
This image may differ from the desired article.
Rittal 1479000Rittal 1479000Rittal 1479000Rittal 1479000Rittal 1479000Rittal 1479000Rittal 1479000
-10% 825,70 EUR 912,69 EUR
( 982,58 EUR incl. VAT )
≈ £691.11  |  ≈ $907.44
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: 4 pieces
1x Rittal 1479000 AX plastic enclosure 800x1000x300 mm with S.
Datasheet:file_download Download
Lieske Part No.:1910560
Mfg Part No: 1479000
UPC/EAN: 4028177007048
Weight:39.5 kg
Type:AX 1479000

Product information for Rittal 1479000:

The Rittal AX 1479000 is a plastic enclosure with a viewing window, designed for use in demanding environments. The enclosure is made of a single piece of impact-resistant, glass-fibre-reinforced, unsaturated polyester (GFK), which is self-extinguishing according to UL 94-V0 and halogen-free. The surface is integral-coloured and not post-treated, with a colour similar to RAL 7035. The door is fitted with a continuously foamed PU seal and features an integrated door reinforcement frame with mounting domes. The viewing window is made of polycarbonate and allows visual inspection of the interior without opening the door. The enclosure is fully enclosed and equipped with a 3 mm double-lip seal located on the right side, which can be converted to the left side. The door opens to an angle of 130° and includes an integrated bottom stop at the lower edge, as well as a double seal at the top and bottom door edges serving as a rain shield.

Applications
This enclosure is suitable for indoor and outdoor use, particularly in environments with high mechanical stress, humidity, or temperature fluctuations. It is designed for ambient temperatures from -30 °C to +75 °C, although the actual operating temperature may be limited by installed components. The IP 56 protection rating according to EN 60 529 ensures protection against dust and splashing water, making it suitable for outdoor or humid industrial environments. The NEMA 1, 3R, 3RX, 4, 4X, and 12 ratings, as well as the Type rating according to UL 50E (Type 1, 3R, 3RX, 4, 4X, 12), confirm suitability for various industrial requirements. The F1 Outdoor Rating according to UL 746C highlights its suitability for outdoor applications. The IK09 rating indicates high mechanical strength against impact and shock.

Functions and Equipment in Detail
The enclosure features numerous mounting domes internally, enabling individual interior installation on a 25 mm grid. This includes, for example, system chassis or rails. The mounting plate, made of galvanized steel sheet (3 mm thickness, dimensions 705 mm x 925 mm), is equipped with keyhole slots for earthing and dimension markings, and is secured with Limbach nuts. The door hinges are made of stainless steel, providing corrosion resistance. A QR code is printed on the enclosure, mounting plate, door, and type plate to enable unique identification and traceability of individual parts.

Technical Explanation
The use of glass-fibre-reinforced polyester (GFK) ensures high mechanical stability and weather resistance. The self-extinguishing property according to UL 94-V0 reduces fire risk. The IP 56 protection rating means the enclosure is dust-tight and protected against splashing water from all directions, which is important for outdoor or humid environments. The NEMA classification includes various protection levels, including protection against rain (NEMA 3R), splashing water (NEMA 4), and dust (NEMA 12). The IK09 rating guarantees high protection against mechanical impacts, such as impacts from tools or other objects.

Compatibility and Accessories
Compatible accessories include lock inserts made of zinc die-cast, mounting brackets, mounting plates in various sizes, TS mounting rails for a door width of 800 mm, circuit diagram pockets made of steel sheet, AX Mini comfort handles, the AS Multitool AX/VX 4052000, LED system lights, and VX system chassis in various dimensions. These components allow for flexible and application-specific equipment of the enclosure.

Mounting and Installation
Internal component mounting requires interior installation screws. Mounting is done on a 25 mm grid, using universal brackets. The mounting plate is included in the delivery scope and serves as the base for device installation. The door hinges are pre-set on the right side but can be converted to the left side. Installation is carried out via the designated mounting domes and screw holes.

Operational Advantages
The enclosure offers high mechanical stability, weather resistance, and protection against dust and moisture. The integrated viewing window allows visual inspection of the interior without opening the door, simplifying maintenance and monitoring. The double seal at the door edges provides additional rain protection. The use of GFK and galvanized steel sheet ensures long service life and corrosion resistance. The integrated mounting domes and 25 mm grid enable flexible and modular equipment of the enclosure.

General
Modelwith viewing window
MaterialCabinet and door: glass-fibre reinforced unsaturated polyester GFK, door: continuously foamed PU seal, mounting plate: sheet steel, viewing window: polycarbonate, flammability according to UL 94-V0, halogen-free
Surface protectionHousing and door: not post-treated, plastic pigmented, mounting plate: zinc-plated
ColourSimilar to RAL 7035
Scope of deliveryEnclosure with hinged door with viewing window, fully enclosed, 3 mm double-barrel lock, door hinge on right, reversible to left, mounting plate, double sealing at top and bottom of door as integrated rain protection strip
NoteWhen used under long-term exposure to UV radiation (sunlight) and rain, we recommend coating the surface with a PUR lacquer to avoid optical surface impairment. Price and delivery time on request.
NEMA degree of protectionNEMA 1, NEMA 3R, NEMA 3RX, NEMA 4, NEMA 4X, NEMA 12
Degree of protection IP according to EN 60 529IP 56
Type rating according to UL 50EType 1, Type 3R, Type 3RX, Type 4, Type 4X, Type 12
Protection classII (at 1000 V AC)
IK codeIK09
Width800 mm
Height1.000 mm
Depth300 mm
Mounting plate material thickness3 mm
Mounting plate dimensions (W x H)705 mm x 925 mm
Door opening angle130°
Number of locks3
Base materialPlastic
StandardsComplies with F1 Outdoor Rating per UL 746C
Mounting noteFor mounting components inside the enclosure, screws for internal installation are required. Using the universal angle, components can be mounted on a 25 mm grid, e.g. system chassis.
With viewing windowJa


Please note...
This article has over-size and needs to be seperately taken care of. This is why we want to inform you, that the calculation of the delivery charges in the shopping cart will disregard this aspect. Though, there will be corresponding surcharges after you send us your order.
Product data sheet
Datasheet for Rittal 1479000, EAN: 4028177007048
