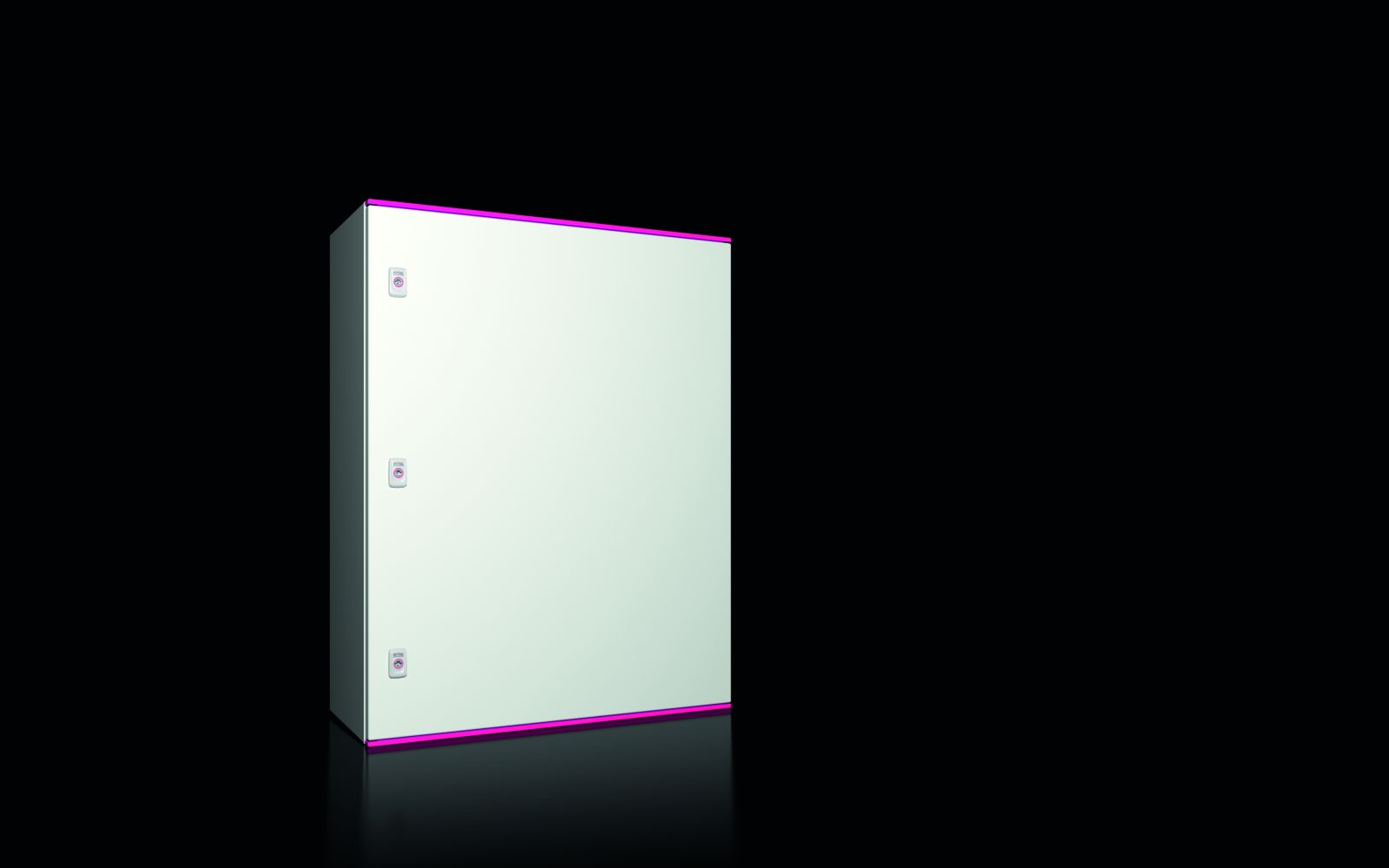

Rittal 1480000 AX plastic enclosure, 800x1000x300 mm, without lock,

Your rating:
Average rating
product review for Rittal 1480000 AX plastic enclosure, 800x1000x300 mm, without lock,
( 5 / 5 ) 3 ratings
Rittal 1480000
This image may differ from the desired article.
Rittal 1480000Rittal 1480000Rittal 1480000Rittal 1480000Rittal 1480000Rittal 1480000Rittal 1480000
-6% 661,25 EUR 700,93 EUR
( 786,89 EUR incl. VAT )
≈ £553.47  |  ≈ $726.71
Delivery time from supplier's stock (ca.) 8 workdaysinfo_outline
In Stock: >100 pieces
1x Rittal 1480000 AX plastic enclosure, 800x1000x300 mm, without lock,
Datasheet:file_download Download
Lieske Part No.:1775856
Mfg Part No: 1480000
UPC/EAN: 4028177007086
Weight:38.68 kg
Type:AX 1480000

Product information for Rittal 1480000:

The Rittal AX 1480000 is a plastic enclosure from the AX series, designed for use in demanding environments. The enclosure has dimensions of 800 mm width, 1000 mm height, and 300 mm depth and is available in the without viewing window version. It is made of glass-fibre-reinforced, unsaturated polyester (GFK), which is self-extinguishing according to UL 94-V0 and processed halogen-free. The surface is not post-treated and is coloured, matching RAL 7035. The door is fitted with a continuous foamed PU seal and features a 130° hinge mechanism made of stainless steel, which is reversible to the left. The mounting plate, made of galvanised steel sheet, has a material thickness of 3 mm and dimensions of 705 mm × 925 mm.

Applications
This enclosure is suitable for use in ambient temperature ranges from -30 °C to +75 °C. The specified temperatures may be limited by installed components. Due to its high protection ratings, it is suitable for outdoor use as well as in industrial environments with high humidity, dust exposure, or chemical influence. The integrated rain shield at the top and bottom edges of the door provides additional protection against precipitation.

Functions and Equipment in Detail
The enclosure is fully enclosed and features a 3 mm double-lip lock. The door can be secured with an integrated double lock, with three locks in total. The mounting plate is equipped with grounding keyhole slots and dimension markings and is fastened with Limbach nuts. Numerous mounting domes inside the enclosure allow for individual interior fitting on a 25 mm grid, for example with system chassis or rails. A QR code is printed on the enclosure body, mounting plate, door, and type plate to enable unique identification and traceability of parts.

Technology Explained Simply
The enclosure meets the F1 Outdoor Rating according to UL 746C, highlighting its suitability for outdoor use. The protection rating IP 66 according to EN 60 529 means the enclosure is dust-tight and protected against heavy splashing water. The protection rating NEMA 4X and Type 4X according to UL 50E confirms suitability for damp and corrosive environments. The protection class II (at 1000 V AC) indicates that the enclosure is double-insulated and does not require grounding. The IK code IK09 denotes mechanical strength against mechanical impacts, such as shocks or vibrations.

Compatibility and Accessories
Various accessories are available for this enclosure, expanding interior fitting and functionality. These include lock inserts made of zinc die-cast, mounting brackets for the 25 mm grid, mounting plates in various sizes, TS mounting brackets for door width 800 mm, circuit diagram pockets made of steel sheet, AX Mini comfort handles, the AS Multitool AX/VX 4052000, as well as system lights and VX system chassis in various dimensions. These components allow for flexible and application-specific equipping of the enclosure.

Mounting and Installation
Screws for interior fitting are required to mount components inside the enclosure. Mounting is done via the mounting domes in the enclosure and the mounting plate. The mounting plates are equipped with grounding keyhole slots. The door hinge direction is standard right, but can be changed to left. The integrated door stop at the bottom of the door facilitates opening and closing.

Operational Advantages
The enclosure offers high mechanical and chemical resistance due to the GFK material. The self-extinguishing property according to UL 94-V0 and halogen-free processing increase safety. The IP 66 and NEMA 4X protection ratings ensure reliable operation in damp, dusty, or corrosive environments. The integrated rain shield and double sealing at the top and bottom edges of the door provide effective protection against precipitation. The 130° door opening allows good access to the interior. The mounting domes on a 25 mm grid offer flexibility in component installation. For long-term exposure to UV radiation and rain, it is recommended to coat the surface with a PUR lacquer to avoid visual impairments.

General
Modelwithout viewing window
MaterialHousing and door: glass-fibre-reinforced unsaturated polyester GFK, door: continuously foamed PU seal, mounting plate: sheet steel, flammability behaviour according to UL 94-V0, halogen-free
Surface protectionHousing and door: not post-treated, plastic pigmented, mounting plate: zinc-plated
ColourSimilar to RAL 7035
Scope of deliveryHousing with hinged door, fully enclosed, 3 mm double latch, door hinge on right, reversible to left, mounting plate, double sealing at top and bottom door edges as integrated rain protection strip
NoteWhen used under long-term exposure to UV radiation (sunlight) and rain, we recommend coating the surface with a PUR lacquer to avoid optical surface impairment. Price and delivery time on request.
NEMA degree of protectionNEMA 1, NEMA 3R, NEMA 3RX, NEMA 4, NEMA 4X, NEMA 12
Degree of protection IP according to EN 60 529IP 66
Type rating according to UL 50EType 1, Type 3R, Type 3RX, Type 4, Type 4X, Type 12
Protection classII (at 1000 V AC)
IK codeIK09
Width800 mm
Height1.000 mm
Depth300 mm
Mounting plate material thickness3 mm
Mounting plate dimensions (W x H)705 mm x 925 mm
Door opening angle130°
Number of locks3
Base materialPlastic
StandardsComplies with F1 Outdoor Rating per UL 746C
Mounting noteFor mounting components inside the enclosure, screws for internal installation are required. Using the universal angle, components can be mounted on a 25 mm grid, e.g. system chassis.


Please note...
This article has over-size and needs to be seperately taken care of. This is why we want to inform you, that the calculation of the delivery charges in the shopping cart will disregard this aspect. Though, there will be corresponding surcharges after you send us your order.
Product data sheet
Datasheet for Rittal 1480000, EAN: 4028177007086
