Rittal 9677531 System mounting for VX (W: 1000 mm)

Your rating:
Average rating
product review for Rittal 9677531 System mounting for VX (W: 1000 mm)
( 4.4 / 5 ) 5 ratings
Rittal 9677531
This image may differ from the desired article.
Rittal 9677531Rittal 9677531
109,14 EUR
( 129,88 EUR incl. VAT )
≈ £91.35  |  ≈ $119.94
plus delivery charges: 100,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >100 pieces
1x Rittal 9677531 System mounting for VX (W: 1000 mm)
Datasheet:file_download Download
Lieske Part No.:1597959
Mfg Part No: 9677531
UPC/EAN: 4028177923300
Weight:5.14 kg
Type:SV 9677531

Product information for Rittal 9677531:

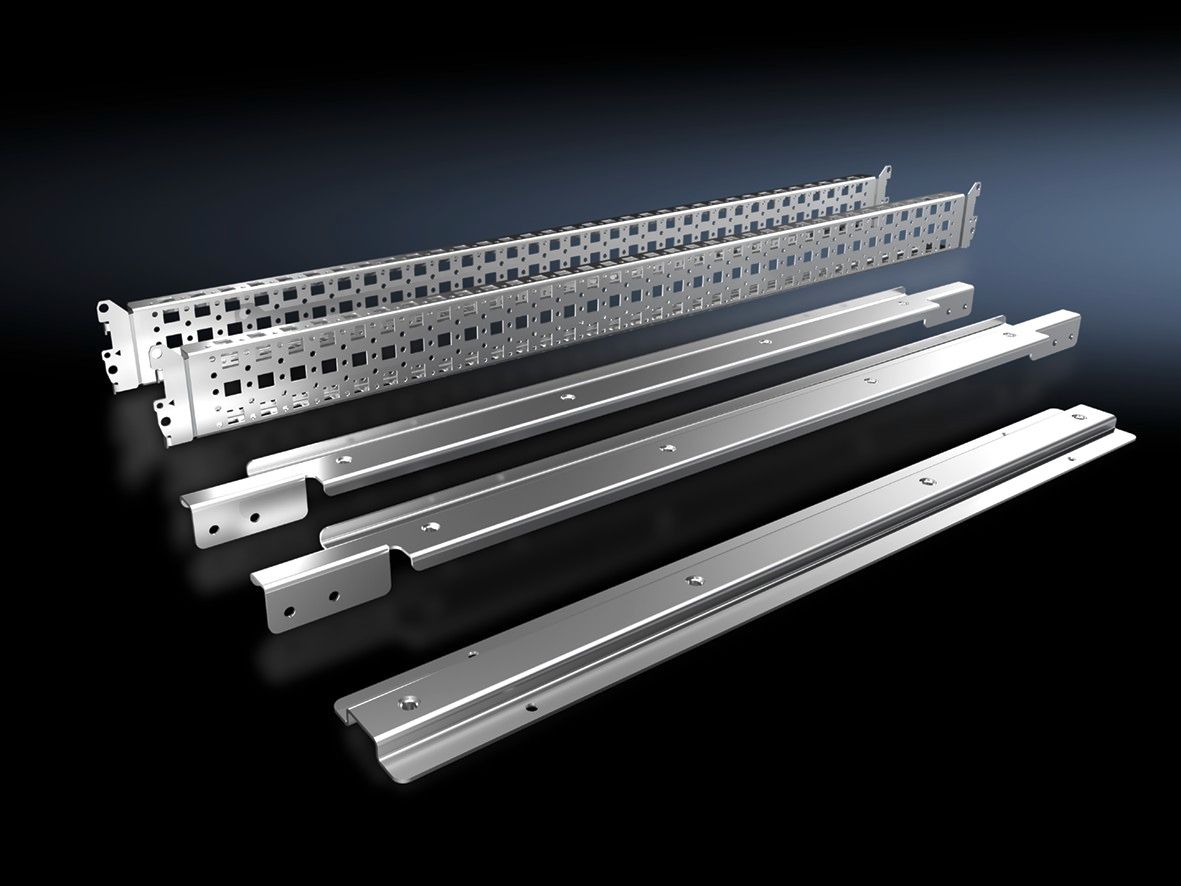

The Rittal SV 9677531 is a system mounting for VX busbar systems, specifically designed for enclosures with a width of 1,000 mm. The product is intended for the secure mounting of busbars with a center-to-center spacing of 185 mm within the enclosure. It is used in conjunction with the busbar holder SV 9677500 and enables stable and precise mounting of power distribution components. The mounting is achieved using sheet metal components, which ensure high mechanical strength and long-term stability.

Applications
This system mounting is intended for use in industrial enclosures, particularly in installations requiring structured and secure power distribution. It is used in electrical installations and machine building, where reliable mounting of busbars is necessary. The mounting is designed for enclosures with an exact width of 1,000 mm, ensuring a precise fit during installation.

Functions and Equipment in Detail
The product consists of sheet metal with a zinc-coated surface, providing good corrosion protection and extending service life in industrial environments. The delivery includes two system mountings (left and right), two mounting chassis, and fastening materials. Additionally, a central system mounting is included, which ensures central fixation of the busbars. The fastening elements are designed to enable secure and vibration-resistant mounting.

Technology Explained Simply
The system mounting is designed for mounting busbars with a center-to-center spacing of 185 mm. This spacing is a standard in industrial power distribution and ensures optimal positioning of the busbars within the enclosure. The use of sheet metal with a zinc-coated surface provides high mechanical stability and resistance to environmental influences. Mounting is achieved using the included mounting chassis and fastening materials, which enable secure anchoring in the enclosure.

Compatibility and Accessories
The SV 9677531 is specifically designed for use with the busbar holder SV 9677500. For variable depth adjustment of the busbar system within the enclosure, the system chassis 23 x 64 mm for VX is additionally required. The appropriate chassis is selected according to the desired enclosure depth. As accessories, system chassis in widths of 600 mm and 800 mm are available, intended for internal mounting planes. Additionally, VX cage nuts M8 can be used to facilitate mounting.

Mounting and Installation
Mounting is performed by attaching the system mountings to the side panels of the enclosure, with the central mounting serving as the main support. The mounting chassis are selected according to the enclosure depth and inserted into the designated holes. The included fastening materials enable secure and quick installation. The installation requires no additional tools other than a screwdriver or suitable wrench.

Advantages in Operation
The system mounting offers high mechanical stability and enables precise positioning of the busbars. The zinc-coated surface protects against corrosion and extends the product’s service life. The modular design with separate mounting chassis allows flexible adaptation to different enclosure depths. The use of standard dimensions (185 mm center-to-center spacing) ensures high compatibility with existing systems. The mounting is designed for industrial environments and provides a reliable solution for power distribution in enclosures.

General
Materialsteel sheet
Surface protectionZinc-plated
Scope of delivery2 system mounting brackets (left/right), 2 mounting chassis, including fastening material, system mounting bracket (center)
Mounting noteFor variable depth adjustment of the busbar system in the control cabinet, the additional system chassis 23 x 64 mm for VX (for internal mounting plane) is required. Selection is according to the cabinet depth.
Suitable for width= 1.000 mm
PCF/VE (Cradle-to-Gate)19.4 kg CO2 eq (Cat B)
Note on PCF classCategory B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared
