Rittal 9677511 System mounting for VX (W: 600 mm)

Your rating:
Average rating
product review for Rittal 9677511 System mounting for VX (W: 600 mm)
( 4.4 / 5 ) 5 ratings
Rittal 9677511
This image may differ from the desired article.
Rittal 9677511Rittal 9677511Rittal 9677511
80,73 EUR
( 96,07 EUR incl. VAT )
≈ £67.57  |  ≈ $88.72
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >100 pieces
1x Rittal 9677511 System mounting for VX (W: 600 mm)
Datasheet:file_download Download
Lieske Part No.:1597961
Mfg Part No: 9677511
UPC/EAN: 4028177923324
Weight:3.44 kg
Type:SV 9677511

Product information for Rittal 9677511:

The Rittal SV 9677511 is a system mounting for VX, specifically designed for mounting busbar systems with a center-to-center spacing of 185 mm in the enclosure. The product serves as a mounting element for the busbar holder SV 9677500 and is designed for enclosures with a width of 600 mm. It is made of sheet steel and features a galvanized surface, ensuring high corrosion resistance and extending service life in industrial applications.

Applications
The system mounting is intended for use in industrial enclosures, particularly in installations where structured and secure mounting of busbars is required. It is suitable for applications in electrical and automation technology, where precise positioning of power distribution components within the enclosure is necessary. The mounting enables secure and stable anchoring of the busbars, ensuring reliable power supply for connected components.

Functions and Equipment in Detail

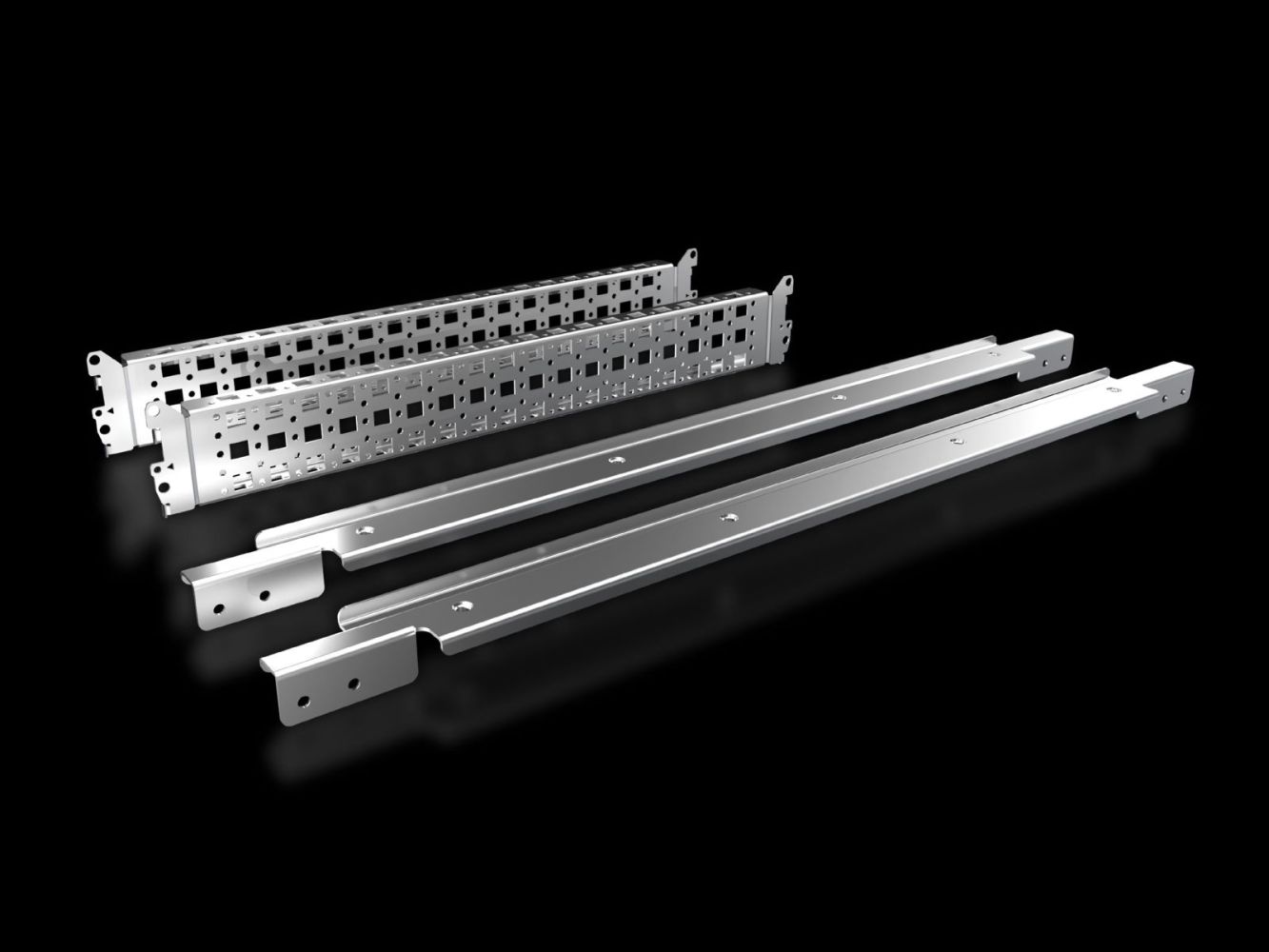

The delivery includes two system mountings, one for the left and one for the right side, as well as two mounting chassis. Additionally, mounting materials are included for installation in the enclosure. The system mountings are designed to provide a secure and slip-resistant connection to the enclosure body. The mounting chassis serve as the base for securing the busbars and ensure even load distribution.

Technology Explained Simply
The system mounting is designed for enclosures with an exact width of 600 mm. The galvanized sheet steel surface provides high protection against corrosion, which is particularly advantageous in humid or aggressive environments. Mounting is achieved using the included mounting chassis and fastening materials, enabling secure anchoring in the enclosure. The construction is designed for stable and durable installation to withstand mechanical loads during operation.

Compatibility and Accessories
The SV 9677511 is specifically designed for use with the busbar holder SV 9677500. For variable depth adjustment of the busbar system within the enclosure, the additional system chassis 23 x 64 mm for VX is required, designed for internal mounting level. The selection of the appropriate system chassis depends on the desired enclosure depth. As accessories, VX system chassis in widths of 600 mm and 800 mm, as well as VX cage nuts M8, are also available and can be combined according to requirements.

Mounting and Installation
Mounting is performed by attaching the system mountings to the side panels of the enclosure, using the mounting chassis and included fastening materials. Positioning is carried out according to the specified mounting level and enclosure depth. If required, the system chassis 23 x 64 mm for VX can be additionally mounted to enable depth-variable arrangement of the busbars. Installation is tool-assisted and does not require special skills.

Advantages in Operation
The system mounting provides stable and secure mounting of the busbars, increasing the reliability of power supply within the enclosure. The galvanized surface ensures long service life, even under industrial conditions. The modular design allows flexible adaptation to different enclosure depths by using additional system chassis. The pre-defined mounting components simplify installation and reduce mounting time.

General
Materialsteel sheet
Surface protectionZinc-plated
Scope of delivery2 system mounting brackets (left/right), 2 mounting chassis, including fastening material
Mounting noteFor variable depth adjustment of the busbar system in the control cabinet, the additional system chassis 23 x 64 mm for VX (for internal mounting plane) is required. Selection is according to the cabinet depth.
Suitable for width= 600 mm
PCF/VE (Cradle-to-Gate)13.1 kg CO2 eq (Cat B)
Note on PCF classCategory B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared


Product data sheet
Datasheet for Rittal 9677511, EAN: 4028177923324
