Rittal 9677521 System mounting for VX (W: 800 mm)

Your rating:
Average rating
product review for Rittal 9677521 System mounting for VX (W: 800 mm)
( 4.5 / 5 ) 4 ratings
Rittal 9677521
This image may differ from the desired article.
Rittal 9677521Rittal 9677521Rittal 9677521
85,10 EUR
( 101,27 EUR incl. VAT )
≈ £71.23  |  ≈ $93.52
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >50 pieces

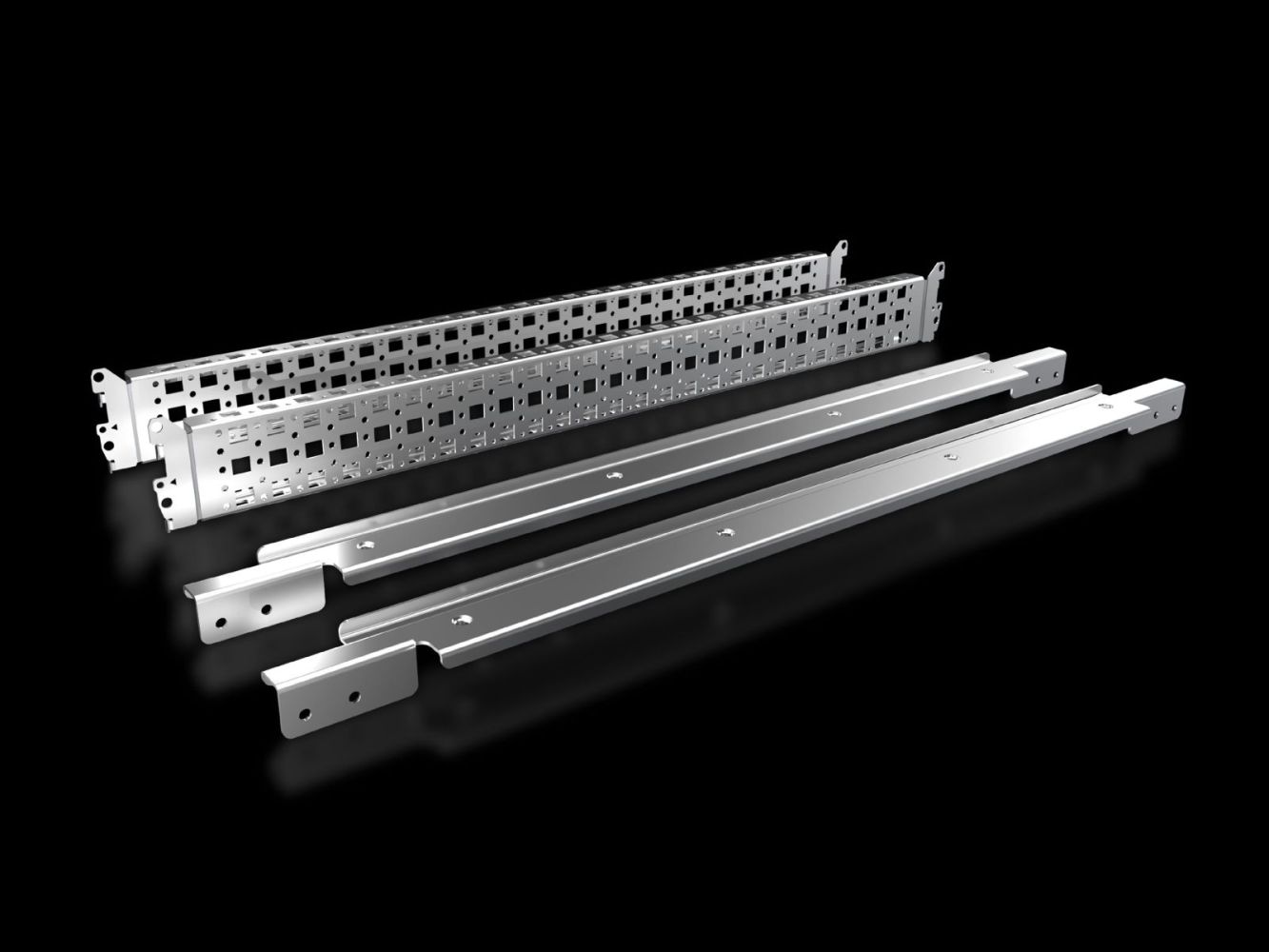

1x Rittal 9677521 System mounting for VX (W: 800 mm)
Datasheet:file_download Download
Lieske Part No.:1597960
Mfg Part No: 9677521
UPC/EAN: 4028177923317
Weight:3.74 kg
Type:SV 9677521

Product information for Rittal 9677521:

The Rittal SV 9677521 is a system mounting for VX, specifically designed for mounting busbar systems with a center distance of 185 mm in enclosures. The product is designed for enclosures with a width of 800 mm and serves as a mounting component for the busbar holder SV 9677500. It is made of sheet steel and features a galvanized surface, ensuring high corrosion resistance and durability in industrial environments.

Applications
The system mounting is primarily intended for use in industrial enclosures where secure and stable mounting of busbars is required. It is particularly suitable for installations where electrical energy is distributed, such as in production plants, automation systems, or building automation. The mounting enables precise alignment of the busbars, ensuring reliable power supply for connected components.

Functions and Equipment in Detail
The delivery includes two system mountings (left and right), two mounting chassis, and the required fastening materials. The system mountings are designed to ensure secure anchoring in the enclosure while also enabling easy installation. The mounting chassis serve as the base for securing the busbars and are designed for the standard dimensions of the VX system.

Technology Explained Simply
The system mounting is designed for enclosures with a width of 800 mm and enables the mounting of busbars at a center distance of 185 mm. The galvanized sheet steel surface provides high protection against corrosion, which is particularly advantageous in humid or aggressive environments. The mounting is done using the included mounting components, ensuring a secure and durable connection. The construction is designed to withstand mechanical loads during operation and provides high stability.

Compatibility and Accessories
The system mounting is specifically developed for use with the busbar holder SV 9677500. For variable depth adjustment of the busbar system within the enclosure, the additional system chassis 23 x 64 mm for VX (for internal mounting plane) is required. The selection of the appropriate chassis depends on the desired enclosure depth. As accessories, VX system chassis in dimensions 600 mm and 800 mm, as well as VX cage nuts M8, are also available and can be combined as needed.

Mounting and Installation
Mounting is done by securing the system mountings at the designated positions in the enclosure. The included mounting chassis are then attached to the system mountings, with precise positioning ensured by the pre-drilled holes and mounting aids. The fastening materials enable a secure and durable installation. If required, the system chassis 23 x 64 mm for VX can be added to adjust the depth of the mounting plane.

Advantages in Operation
The system mounting provides a stable and reliable mounting base for busbars, increasing operational safety. The galvanized surface ensures a long service life, even under demanding environmental conditions. The modular construction allows flexible adaptation to different enclosure depths by using additional system chassis. The clear structure and included mounting aids simplify installation and reduce mounting time.

General
Materialsteel sheet
Surface protectionZinc-plated
Scope of delivery2 system mounting brackets (left/right), 2 mounting chassis, including fastening material
Mounting noteFor variable depth adjustment of the busbar system in the control cabinet, the additional system chassis 23 x 64 mm for VX (for internal mounting plane) is required. Selection is according to the cabinet depth.
Suitable for width= 800 mm
PCF/VE (Cradle-to-Gate)14.2 kg CO2 eq (Cat B)
Note on PCF classCategory B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared


Product data sheet
Datasheet for Rittal 9677521, EAN: 4028177923317
