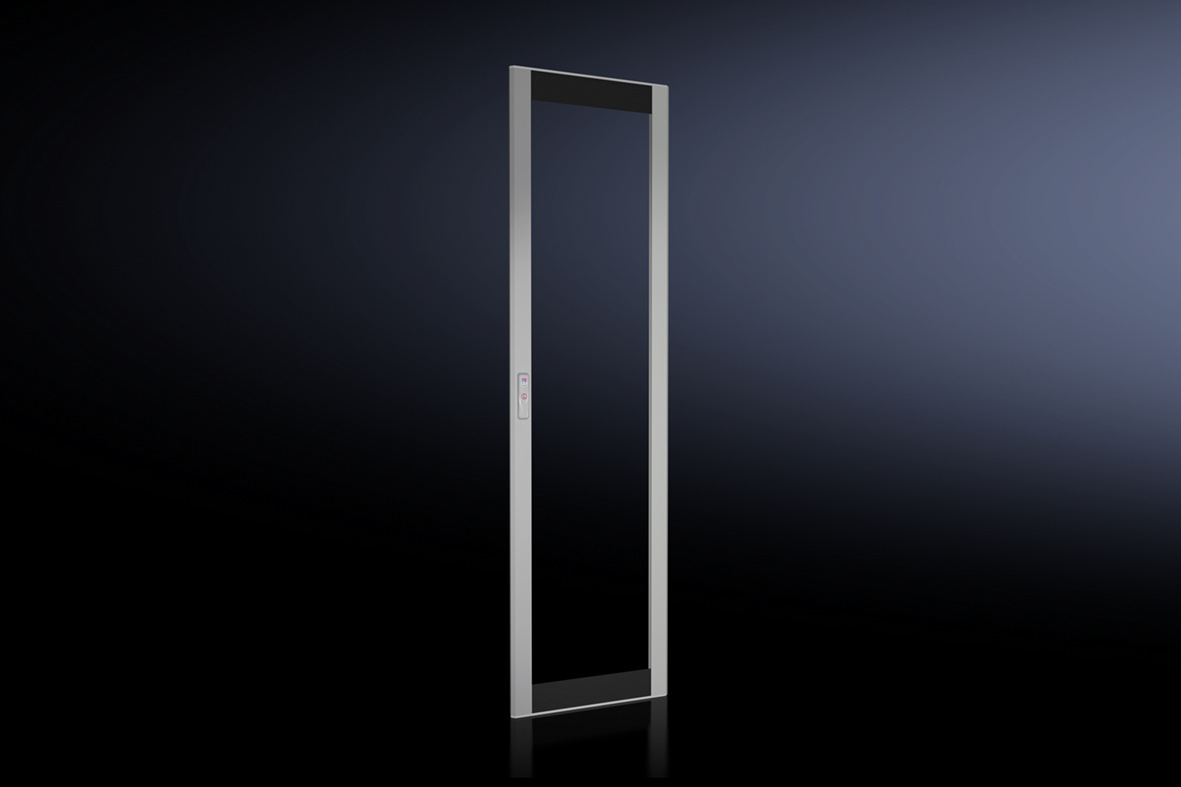

Rittal 8618040 VX viewing door, W x H: 600x2200 mm

Your rating:
Average rating
product review for Rittal 8618040 VX viewing door, W x H: 600x2200 mm
( 4.2 / 5 ) 11 ratings
Rittal 8618040
This image may differ from the desired article.
Rittal 8618040Rittal 8618040Rittal 8618040
491,51 EUR
( 584,90 EUR incl. VAT )
≈ £411.39  |  ≈ $540.17
plus delivery charges: 148,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >10 pieces
1x Rittal 8618040 VX viewing door, W x H: 600x2200 mm
Datasheet:file_download Download
Lieske Part No.:1440912
Mfg Part No: 8618040
UPC/EAN: 4028177920934
Weight:15.4 kg
Type:VX 8618.040

Product information for Rittal 8618040:

The Rittal VX 8618.040 is a viewing door for enclosures of the enclosure type VX, specifically designed as a replacement for a steel sheet door or rear panel. It enables visual inspection of installed components inside the enclosure without having to open the door. The door is designed for enclosures with a width of 600 mm and a height of 2,200 mm, fitting standard configurations of the VX system. The construction is based on an aluminium extruded profile for the frame, providing high mechanical stability and corrosion resistance. The viewing pane consists of single-glazed safety glass with a thickness of 3 mm, ensuring safe observation of internal components. The surface is powder-coated, providing a uniform, durable, and long-lasting coating. The frame is finished in RAL 7035, while the internally printed mask on the viewing pane is in RAL 9005, enabling a high-contrast and clearly readable view of the devices inside.

Applications
The viewing door is intended for use in industrial environments where continuous visual monitoring of installed devices is required, for example in automation systems, power distribution enclosures, or control systems. It is particularly suitable for installations where the operating status of components such as switches, relays, or indicators must be continuously monitored without opening the enclosure door. The protection rating IP 55 according to IEC 60 529 protects against dust and splashing water, making the door suitable for indoor use as well as in slightly damp or dusty environments. The IK08 rating provides high mechanical protection against impact and vibration, making the door suitable for industrial applications with increased mechanical stress.

Functions and Equipment in DetailThe viewing door is supplied with a rod lock with double-bar lock insert, ensuring secure and reliable locking. The door is equipped with four 180° hinges, allowing full opening of the door and facilitating access to devices inside the enclosure. The viewing pane features an internally printed mask in RAL 9005, improving readability of indicators and controls inside.

Technology Explained SimplyThe use of single-glazed safety glass ensures that the viewing pane breaks into small, non-sharp fragments if shattered, increasing safety during operation. The powder-coated surface offers high resistance to corrosion, mechanical stress, and environmental influences. The protection rating IP 55 means the door is dust-tight and protected against splashing water from any direction, making it suitable for use in industrial halls or environments with increased humidity. The IK08 rating corresponds to mechanical protection against impact with an energy of 5.3 J, protecting the door against normal operational stresses and minor mechanical impacts.

Compatibility and AccessoriesThe viewing door is specifically designed for enclosures of the enclosure type VX with a width of 600 mm and a height of 2,200 mm. As an accessory, the VX lock component is available, which is required during installation in place of the rear panel. The door is equipped with a rod lock with double-bar lock insert, ensuring secure locking. The type rating according to UL 50E includes categories Type 1 and Type 12, allowing use in dry indoor environments as well as in environments with light contamination.

Installation and MountingMounting is carried out in place of a steel sheet door or rear panel. The door is mounted using the included 180° hinges and the rod lock. Installation follows standard procedures for enclosure accessories, with hinges and lock installed according to the manufacturer’s instructions.

Operational AdvantagesThe viewing door enables continuous visual monitoring of devices installed in the enclosure without opening the door. This reduces the need for openings, increasing safety and reducing the risk of disturbances or incorrect operation. The protection rating IP 55 and the IK08 rating ensure high reliability in industrial environments. The powder-coated surface and safety glass increase the service life and ease of maintenance of the door. The delivery includes the viewing door, rod lock with double-bar lock insert, and four 180° hinges.

General
MaterialFrame: aluminium extruded profile, viewing panel: single-pane safety glass, 3 mm
Surface protectionPowder-coated
ColourFrame: RAL 7035, viewing window (internally printed mask): RAL 9005
Scope of deliveryVision door, bar lock with double-bar insert, 180° hinges (4 pieces)
IK codeIK08
NoteWhen mounted instead of rear panel, locking parts for frame 8618.110 are required
Type rating according to UL 50EType 1, Type 12
Degree of protection IP according to IEC 60 529IP 55
Suitable forCabinet type: VX, width: = 600 mm, height: = 2,200 mm


Product data sheet
Datasheet for Rittal 8618040, EAN: 4028177920934
