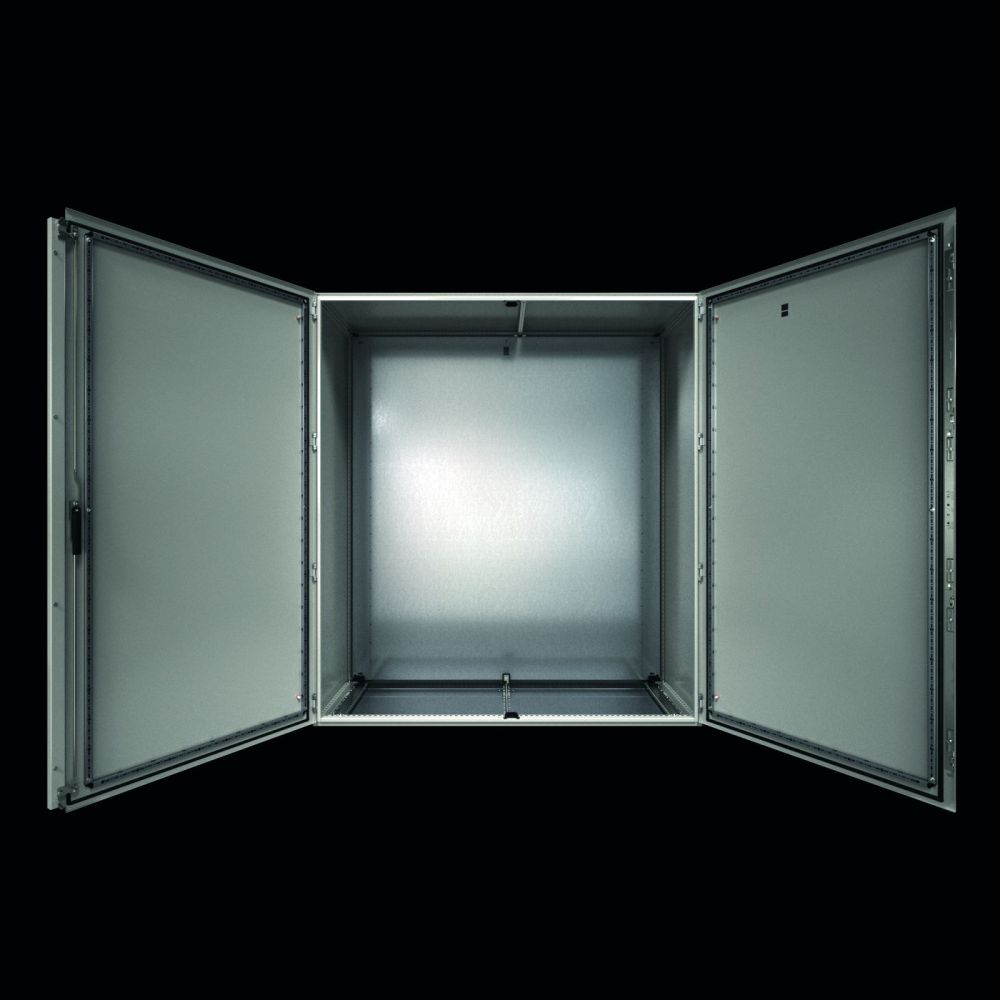

Rittal 5842600 VX SE system single enclosure 1600x1800x400 mm steel
|
1.071,01 EUR 1.071,92 EUR |
|
|
( 1.274,50 EUR incl. VAT ) ≈ £896.44 | ≈ $1,177.04 plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 5 workdaysinfo_outline | |
| In Stock: >25 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1055465 |
| Mfg Part No: | 5842600 |
| UPC/EAN: | 4028177959163 |
| Weight: | 231.5 kg |
| Type: | SE 5842600 |
Product information for Rittal 5842600:
Applications
The enclosure is designed for use in industrial environments where high mechanical stability and protection against dust and splashing water are required. It is suitable for installing control and switching systems, such as in manufacturing, energy supply, or machine building. The integrated mounting plate and two mounting levels enable space-saving and flexible system configuration.
Functions and equipment in detail
The enclosure features a robust construction made of sheet steel with a wall thickness of 1.5 mm for the enclosure, rear wall, and base plates, and 2.0 mm for the doors. The mounting plate is made of 3.0 mm sheet steel. The surface of the enclosure, doors, and rear wall is dip-primed and externally powder-coated with textured lacquer in RAL 7035. The mounting plate and base plates are galvanized to provide an additional corrosion protection layer. The doors are equipped with an automatic equipotential bonding to the enclosure body, enhancing electrical safety. The door opening is standardly 130° and can be toollessly extended to 180°. The hinges are fitted with screwed-on stops and non-removable hinge pins.
Technology explained simply
The protection rating IP 55 according to EN 60 529 means the enclosure is dust-tight and protected against splashing water from all directions. The protection ratings NEMA 3R and NEMA 12, as well as the type rating according to UL 50E (Type 1, 2, 3, 3R, 12), confirm suitability for use in indoor and outdoor environments under various environmental conditions. The IK code IK10 indicates high mechanical resistance against mechanical impacts, such as blows or shocks. The surface treatment with nanoceramic, electrophoretic dip priming, and textured powder coating ensures high resistance against corrosion, mineral oils, lubricants, machining emulsions, and solvents.
Compatibility and accessories
The enclosure is system-compatible with accessories of the VX25 system. Suitable accessories include, among others, system chassis, circuit diagram pockets, levelling feet, lock inserts, mounting brackets, comfort handles, VX profiles for cable entry, support rollers, transport eyes, door latches, and plinth corner pieces. These components enable individual adaptation to specific requirements and simplify mounting and maintenance.
Mounting and installation
Mounting is performed via the integrated mounting levels and depth-adjustable mounting rails. The mounting plate is equipped with a mounting grid to simplify component positioning. The base plates are removable, facilitating cleaning and maintenance. The rear wall is removable, enabling flexible mounting and maintenance. The doors are equipped with a double-barrel lock, ensuring secure closure.
Advantages in operation
The enclosure offers high mechanical stability and protective features required for industrial environments. The integrated mounting levels and depth-adjustable mounting rails enable flexible and space-saving system configuration. The robust construction and high-quality surface treatment ensure long service life and low maintenance costs. The toolless extension of the door opening to 180° facilitates maintenance and inspection of installed components.
| General | |
| Material | Housing: steel sheet 1.5 mm, door: steel sheet, 2.0 mm, rear panel: steel sheet, 1.5 mm, base plates: steel sheet, 1.5 mm, mounting plate: steel sheet, 3.0 mm |
| Surface protection | Housing, door and rear panel: dip primed, externally powder coated, textured lacquer; mounting plate and base sheets: galvanised |
| Colour | RAL 7035 |
| Scope of delivery | Enclosure top and sides closed, door(s), for single-door cabinets door hinge on right, reversible to left, mounting plate, base plates, rear panel, removable, locking: 3 mm double bar, 2 mounting rails 18 x 39 mm, rear panel, two-piece |
| Width | 1.600 mm |
| Height | 1.800 mm |
| Depth | 400 mm |
| Mounting plate dimensions (W x H) | 1.499 mm x 1.696 mm |
| Degree of protection IP according to EN 60 529 | IP 55 |
| NEMA degree of protection | NEMA 3R, NEMA 12 |
| Type rating according to UL 50E | Type 1, Type 2, Type 3, Type 3R, Type 12 |
| IK code | IK10 |
| Number of doors | 2 |
| Base material | steel sheet |
| PCF/VE (Cradle-to-Gate) | 589.51 kg CO2 eq (Cat B) |
| Note on PCF class | Category B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared |
