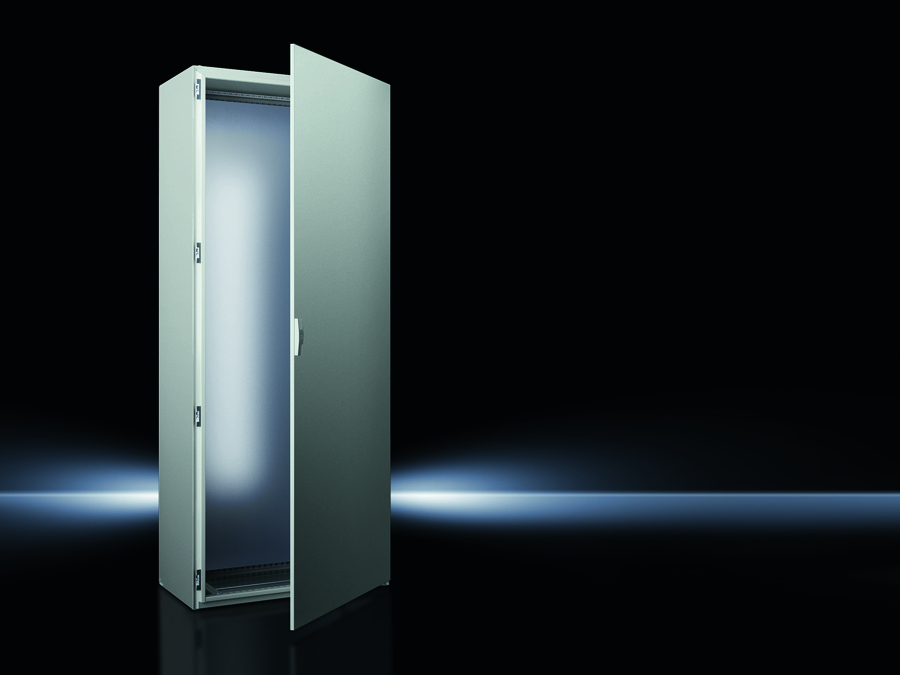

Rittal 5831680 SE system single enclosure, IP 66, NEMA 4, 800x1800x40 mm
|
-8% 794,65 EUR 860,63 EUR |
|
|
( 945,63 EUR incl. VAT ) ≈ £665.12 | ≈ $873.32 plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline | |
| In Stock: >10 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1055462 |
| Mfg Part No: | 5831680 |
| UPC/EAN: | 4028177959309 |
| Weight: | 124.8 kg |
| Type: | SE 5831680 |
Product information for Rittal 5831680:
Applications
The cabinet is suitable for use in environments with high requirements for protection against dust, water, and mechanical impacts. The protection rating IP 66 according to EN 60 529 ensures dust-tightness and protection against strong splashing water from any direction, making it suitable for outdoor use or in humid production environments. The corresponding NEMA 4 rating confirms suitability for use in damp, dusty, or mildly corrosive environments. Additionally, the cabinet meets Type ratings according to UL 50E for Type 1, 2, 3, 3R, 4, and 12, enabling use in various industrial and commercial applications. The IK code IK10 provides high protection against mechanical impacts, such as shock or impact.
Functions and Equipment in Detail
The cabinet features a single-door front with right-hand hinge, which can optionally be converted to left-hand hinge. The door is made of sheet steel with a thickness of 2.0 mm and includes a horizontal double sealing ring as well as a square tube frame with a 25 mm pitch hole pattern. The locking mechanism uses a 3 mm double bar, manufactured according to DIN 43668. The door can be opened up to 130° and is equipped according to VDI guidelines; extension to 180° is possible retroactively. The automatic equipotential bonding connection between door and enclosure ensures a secure electrical connection.
Technology Explained Simply
The enclosure is made of sheet steel with a thickness of 1.5 mm, as are the rear panel and base. The mounting plate is made of 3.0 mm thick sheet steel and provides a stable mounting surface for electrical components. The surface of the enclosure, door, and rear panel is dip-primed and externally coated with a powder-coated textured paint in RAL 7035, ensuring high corrosion resistance and resistance against mineral oils, lubricants, processing emulsions, and solvents. The mounting plate is galvanized, the base is dip-primed and powder-coated. The rear panel is removable and equipped with a sealing ring and a square tube frame for additional reinforcement. The base construction consists of a single-piece base sheet with two gland plates, which are also removable.
Compatibility and Accessories
The cabinet is equipped with two integrated mounting levels perforated in a 25 mm pitch to enable flexible and space-saving installation of components. Compatible accessories include, among others, VX plinth corner pieces with plinth trim panel, system chassis for internal and external mounting levels, levelling feet with an adjustment height of 18 to 43 mm, comfort handles in RAL 7035, transport eyes for freight shipping, as well as door latches and lock inserts made of zinc die-cast. These components allow individual adaptation of the cabinet to specific mounting and transport requirements.
Mounting and Installation
Mounting is performed via the integrated mounting levels, which are perforated in a 25 mm pitch. The mounting plate is depth-adjustable in 25 mm increments using integrated plastic glides and reusable mounting rails. The gland plates at the base are removable and allow for flexible installation. The rear panel is screwed on and can be removed if necessary. The door is equipped with an automatic equipotential bonding connection, ensuring a secure electrical connection to the enclosure.
Operational Advantages
The cabinet offers high mechanical and electrical stability due to the use of sheet steel in various thicknesses. The IP 66 and NEMA 4 ratings, along with IK10 protection, ensure long service life even in demanding environments. The integrated mounting levels and compatibility with the VX25 baying system reduce installation time and enable flexible expansion of the installation. The surface coating in RAL 7035 provides high resistance to environmental influences and facilitates cleaning. The removable gland plates and adjustable mounting plate increase flexibility during installation and maintenance.
The delivery includes the enclosure with closed roof and sides, a door with right-hand hinge (convertible), a mounting plate, the base, gland plates, a removable rear panel, a 3 mm double bar locking mechanism, and two mounting rails with dimensions 18 x 39 mm.
| General | |
| Material | Housing: Sheet steel 1.5 mm, Door: Sheet steel, 2.0 mm, Rear panel: Sheet steel, 1.5 mm, Base: Sheet steel, 1.5 mm, Mounting plate: Sheet steel, 3.0 mm |
| Surface protection | Housing, door and rear panel: dip-primed, externally powder-coated, textured lacquer, mounting plate: galvanised, base: dip-primed and powder-coated, textured lacquer |
| Colour | RAL 7035 |
| Scope of delivery | Housing top and sides closed, door(s), door hinge right, reversible to left, mounting plate, base, flange plate(s), rear panel, removable, closure: 3 mm double bar, 2 mounting rails 18 x 39 mm |
| Width | 800 mm |
| Height | 1.800 mm |
| Depth | 400 mm |
| Mounting plate dimensions (W x H) | 699 mm x 1.696 mm |
| Degree of protection IP according to EN 60 529 | IP 66 |
| NEMA degree of protection | NEMA 4 |
| Type rating according to UL 50E | Type 1, Type 2, Type 3, Type 3R, Type 4, Type 12 |
| IK code | IK10 |
| Number of doors | 1 |
| Base material | steel sheet |
| PCF/VE (Cradle-to-Gate) | 359.73 kg CO2 eq (Cat B) |
| Note on PCF class | Category B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared |
