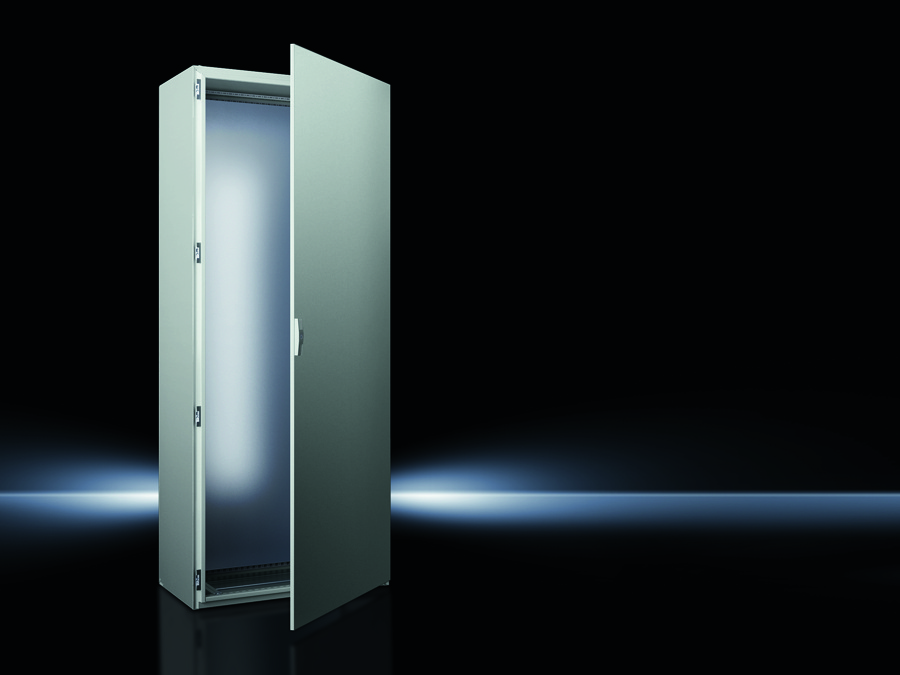

Rittal 5834680 SE system single enclosure, IP 66, NEMA 4, 800x2000x40 mm
|
885,16 EUR |
|
|
( 1.053,34 EUR incl. VAT ) ≈ £740.88 | ≈ $972.79 plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline | |
| In Stock: >10 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1055463 |
| Mfg Part No: | 5834680 |
| UPC/EAN: | 4028177959316 |
| Weight: | 152 kg |
| Type: | SE 5834680 |
Product information for Rittal 5834680:
Applications
The enclosure is suitable for use in production plants, automation technology, power supply systems, and other industrial applications where protection against dust, water, and mechanical impacts is required. The protection rating IP 66 according to EN 60 529 ensures high protection against dust and heavy splashing water, including water jets from all directions. The protection rating NEMA 4 complies with American standards and protects the enclosure against splashing water, dust, and temporary ingress of foreign objects. Additionally, the enclosure meets the type ratings according to UL 50E: Type 1, Type 2, Type 3, Type 3R, Type 4, and Type 12, confirming its suitability for various environments in the USA and Canada. The IK code IK10 guarantees high mechanical protection against impact and shock, making it suitable for areas with increased mechanical stress.
Functions and Equipment in Detail
The enclosure consists of a single-piece body made of 1.5 mm sheet steel, with roof and side panels manufactured as one piece and featuring a profiled frame. This reduces assembly effort, as no additional side panels need to be installed. The door is made of 2.0 mm sheet steel and features a horizontal, double foam sealing ring to ensure a tight seal. The rear panel is removable and also made of 1.5 mm sheet steel, enabling easy maintenance and component installation. The base is made of 1.5 mm sheet steel and is equipped with gland plates, which are also removable. The mounting plate is galvanized and provides a stable base for device installation.
Technology Explained Simply
The surface of the enclosure, door, and rear panel is dip-primed and externally powder-coated with a textured finish in the color RAL 7035. This coating offers high corrosion resistance and is resistant to mineral oils, lubricants, processing emulsions, and solvents. The mounting plate is galvanized, providing additional corrosion protection. The integrated mounting rails (2 pieces, 18 x 39 mm) allow for the attachment of DIN rails and other components. The door can be opened up to 130°, with an optional extension to 180°. Electrical equipotential bonding is automatically achieved between the door and enclosure, enhancing safety.
Compatibility and Accessories
The enclosure is fully compatible with the VX25 baying system, enabling flexible expansion and integration into existing enclosure installations. Suitable accessories include, among others, VX plinth corner pieces, levelling feet, transport eyes, comfort handles, door latches, and lock inserts. These components support assembly, transportation, and individual adaptation of the enclosure to specific requirements.
Assembly and Installation
Installation is performed by securing the mounting plate to the base plate, with the depth adjustable in 25 mm increments using integrated plastic glides. The mounting rails are included in the delivery scope and enable quick and secure attachment of components. The gland plates on the base are removable, facilitating the installation of cable entry plates. The rear panel is removable, ensuring easy access to the interior.
Operational Advantages
The enclosure offers high mechanical and electrical safety through IP 66 and NEMA 4 certification, as well as IK10 protection. The single-piece construction of the enclosure reduces assembly time and effort. The integrated mounting plate and pre-fabricated mounting rails enable quick and precise installation of devices. The use of sheet steel in various wall thicknesses ensures stability and durability. The surface coating in RAL 7035 provides high resistance to environmental influences and ensures a long service life for the enclosure.
| General | |
| Material | Housing: Sheet steel 1.5 mm, Door: Sheet steel, 2.0 mm, Rear panel: Sheet steel, 1.5 mm, Base: Sheet steel, 1.5 mm, Mounting plate: Sheet steel, 3.0 mm |
| Surface protection | Housing, door and rear panel: dip-primed, externally powder-coated, textured lacquer, mounting plate: galvanised, base: dip-primed and powder-coated, textured lacquer |
| Colour | RAL 7035 |
| Scope of delivery | Housing top and sides closed, door(s), door hinge right, reversible to left, mounting plate, base, flange plate(s), rear panel, removable, closure: 3 mm double bar, 2 mounting rails 18 x 39 mm |
| Width | 800 mm |
| Height | 2.000 mm |
| Depth | 600 mm |
| Mounting plate dimensions (W x H) | 699 mm x 1.896 mm |
| Degree of protection IP according to EN 60 529 | IP 66 |
| NEMA degree of protection | NEMA 4 |
| Type rating according to UL 50E | Type 1, Type 2, Type 3, Type 3R, Type 4, Type 12 |
| IK code | IK10 |
| Number of doors | 1 |
| Base material | steel sheet |
| PCF/VE (Cradle-to-Gate) | 434.36 kg CO2 eq (Cat B) |
| Note on PCF class | Category B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared |
